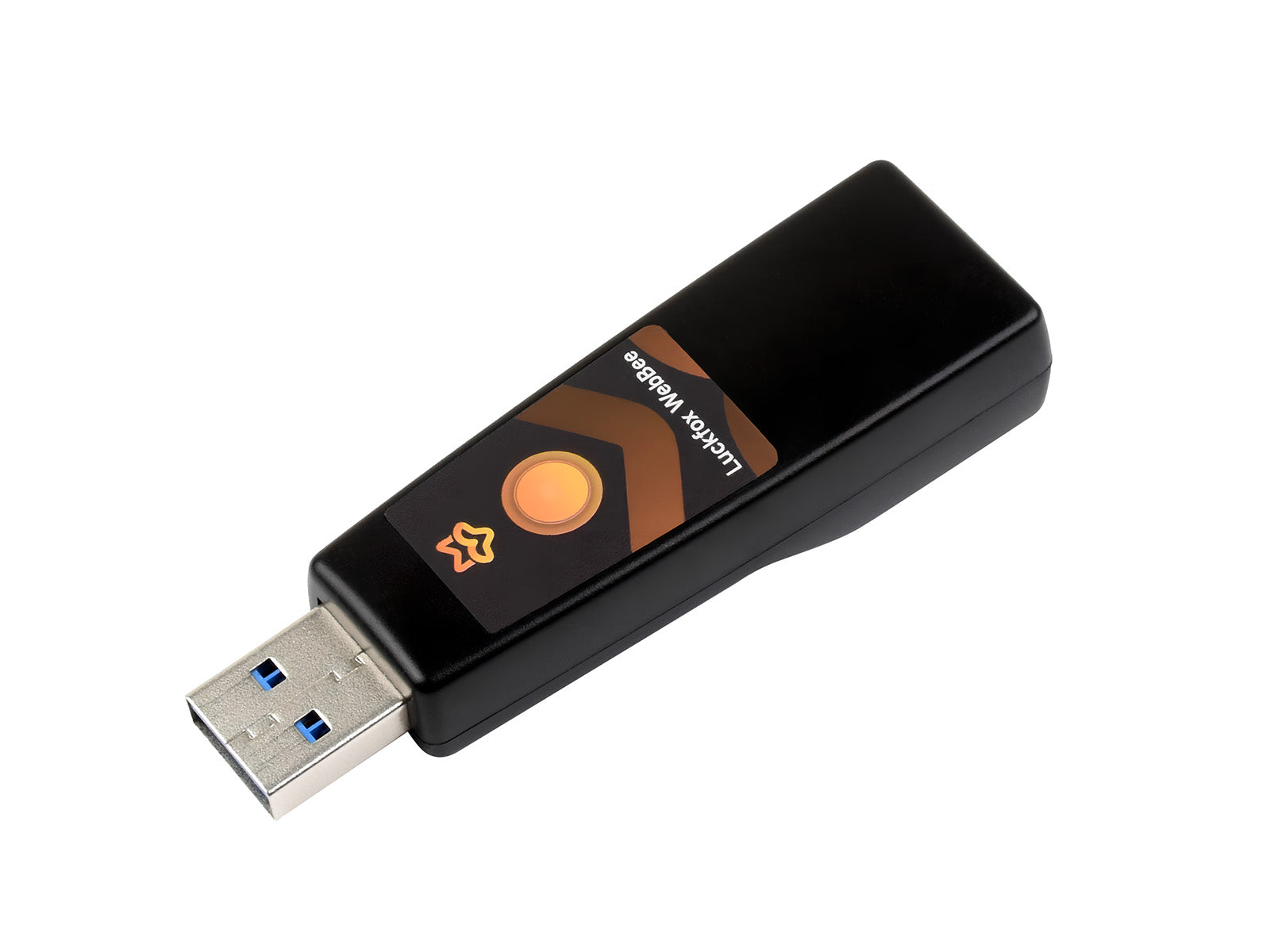

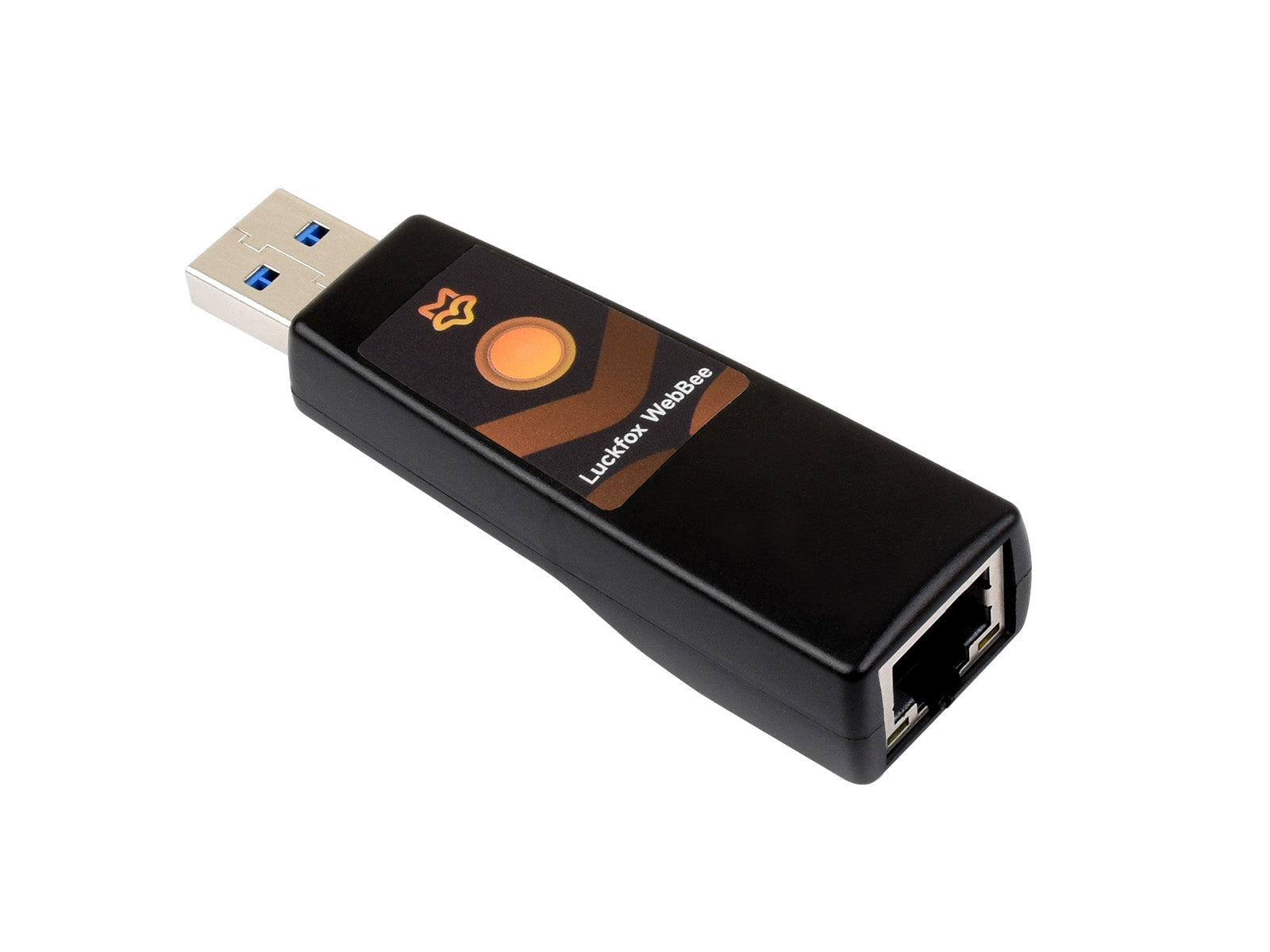

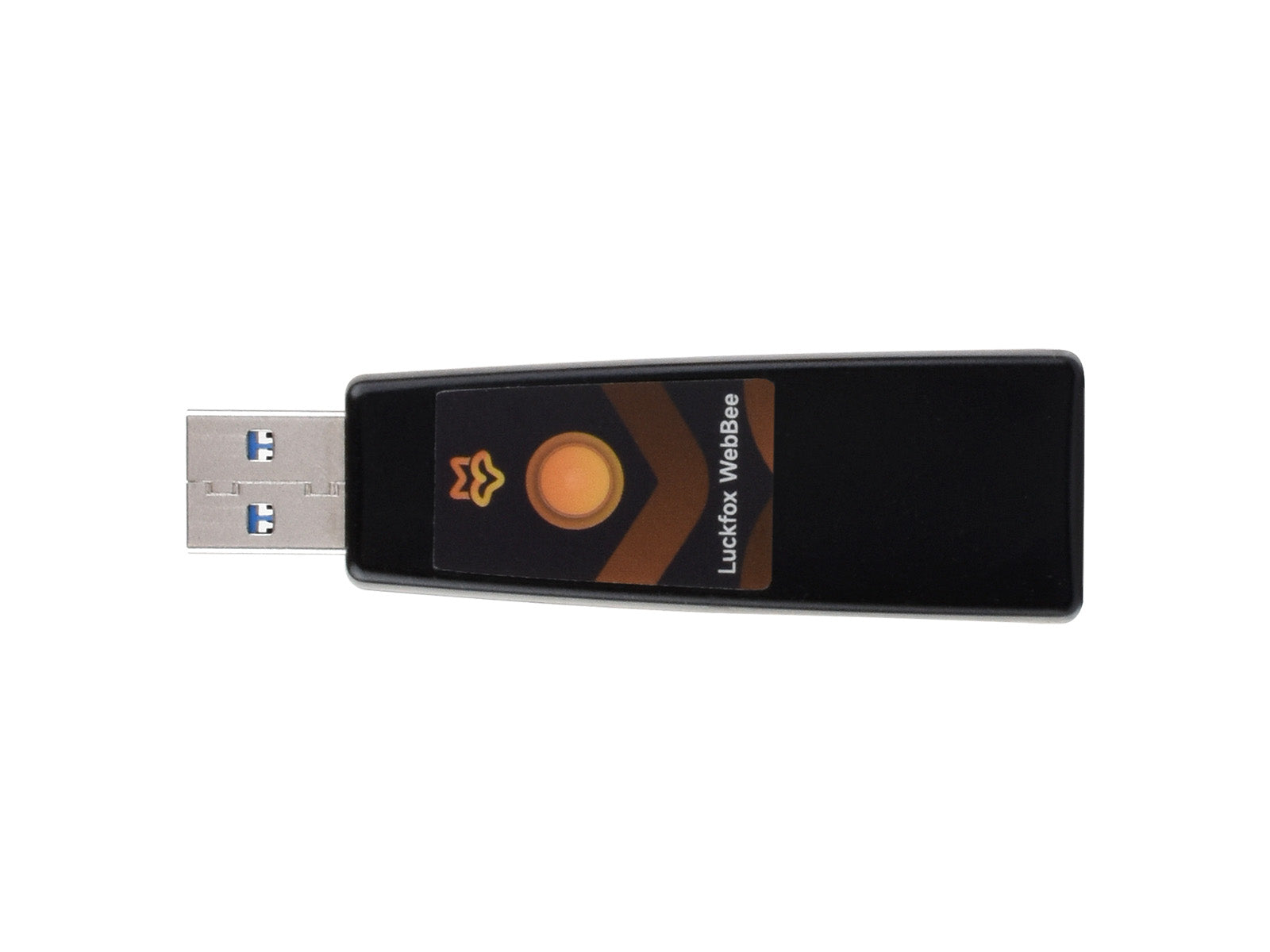

Luckfox Pico WebBee RV1103 Linux Micro Development Board, Integrates Arm Cortex-A7/RISC-V MCU/PHY, Onboard Ethernet Port, With ABS Protective Case

Luckfox Pico WebBee

Cost-effective Linux micro development board based on Rockchip RV1103 chip

Features At A Glance

This product is a cost-effective Linux micro development board based on the Rockchip RV1103 chip, which is designed for developers with a simple and convenient development platform.

• Onboard USB Type-A port, easy access to the PC, plug and play, to help developers get started quickly in development and debugging
• Equipped with 10/100Mbps Ethernet port, ensures stable and smooth network connection

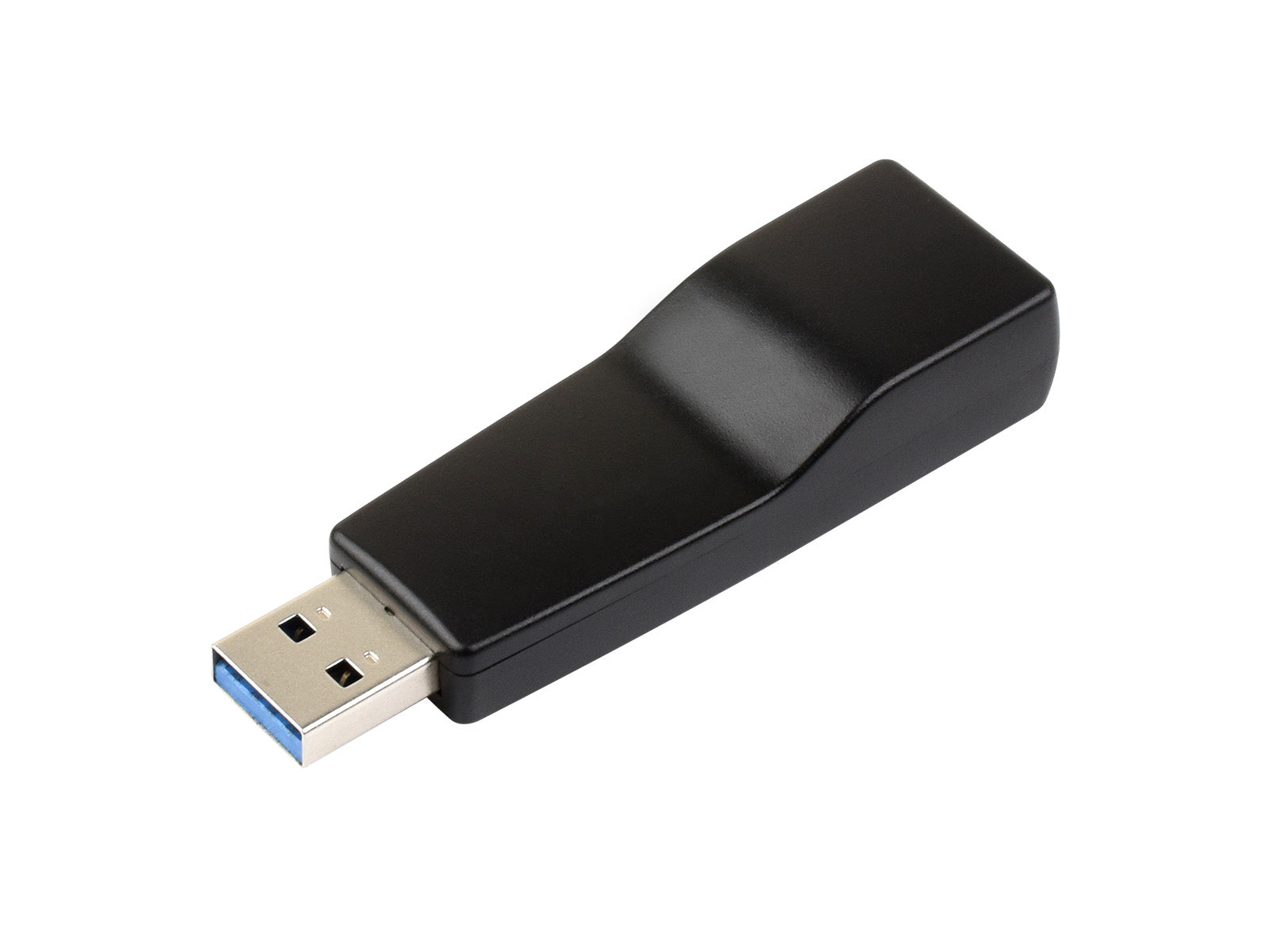

• Customized ABS protective case, robust and durable, suitable for various application scenarios, to meet the diverse project needs of developers

Specifications

CPU	RV1103 G1
Processor	Cortex-A7 1.2GHz + RISC-V
RAM	64MB DDR2
USB	USB 2.0 Host/Device
Ethernet port	10/100M Ethernet controller and embedded PHY
Default Storage	SPI NAND FLASH (128MB)
Storage Extension	Supports booting or storage expansion with a TF card

Highly integrated and powerful performance

Integrates CPU, PHY, DDR

• Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
• Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
• Built-in MAC 10/100M Ethernet controller and PHY for daily network requirement

Easier Development with Case Protection

SLC NAND FLASH

provides A better user experience for you

Application Example

* for reference only, please refer to the Package Content for detailed part list

Suitable for more application scenarios

Lightweight Web Server

USB Script Tool

Smart Home Device

Development Resources

Complete software and hardware documentation and an active community to help with secondary development

What's On Board

1. USB Type-A port for power supply, program burning, debugging and network equipment simulating
2. TF card slot
3. RV1103 ARM Cortex-A7 processor SoC
4. Ethernet transformer
5. RJ45 Ethernet port

6. ACT-LED
7. Power indicator
8. BOOT button Press it when powering on to enter download mode
9. W25N01KV 128MB SLC NAND FLASH
10. Hidden BOOT button

outline dimensions

Certificate of Authorization

Resources & Services

Wiki:https://wiki.luckfox.com/Luckfox-Pico-WebBee

Lieferumfang

Luckfox-WebBee x1
