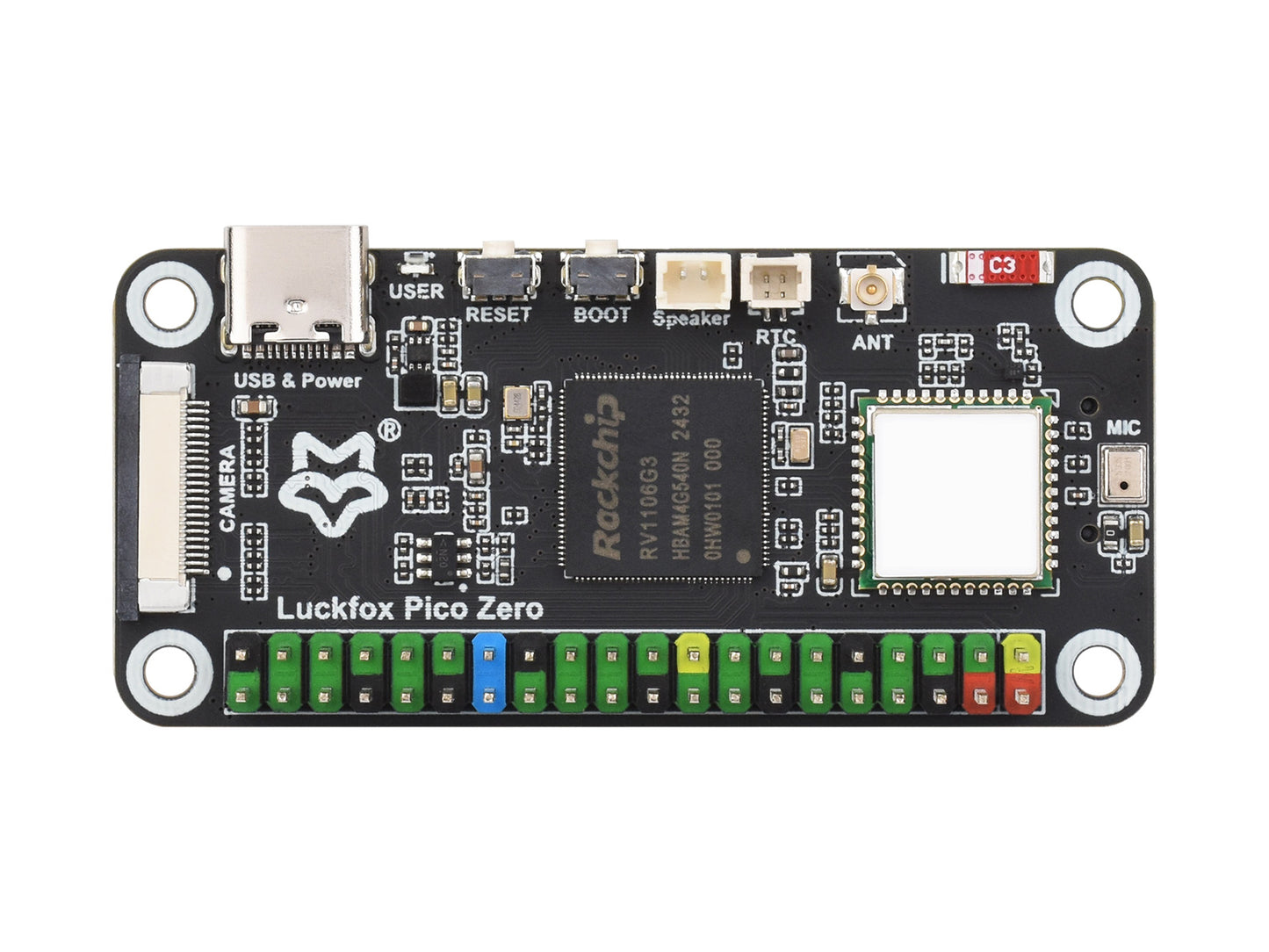

Luckfox Pico Zero Linux Micro Development Board, Based On Luckfox RV1106G3 Chip, 1 TOPS Computing Power, 8GB eMMC, With Wireless Module

Luckfox Pico Zero

The Luckfox Pico Zero is a cost-effective Linux micro development board, based On Luckfox RV1106G3 chip to provide a simple and efficient development platform for developers. Supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, I2C and USB etc., with an onboard wireless module, which is ideal for a wide range of embedded applications.

Highly integrated and powerful performance

• Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
• Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS
• Built-in self-developed third-generation ISP3.2, supports 8-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
• Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from the camera are high-definition with a smaller size
• Built-in 16-bit 256MB DRAM DDR3L, which is capable of sustaining demanding memory bandwidths

Wi-Fi 6 and Bluetooth module

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2 (LE) Bluetooth Module Providing Stable Connection And Efficient Transmission

Antenna Switching

Flexible Switching Between External Antenna and Onboard Antenna to meet more usage scenarios

MIPI CSI 4-lane Interface

Composed of dual MIPI-CSI (2-lane) interfaces

* for reference only, please refer to the Package Content for the detailed part list. The resolution of the camera shown in the picture is 1280 × 1080. This product supports up to 3840 × 2160 (8M) @15FPS input.

Multiple Audio Interfaces

Onboard microphone + speaker header meets a variety of audio application scenarios

meets a variety of application scenarios

Pin definition

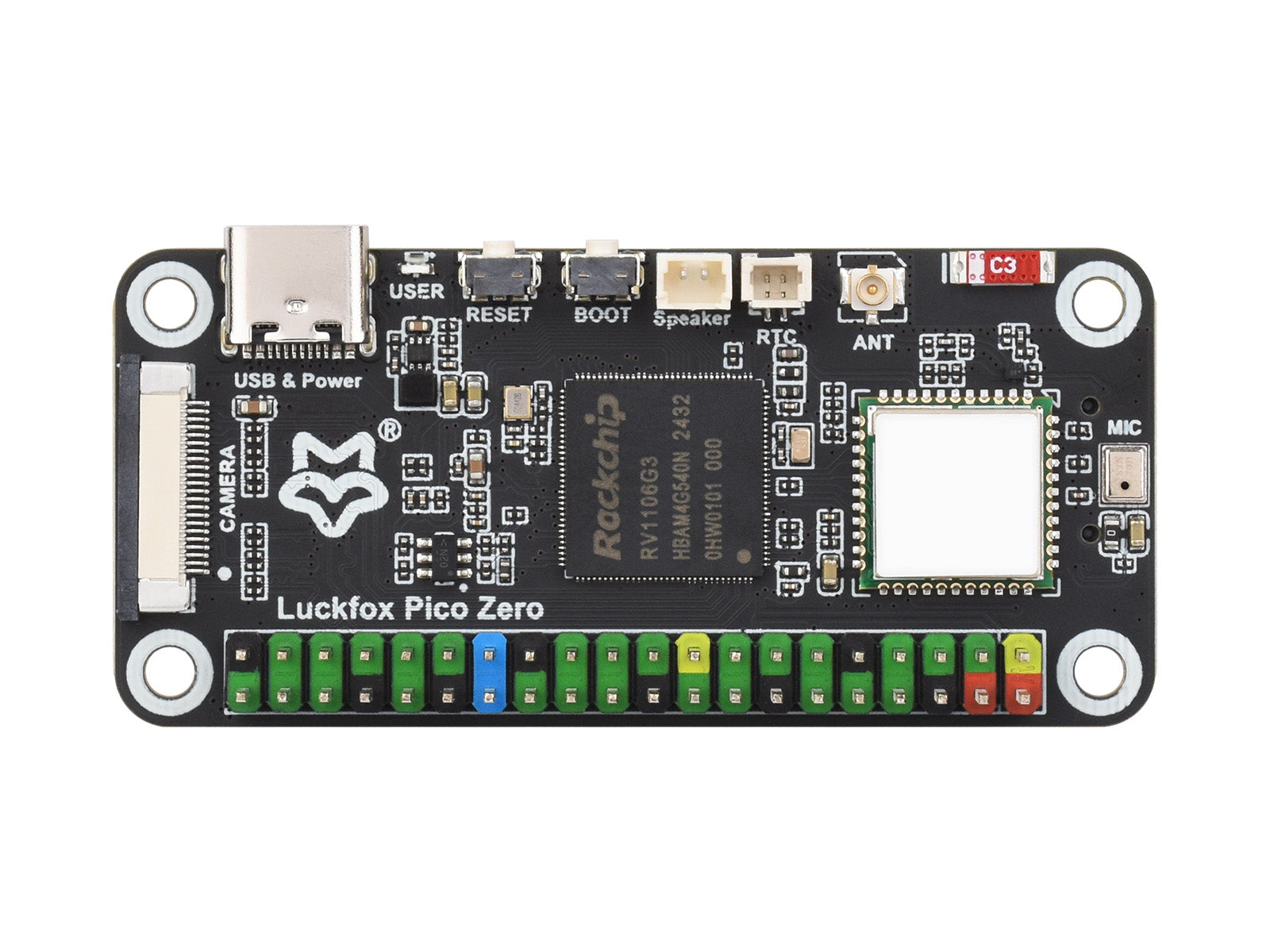

What's On Board

1. RV1106G3 Vision processor SoC, integrates ARM Cortex-A7 core
2. USB-C Port for power supply and program burning
3. USER-LED for indicating system operating status in the default image
4. RESET Button
5. BOOT Button Press it when powering on or resetting to enter download mode
6. Speaker Header MX1.25 2P connector, supports 8Ω 1W speaker.
7. RTC Battery Header

8. External Antenna Connector
9. Onboard Antenna
10. Wi-Fi / Bluetooth Module 2.4GHz Wi-Fi 6 / Bluetooth 5.2 (LE) module
11. Onboard Microphone
12. 40PIN GPIO Header Compatible with some Raspberry Pi HATs
13. Camera Interface MIPI CSI (4-lane)

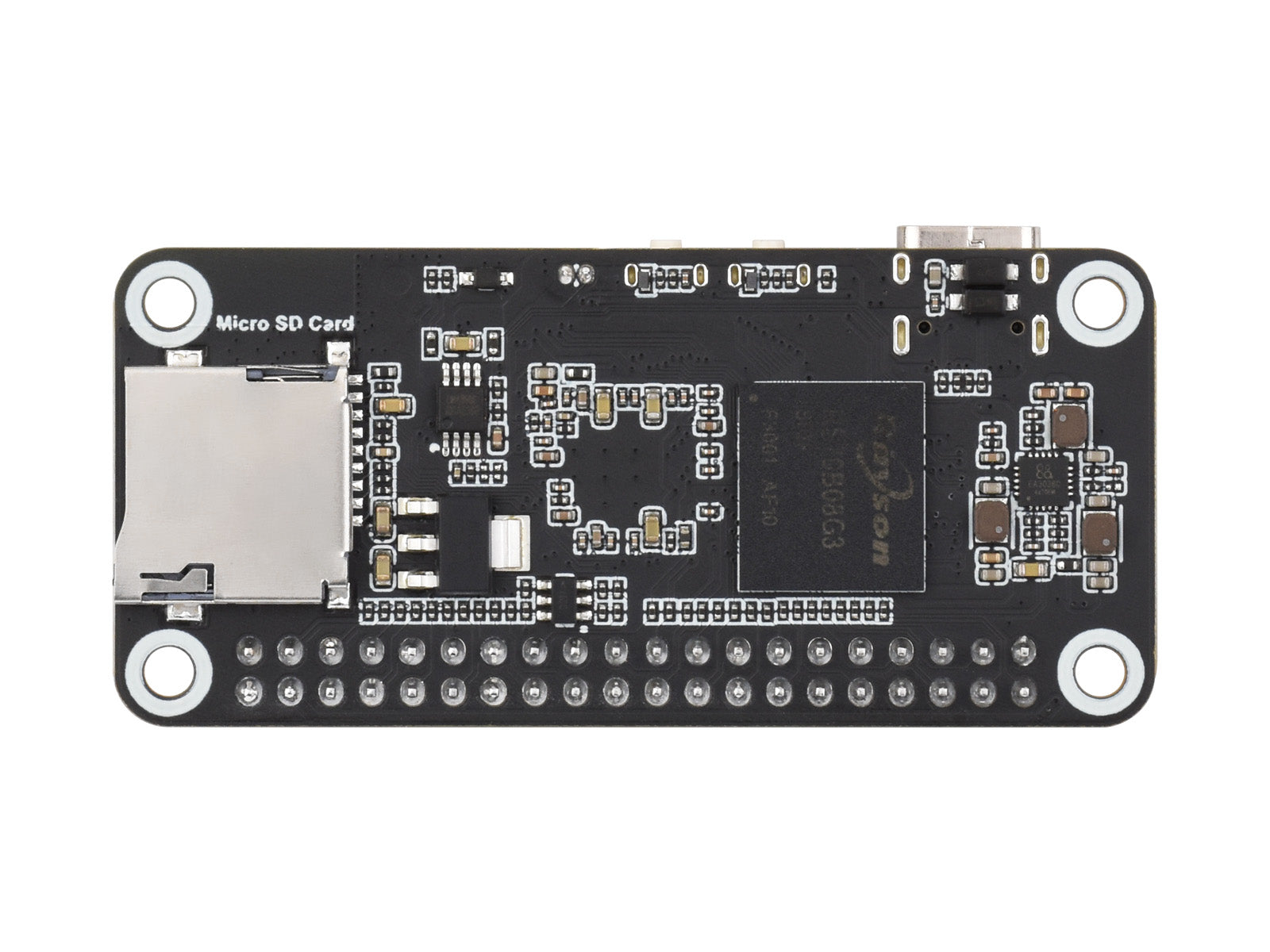

14. TF Card Slot Supports storage expansion only
15. 8GB eMMC

outline dimensions

Certificate of Authorization

Resources & Services

Wiki:https://wiki.luckfox.com/Luckfox-Pico-Zero

Luckfox Pico Product Selection

PRODUCT	Main chip	Memory	NPU	ISP	Default Storage	FEATURES
Luckfox Pico Mini A	RV1103G1	64MB	0.5TOPS, supports int4, int8 and int16	Input 4M @30fps (Max)	TF card (Not included)	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
Luckfox Pico Mini B					SPI NAND FLASH (128MB)
Luckfox Pico					TF card (Not included)	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
Luckfox Pico Plus					SPI NAND FLASH (128MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc.
Luckfox Pico Pro	RV1106G2	128MB		Input 5M @30fps (Max)	SPI NAND FLASH (256MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc.
Luckfox Pico Ultra B					EMMC(8GB)	Onboard PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Luckfox Pico Ultra BW						Onboard WiFi, PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Core11060208						Onboard eMMC, adapting various interfaces via castellated holes, such as USB, PHY, LINEOUT audio output, 2-ch MIC audio inputs, 2-ch 2-lane MIPI CSI, RGB, RTC, etc.
Core11061208						Onboard WiFi and eMMC, adapting various interfaces via castellated holes, such as USB, PHY, LINEOUT audio output, 2-ch MIC audio inputs, 2-ch 2-lane MIPI CSI, RGB, RTC, etc.
Luckfox Pico Pi B						Onboard 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.
Luckfox Pico Pi B W						Onboard Wi-Fi module, 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.
Luckfox Pico Max	RV1106G3	256MB	1TOPS, supports int4, int8 and int16	Input 8M @15fps (Max)	SPI NAND FLASH (256MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc.
Luckfox Pico Ultra					EMMC(8GB)	Onboard PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Luckfox Pico Ultra W						Onboard WiFi, PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Core11060408						Onboard eMMC, adapting various interfaces via castellated holes, such as USB, PHY, LINEOUT audio output, 2-ch MIC audio inputs, 2-ch 2-lane MIPI CSI, RGB, RTC, etc.
Core11061408						Onboard WiFi and eMMC, adapting various interfaces via castellated holes, such as USB, PHY, LINEOUT audio output, 2-ch MIC audio inputs, 2-ch 2-lane MIPI CSI, RGB, RTC, etc.
Luckfox Pico Pi A						Onboard 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.
Luckfox Pico Pi A W						Onboard Wi-Fi module, 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.
Luckfox Pico Pi Zero						Onboard Wi-Fi module, Type-C port, 4-lane MIPI CSI, GPIO, SMD microphone, speaker header, RTC battery header, etc.
Luckfox Pico 86 Panel	RV1106G2/RV1106G3	128MB/256MB	0.5TOPS/1TOPS	Input 5M@30fps (Max)	EMMC (8GB)	Equipped with a 720 × 720 IPS capacitive touch screen, optional Wi Fi Bluetooth module, onboard Type-C port, Network port, RS485 terminal, 2-channel relay, speaker, microphone, RTC battery interface, etc.

Lieferumfang

Luckfox Pico Zero x1
