SKU:WSAL23964

M12 High Resolution Lens, 14MP, 184.6° Ultra wide angle, 2.72mm Focal length, Compatible with Raspberry Pi High Quality Camera M12

WS1842714M12 high resolution lens

14MP | 184.6° FOV | Ultra wide angle

WS1842714 is an M12 lens with 14MP high resolution and 184.6° ultra wide angleSuitable for M12 mount camera module such as Raspberry Pi HQ Camera M12

Note: the M12 mount camera module is NOT included, please purchase it separately.

M12 Lens Selection

Model		WS1842714	WS1053516		WS1132712			WS1603212			WS0698012			WS0202505
Resolution		14M	16M		12M									5M
Focal length		2.72mm	3.56mm		2.7mm			3.2mm			8mm			25mm
Aperture (F/NO)		2.5	2.5		2.8			2.0			1.8			1.7
Back focus length		3.06mm	5.92mm		4.97mm			6.14mm			10.02mm			5.20mm
DISTORTION		<-21%	<-17.6%		<-1.5%			<-64%			<-15.68%			<0.30%
Mount		M12*P0.5
Operating temperature		-30 ~ +75°C	-30 ~ +70°C					-40 ~ +105°C			-20 ~ +60°C			-20 ~ +80°C
Construction		8G+IR	4G3P+IR		5G2P+IR			8G+IR						6G+IR
Weight		9g	7g		6g			28g			12g			9g
Field of view	IMAGE FORMAT	1/2.3"	1/2.3"	1/2.5"	1/2.3"	1/2.5"	1/2.8"	1/1.7"	1/1.8"	1/2.8"	1/1.8"	1/2.5"	1/3.0"	2/3.0"	1/1.8"	1/2.0"
	Diagonal	184.6°	105.0°	98.2°	113.0°	108.0°	101.0°	160.0°	153.6°	136.0°	69.5°	50.7°	43.0°	20.2°	16.5°	14.5°
	Horizontal	140.0°	88.0°	87.7°	100.0°	97.0°	92.8°	131.0°	129.0°	113.5°	55.6°	44.4°	34.7°	15.1°	12.4°	10.5°
	Vertical	102.6°	70.0°	53.3°	82.7°	67.0°	60.3°	99.0°	88.0°	83.0°	40.3°	32.6°	26.4°	-	-	-

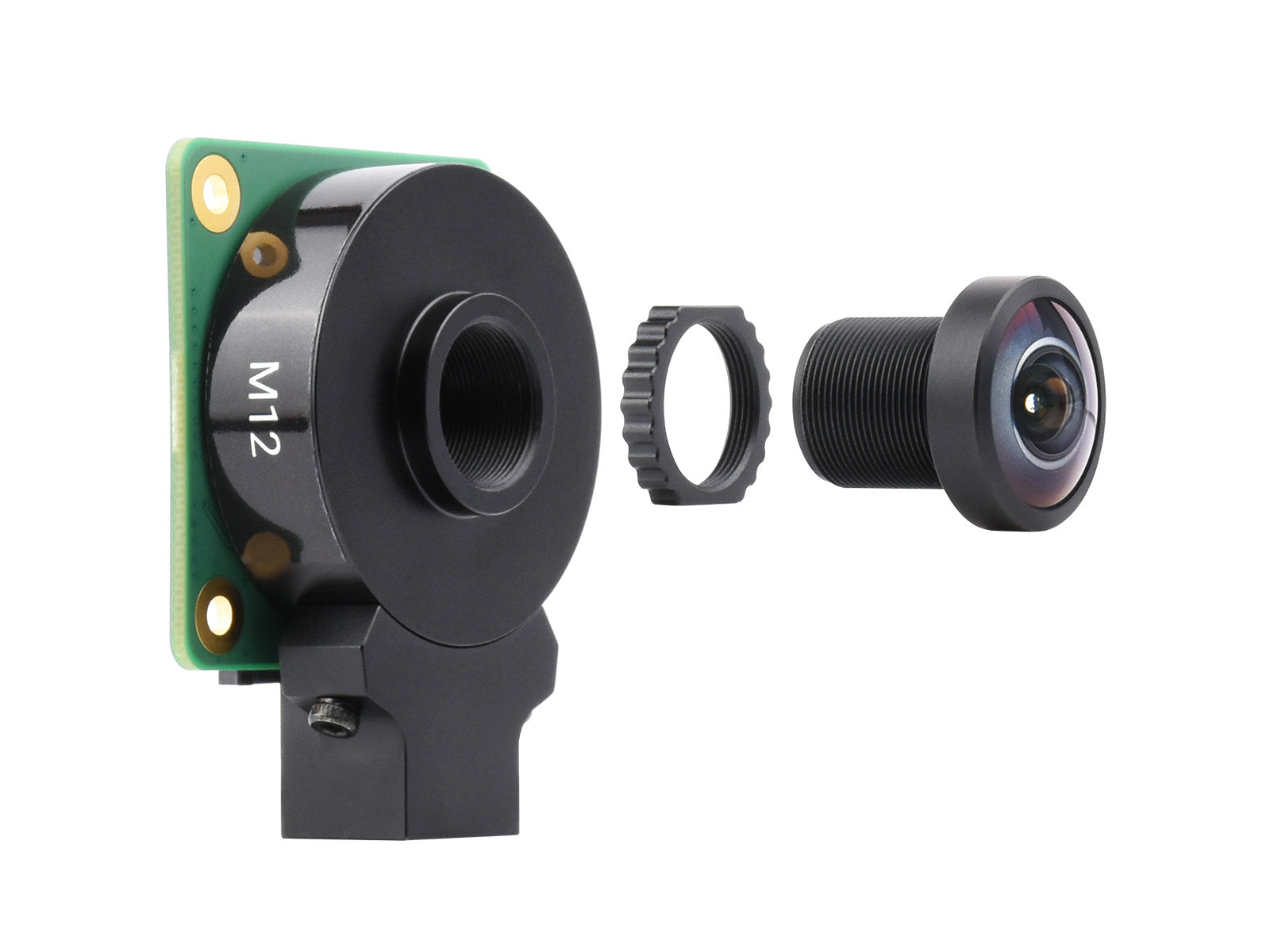

Mounting to the M12 Camera module

Suitable for Raspberry Pi High Quality Camera M12

Working with Raspberry Pi

• Raspberry Pi boards, FFC cable and Raspberry Pi HQ Camera M12 in the photos are NOT included
• To use with Raspberry Pi Zero or Zero 2W, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable

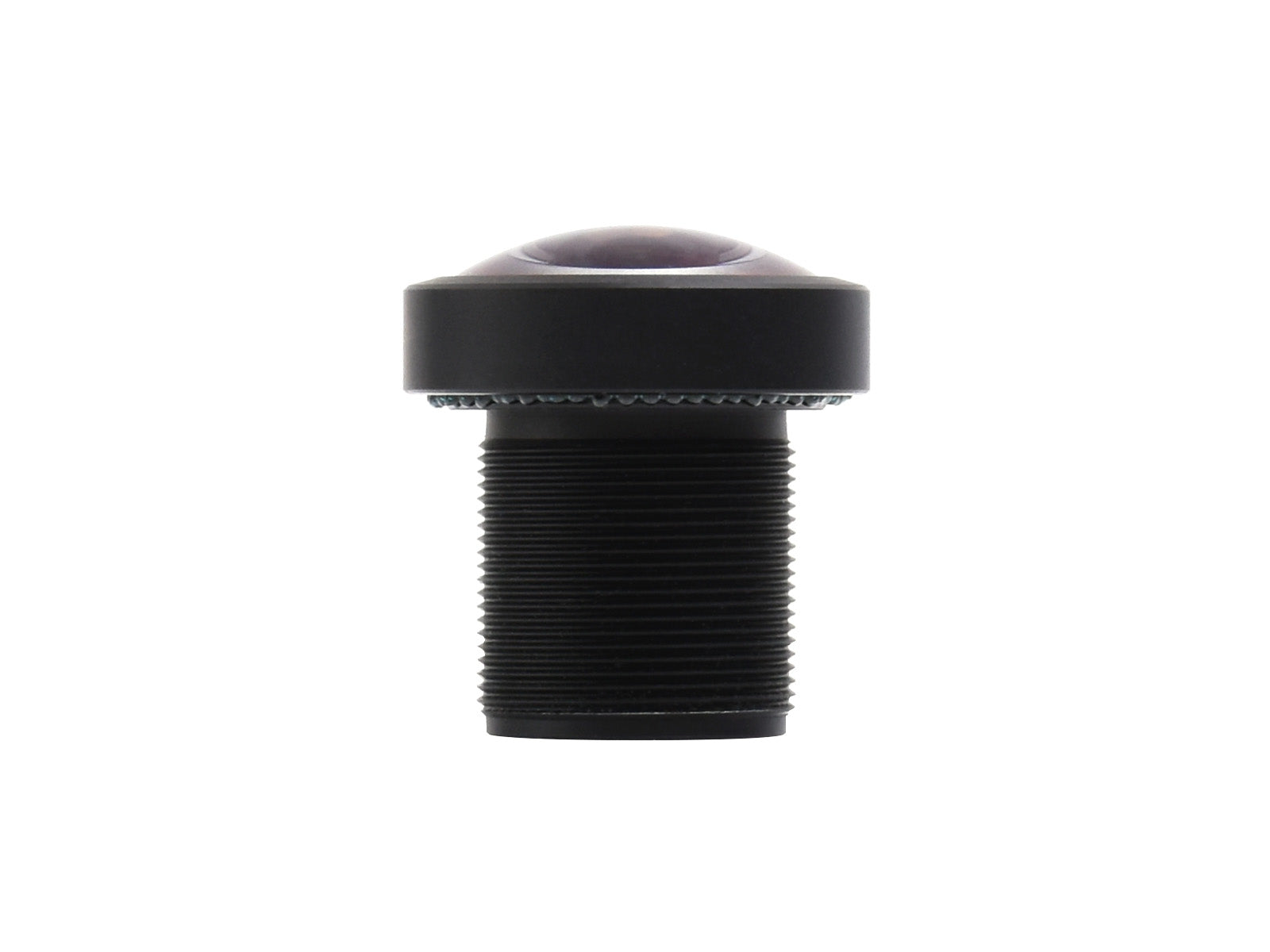

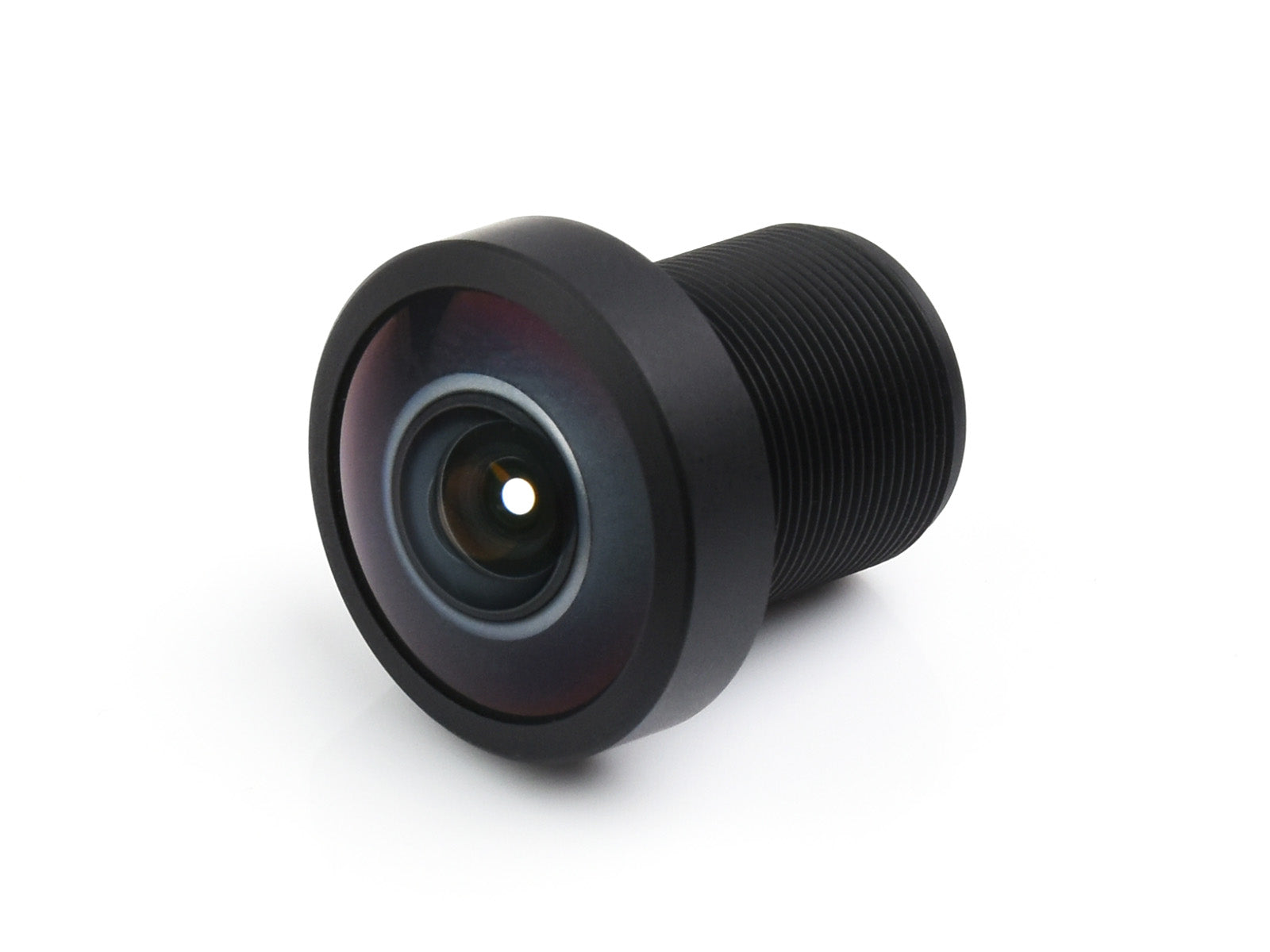

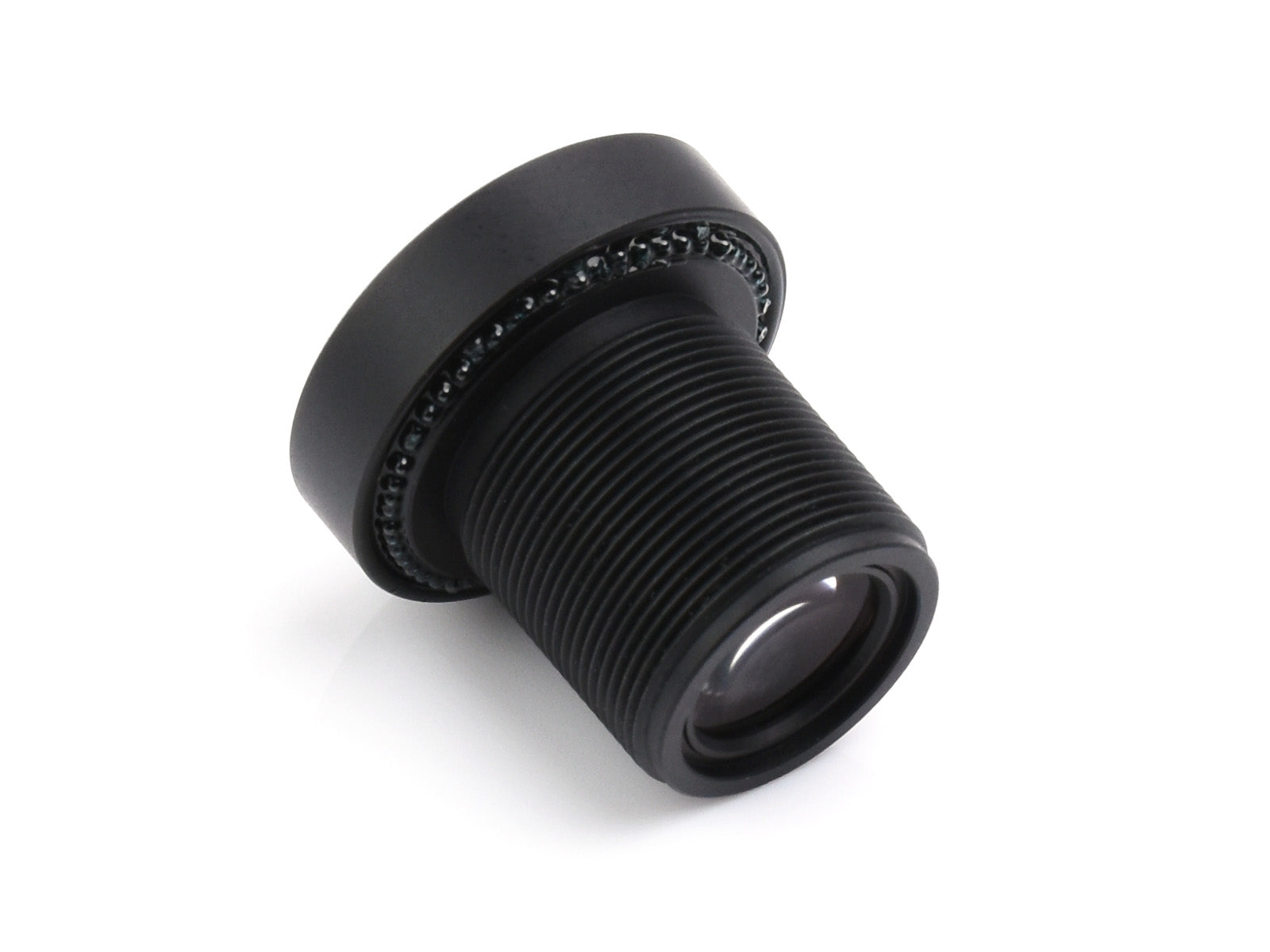

Product Show

Outline Dimensions

Lieferumfang

WS1842714 ×1
