SKU:WSAL26491

Mini-Computer Based on Jetson Nano Module, Onboard Multiple Peripheral Interfaces, Supports Installing WiFi Or 4G Module

Name: Mini-Computer Based on Jetson Nano Module, Onboard Multiple Peripheral Interfaces, Supports Installing WiFi Or 4G Module
Brand: WaveShare
SKU: WSAL26491
Price: 36117.23 HUF
Availability: InStock

36.117 Ft

36.117 Ft 0 Ft

Sale Ausverkauft

Steuer enthalten. Versand wird an der Kasse berechnet.

Menge

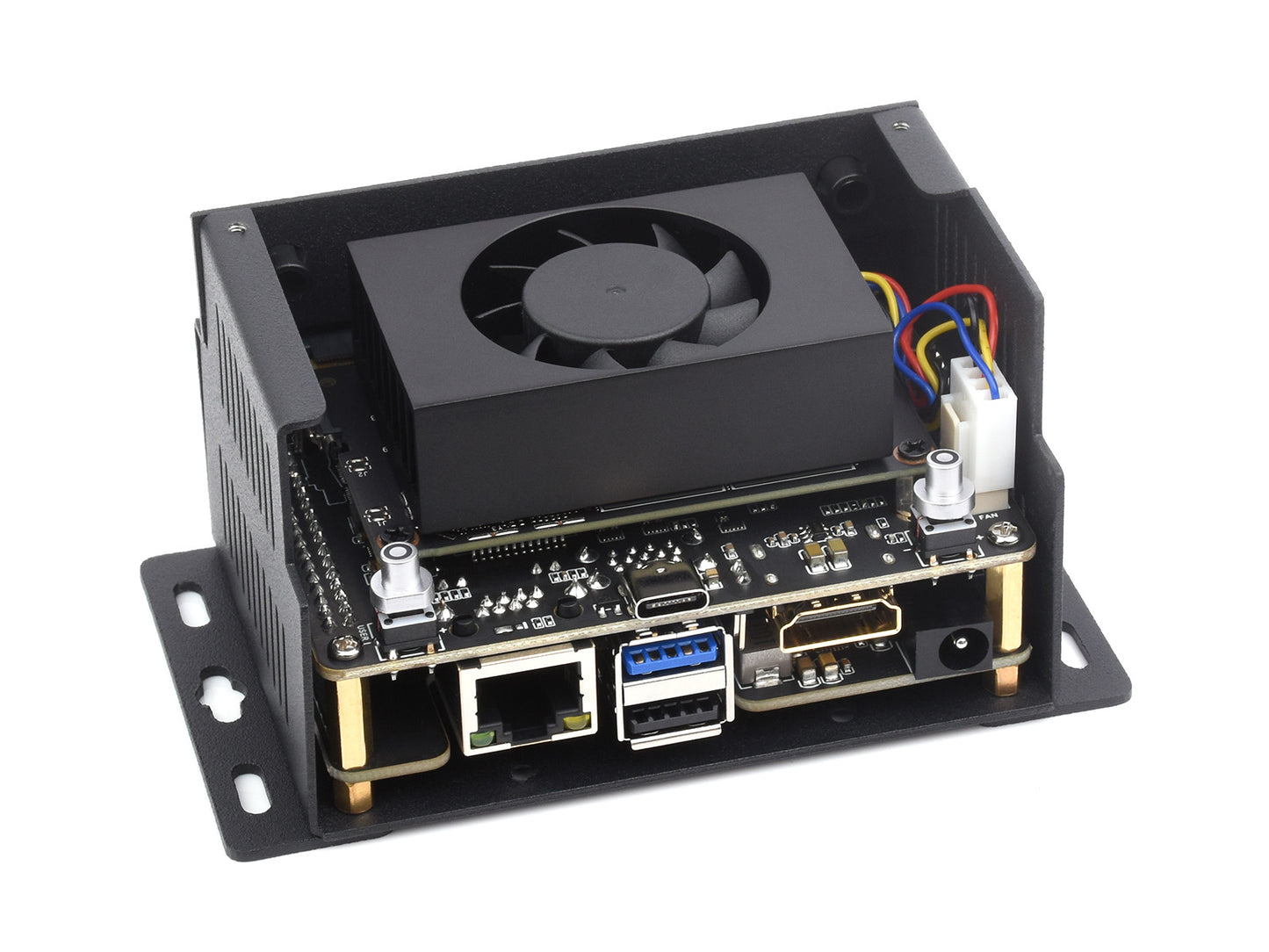

Mini-Computer Based on Jetson Nano Module, Onboard Multiple Peripheral Interfaces, Supports Installing WiFi Or 4G Module, Metal Case

Jetson Nano Mini-Computer

Waveshare Jetson Nano Development Kit

Based on Jetson Nano Module, provides a variety of peripheral interfaces such as USB connectors, Ethernet port, HDMI port, CSI, GPIO, I2C, and RS485 interfaces. Onboard M.2 B KEY slot with adapter board for installing WiFi or 4G module (choose one of two), with metal case, suitable for various AI applications.

Kit Selection

JETSON NANO MINI KIT A:On the basis of JETSON NANO MINI kit, it is pre-assembled with the Jetson Nano Module,cooling fan,RTL8822CE Wireless NIC (with antennas), and equipped with Ethernet cable and USB cable, easy for users to get started quickly.

Base board comparing

Model	JETSON-IO-BASE-A	JETSON-IO-BASE-LITE	JETSON NANO MINI
USB connectors	4 × USB 3.2 Gen 1 Type-A1 × USB 2.0 Micro-B	1 × USB 3.2 Gen 1 Type-A2 × USB 2.0 Type-A1 × USB 2.0 Micro-B	1 × USB 3.2 Gen 1 Type-A1 × USB 2.0 Type-A
Ethernet port	√	√	√
HDMI port	√	√	√
DP port	√	-	-
CSI interface	× 2	× 1	× 2
Power port	DC	USB Type-C	DC/USB Type-C
Button	-	Power: PWR BTN Reset: SYS RST	Power button, user button

Compatible with Jetson Nano Module

Connecting to Cameras

Supports CSI cameras for AI applications such as Facial Recognition, road sign detection and license plate recognition

* for reference only, the binocular camera is NOT included

4K HD output

supports HDMI high definition port

Onboard Multiple interfaces

Onboard M.2 B KEY slot

Comes with adapter board, supports installing WiFi or 4G module (choose one of two)

Connect to WiFi module

Connect to 4G module

* for reference only, please refer to the Package Content for detailed part list

Supports Installing Cooling Fan

Reserved space for installing Jetson Nano cooling fan

Rail-mount Support

With mounting holes on the bottom for installing rail buckle, easy to install the mini-computer on the rail

* for reference only, the rail buckle is NOT included

What's On Board

Module socket for connecting with Jetson Nano module
Power button and Power LED for power ON/OFF control and indicating module status
User button and user LED user-defined button and LED

Type-C interface for power supply, programming, and debugging
2.54mm fan header
Multi-function pins header

Gigabit Ethernet Port 10/100/1000Base-T auto-negotiation, does not support PoE
USB Type-A connectors 1 × USB 3.2 Gen 1, 1 × USB 2.0
Type-C power supply enable enable via jumper
HDMI interface supports 4K output

TF card slot
MIPI CSI interface 1
SIM card slot only available when installing a 4G module
MIPI CSI interface 0
mini PCIe socket for connecting 4G module or adapter board, supports USB2.0 and PCIex1
