SKU:WSAL24760

Mini Uninterruptible Power Supply module, Supports charging And Power output at the same time, 5V 2.5A Output

Mini Uninterruptible Power Supply Module

Supports Charging and Power Output At the Same Time, Stable 5V Output

Features at a glance

• Mini UPS expansion board for easy soldering or integration into mobile robots and industrial control equipments
• I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
• Onboard multiple function pins, provides two charging and discharging methods via pads and pin headers
• Multiple battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
• Onboard 5V regulator, up to 2.5A continuous output current
• Onboard warning indicators, easy to check if the battery is connected correctly and charging status
• Comes with online development resources and manual

Specifications

Output voltage	5V 2.5A
Charger	Support 5V 3A
Control bus	I2C

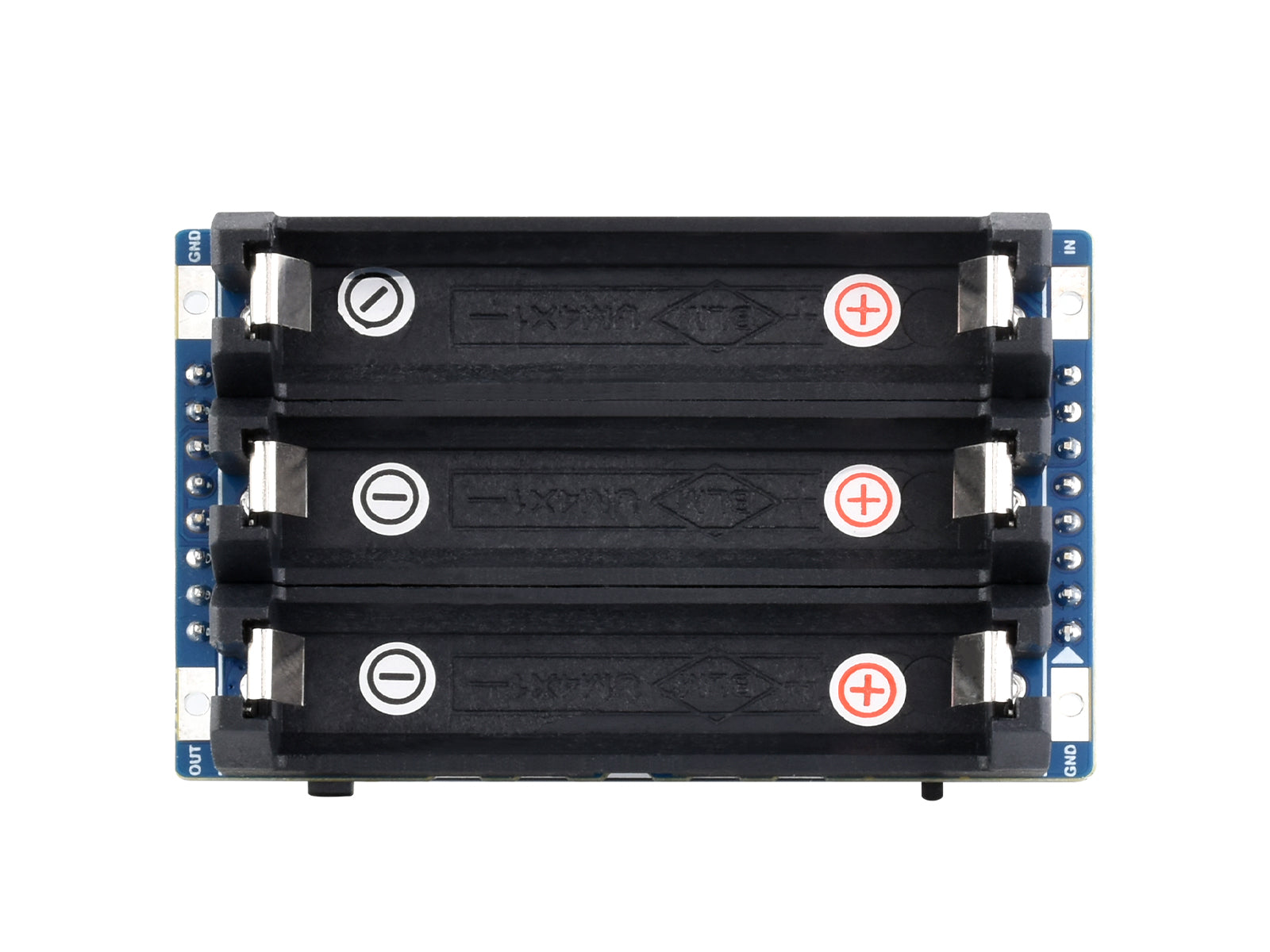

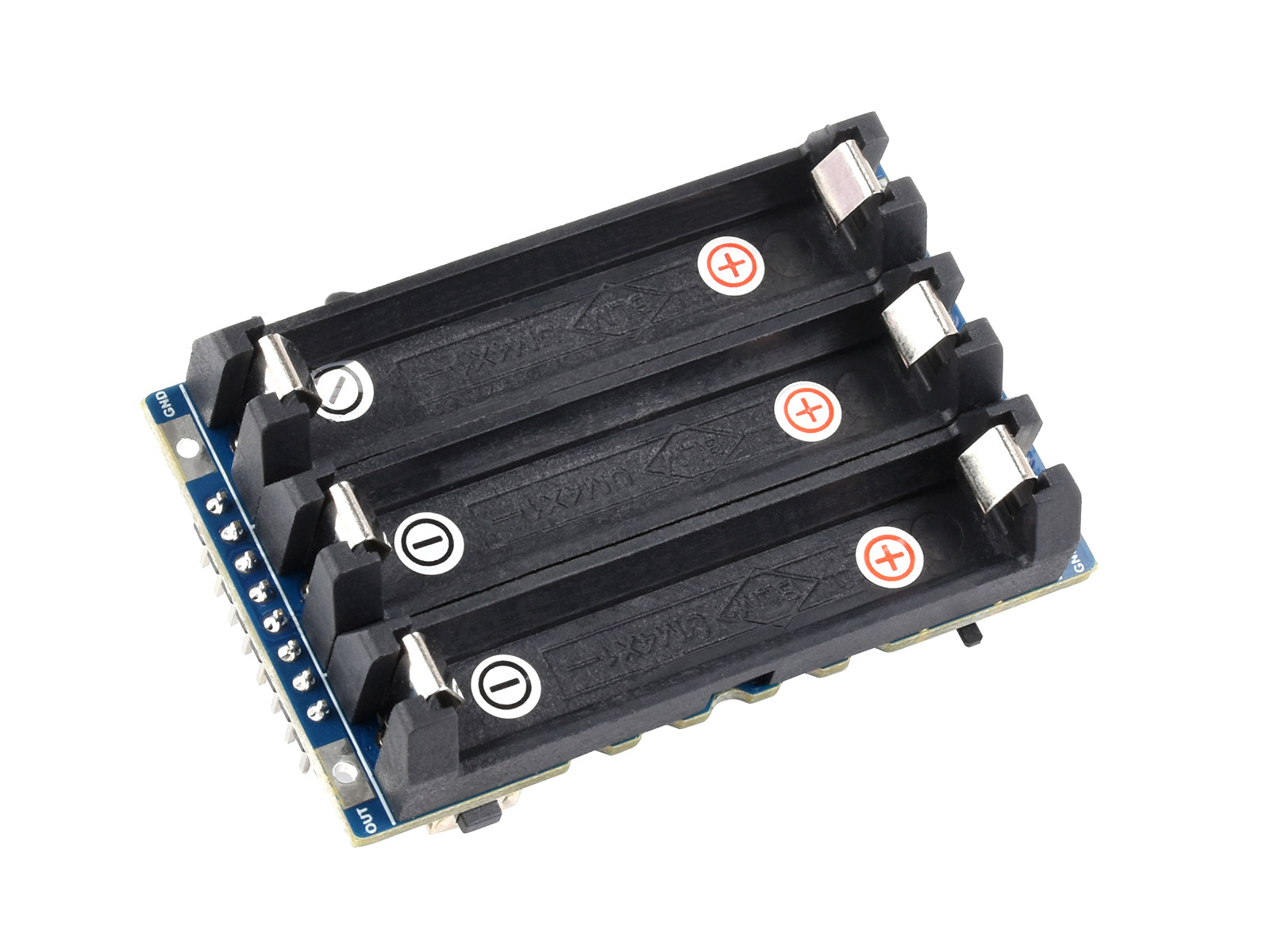

Battery support	10440 Lithium battery × 3 (in parallel, NOT included)
Dimensions	61 × 38mm

Uninterruptible Power

It is able to charge the batteries and provide power output at the same time from external power supplyAutomatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

* for reference only, the CM4, CM4 base board, TF card and 10440 batteries are NOT included

Real time monitoring

monitoring the batteries voltage, current, power, and remaining capacity via I2C interface

for reference only, please refer to the part list for detailed package content

Safe and stable circuit design

Protection circuits for over charge/discharge, over current, short circuit, and reversealong with the equalizing charge feature, more safe and stable

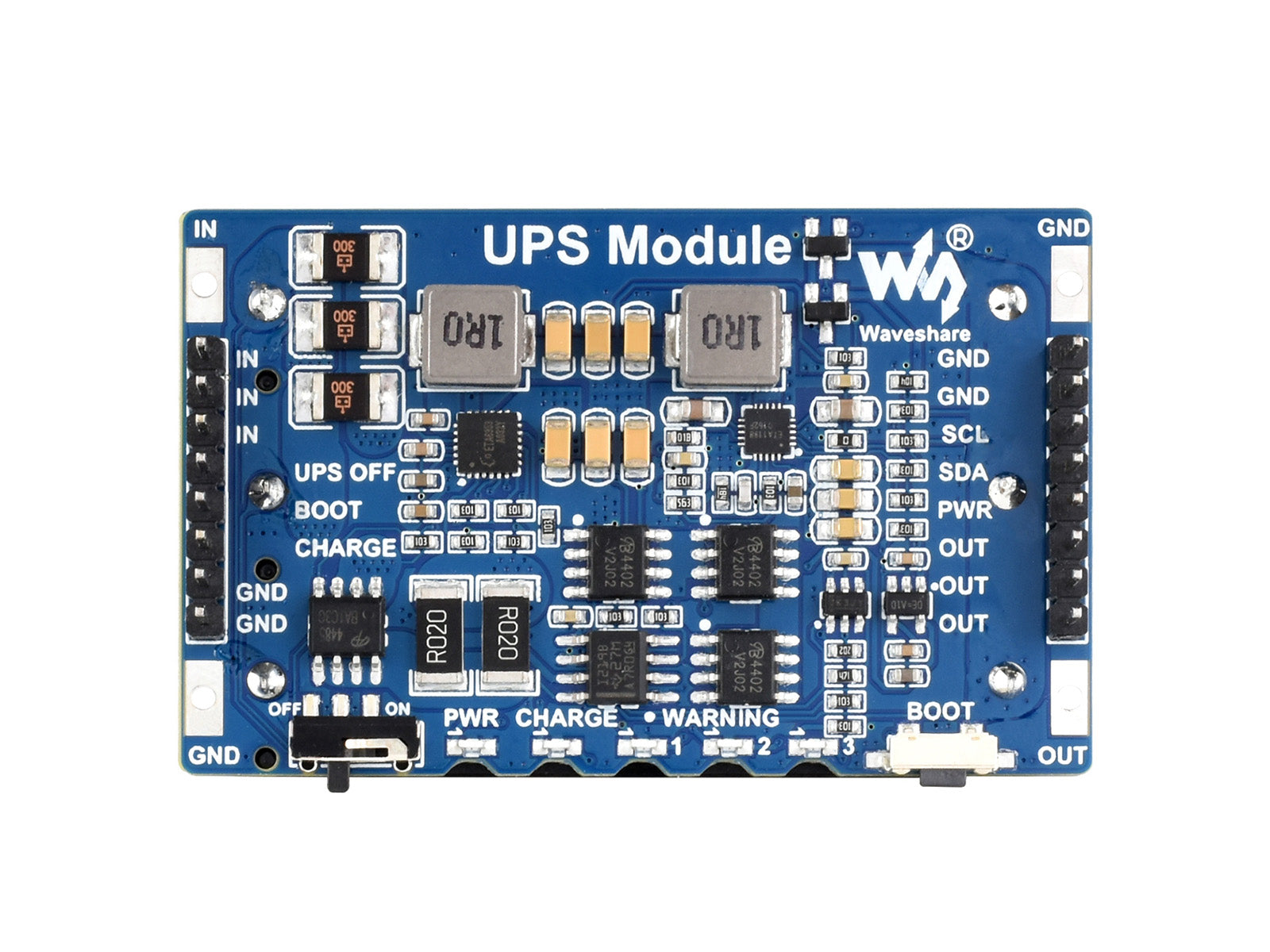

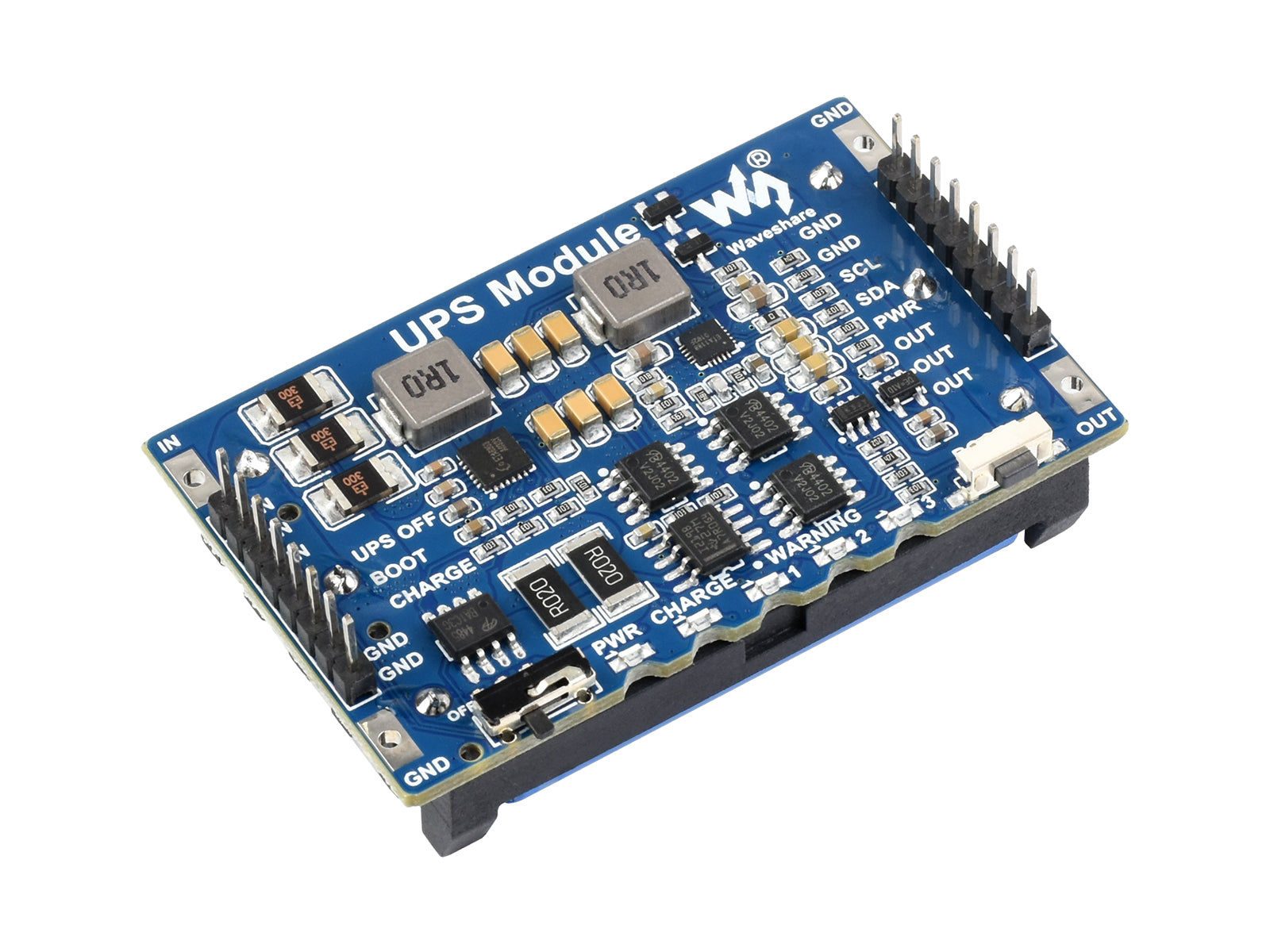

What's On Board

1. ETA1188 5V voltage regulator
2. ETA6953 Battery charge/discharge chip
3. INA219 Voltage/current monitoring chip
4. S8261 Battery protection chip
5. RT9193 3.3V voltage regulator
6. AO4402 Battery protection MOS tube
7. UPS ON/OFF switch Control UPS output

8. Boot button Batteries activation
9. Power indicator Lights up when the UPS switch is turned on
10. Charge indicatorLight up: when batteries are chargingBlinking: when batteries are abnormal or no battery connectedLight off: when charging completed or not charging
11. Reverse warning indicators will light up if the related battery is reversely connected
12. Charging pad 5V 3A
13. UPS output pad 5V 2.5A
14. Multi-functional pin headers

Pinout definition

IN	Power input (5V 3A)
OUT	UPS output (5V 2.5A)
GND	ground
UPS OFF	turn off UPS power output when connected to PWR pin
BOOT	Batteries activation (pull low for 500ms and then pull high)
CHARGE	Charge indication (low level indicates charging)
SCL	I2C clock
SDA	I2C data
PWR	UPS ON/OFF (In the case of the onboard UPS switch being off, the UPS power output will be turned off when PWR is connected to the UPS OFF pin, and will be turned on when connected to the GND pin)

Note: When using pin headers for charging and discharging, it is recommended to connect all input and output pins for 2.5A output current to reduce pin stress

product show

Outline dimensions

Resources & Services

---

WIKI:www.waveshare.com/wiki/UPS_Module_Mini

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

SAFETY CAUTIONS

• Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
• Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
• Do not mix use old batteries with new ones, avoid using batteries of different brands.
• When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
• Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
• Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.

Selection guide

Model	Device Support	Battery Support	feature
Pico-UPS-A	Raspberry Pi Pico	14500 Li-ion battery (NOT included)	Provides power supply via pin header
Pico-UPS-B		600mAh 3.7V Li-po battery	Provides power supply via pin header
UPS HAT (C)	Raspberry Pi Zero	803040 Li-po battery 1000mAh 3.7V	Provides power supply via Pogo pins
Li-ion Battery HAT		14500 Li-ion battery (NOT included)	UPS not supported
UPS HAT (B)	Raspberry Pi 5/4B/3B+	18650 Li battery × 2 (NOT included), up to 5A output current, with 8.4V battery charger	Provides power supply via Pogo pins, with 5V USB output
UPS HAT (E)		21700 Li battery × 4 (in series, NOT included), up to 5V 6A output current, 40W bi-directional fast charging Type-C port	Provides power supply via Pogo pins, with 5V USB output
UPS HAT	Raspberry Pi 4B/3B+	18650 Li battery × 2 (NOT included), up to 2.5A output current, with 8.4V battery charger	Provides power supply via pin header, with 5V USB output
UPS HAT (D)		21700 Li battery × 2 (in parallel, NOT included), up to 2.5A output current, with 5V Type-C port battery charger	Provides power supply via Pogo pins, with 5V USB output
Li-polymer Battery HAT		3.7V 3000mAh 104060 Li-polymer battery, up to 2A output current	Provides power supply via pin header, UPS not supported
UPS Power Module	Jetson Nano	18650 Li battery × 4 (NOT included), up to 2.5A output current, with 8.4V battery charger	Provides power supply via 6PIN cable, with OLED screen
UPS Power Module (B)		18650 Li battery × 4 (NOT included), up to 5A output current, with 8.4V battery charger	Provides power supply via Pogo pins
UPS Power Module (C)	Jetson Orin Nano Jetson Orin NX	21700 Li battery × 3 (in series, NOT included), the output voltage is same as the input voltage when there is power input or equals the battery voltage (9V~12.6V) when there is no power input, supports 15V~19V input input voltage	Provides power supply via Pogo pins
UPS Module 3S	Suitable for the devices with Type-C power port	18650 Li battery × 3 (in series, NOT included), up to 5V 5A output, with 12.6V battery charger	Adapting various interfaces via cables
UPS Module Mini	Suitable for CM4-IO-WIRELESS-BASE-B base board, etc.	10440 Lithium battery × 3 (in parallel, NOT included), up to 5V 2.5A output	Provides power supply via pads or pin header

Lieferumfang

UPS Module Mini x1
