SKU:WSAL32303

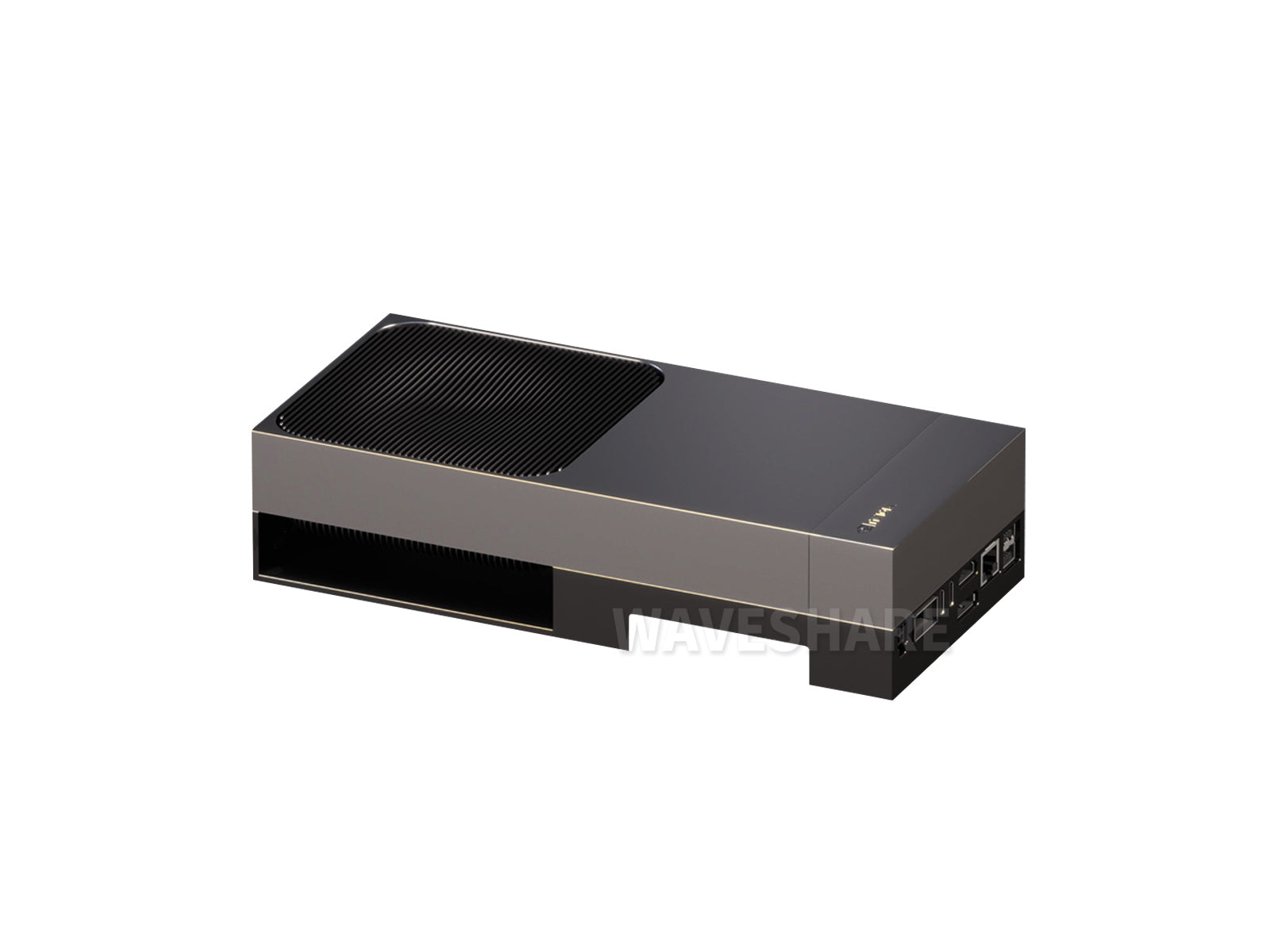

N-VIDIA Jetson AGX Thor Developer Kit, Up To 2070 FP4 TFLOPS Of AI Compute And 128 GB Of Memory, Delivering The Ultimate Platform For Physical AI And Humanoid Robotics
Abholverfügbarkeit konnte nicht geladen werden
The ultimate platform for physical AI and humanoid robotics
The N-VIDIA Jetson AGX Thor Developer Kit delivers exceptional performance and scalability. Powered by the N-VIDIA Blackwell GPU and 128GB of memory, it provides up to 2070 FP4 TFLOPS of AI performance, enabling seamless operation of the latest generative AI models while consuming under 130W of power. Compared to the N-VIDIA Jetson AGX Orin, it provides up to 7.5x higher AI compute and 3.5x better energy efficiency. With the all-new Blackwell Multi-Instance GPU (MIG) technology and a powerful 14-core Arm Neoverse-V3AE CPU, it accelerates low-latency, real-time applications. It also integrates a suite of accelerators, including the third-generation Programmable Vision Accelerator (PVA), dual encoders, decoders, and an optical flow accelerator. For high-speed sensor fusion, the developer kit offers extensive I/O options, including a QSFP slot with 4 × 25GbE, wired multi-GbE RJ45 connector, multiple USB ports, and other interfaces. In addition, it is designed for seamless integration with existing humanoid robotics platforms, enabling easy connectivity for rapid prototyping.
N-VIDIA Jetson Thor series modules give you the ultimate platform for physical AI and robotics, delivering up to 2070 FP4 TFLOPS of AI compute and 128 GB of memory with power configurable between 40 W and 130 W. They deliver over 7.5x higher AI compute than N-VIDIA Jetson AGX Orin, with 3.5x better energy efficiency.
Blackwell GPU, sensor processing, and robotic AI software stack
Unlock Physical AI with the Power of Jetson Thor
| AI Performance | 2070 TFLOPS (FP4 - Sparse) |
|---|---|
| GPU | 2560-core N-VIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores, Multi-Instance GPU (MIG) with 10 TPCs |
| GPU Max Frequency | 1.57 GHz |
| CPU | 14-core Arm Neoverse-V3AE 64-bit CPU 1 MB L2 cache per core 16 MB shared system L3 cache |
| CPU Max Frequency | 2.6 GHz |
| Vision Accelerator | 1 x PVA v3.0 |
| Memory | 128 GB 256-bit LPDDR5X 273GB/s |
| Storage | 1 TB NVMe M.2 Key M Slot |
| Video Encode | 6 x 4Kp60 (H.265) 12 x 4Kp30 (H.265) 24 x 1080p60 (H.265) 50 x 1080p30 (H.265) 48 x 1080p30 (H.264) 6 x 4Kp60 (H.264) |
| Video Decode | 4 x 8Kp30 (H.265) 10 x 4Kp60 (H.265) 22 x 4Kp30 (H.265) 46 x 1080p60 (H.265) 92 x 1080p30 (H.265) 82 x 1080p30 (H.264) 4 x 4Kp60 (H.264) |
| Camera | HSB camera via QSFP slot USB camera |
| PCIe* | M.2 Key M slot with x4 PCIe Gen5 M.2 Key E slot with x1 PCIe Gen5 |
| USB* | 2 x USB-A (3.2 Gen2) 2 x USB-C (3.1) |
| Networking* | 1 x 5GBe RJ45 connector 1 x QSFP28 (4 x 25 GbE) |
| Display | 1 x HDMI 2.0b 1 x DisplayPort 1.4a |
| Other I/O | QSFP connector M.2 Key E expansion slot (WLAN / BT, x1 PCIe, USB2.0, UART, I2C, I2S) M.2 Key M connector (NVMe for storage) PCIe x4 lane, I2C, PCIe x2 lane 2 x 13-pin CAN header 2 x 6-pin automation header LED JTAG connector (2 x 5-pin header) 1 x fan connector 12V, PWM Tach audio panel header (2 x 5-pin) Microfit power jack RTC backup battery connector 2-pin |
| Power | 40 W - 130 W |
| Mechanical | 243.19 mm x 112.40 mm x 56.88 mm Thermal Transfer Plate (TTP) and optional fan or heat sink |
| * Refer to the Software Features section of the latest N-VIDIA Jetson Linux Developer Guide for a list of supported features. | |
Lieferumfang
Jetson AGX Thor Developer Kit x 1
