SKU:WSAL30211

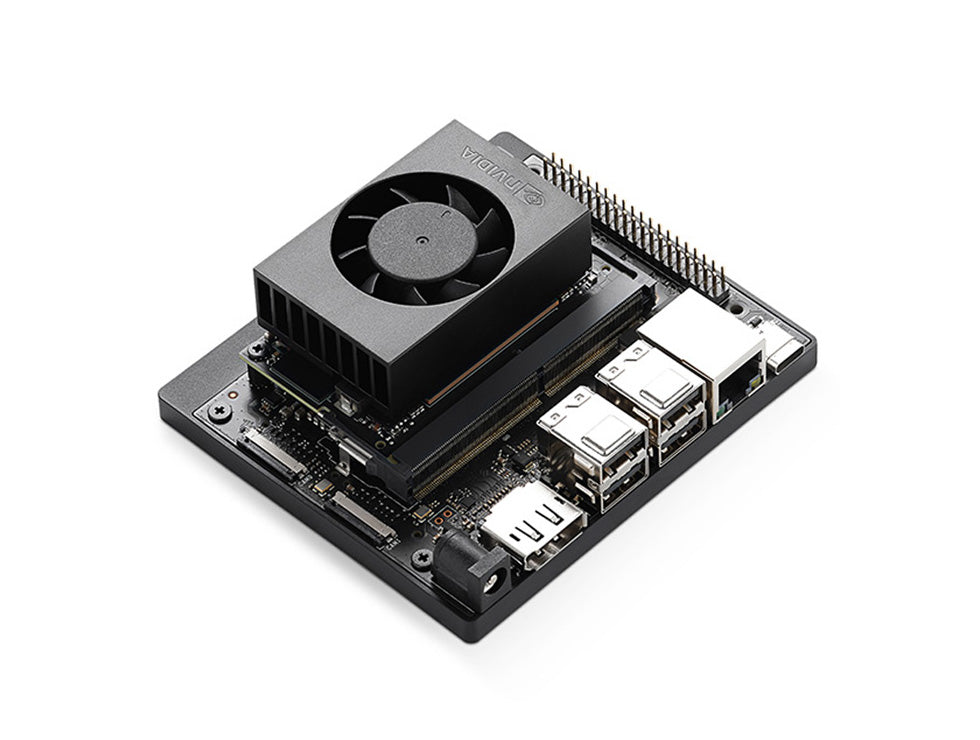

N-VIDIA Jetson Orin Nano Super AI Development Kit for Embedded and Edge Systems, with 8GB Memory Jetson Orin Nano Module
Abholverfügbarkeit konnte nicht geladen werden
67TOPS | 70% Performance Boost | More Cost-Effective
TheN-VIDIA Jetson Orin Nano Super Developer Kit is a compact, yet powerful computer that sets a new standard for creating entry-level AI-powered robots and intelligent cameras. It can run all modern AI models such as Vision Transformers, Large Language Models, Vision Language Models, etc. At the same time, it simplifies the entry process of the Jetson Orin Nano series, and provides an affordable and accessible platform for developers, students, and makers, with the support of the N-VIDIA AI software and a broad AI software ecosystem. Existing Jetson Orin Nano Developer Kit users can experience this performance boost with just a software upgrade, so everyone can now unlock new possibilities with generative AI.Compared with the previous generation of products, the Super Developer Kit provides users with more powerful AI computing power with the same compact size and more cost-effective price. With the Jetpack 6.1.1 SDK, it delivers up to 67 TOPS of AI performance - a 1.7X improvement over its predecessor, and memory bandwidth is increased by 50% to 102GB/s.
Jetson Orin Nano Super delivers performance boost for all mainstream AI models and Transformer-based computer vision. Based on the Jetson Orin Nano 8GB module, features an N-VIDIA Ampere GPU and a 6-core ARM CPU, enabling multiple concurrent AI application pipelines and high-performance inference. This module supports up to 4 channels of camera modules, providing higher resolution and frame rate than ever before.
The N-VIDIA Jetson Orin Nano Super delivers significant performance increases over its predecessor on a wide variety of popular Large Language Models (LLMs), Vision Language Models (VLMs), and Vision Transformers.
Large Language Models
LLM performance boost on Jetson Orin Nano Super
Vision Language Models
VLM performance boost on N-VIDIA Jetson Orin Nano Super
Vision Transformers
Vision Transformers performance boost on Jetson Orin Nano Super
| Core Module | Jetson Orin Nano 8GB (SUPER) |
|---|---|
| AI Performance | 67 TOPS (sparse)33 TOPS (dense) |
| GPU | N-VIDIA Ampere architecture with 1024 CUDA cores and 32 tensor cores |
| GPU Frequency | 1020MHz (Max) |
| CPU | 6-core Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| CPU Frequency | 1.7GHz (Max) |
| Memory | 8GB 128-bit LPDDR5, 102 GB/s |
| Storage | SD card slot, access to external NVMe via M.2 Key M interface |
| Power | 7 W | 15 W | 25 W |
| PCIe | M.2 Key M slot with ×4 PCIe Gen3M.2 Key M slot with ×2 PCIe Gen3M.2 Key E slot |
| USB* | USB Type-A: 4 × USB 3.2 Gen2USB Type-C (UFP) |
| CSI Camera | 2 × MIPI CSI-2 camera interface |
| Video Encoding | 1080p30, supported by 1~2 CPU cores |
| Video Decoding | 1 × 4K60 (H.265)2 × 4K30 (H.265)5 × 1080p60 (H.265)11 × 1080p30 (H.265) |
| Display Interface | 1 × DP interface1.2 (+MST) interface |
| Other Interfaces | 40-pin expansion header (UART, SPI, I2S, I2C, GPIO)12-pin button header4-pin fan headerTF card slotDC power jack |
| Networking | 1 × GbE connector |
| Dimensions | 100 × 79 × 21 (mm) |
| * USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations. | |
The software updates to boost 1.7X generative AI performance will also be available to the Jetson Orin NX and Orin Nano series of systems on modules. Existing Jetson Orin Nano Developer Kit owners can upgrade the JetPack SDK to unlock boosted performance today.
N-VIDIA SoftwareAll N-VIDIA Jetson modules and developer kits are supported by the same N-VIDIA Jetson software stack, so you can develop once and deploy everywhere. Jetson software is designed to provide end-to-end acceleration for AI applications and accelerate the time to market. This brings the powerful N-VIDIA technologies that power data centers and cloud deployments to the edge.
Pretrained ModelsMany AI applications have common needs: classification, object detection, language translation, text-to-speech, recommender engines, sentiment analysis, and more. Pretrained models from the NGC™ catalog are performance-optimized and ready to be fine-tuned with the N-VIDIA TAO Toolkit and customer datasets, reducing time and cost for production AI software development.
N-VIDIA software platforms including Isaac for robotics, Riva for AI speech, and Metropolis for video analytics, are available to speed vertical-specific applications
N-VIDIA IsaacRobots improve efficiency and quality of life in industries such as manufacturing, logistics, healthcare, and service. N-VIDIA Isaac™ accelerates the process with enhanced robotics development, simulation, and deployment.
N-VIDIA RivaN-VIDIA Riva is a fully accelerated SDK for building multimodal conversational AI applications using an end-to-end deep-learning pipeline, suitable for optimized skills in speech, vision, and natural language processing (NLP) tasks.
N-VIDIA MetropolisN-VIDIA Metropolis includes an application framework, a set of developer tools, and the partner ecosystem. It brings visual data and AI together to improve operational efficiency and safety across a broad range of industries.
| Model | Module | Developer Kit |
|---|---|---|
| Jetson AGX Orin 2048-core N-VIDIA Ampere architecture GPU with 64 Tensor Cores |  110×110×71.65mmOfficial Kit: 64GB | |
| Jetson Orin Nano 512/1024-core N-VIDIA Ampere architecture GPU with 16/32 Tensor Cores |  Memory: 4GB / 8GB69.6×45mm260-pin SO-DIMM connector |  100×79×21mmOfficial Kit |
| 100×79×21mmOfficial Super Kit | ||
 103×90.5×34mmWaveshare Kit: 4GB / 8GB | ||
 103×90.5×34mmWaveshare Dual ETH Kit: 4GB / 8GB | ||
| Jetson Orin NX 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |  Memory: 8GB / 16GB69.6×45mm260-pin SO-DIMM connector |  103×90.5×34mmWaveshare Kit: 8GB / 16GB |
| 103×90.5×34mmWaveshare Dual ETH Kit: 8GB / 16GB | ||
Note: some models haven't been released yet, please contact the Waveshare service team if you need them. | ||
As an NVIDIA official authorized partner, Waveshare is capable of providing genuine products and reliable tech support
Lieferumfang
Jetson Orin Nano Super Developer Kit x1
