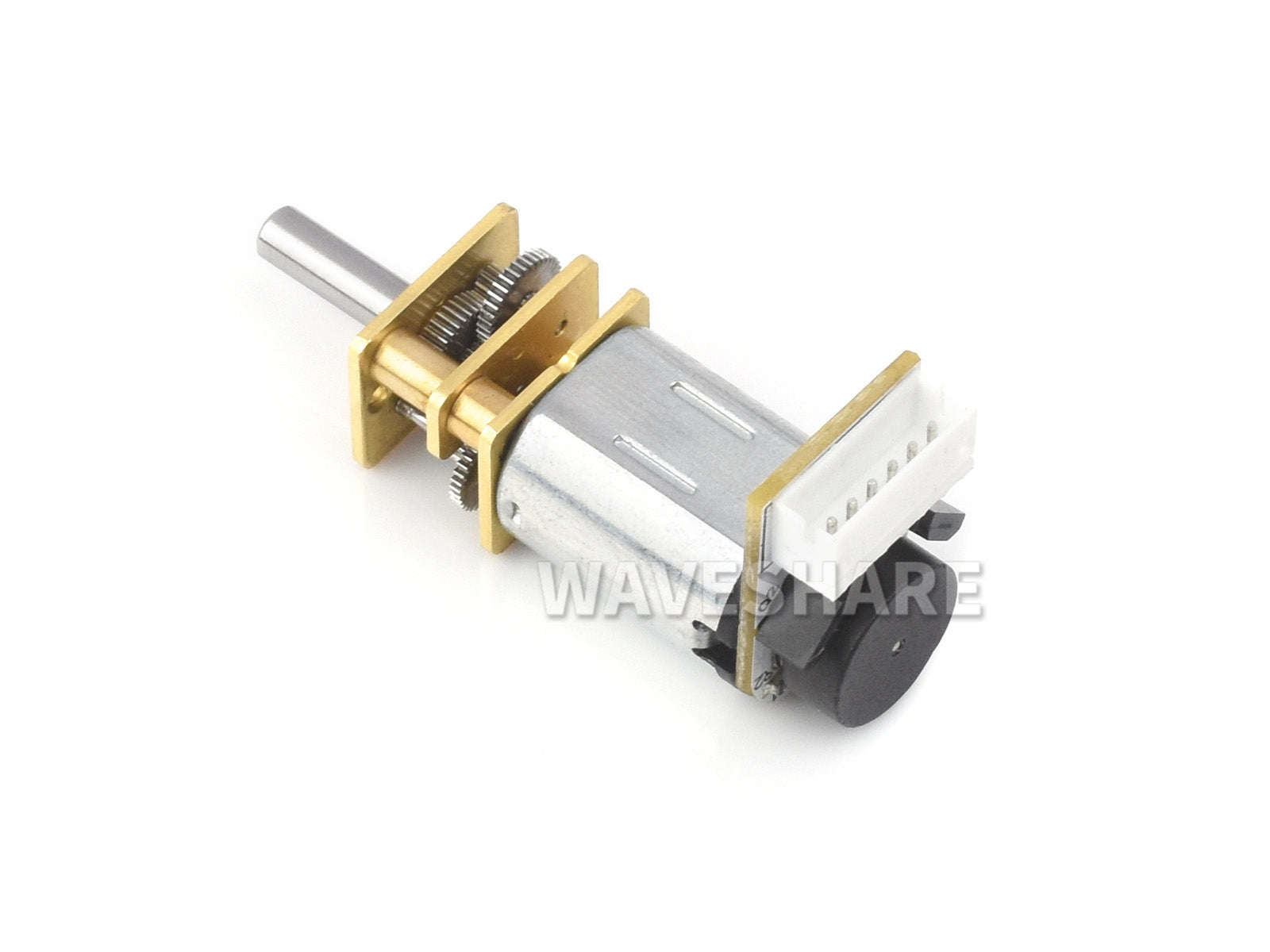

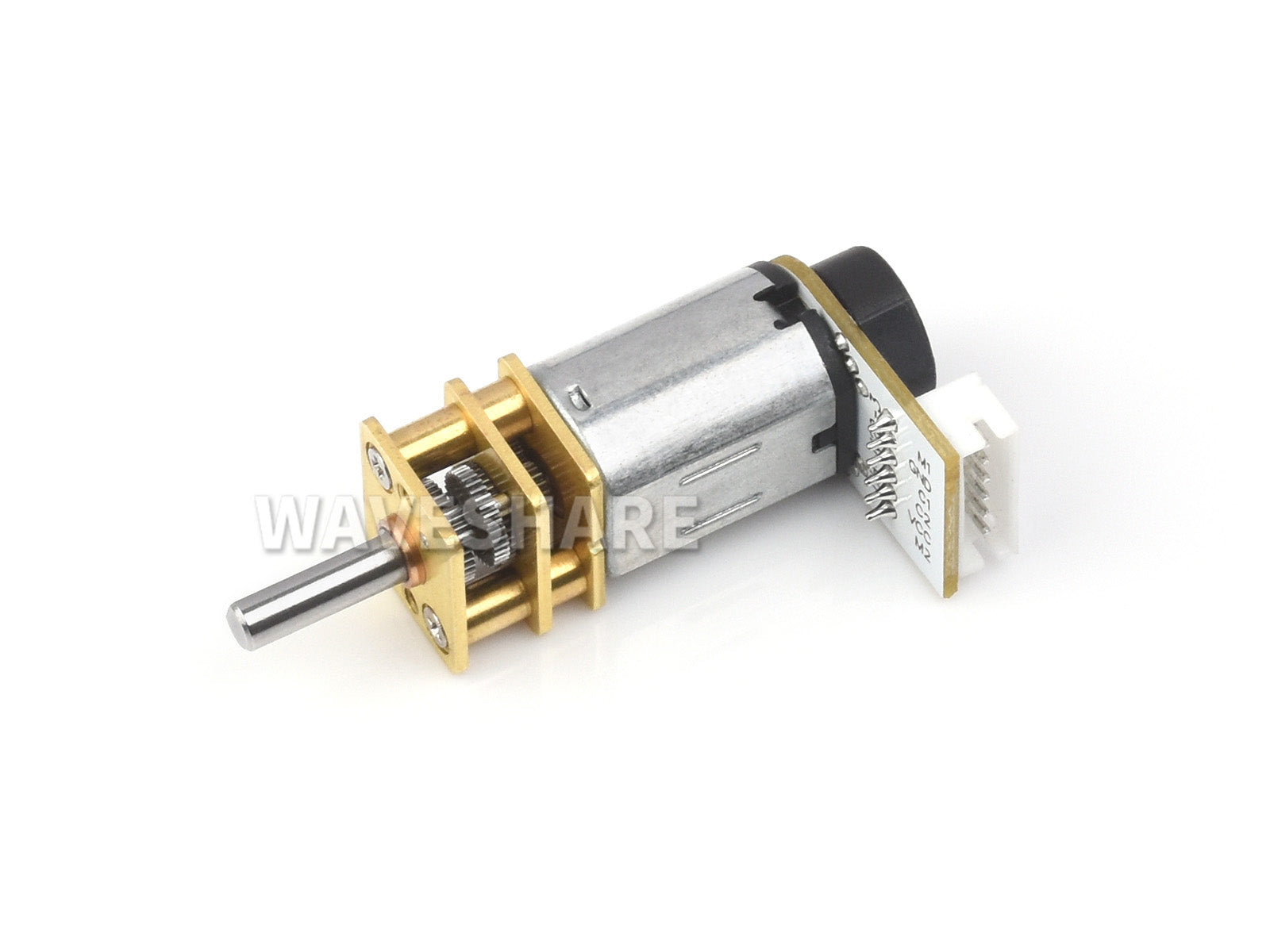

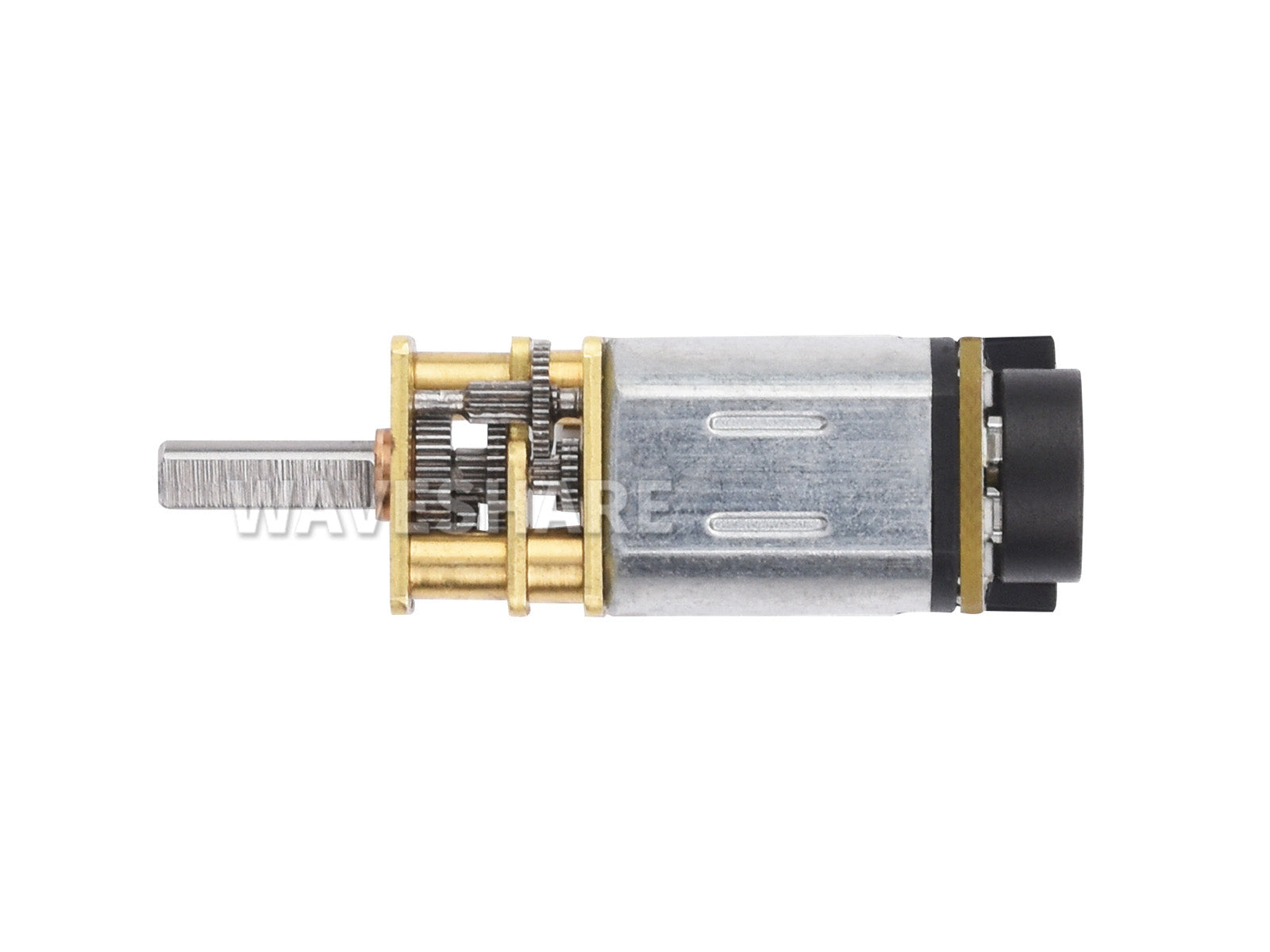

N20 DC Gear Motor, Magnetic Hall Encoder, All-metal Gearbox, High precision Reduction Motor, With L-shaped 6PIN Connector
N20 DC Gear Motor
All-metal Gear | Magnetic Hall Encoder | High precision Reduction Motor
Specifications
| Key Parameters | |
|---|---|
| Rated Voltage | DC 12 V |
| No-load Speed | 200 rpm |
| No-load Startup Voltage | 3.0V MAX |
| Locked-rotor Torque | ≥1.2 kg.cm |
| No-load Current | 0.1 A MAX |
| Locked-rotor Current | ≤1.1 A |
| Hall Resolution | Basic 7 PPR × 150 = 1050 PPR |
| Gear Reduction Ratio | 1:150 |
| Encoder Specifications | |
| Type | AB Dual-Phase Incremental Magnetic Hall Encoder |
| Line Rate | Basic pulse 7 PPR x Gear reduction ratio |
| Power Supply | DC 3.3V / DC 5.0V |
| Basic Function | with pull-up resistor, directly connect to MCU |
| Output Signal Type | Square wave AB phase |
| Response Frequency | 100 KHz |
| Basic Pulses | 7 PPR |
| Magnetic Ring Trigger Poles Number | 14 poles (7 pairs of poles) |

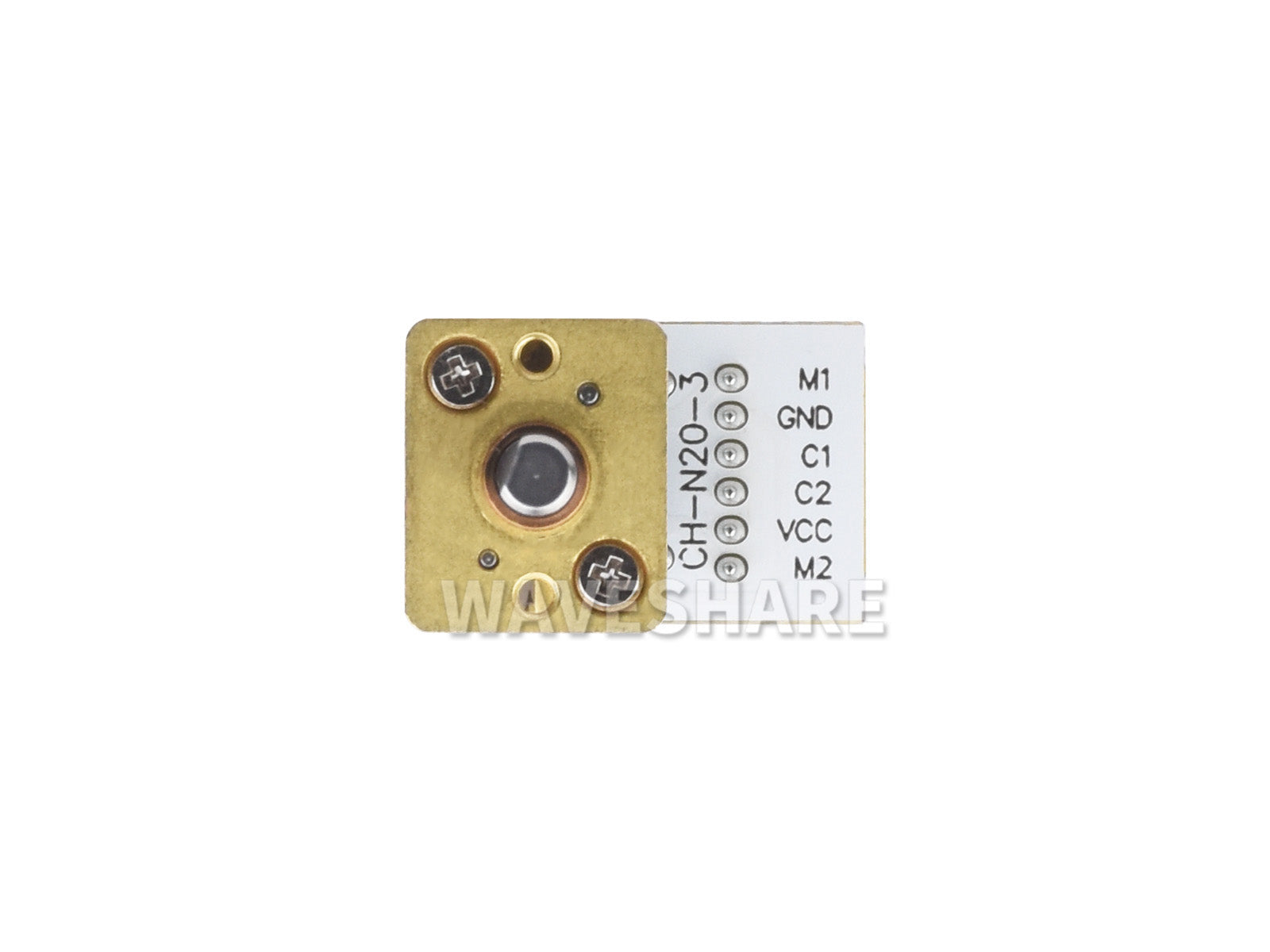

Encoder pin definition
Onboard 6PIN connector, easy to integrate into various robots and other devices
Provides better motor performance
Adopts metal material, Rigid, Durable, And More Stable
Application Scenarios
Suitable for application scenarios such as intelligent robots, smart homes, etc.
Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Lieferumfang
DCGM-N20-12V-EN-200RPM x1
