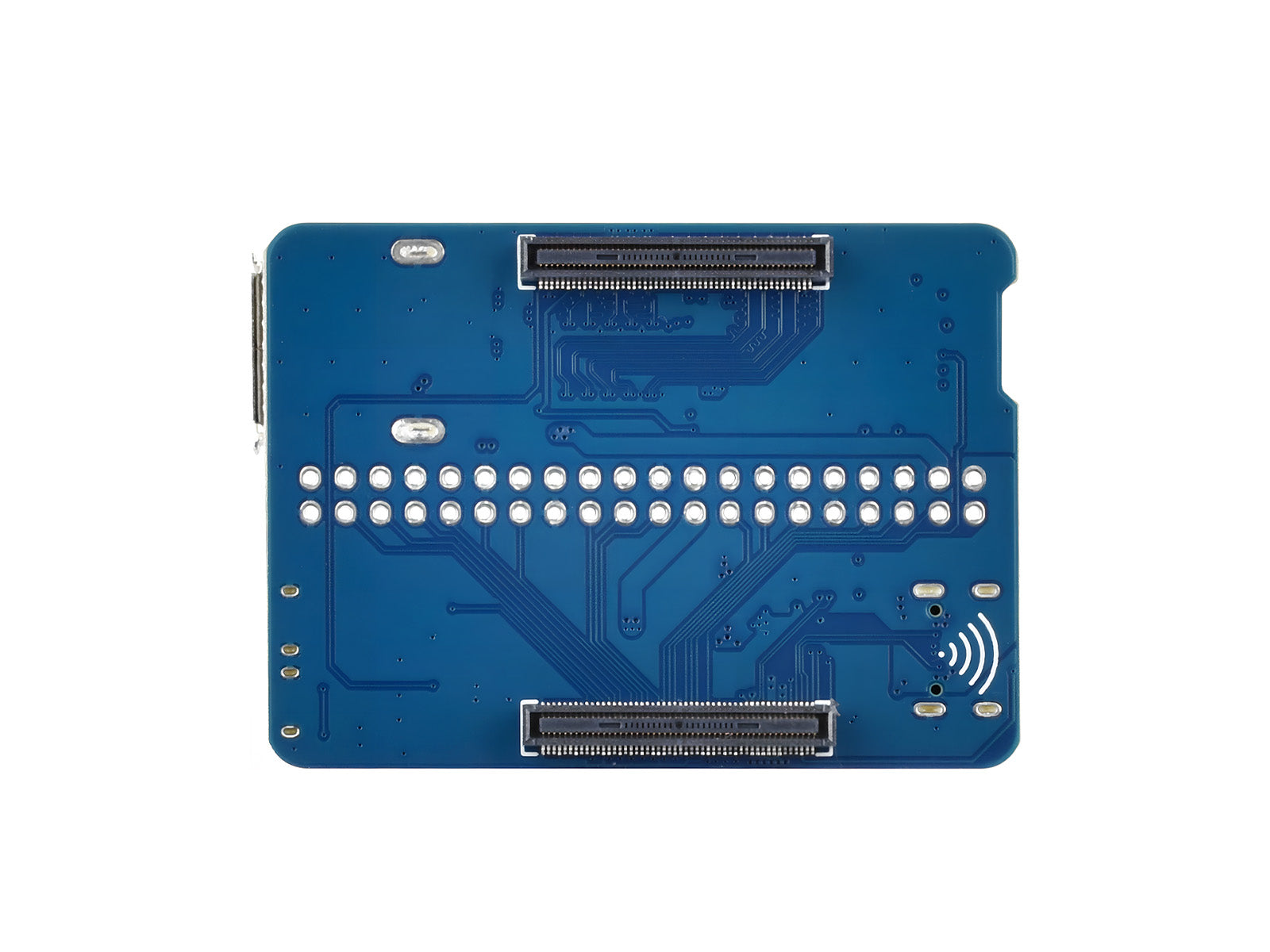

Nano Base Board (A) for Raspberry Pi Compute Module 5, Same Size As The CM5

Nano Base Board (A) for CM5

Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products

Base Board for Compute Module 5 Lite / eMMC

Same Size As The CM5

Compact size and fully functional, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environments

Note: the CM5 is NOT included. Please buy it separately.

Specifications

CM5 socket	suitable for all variants of Compute Module 5
Connector	Raspberry Pi 40PIN GPIO interface × 1
USB	USB 3.2 Gen1 Type A port × 1
MIPI	MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
Storage	TF card socket for Compute Module 5 Lite (without eMMC) variants
Power input	5V
Dimensions	55 × 40mm

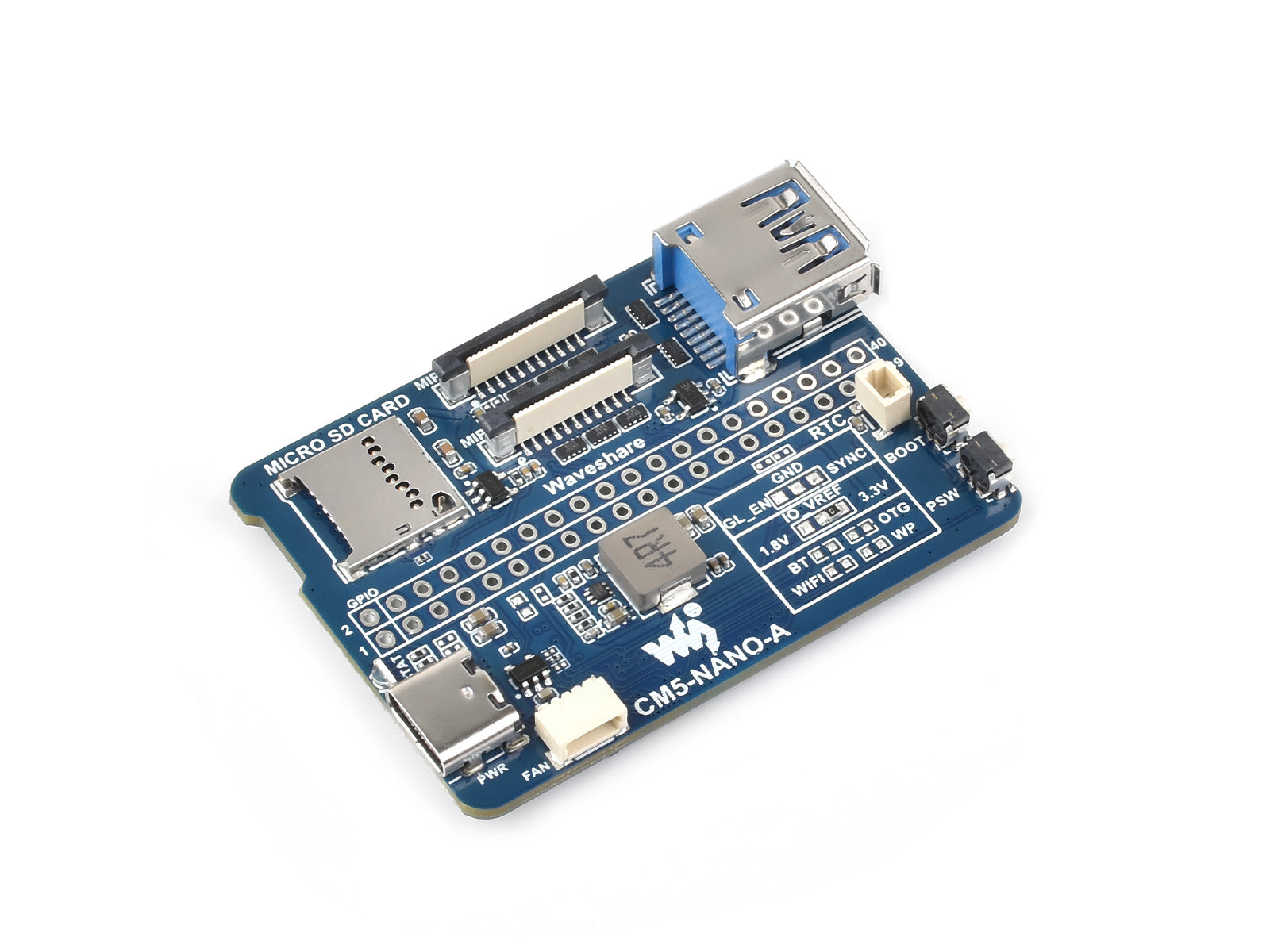

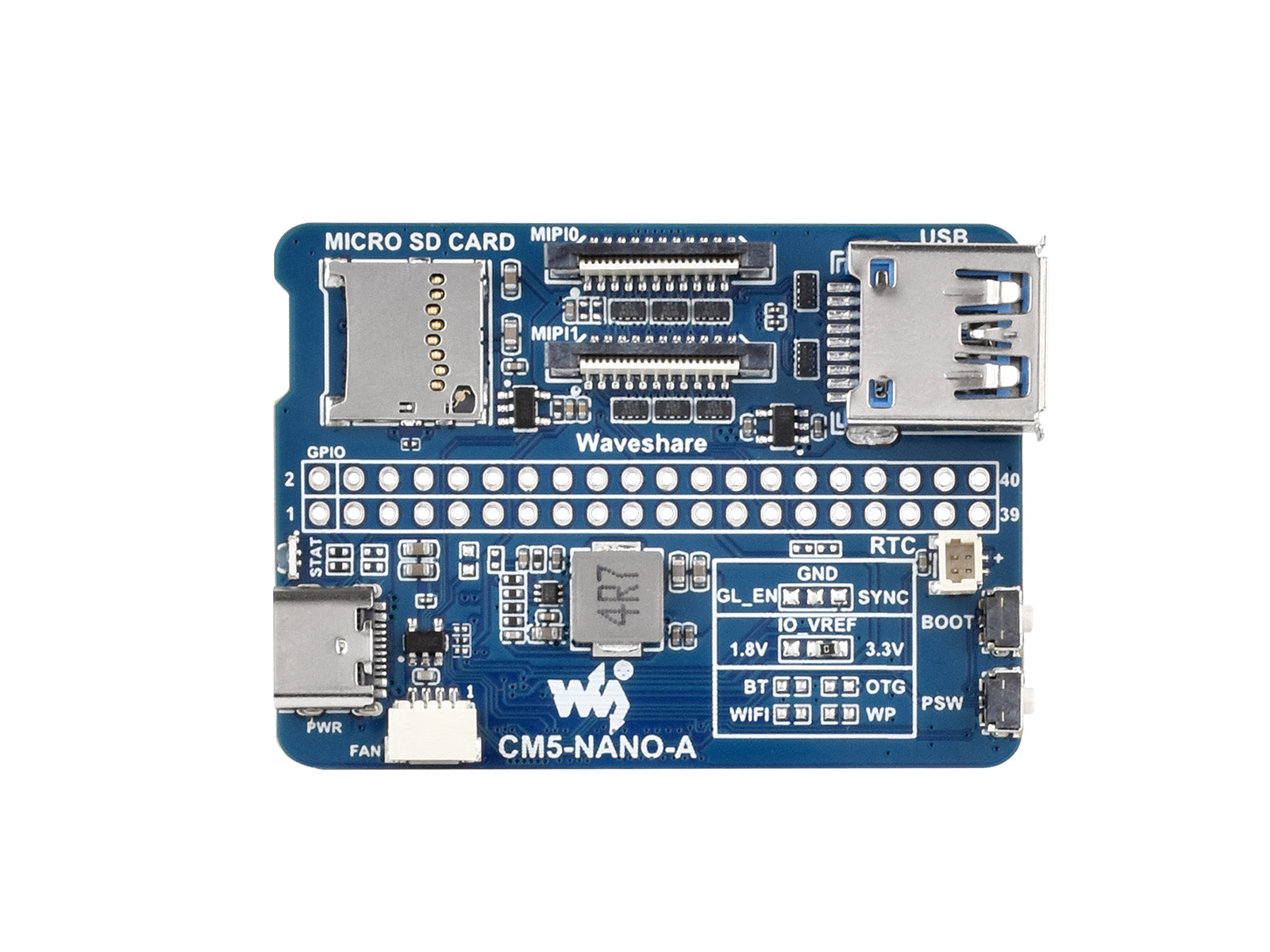

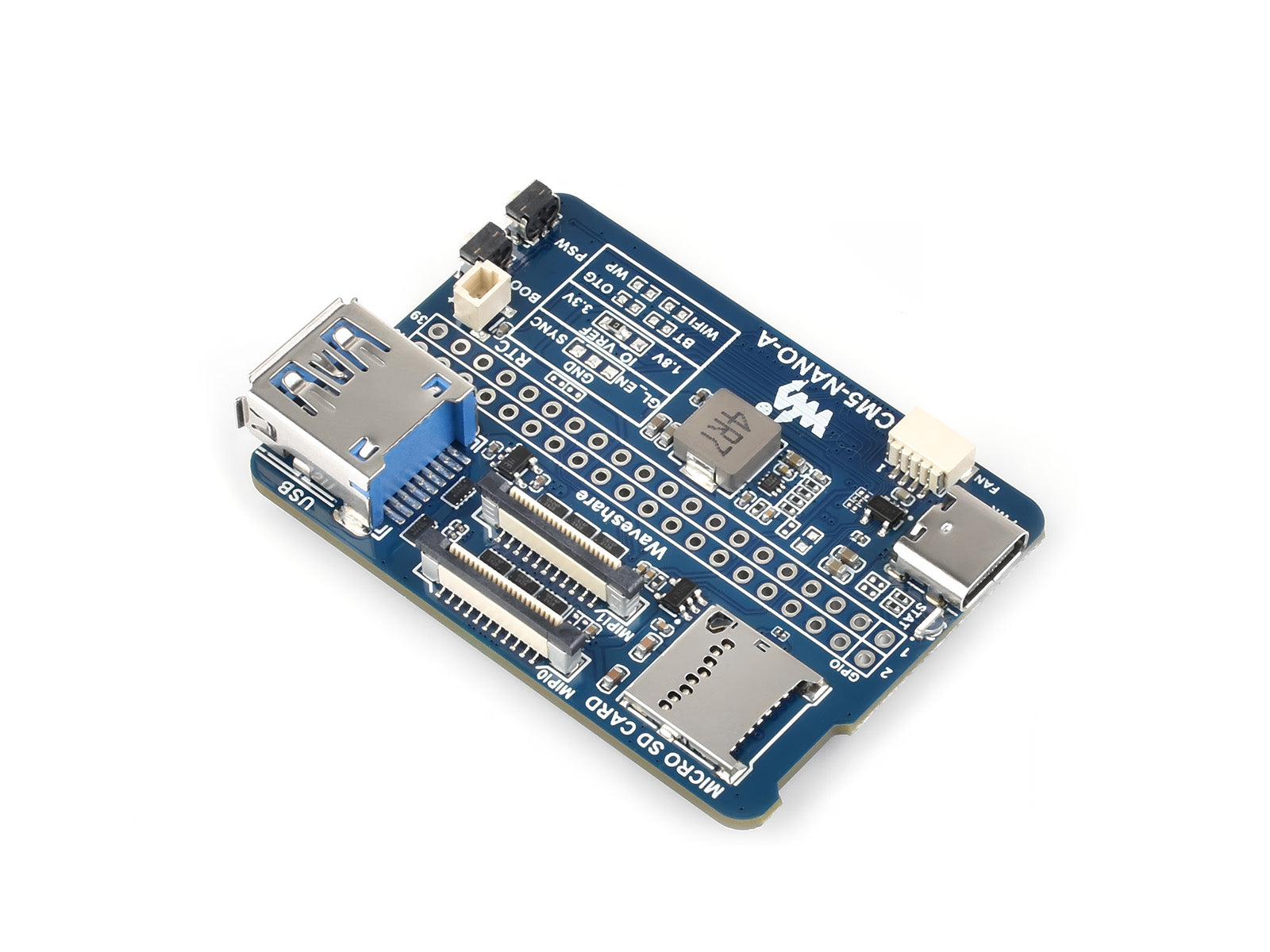

What's On Board

1. CM5 socket suitable for all variants of Compute Module 5
2. USB port USB 3.2 Gen1 high speed interface, for connecting sorts of USB devices
3. TF card slot for connecting a TF card with pre-burnt image (Lite variant ONLY)
4. Power supply / Programming 5V power supply, or used for eMMC burning
5. FAN header 4PIN JST-SH PWM fan header for connecting a cooling fan
6. PSW button power button
7. BOOT button Press before powering on and release after powering on to enter the burning mode

8. 2PIN JST-SH RTC battery header
9. 40PIN GPIO interface suitable for connecting to various HAT modules
10. Dual MIPI interfaces for connecting to DSI displays or CSI cameras
11. Special function pins CM5 core power enable and ETH SYNC signal
12. IO-VREF selection CM5 IO logic level: 3.3V or 1.8V
13. Function enable pins Enabled by default, can be disabled by shorting the corresponding pads
14. Dual-color LED indicatorRed light: Raspberry Pi power indicatorGreen light: Raspberry Pi working status indicator

Outline dimensions

About Compute Module 5

Newly upgraded, more powerful

• Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
• More options for RAM (2GB / 4GB / 8GB / 16GB)
• More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
• Faster eMMC Flash storage, up to 200 Mbps data rate
• Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
• Adopts B to B connectors, most compatible with Compute Module 4
• Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
• Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules

Resources & Services

---

WIKI:www.waveshare.com/wiki/CM5-NANO-A

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

What's the differences

CM5 Base Board	Interface count and specifications
	PoE	GigabitETH	40PINGPIO	PCIe	USB①	MIPI	HDMI	RTC	FanHeader②	PowerInput	Features
NANO A			√		3.0×1	×2		SH1.0	√	5V	CM5 sized
NANO B		×1	√	16PIN PCIe	3.0×1	×2	√	SH1.0	√	5V	CM5 sized
mini Base A		×1	√	16PIN PCIe	3.0×22.0×2	×2	×2	ML/CR1220	√	5V	mini size
mini Base B		×1	√	M.2 M KEY	3.0×22.0×2	×2	×2	ML/CR1220	√	5V	mini size, onboard EEPROM and encryption chip
Mini Dual Gigabit		×2	√		3.0×1			SH1.0	√	5V	dual ETH
Dual ETH A		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×12.0×2	×2	×2	ML/CR1220	√	7V~36V	dual ETH, onboard EEPROM and Encryption chip
Dual ETH B		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×12.0×1	×2	×1	SH1.0	√	5V	dual ETH ports
Dual ETH 4G/5G		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×2	×2	×2	ML/CR1220	√	7V~36V	dual ETH and 4G/5G support
PoE Base	√	×1	√	M.2 M KEY	3.0×22.0×2	×2	×2	ML/CR1220	√	5V	USB×4
Raspberry Pi official	③	×1	√	M.2 M KEY	3.0×2	×2	×2	ML/CR1220	√	5V	Official IO base board
IPCBOX-CM5		1G ×1 2.5G ×1		M.2 M KEY	3.0×12.0×3		×1	SH1.0	√	7V~36V	dual ETH, 4G/5G support,RS485/RS232,Encryption chip,EEPROM,CAN,digital inputs,digital outputs,audio,an buzzer
CM5 Dual ETH Multi-function		1G ×1 2.5G ×1		M.2 M KEY	3.0×12.0×2	×2	×1	SH1.0	√	7V~36V	dual ETH, 4G/5G support,RS485,Encryption chip,digital input,relay,and buzzer
Note	① USB 3.0 is equivalent to USB 3.2 Gen1.② Unless otherwise specified, the Fan header usually is JST-SH type connector.③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).
