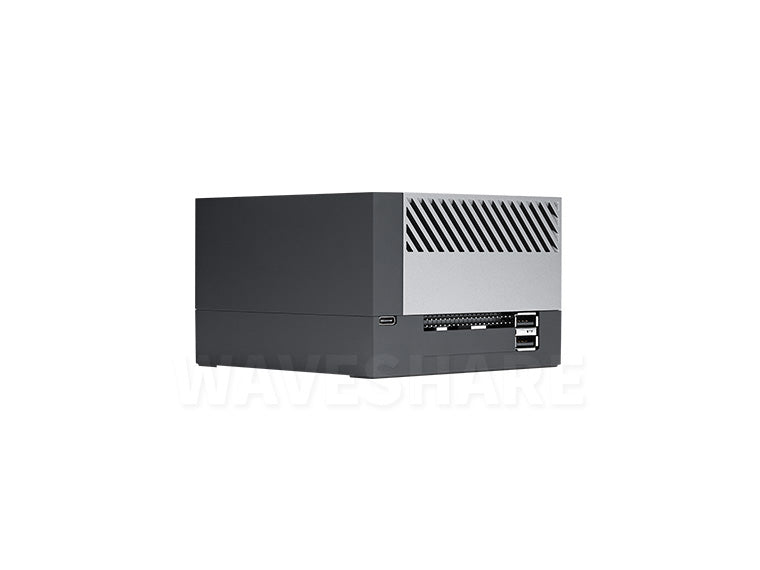

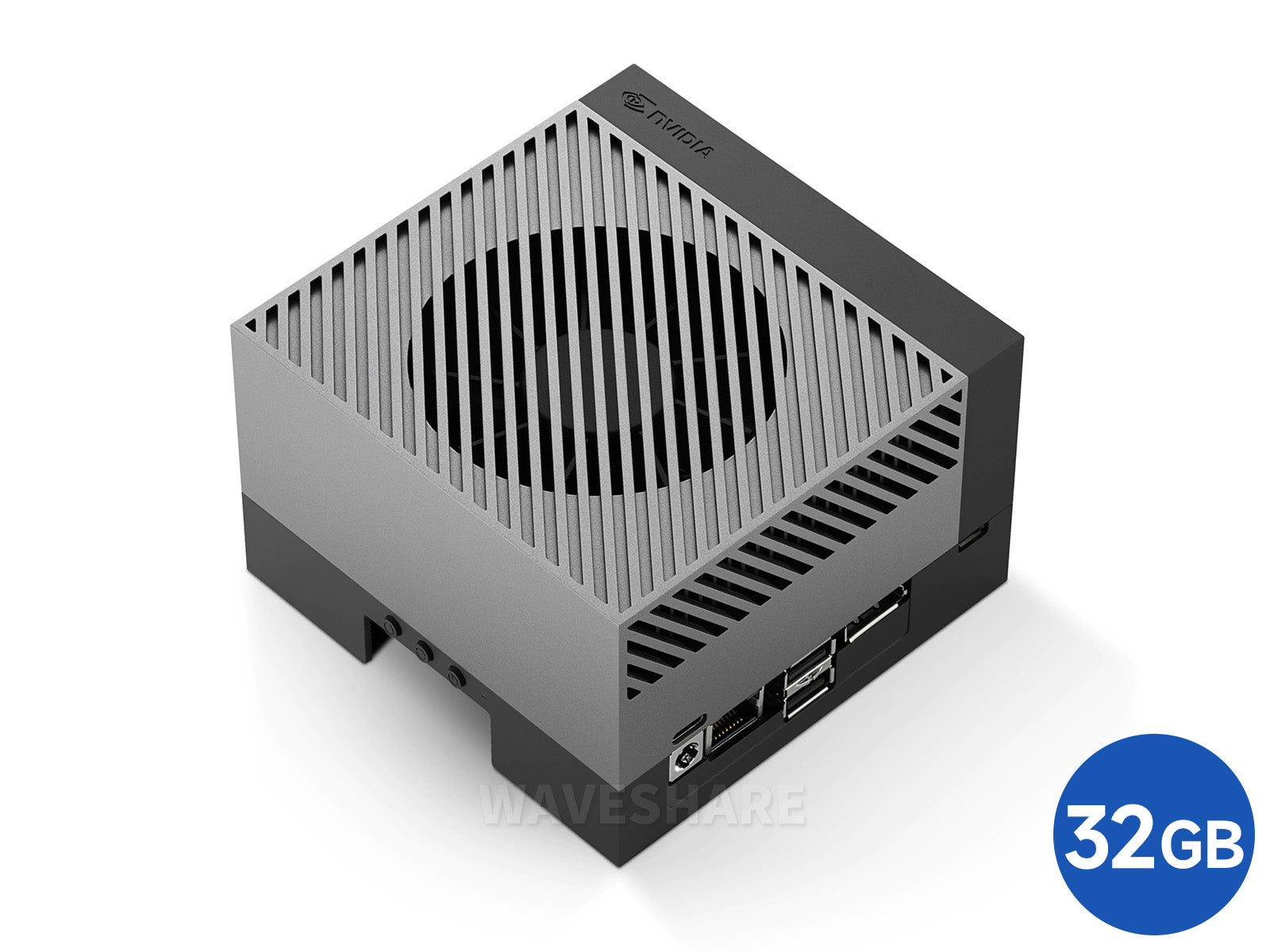

NVIDIA Jetson AGX Orin Developer Kit, Server-class AI performance at the edge, up to 275 TOPS, Options for 32GB/64GB memory
Abholverfügbarkeit konnte nicht geladen werden
Server-class AI performance at the edge
The NVIDIA Jetson AGX Orin Developer Kit includes a high-performance, power-efficient Jetson AGX Orin module with options for 32GB/64GB memory, up to 275 TOPS and 8X the performance of the last generation for multiple concurrent AI inference pipelines, for running the NVIDIA AI software stack. This developer kit lets you create advanced robotics and edge AI applications for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences.
The Jetson AGX Orin provides 8X the performance of Jetson AGX Xavier with the same compact form factor and compatible pinouts, integrating NVIDIA Ampere architecture GPU, Arm Cortex-A78AE CPU, next-generation deep learning and vision accelerator, high-speed interface, faster memory bandwidth, and multi-mode sensor support, for supporting multiple concurrent AI application channels.
| JETSON AGX ORIN MODULE | |
|---|---|
| AI Performance | 275 TOPs |
| GPU | NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 tensor cores |
| CPU | 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| DL Accelerator | 2x NVDLA v2.0 |
| Vision Accelerator | PVA v2.0 |
| Memory | 32GB/64GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 |
| Video Encode | 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) |
| Video Decode | 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60 | 22x 1080p30 (H.265) |
| REFERENCE CARRIER BOARD | |
| Camera | 16 lane MIPI CSI-2 connector |
| PCIe | x16 PCIe slot: Lower x8 PCIe Gen4 |
| RJ45 | Up to 10 GbE |
| M.2 Key M | x4 PCIe Gen 4 |
| M.2 Key E | x1 PCIe Gen 4, USB 2.0, UART, I2S |
| USB Type-C | 2x USB 3.2 Gen2 with USB-PD support |
| USB Type-A | 2x USB 3.2 Gen2 2x USB 3.2 Gen1 |
| USB Micro-B | USB 2.0 |
| DisplayPort | DisplayPort 1.4a (+MST) |
| microSD slot | UHS-1 cards up to SDR104 mode |
| Other | 40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC battery backup connector DC power jack Power, Force Recovery, and Reset buttons |
| Dimensions | 110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution) |
Lieferumfang
OPTIONS Jetson AGX Orin Developer Kit x1
