SKU:WSAL29455

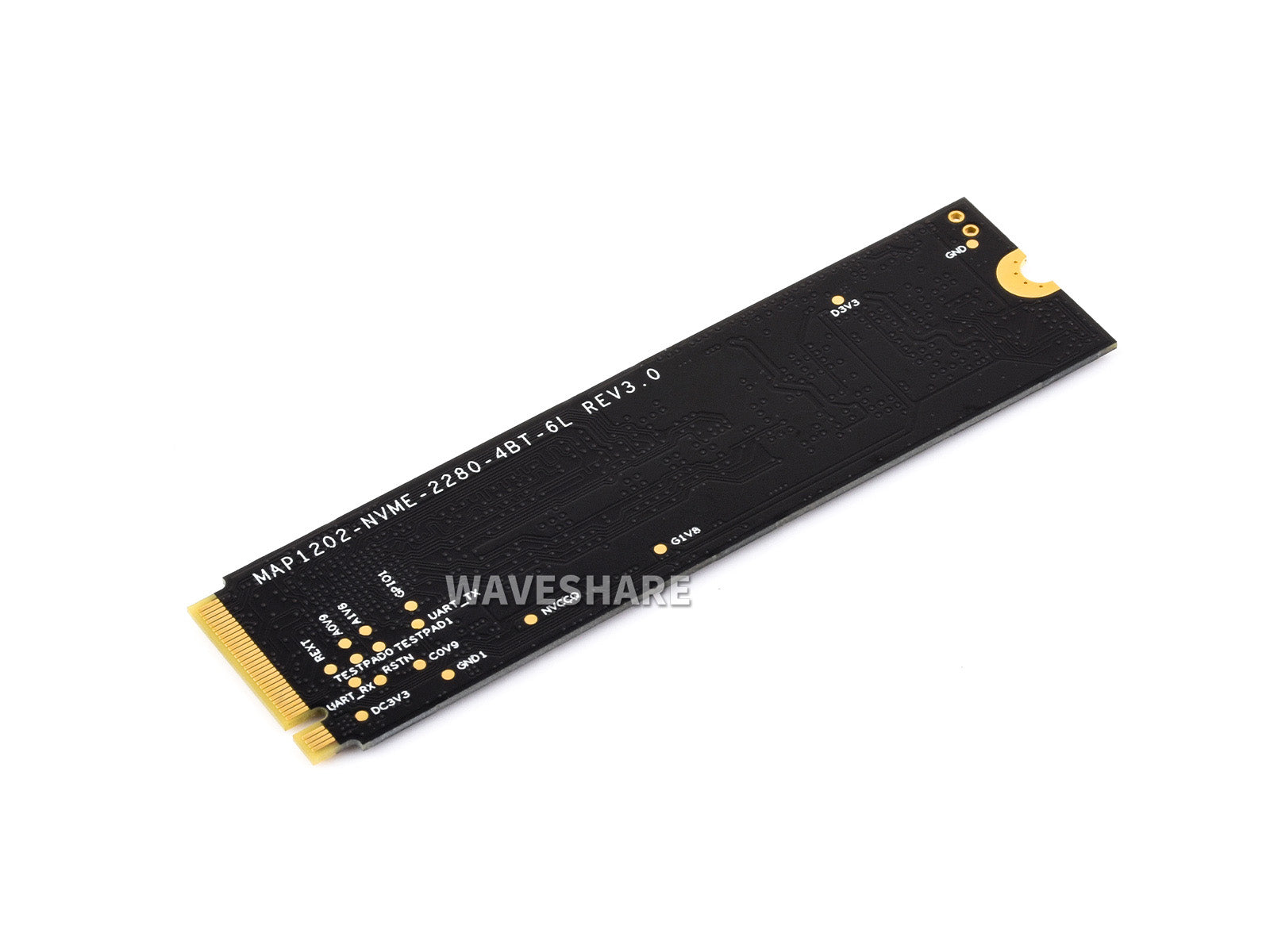

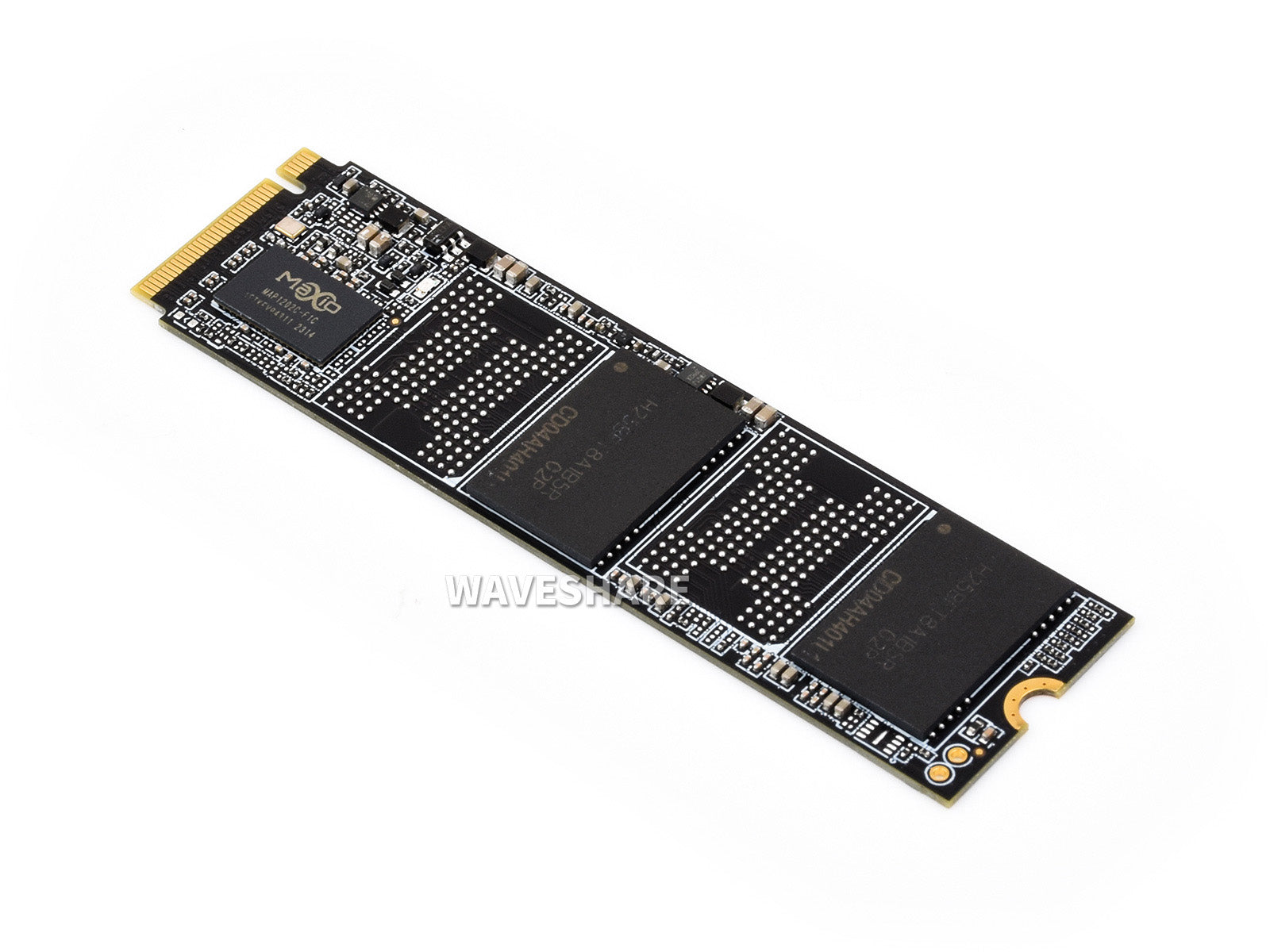

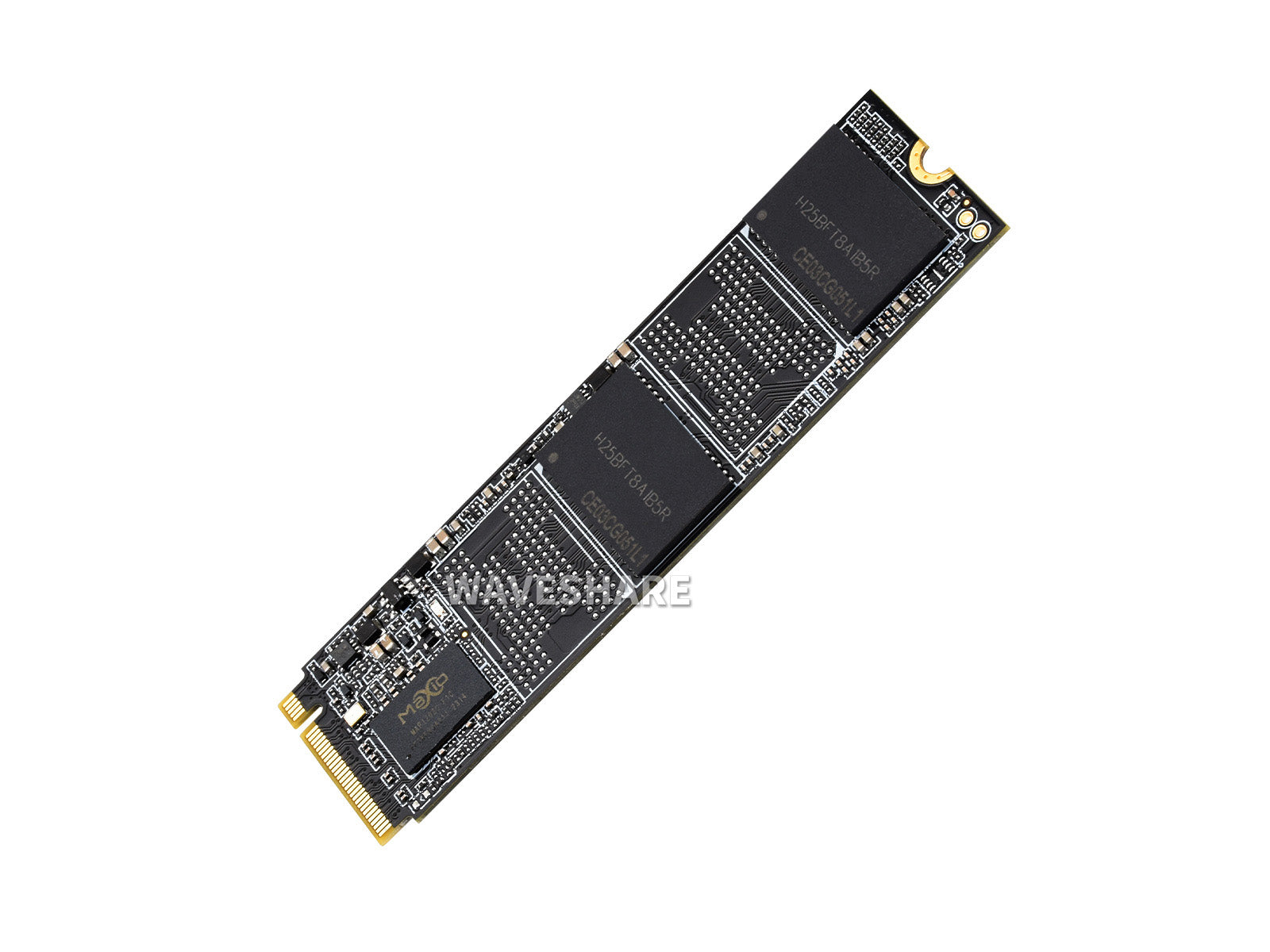

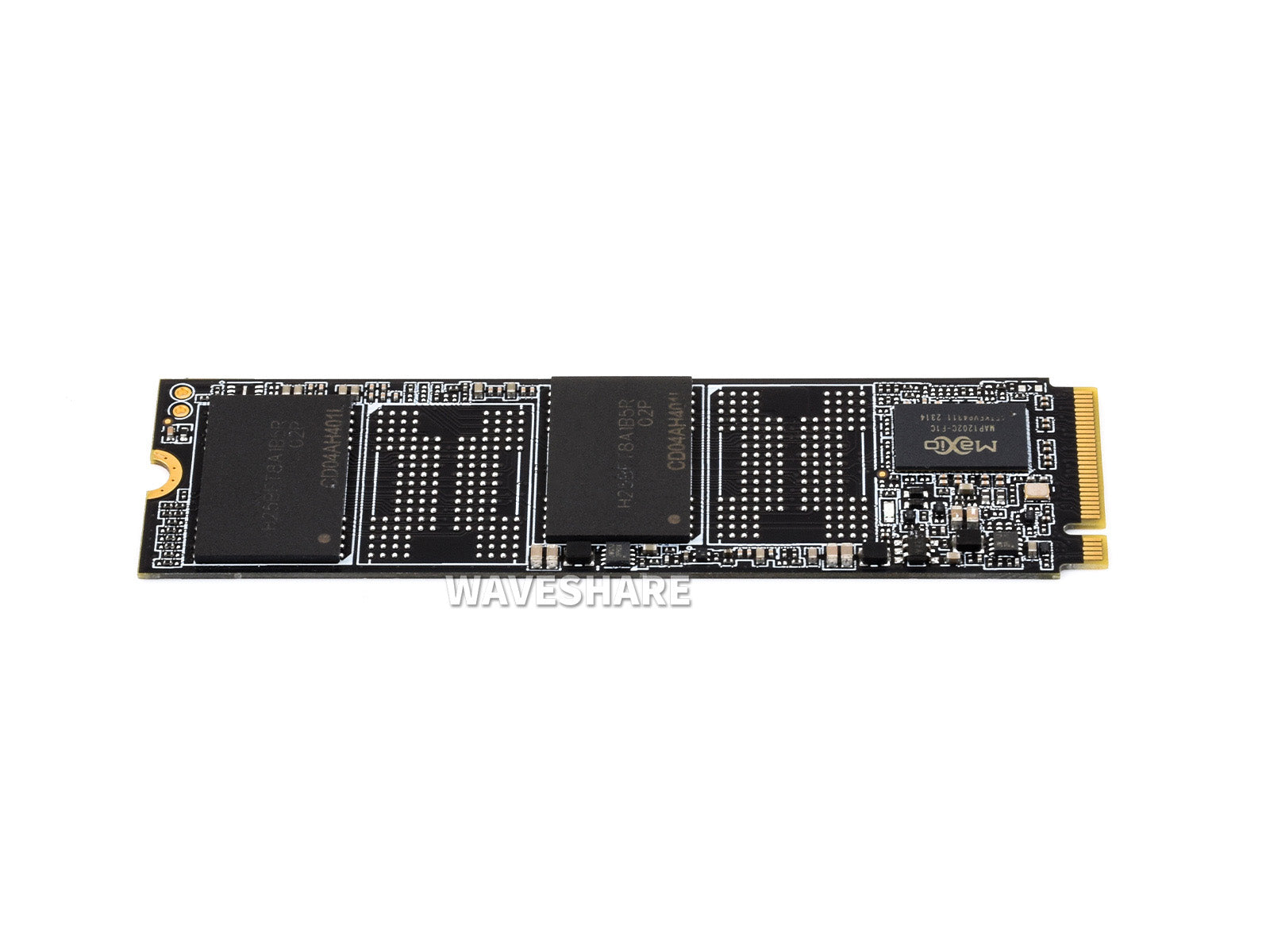

NX M2 NVME 2280 128GB / 256GB High-speed Solid State Drive, High-quality 3D TLC Flash Memory, High-speed Reading/Writing
Abholverfügbarkeit konnte nicht geladen werden
NVMe Protocol M.2 Interface, High-speed Reading/Writing
- PCIe Gen3 x4 interface
- Supports NVMe 1.3 protocol and is backward compatible with the NVMe 1.1 protocol
- Supports static and dynamic wear leveling algorithms
- Supports HMB and full-speed command queue functionality
- Supports garbage collection, error checking and correction, and reserved space mechanisms
- Supports power management and intelligent management technologies
- Supports TRIM commands
NX-NVME 2280 128G SSD-M.2128GB Version
NX-NVME 2280 256G SSD-M.2 256GB Version
| Model | NX-NVME 2280 128G SSD-M.2 | NX-NVME 2280 256G SSD-M.2 |
|---|---|---|
| capacity | 128G | 256G |
| Sequential Read | 1600MB ~ 2200MB/s | 2400MB ~ 3200MB/s |
| Sequential Write | 600MB ~ 800MB/s | 1000MB ~ 1600MB/s |
| TBW | 125TB | 250TB |
| NAND Flash | 3D TLC Flash | |
Supports NVMe 1.3 protocol, improving the system boot time, startup and loading speed of the applications
offers faster IO transfer speed with high density to further release more reading and writing performance, and providing better reliability and durability
Connecting with Compute Module 5 IO Board
Connecting with CM5-PoE-BASE-A
Connecting with JETSON-ORIN-IO-BASE
Connecting with PCIe TO 2-CH M.2 HAT+ (B)
* for reference only, please refer to the Package Content for detailed part list
| brand | KingSpec |
|---|---|
| Interface | M.2 NVMe PCIe 3.0 |
| Dimensions | 80.0 × 22.0 × 2.1 (mm) |
| NAND Flash Memory | 3D TLC Flash |
| Operating Temperature | 0°C - 70°C |
| Device support | Laptops / PCs / All-in-one hosts, etc. |
| Certificate | CE, RoHS, FCC, REACH |
| System support | Windows, Raspberry Pi OS, CentOS, Ubuntu, Linux |
Lieferumfang
NX-NVME 2280 128G SSD-M.2
NX-NVME 2280 128G SSD-M.2 x1
NX-NVME 2280 256G SSD-M.2
NX-NVME 2280 256G SSD-M.2 x1
