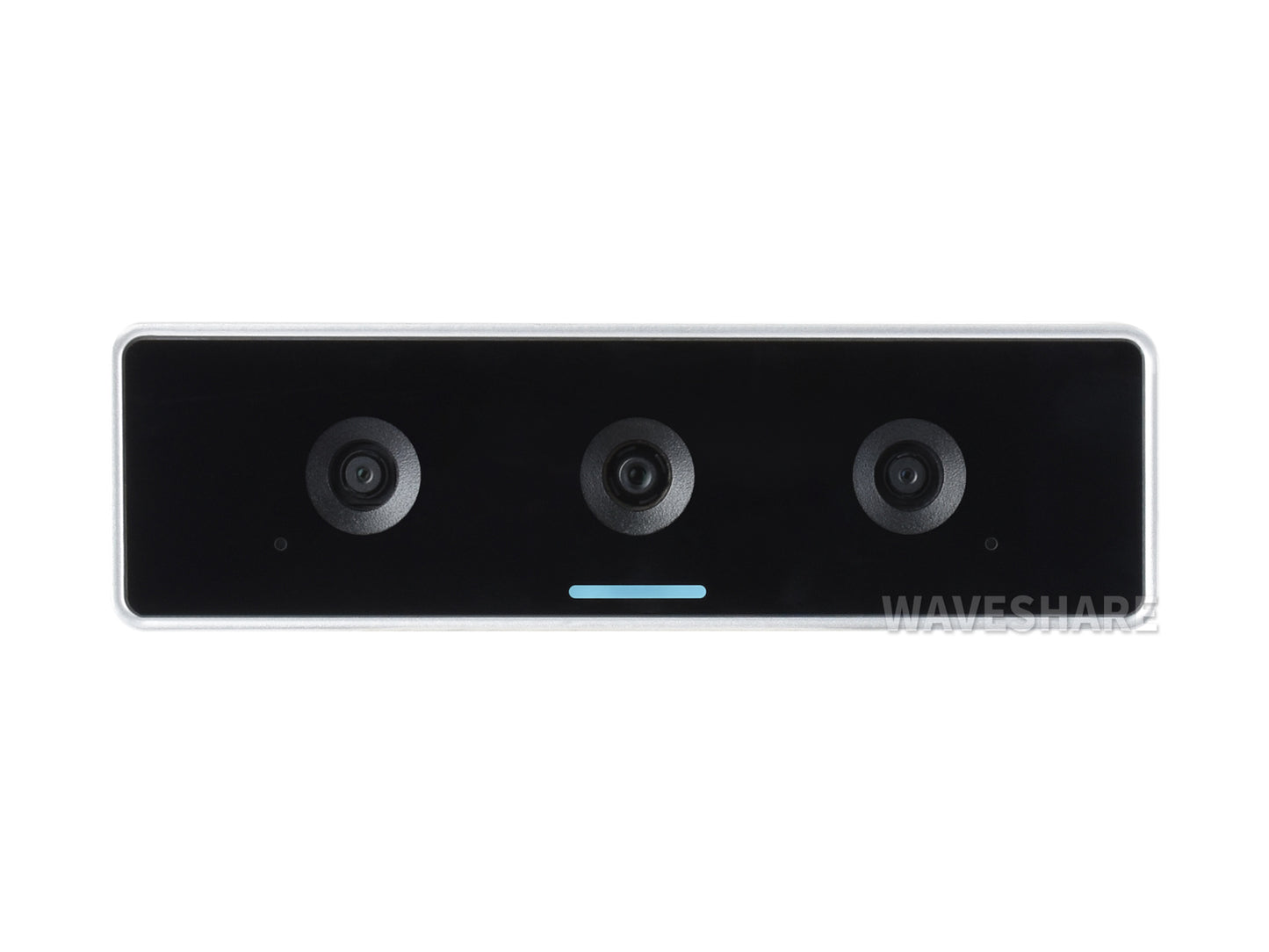

OAK 4 D 48MP 3D Stereo Depth Vision And Edge AI Inference Camera, Provides 48 TOPS (INT8) And 12 TOPS (FP16) Of Edge AI Computing Power
Abholverfügbarkeit konnte nicht geladen werden
3D stereo depth vision & edge AI inference camera

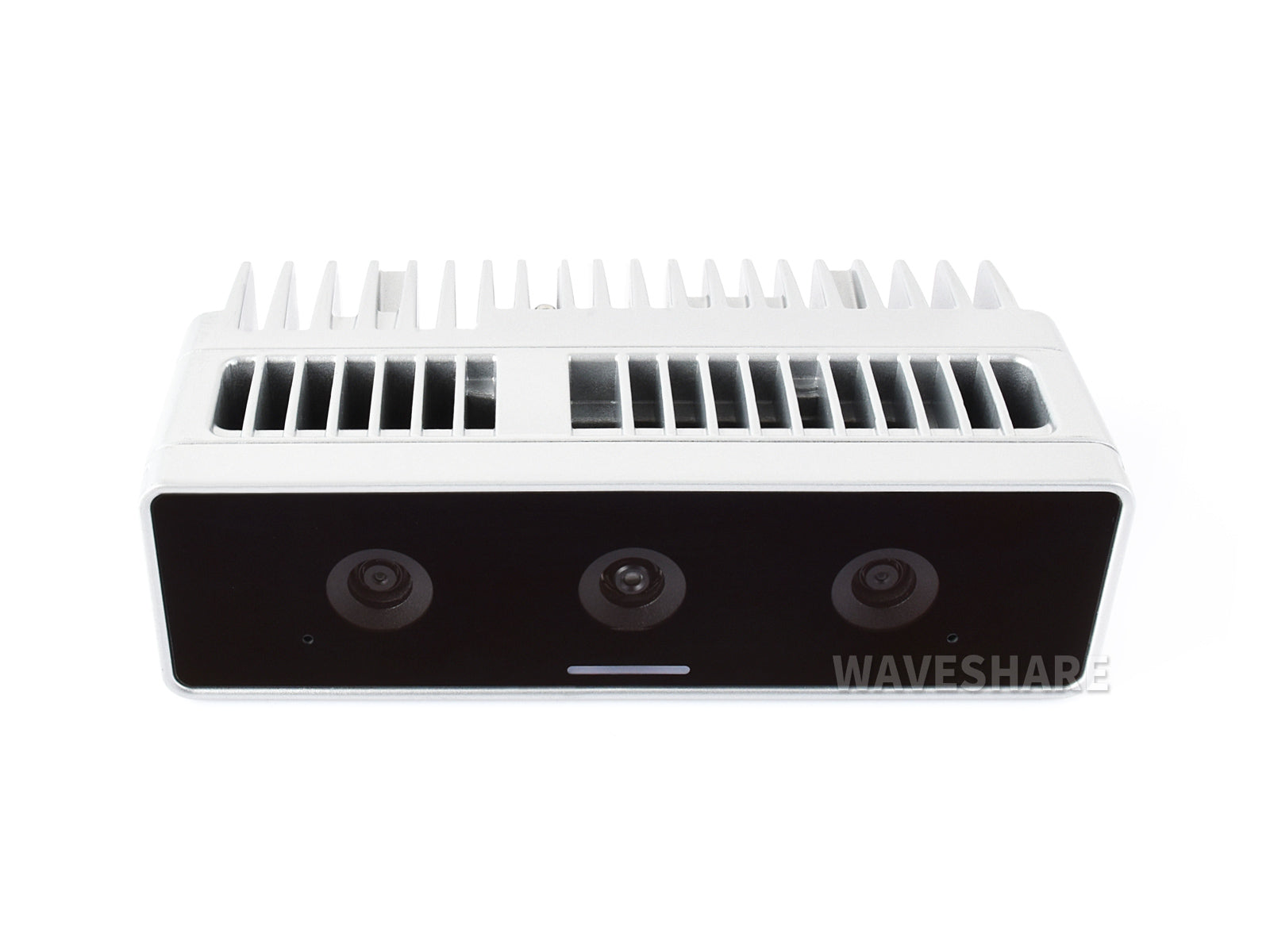

TheOAK 4 D is a high-performance, high-computing-power, and high-resolution 3D stereo depth vision and edge AI inference camera, featuring the new fourth-generation design, equipped with OAK’s next-generation edge AI processing core — RVC 4 (Robotics Vision Core 4), which integrates a 4nm SoC, delivering powerful edge AI computing and image processing capabilities for the device. A true standalone device running Luxonis OS, the OAK 4 D integrates strong AI inference and depth computation performance in a single unit.
| RVC 4 Features | |
|---|---|
| CPU | Snapdragon 8-Core Arm CPU |
| RAM | 8GB |
| Storage | 128GB |
| AI Computing Power | 48 TOPS (INT8) / 12 TOPS (FP16) |
| ISP | Supports 5 camera streams, hardware HDR, Electronic Image Stabilization, and 3A (Auto exposure, Auto white balance, and Auto focus), up to 3 × 8K@30FPS |
| IMU | 9-axis high-performance IMU, up to 1000Hz |
| Codec | Decoding: supports 4K@240FPS, VP9, and AV1. Encoding: 4K@120FPS (H.264, H.265) |
| Camera | |
| Depth Camera | 1MP, Global Shutter |
| RGB Camera | 48MP |
| Maximum Frame Rate | 60FPS (Depth camera) 30FPS (RGB camera) |
| Other Resources | |
| Audio | Built-in 3-ch microphones |
| Indicator Light | Onboard RGB LED |
| Interfaces | USB 3.2 Type-C, PoE, M8, and M12 |
| Structure Specifications | |
| Baseline | 75mm |
| Ideal depth range | 70mm ~ 12m |
| Power Consumption | 1.5W ~ 25W |
| Mounts | 75mm M4 VESA mount on back and bottom cover 1/4" tripod mount |
| Housing | IP67 industrial-grade protection; Industrial-grade Aluminum Alloy enclosure, with cooling fins + airflow vents heat dissipation design |
| Weight | 674g |

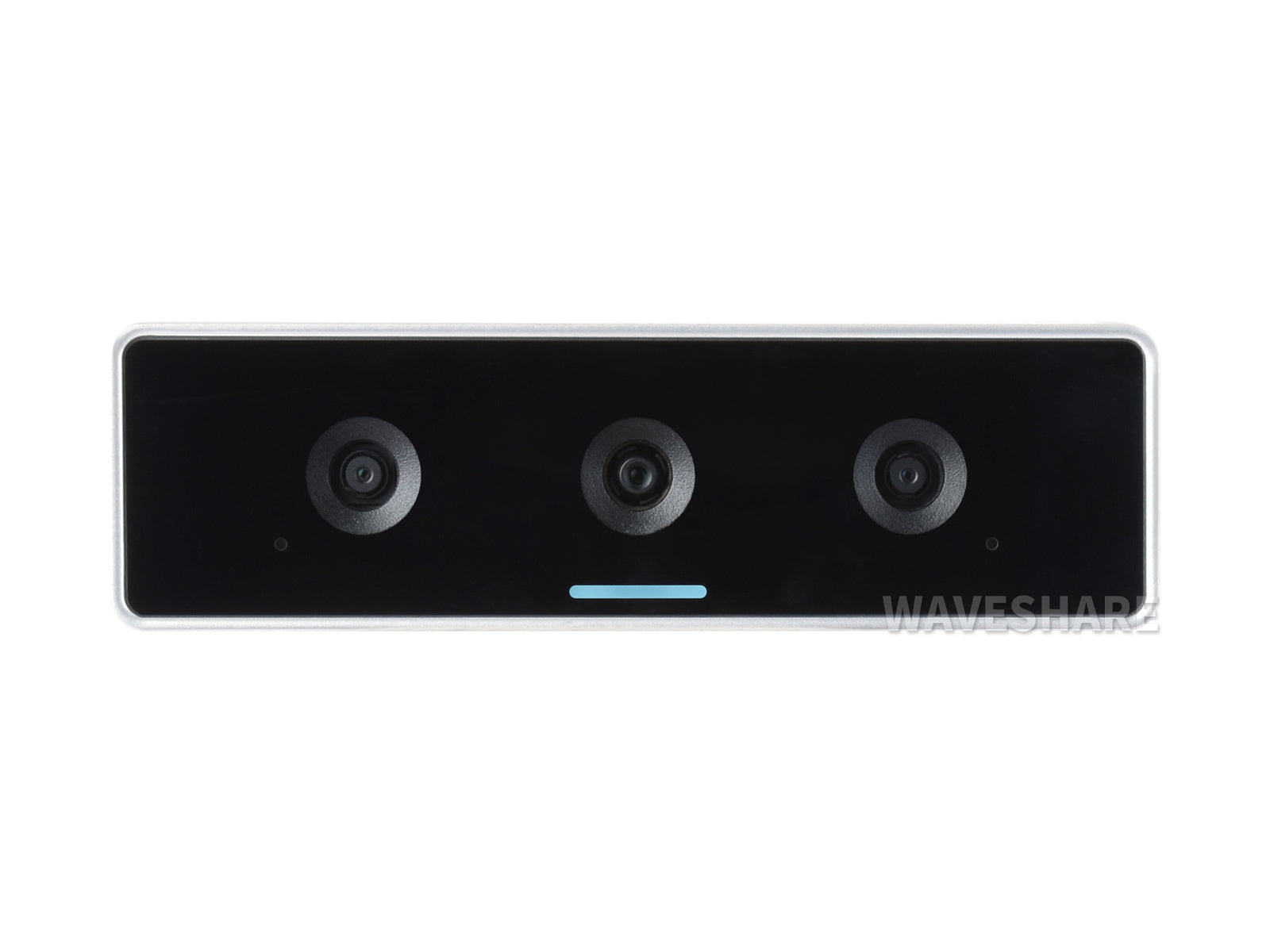

The main camera adopts IMX586 color sensor with 48MP HD resolution, The stereo cameras adopt OV9282 1MP global shutter mono sensors
The RVC 4 controller delivers 48 TOPS (INT8) and 12 TOPS (FP16) of edge AI computing power, providing outstanding inference speed performance across various general-purpose models
This product comes with the Luxonis OS, a customized Linux distribution developed based on the Yocto Project. The system is specifically designed for cameras built around the RVC4 chip, which integrates an 8-core ARM processor to fully meet the system’s performance requirements. All OAK 4 series cameras come pre-installed with this system, and users can easily obtain the latest version through system updates.

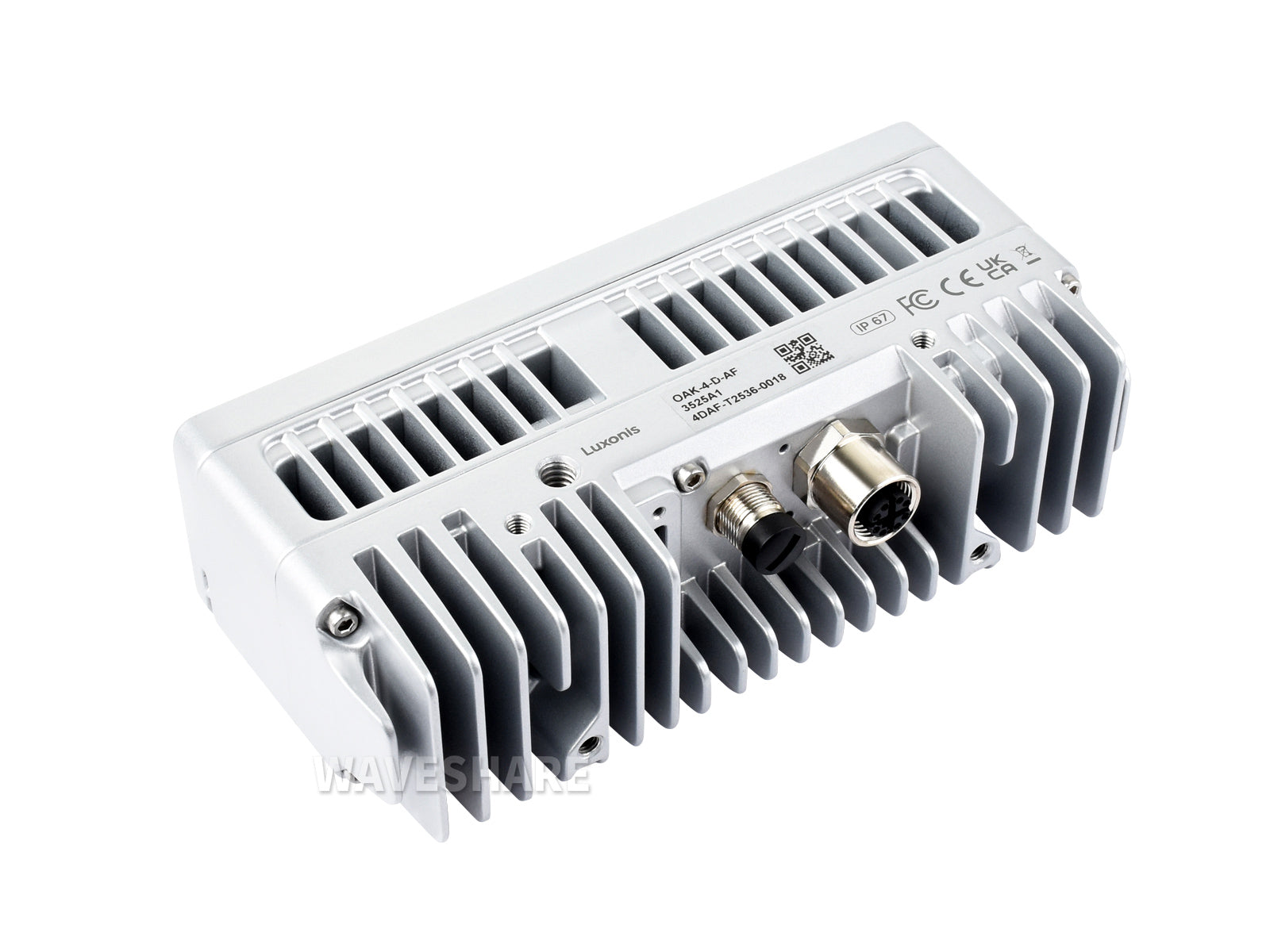

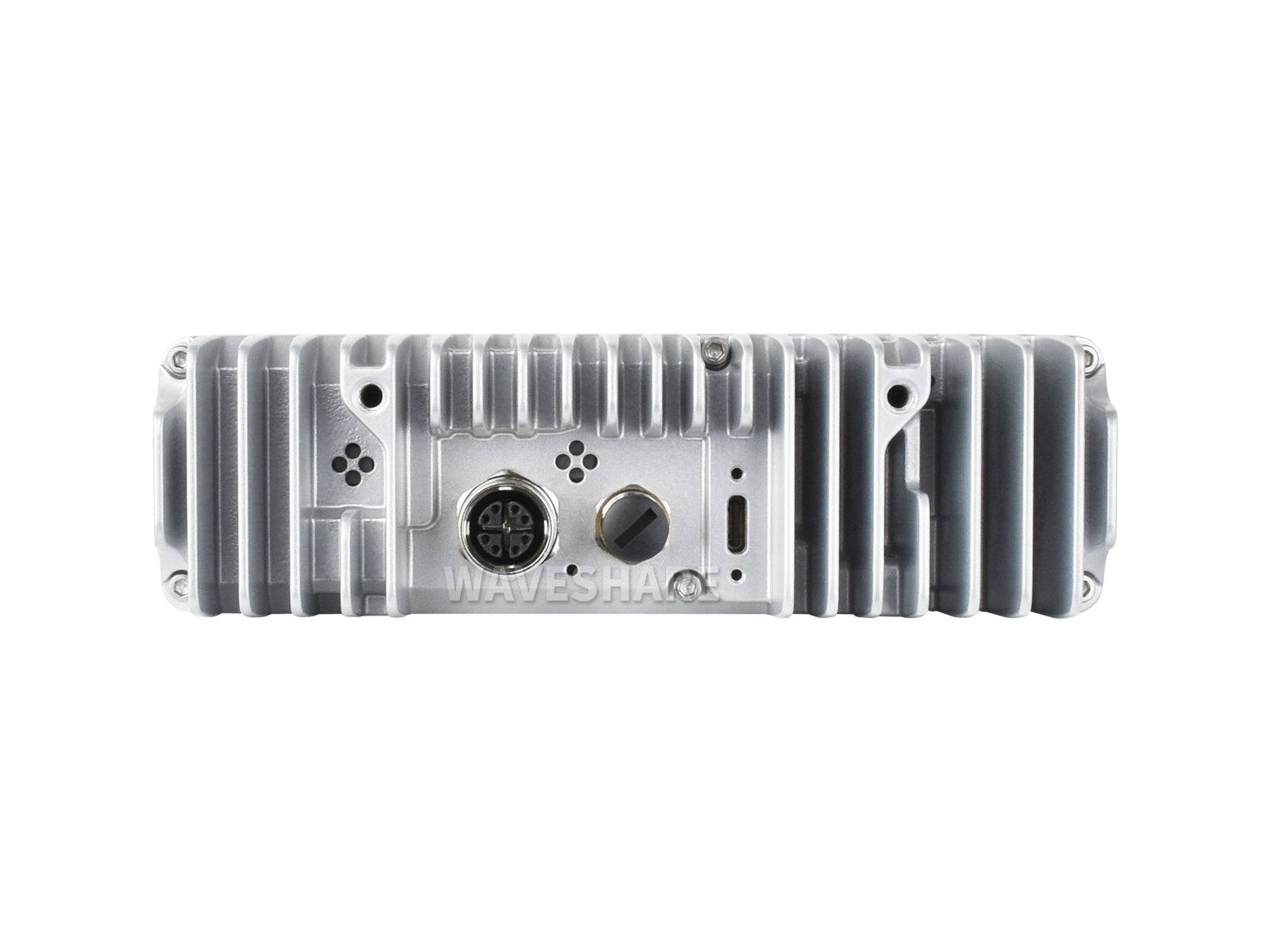

Onboard multiple interfaces including an M12 PoE port, an M8 connector, and a USB Type-C port, etc.
M12 connector: PoE port, compliant with IEEE 802.3at, Class 3 PoE standard, supporting speeds up to 2.5 Gbps. A PoE switch is recommended to power the device and utilize the full potential of PoE connectivity.
M8 connector: USB2 (D+, D-), camera IOs (FSIN, STROBE), power, and 2 × GPIO (can be used for UART). Cap for M8 is included when the connector is not used to maintain waterproof protection.
USB Type-C port: (USB 3.2 Gen 2, 10 Gbps) as an option for power and connectivity.
| Device Model | OAK 4 D | OAK 4 S | OAK 4 Pro | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Version | Auto Focus (AF) | Fixed Focus (FF) | Wide Angle (W) | Auto Focus (AF) | Fixed Focus (FF) | Wide Angle (W) | Auto Focus (AF) | Fixed Focus (FF) | Wide Angle (W) |
| IMU | 9-axis IMU | ||||||||
| RGB Module | 48MP (8000 × 6000) | ||||||||
| Stereo Depth Camera | 1MP (1280 × 800) | - | 1MP (1280 × 800) | ||||||
| Field of View (RGB) | 82.4° | 120° | 82.4° | 120° | 82.4° | 120° | |||
| Field of View (Depth) | 84.5° | 149.2° | - | 84.5° | 149.2° | ||||
| Infrared Support | - | Structured light + Infrared night vision | |||||||
| Protection Grade | IP67 | ||||||||
* Note: The default shipment comes with the AF (Auto Focus) version. For other model versions, please contact our sales team.
Lieferumfang
OAK 4 D x1
