SKU:WSAL24076

Official Cooling Fan for Jetson Orin, Speed-Adjustable, Compatible With Jetson Orin Nano And Jetson Orin NX

Official Cooling Fan for Jetson Orin

compatible with Jetson Orin NXandJetson Orin Nano, speed-adjustable fan, with elastic bracket and height-limited screws

Specifications

Module support	N-VIDIA Jetson Orin NX module and Jetson Orin Nano module
Power supply	DC 5V input
Structure	Embedded fan, aluminum alloy enclosure
Electrical parameter	0.65W (5V/0.13A)
Cable length	37±3mm
Fan	PWM speed-adjustable, 5500±10%RPM

Attaching To The Module

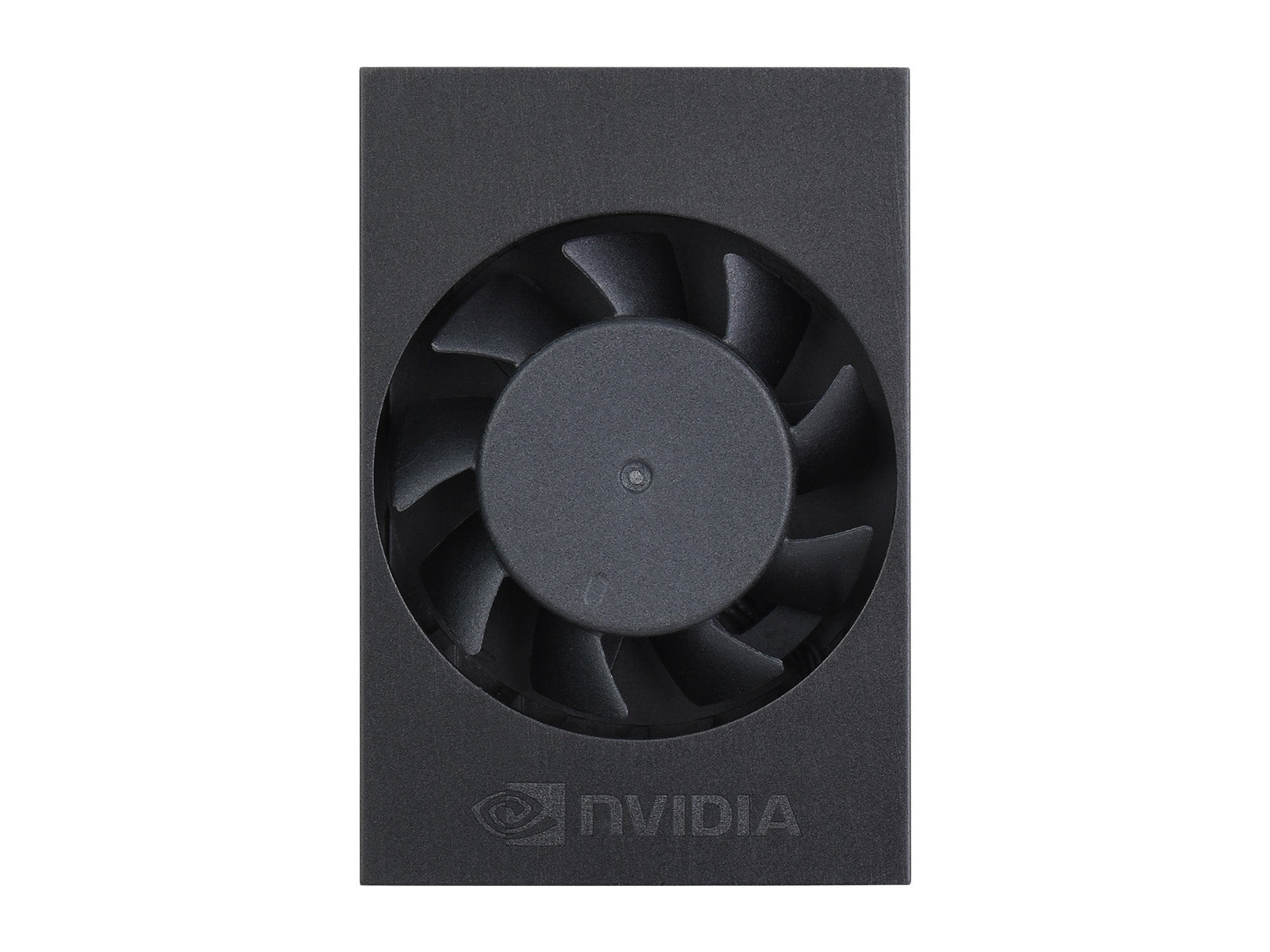

front view

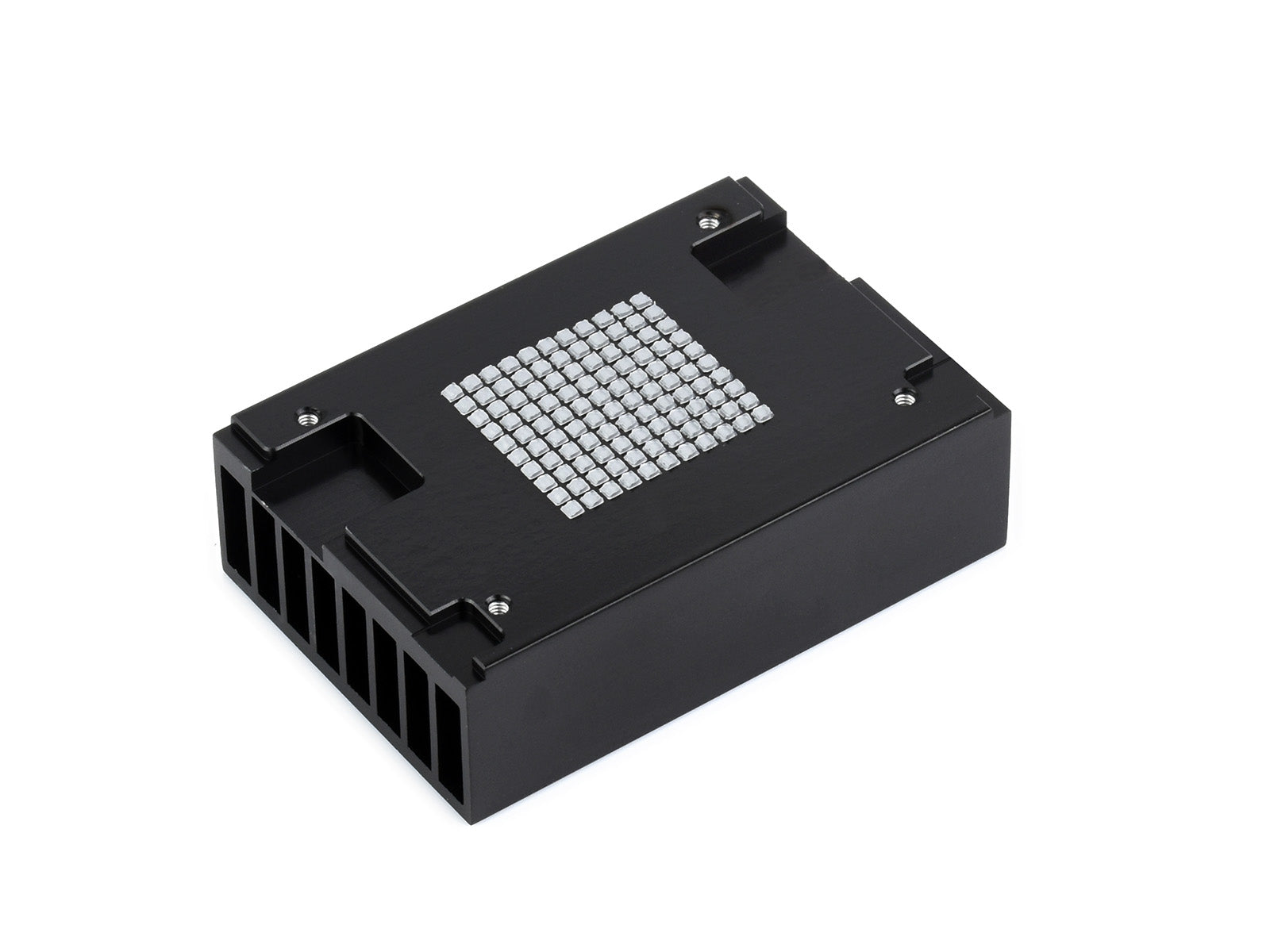

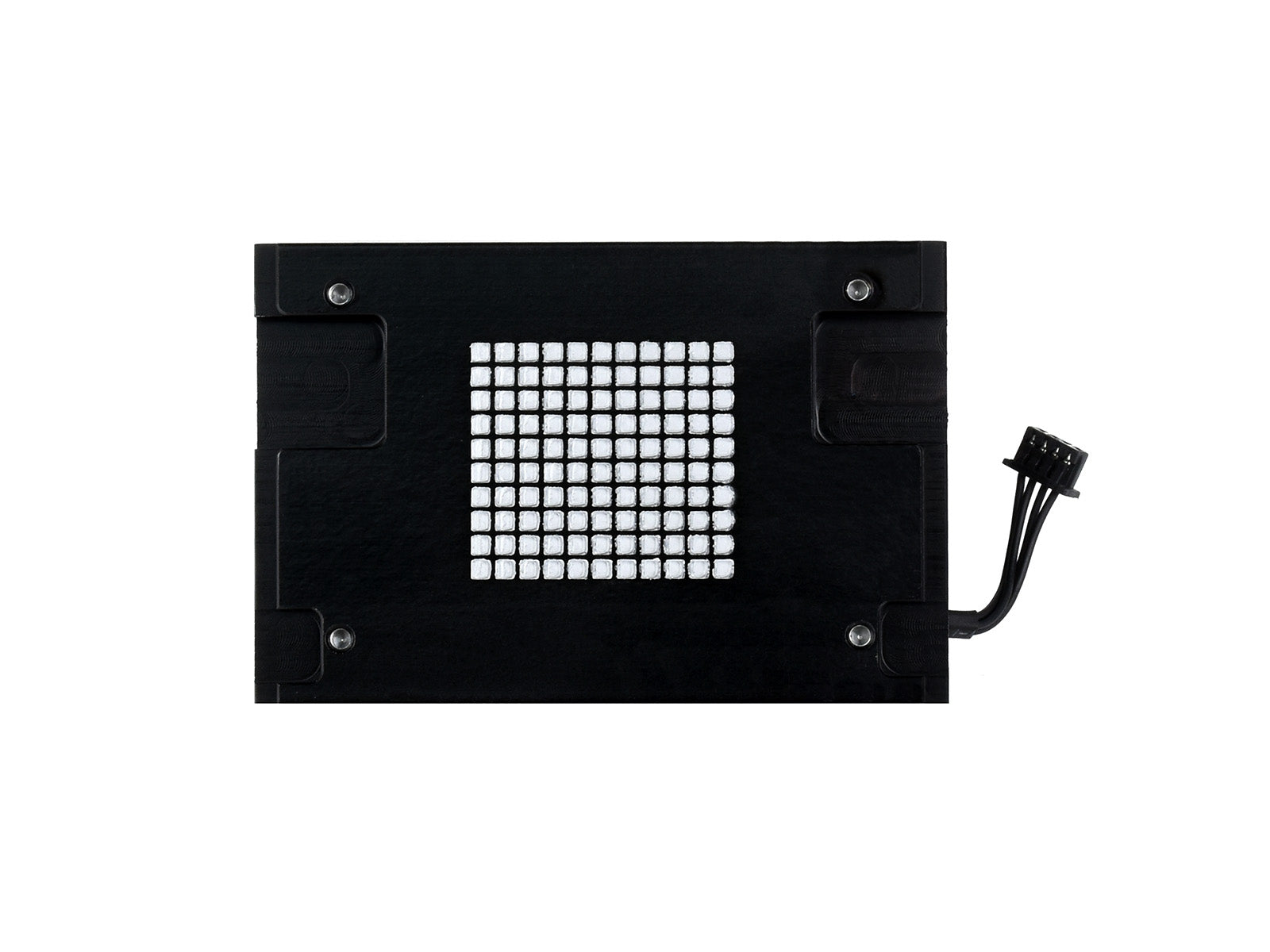

back view

Reserved Silicone Grease

please don't touch the silicone grease when opening the package

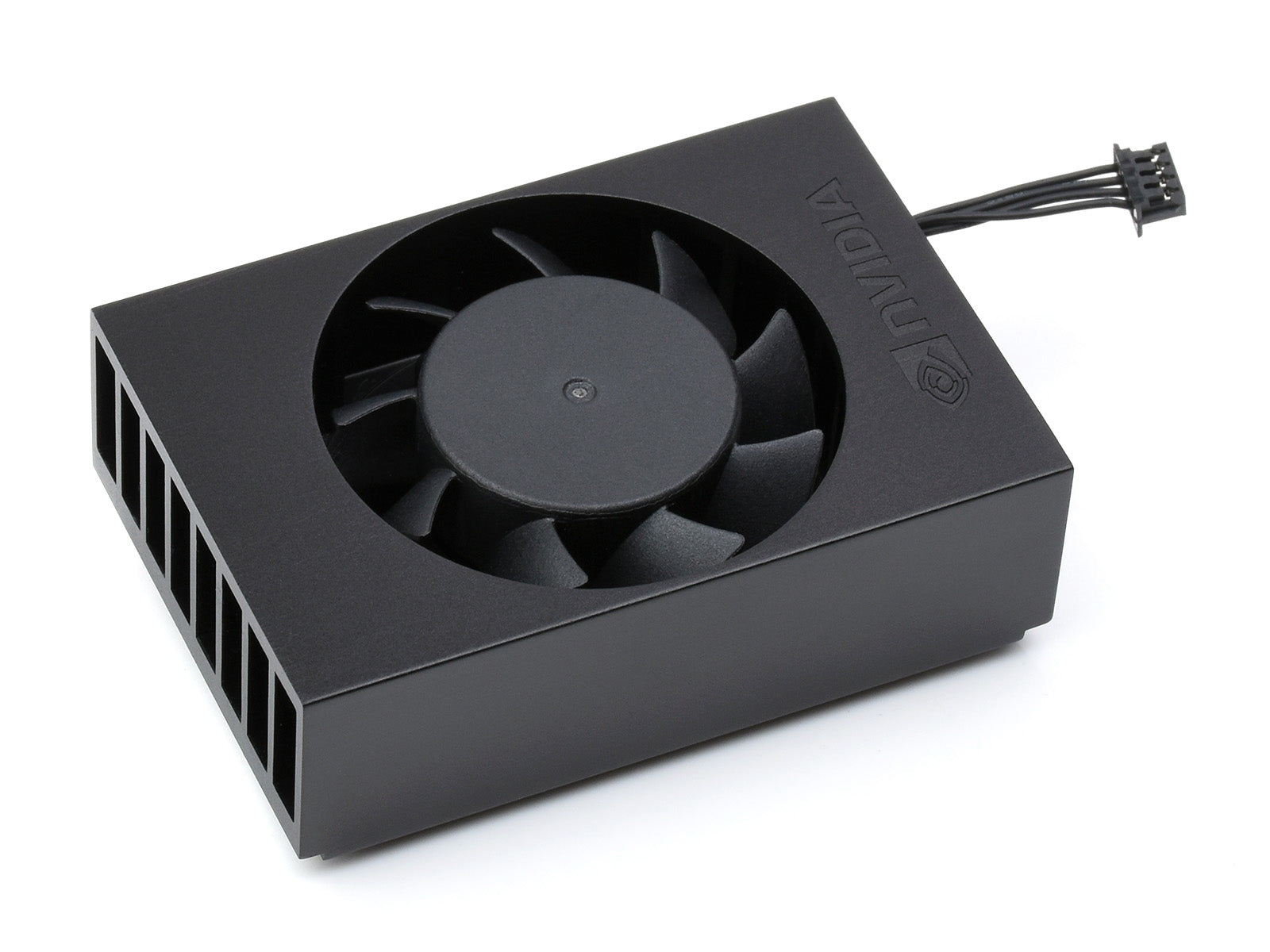

Product Show

for reference only, the Jetson Orin module is NOT included.

Outline dimensions

Lieferumfang

1. Orin-FAN-PWM x1
2. Elastic bracket and height-limited screws x1

1

2
