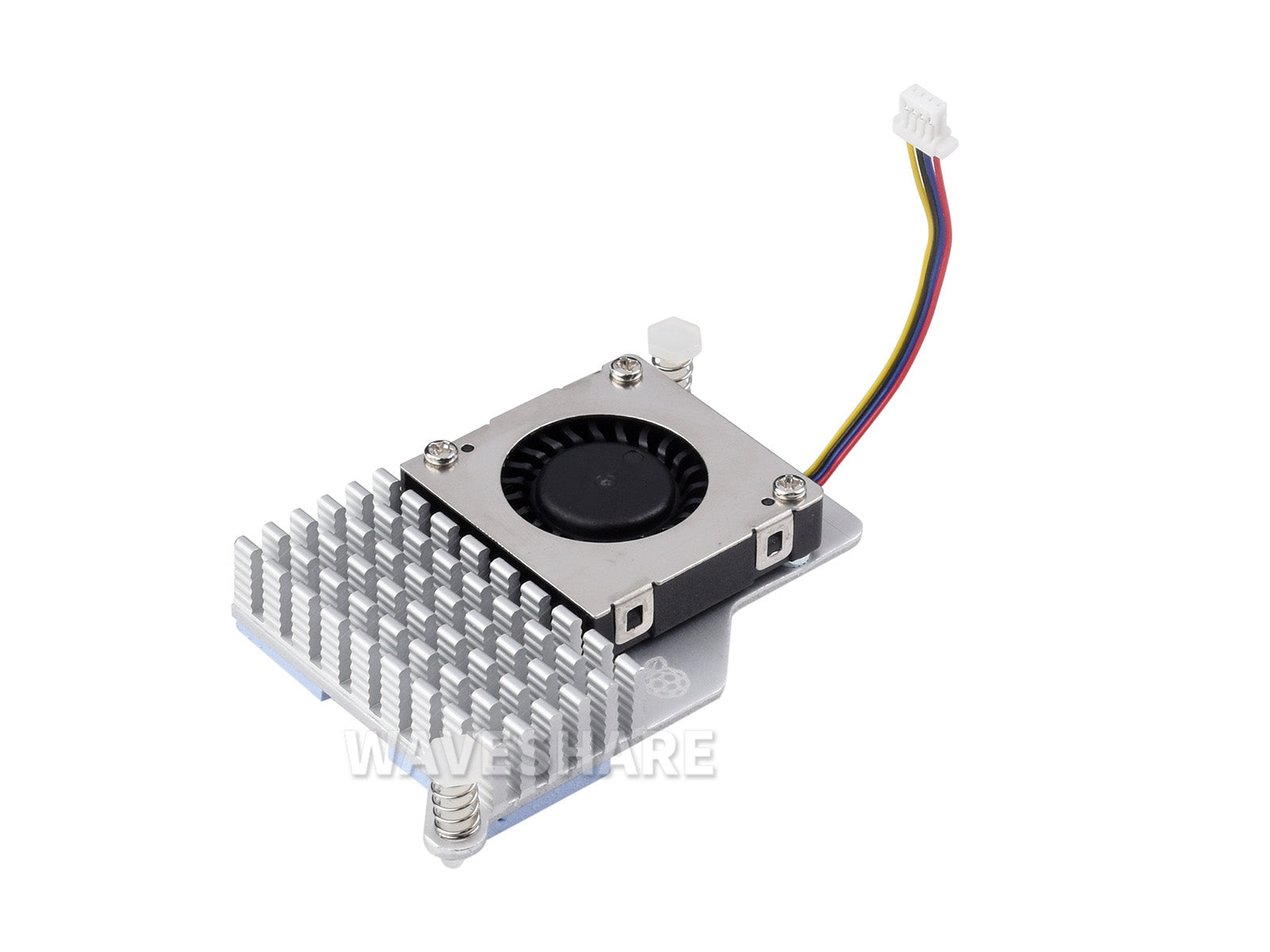

Official Raspberry Pi Active Cooler for Raspberry Pi 5, Temperature-controlled Blower Fan, Aluminium Heatsink, With Thermal Tapes

Raspberry Pi Official Active Cooler

Suitable for Raspberry Pi 5

Specifications

Input voltage	5V DC (supplied via four-pin fan header on Raspberry Pi 5)
Fan speed control	Pulse width modulation control with tachometer
Maximum airflow	1.09 CFM
Maximum Fan speed	8000 RPM ±15%
Material	Anodised aluminium

Based On Raspberry Pi 5

Matching the size and mounting holes of the Raspberry Pi 5, combines an aluminium heatsink with a temperature-controlled blower fan to accelerate heat dissipation

How to Install

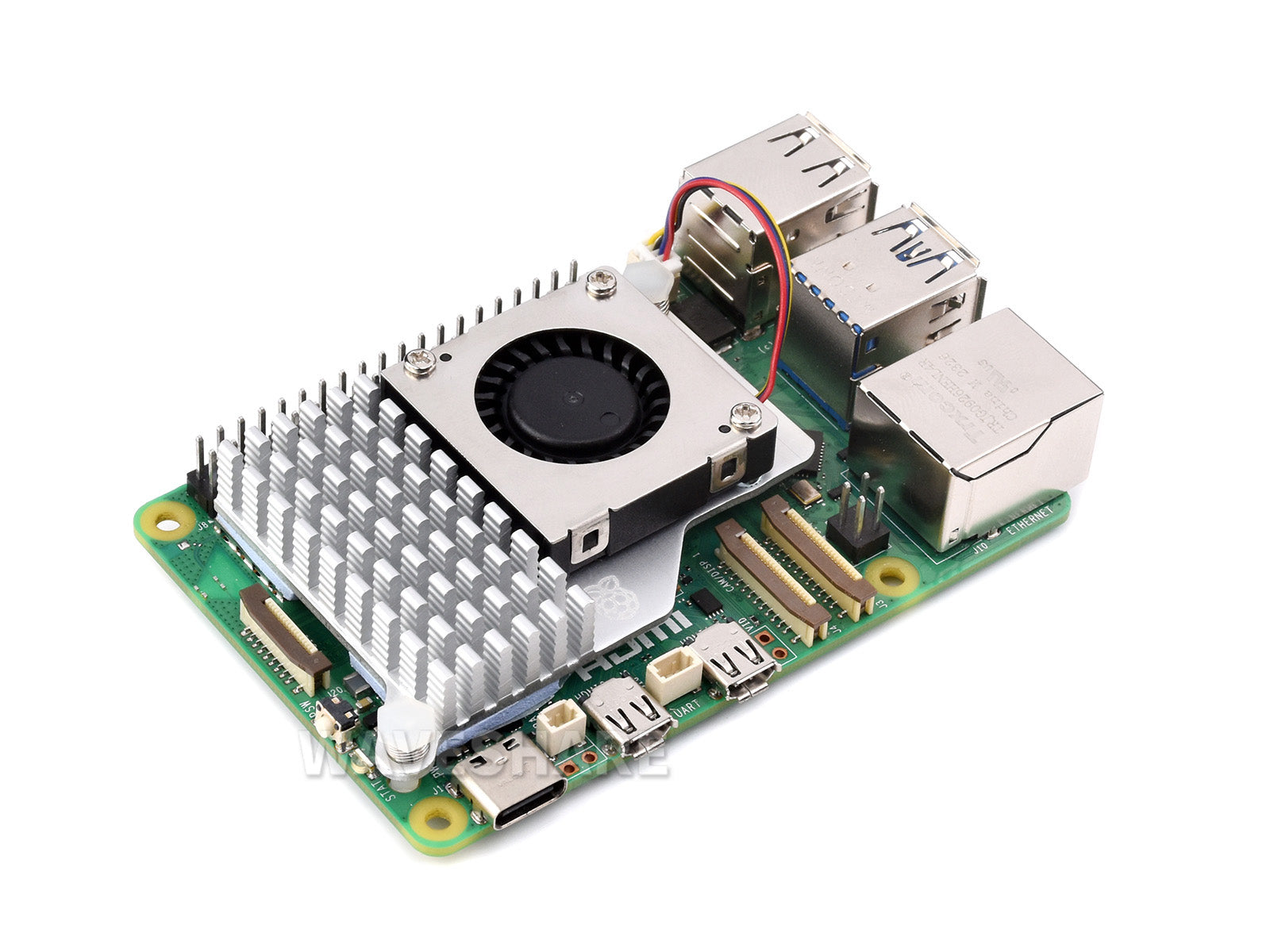

Connect the 4pin cable to the fan header on Raspberry Pi 5, and fix the Active Cooler via spring-loaded push pins

* for reference only, Raspberry Pi 5 is NOT included.

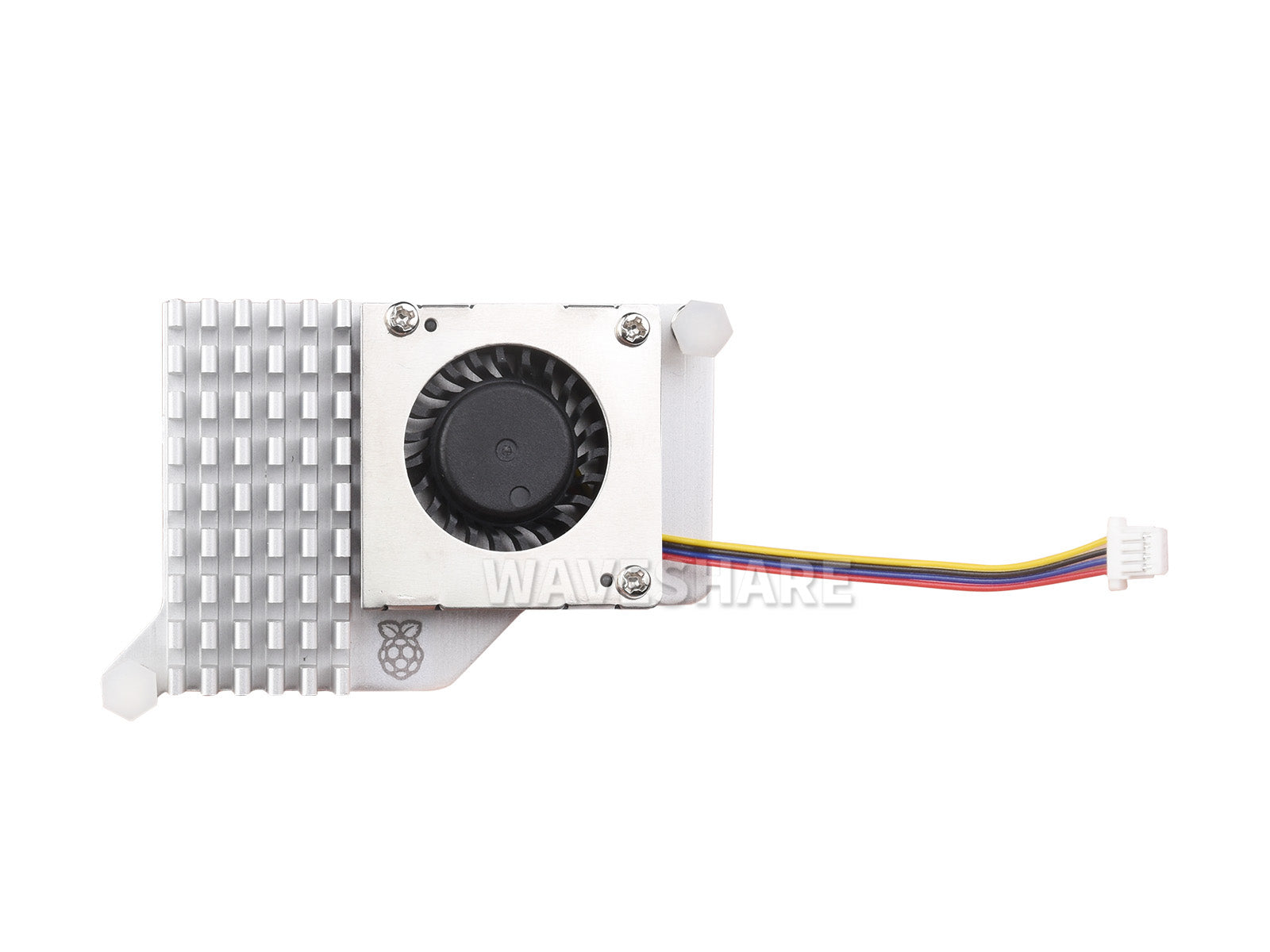

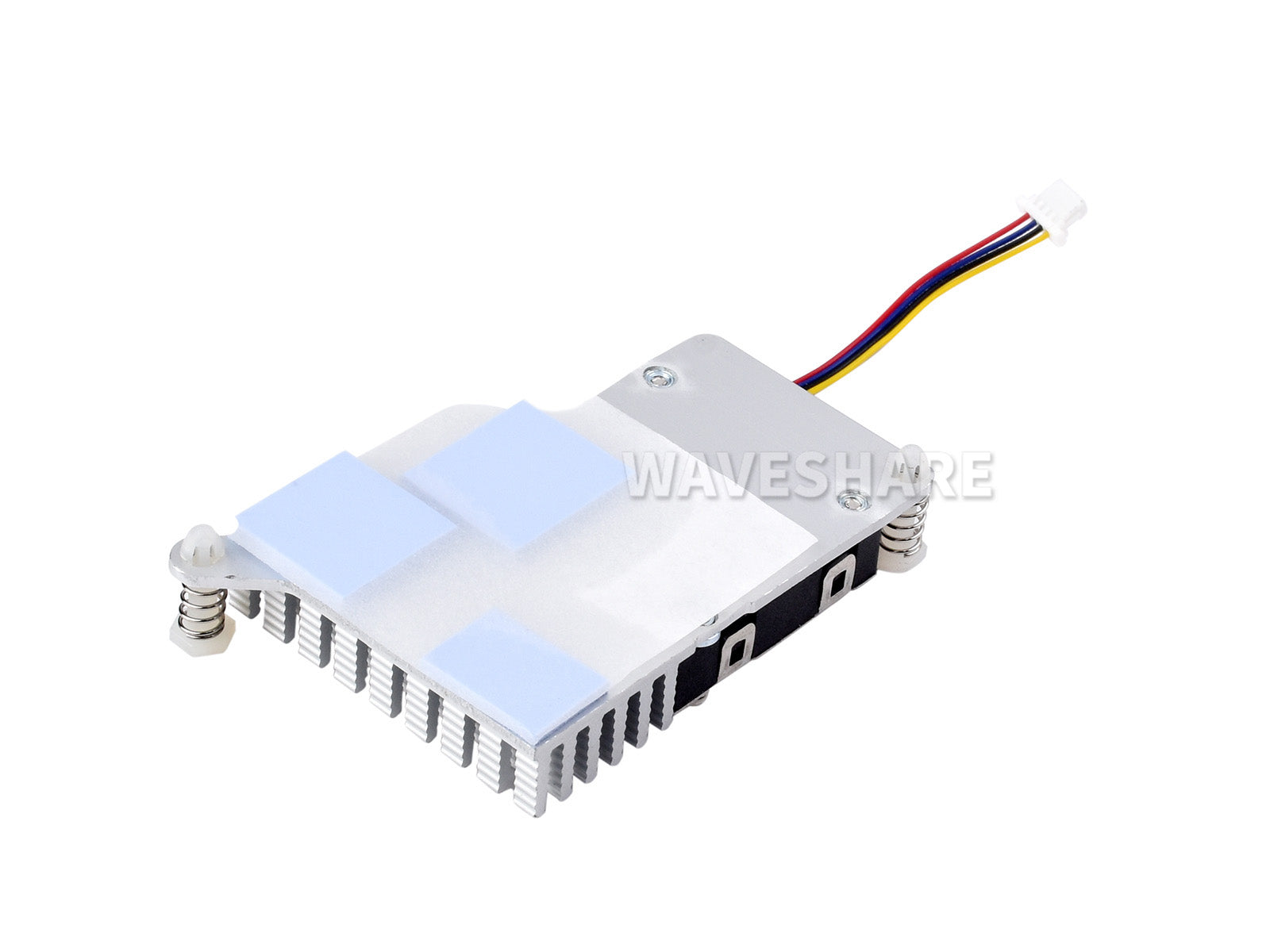

Product show

Outline dimensions

Lieferumfang

Raspberry Pi 5 Official Active Cooler x1
