SKU:WSAL31952
Official Raspberry Pi Camera Module 3 Sensor Assembly, Auto-focus, IMX708 Sensor, Options For FOV And Night Vision Function
Abholverfügbarkeit konnte nicht geladen werden
Designed By Raspberry Pi

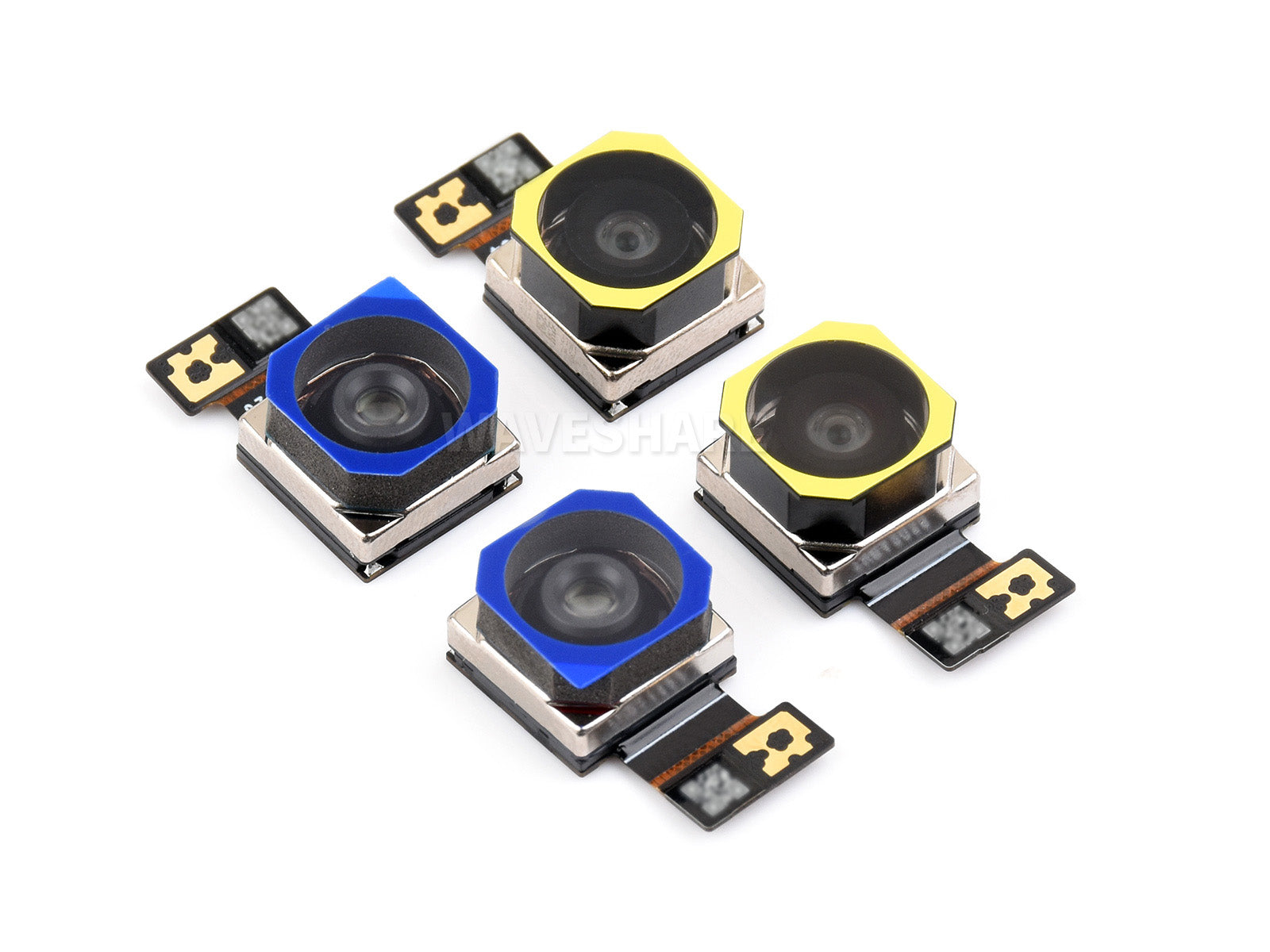

Camera Module 3 Sensor AssemblyStandard version, 75° FOV
Camera Module 3 Sensor Assembly NoIRStanard NoIR version, 75° FOV, night vision support
Camera Module 3 Sensor Assembly WideWide version, 120° FOV
Camera Module 3 Sensor Assembly Wide NoIRWide NoIR version, 120° FOV, night vision support
| parameters | Standard | Standard NoIR | Wide | Wide NoIR |
|---|---|---|---|---|
| Focus range | 10cm ~ ∞ | 5cm ~ ∞ | ||
| Focal length | 4.74mm | 2.75mm | ||
| Diagonal FOV | 75° | 120° | ||
| Horizontal FOV | 66° | 102° | ||
| Vertical FOV | 41° | 67° | ||
| Focal ratio(F-stop) | F1.8 | F2.2 | ||
| Infrared-sensitive | No | Yes | No | Yes |
The Raspberry Pi Camera Module 3 Sensor Assembly contains the same sensor and autofocus functionalities as Raspberry Pi Camera Module 3 AF (autofocus), enabling you to integrate the features of Camera Module 3 into a more diverse range of form factors. This assembly provides a low-cost way to add imaging capability to smaller devices, reducing manufacturing complexity and time to market.
As with Raspberry Pi Camera Module 3, the sensor assembly’s operation is fully supported by the libcamera library and the libcamera-based Picamera2 and rpicam-apps libraries, including its rapid autofocus feature; this provides a robust software environment to support the development of advanced features while making essential functionality simple to provide.
| Sensor | IMX708 |
|---|---|
| Sensor features | Dynamic Defect Pixel Correction (DPC)QBC re-mosaic functionHigh dynamic range (HDR) support |
| Resolution: | 11.9MP (4608 × 2592) |
| Sensor size | 7.4 mm sensor diagonal |
| Pixel size | 1.4 μm × 1.4 μm |
| IR cut filter | Integrated in standard variants; not present in NoIR variants |
| Autofocus system | Phase Detection Autofocus |
| Operating temperature | 0°C ~ 50°C |
Standard version
Wide version
Lieferumfang
Camera Module 3 Sensor Assembly
OPTIONS Camera Module 3 Sensor Assembly x1
Camera Module 3 Sensor Assembly Wide
OPTIONS Camera Module 3 Sensor Assembly Wide x1
