Official Raspberry Pi Compute Module 5 IO Board, A Development Platform And Reference Base-board Designed For CM5, Suitable For All Variants Of Compute Module 5, Options For Case And Development Kit

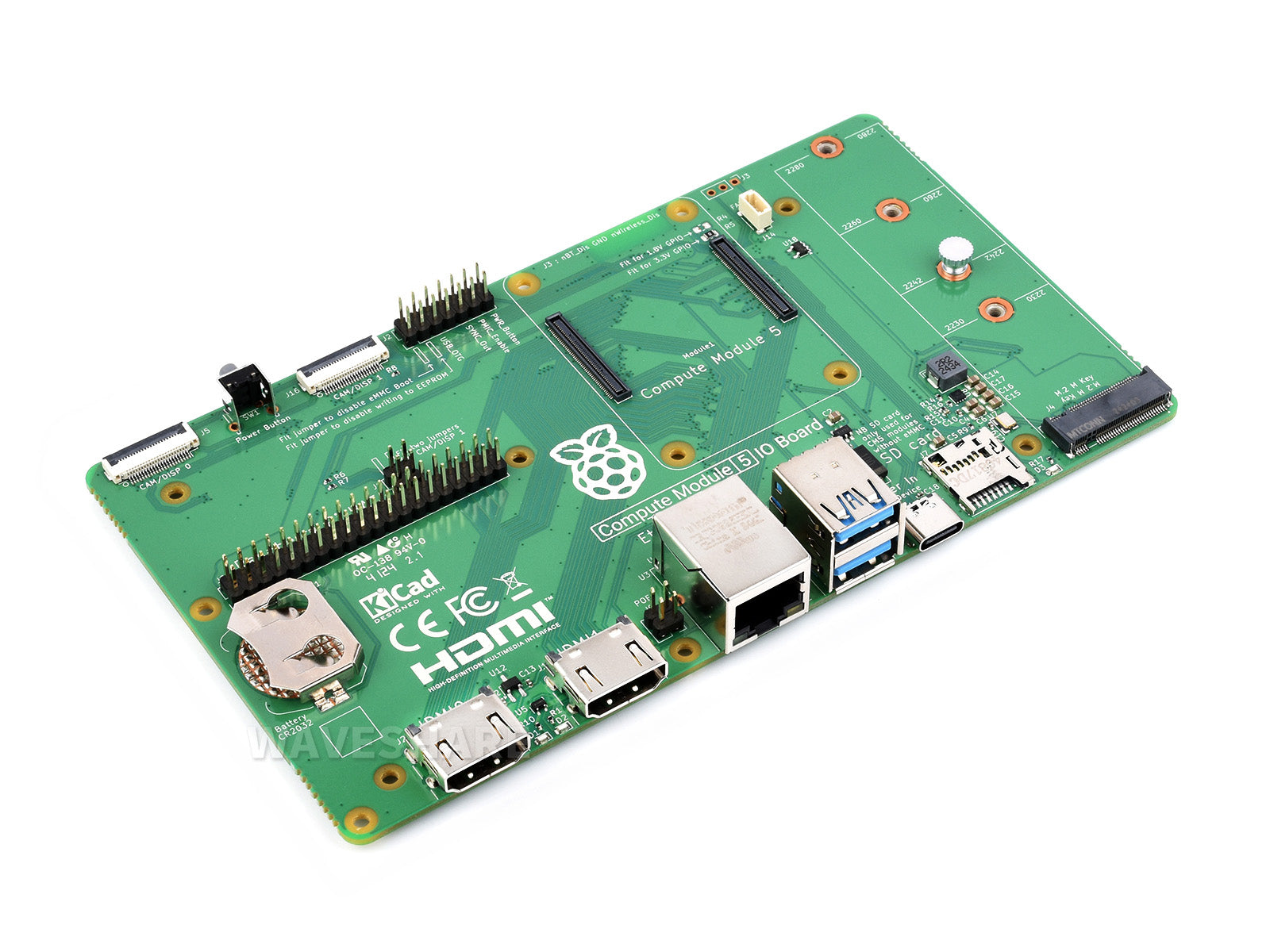

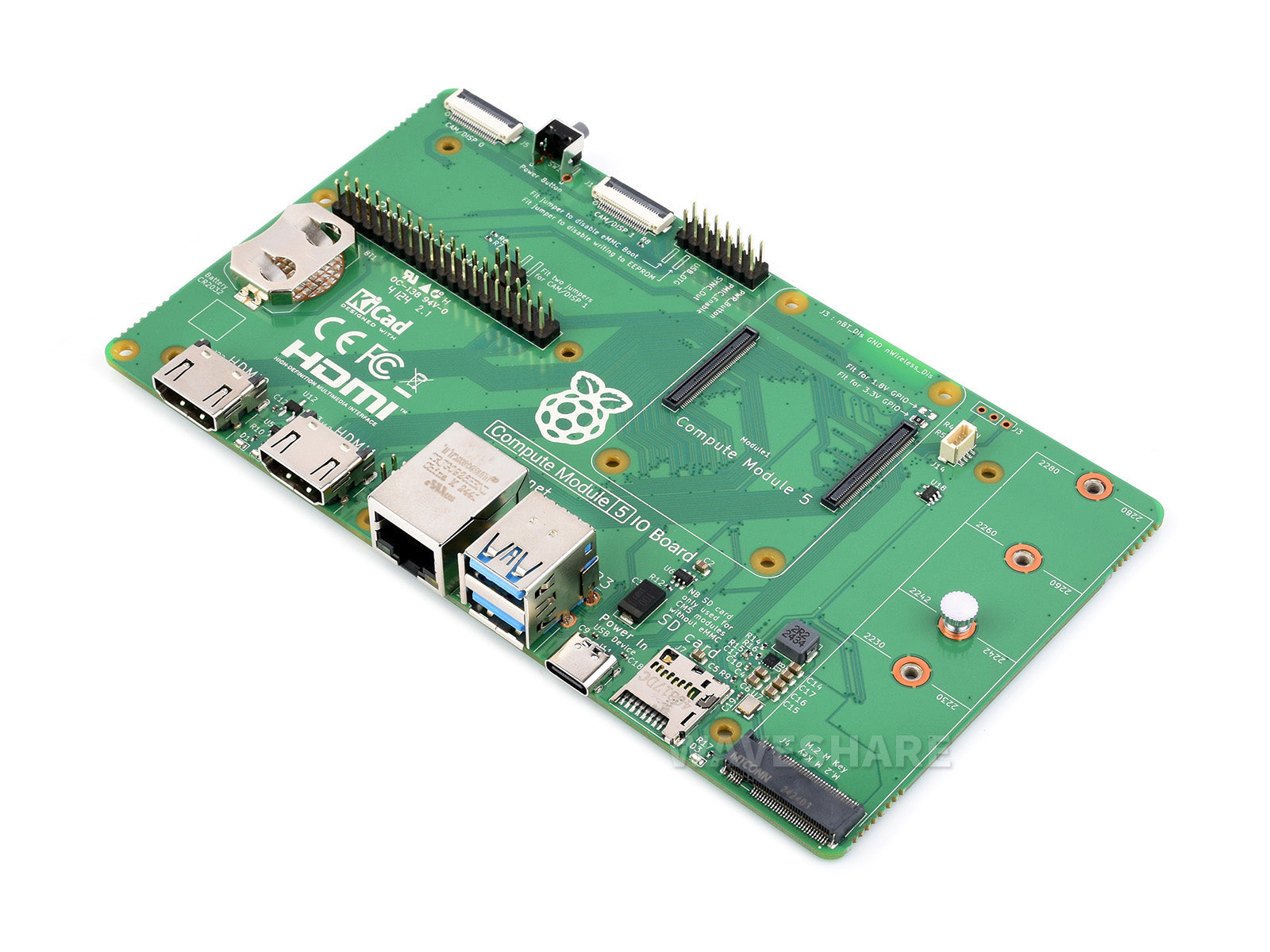

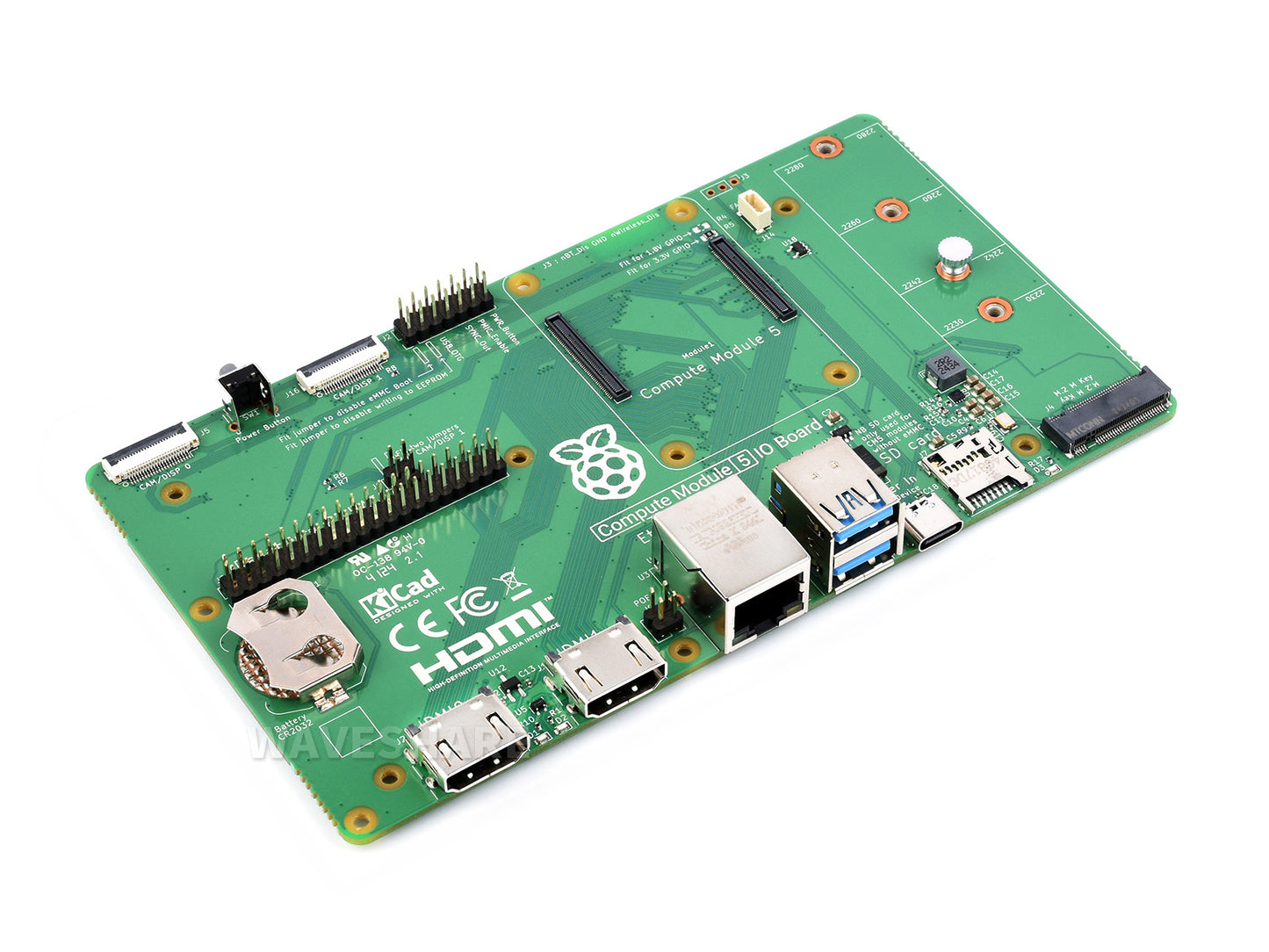

Compute module 5 IO Board

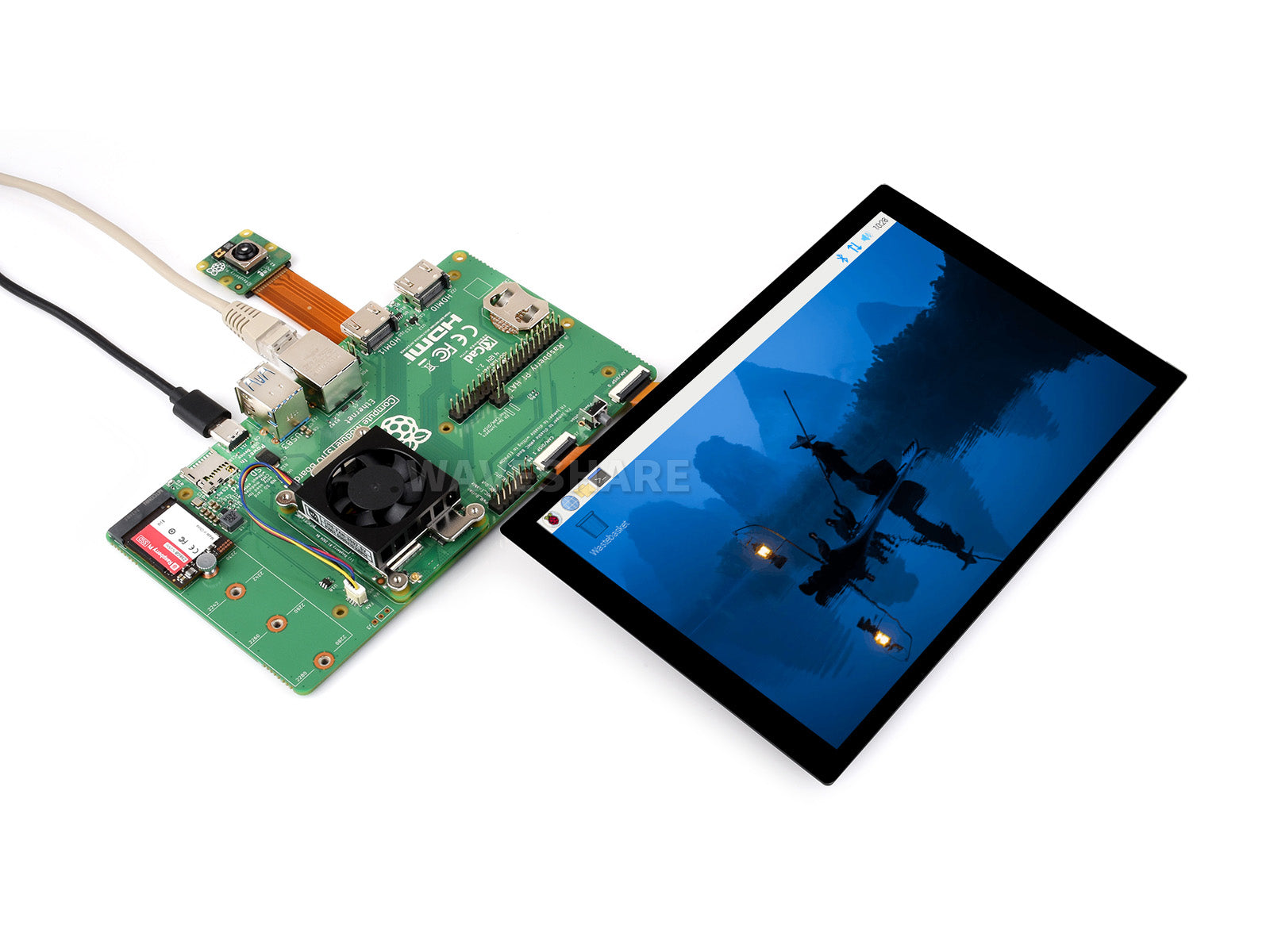

TheCompute Module 5 IO Board is a companion board for Raspberry Pi Compute Module 5. It is designed for use both as a development system for Compute Module 5 and as an embedded board integrated into end products.

The IO board is designed to allow you to create systems quickly using off-the-shelf parts such as HATs and PCIe modules. The major user connectors are located along one side to make enclosures simple.

Version Options

Compute Module 5 IO Boardthe CM5 IO Board ONLY

Compute Module 5 IO Case official CM5 IO Board case ONLY(the IO Board is NOT included)

Compute Module 5 Development Kit CM5 IO Board + official case + CM5104032

Compute Module 5 Specifications

Processor	Broadcom BCM2712 quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
Memory	2GB, 4GB, 8GB or 16GB LPDDR4-4267 SDRAM (depending on variant)
Storage	0GB (Lite), 8GB, 16GB, 32GB or 64GB eMMC Flash (depending on variant), up to 200 Mbps data rate
Connectivity	Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE, with onboard and external antenna options
	Onboard Gigabit Ethernet PHY supporting IEEE1588
	1 × USB 2.0 interface
	2 × USB 3.2 Gen1 interface
	1 × PCIe Gen 2 x1 interface
	28 GPIO signals
	SD card interface for SD card (for use only with Compute Module 5 variants without eMMC)
Video	2 × HDMI interface (up to 4Kp60 supported)
Video	2 × 4-lane MIPI interface
Multimedia	4Kp60 HEVC decoder
Multimedia	OpenGL ES 3.1 graphics, Vulkan 1.3
Input power	5V DC
RTC	Built-in Real-time clock (RTC), powered from external battery
Operating voltage	-20°C ~ 85°C ambient
Dimensions	55 × 40 × 4.7mm

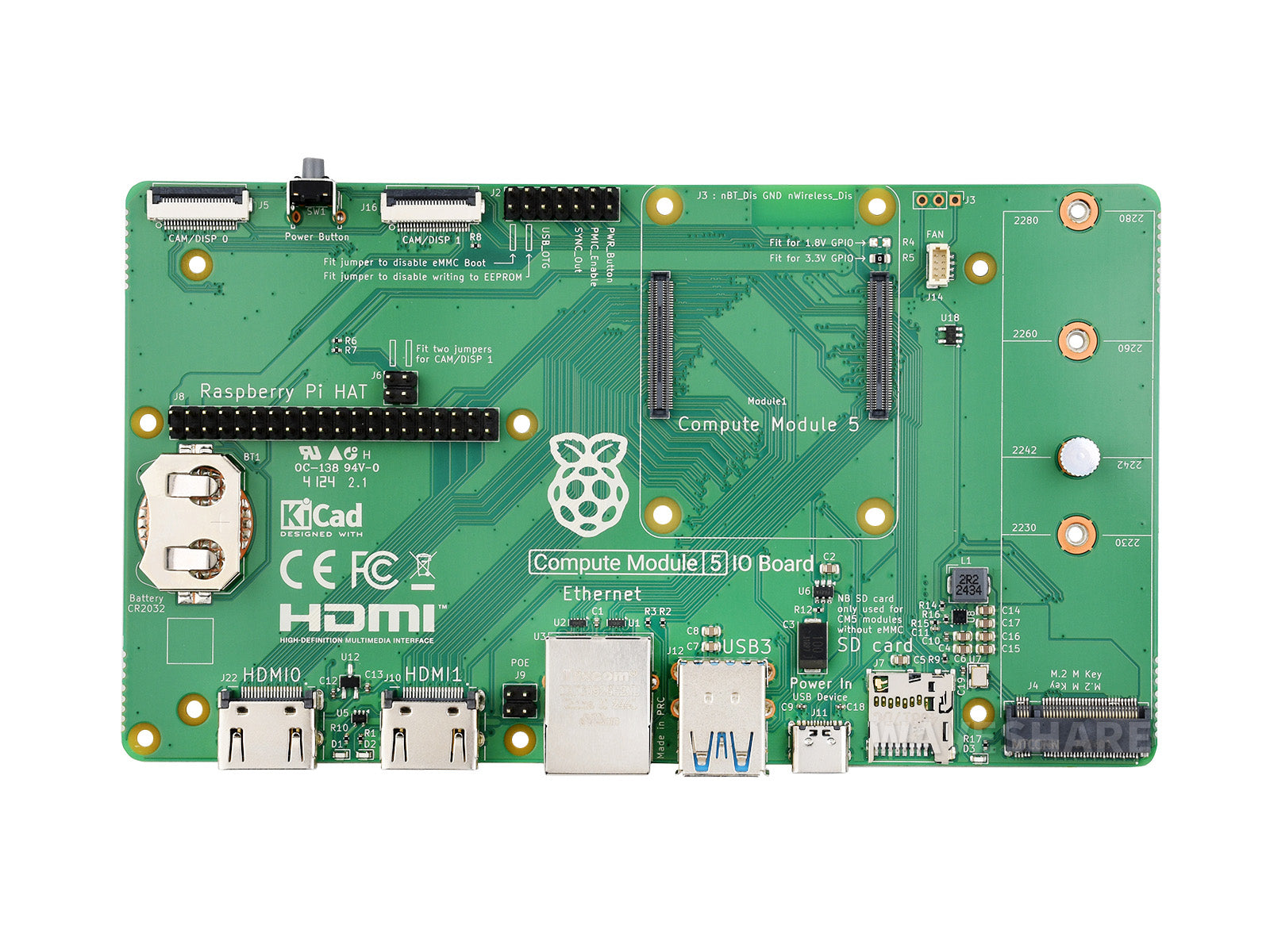

IO Board Specifications

CM5 socket	Suitable for all variants of Compute Module 5
network	Gigabit Ethernet RJ45 port
network	Supports PoE function, onboard PoE header, an external PoE module (NOT included) is required
Connectors	Raspberry Pi 40PIN GPIO header
Connectors	M.2 M-Key PCIe socket, compatible with 2230, 2242, 2260 and 2280 form factors
USB	2 x USB3.2 Gen1 connectors 1 x Type-C port for updating Compute module 5
MIPI	2 x 4-lane MIPI DSI/CSI-2 connectors
Video	2 x HDMI ports with 4K support
RTC	CR / ML2032 battery socket
Storage socket	MicroSD card socket for Compute Module 5 Lite (without eMMC) variants
Fan connector	5V, JST-SH PWM 4PIN connector
Power input	5V @5A via Type-C port, the same standard as the Raspberry Pi 5
Dimensions	160 × 90mm

Supports M.2 NVMe Solid State Drive

Faster reading/writing speed compared to the Micro SD slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, support booting Raspberry Pi from NVMe Solid State Drive
