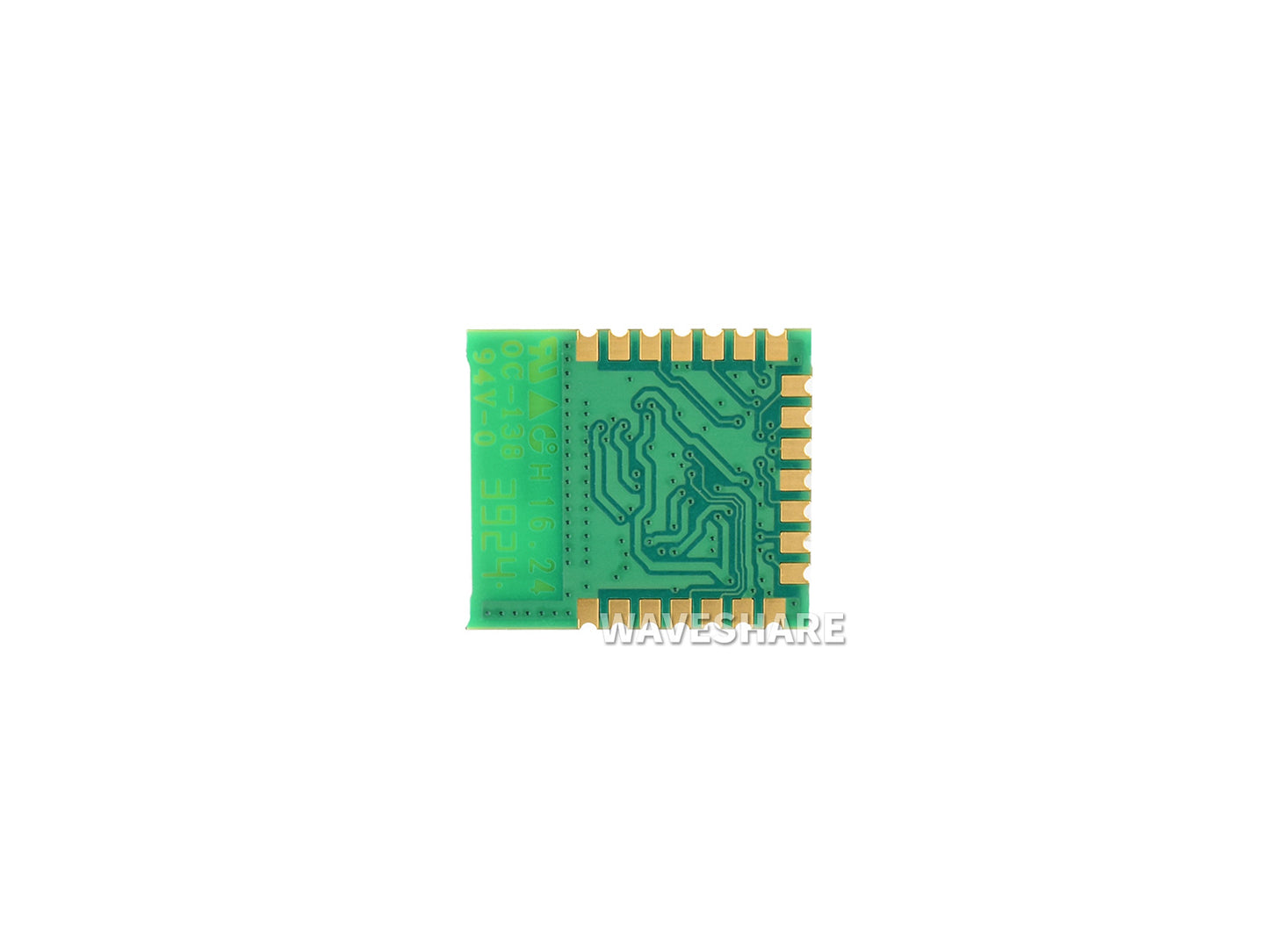

Official Raspberry Pi Radio Module 2, Supports 1 × 1 Single-band 2.4GHz Wi-Fi 4 (802.11n) And Bluetooth 5.2, Onboard 2.4GHz Antenna, Castellated Edge Pads Design

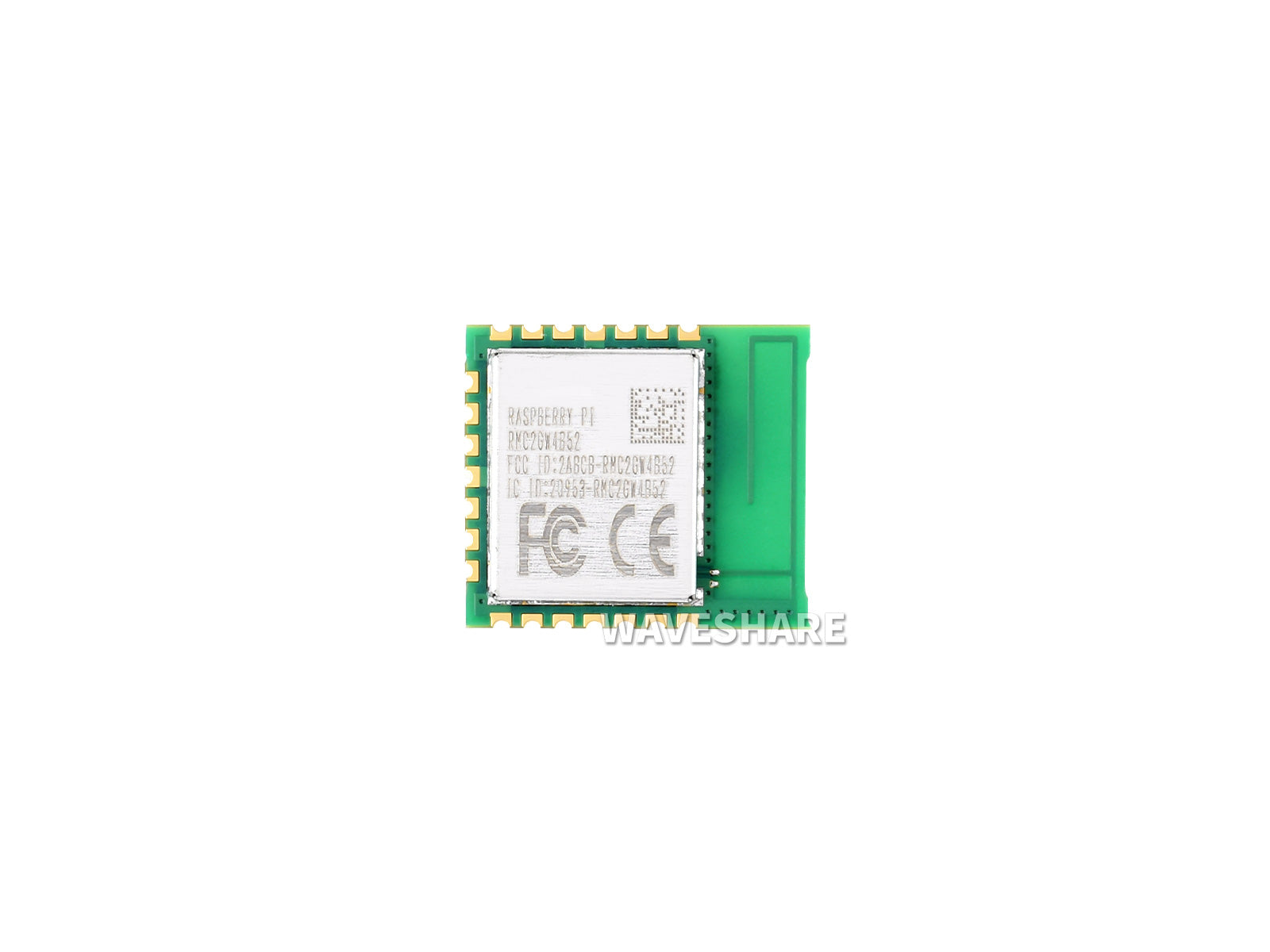

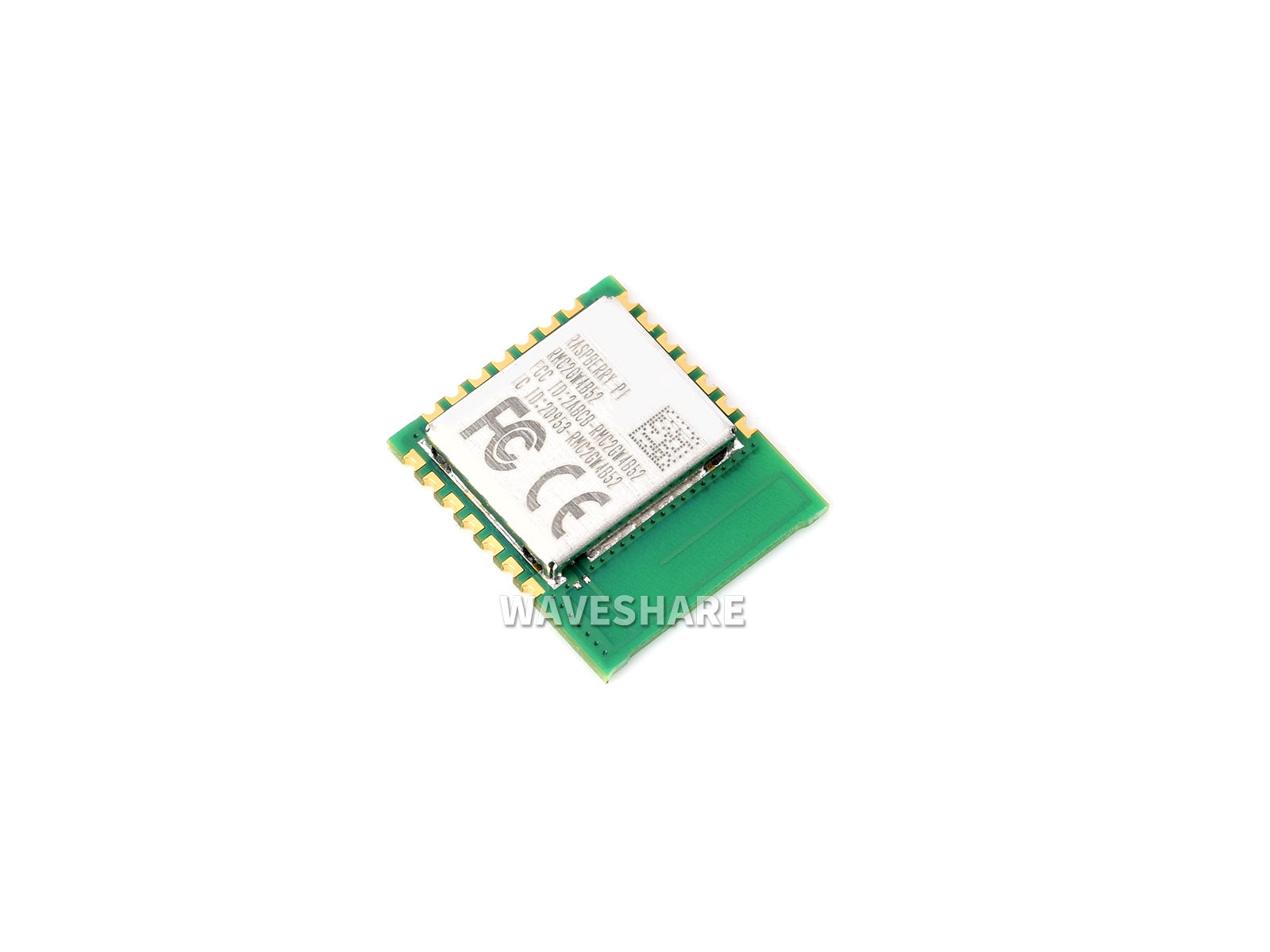

Raspberry Pi Radio Module 2
Designed By Raspberry Pi
features
- Raspberry Pi Radio Module 2 is a radio module designed for use with Raspberry Pi’s low-cost, high-performance microcontrollers
- Adopts Infineon’s CYW43439, a single-chip combo device featuring 1 × 1 single-band 2.4GHz Wi-Fi 4 (802.11n) and Bluetooth 5.2 for low-cost applications
- It is a small form-factor solution with minimal external components for reduced mass production costs

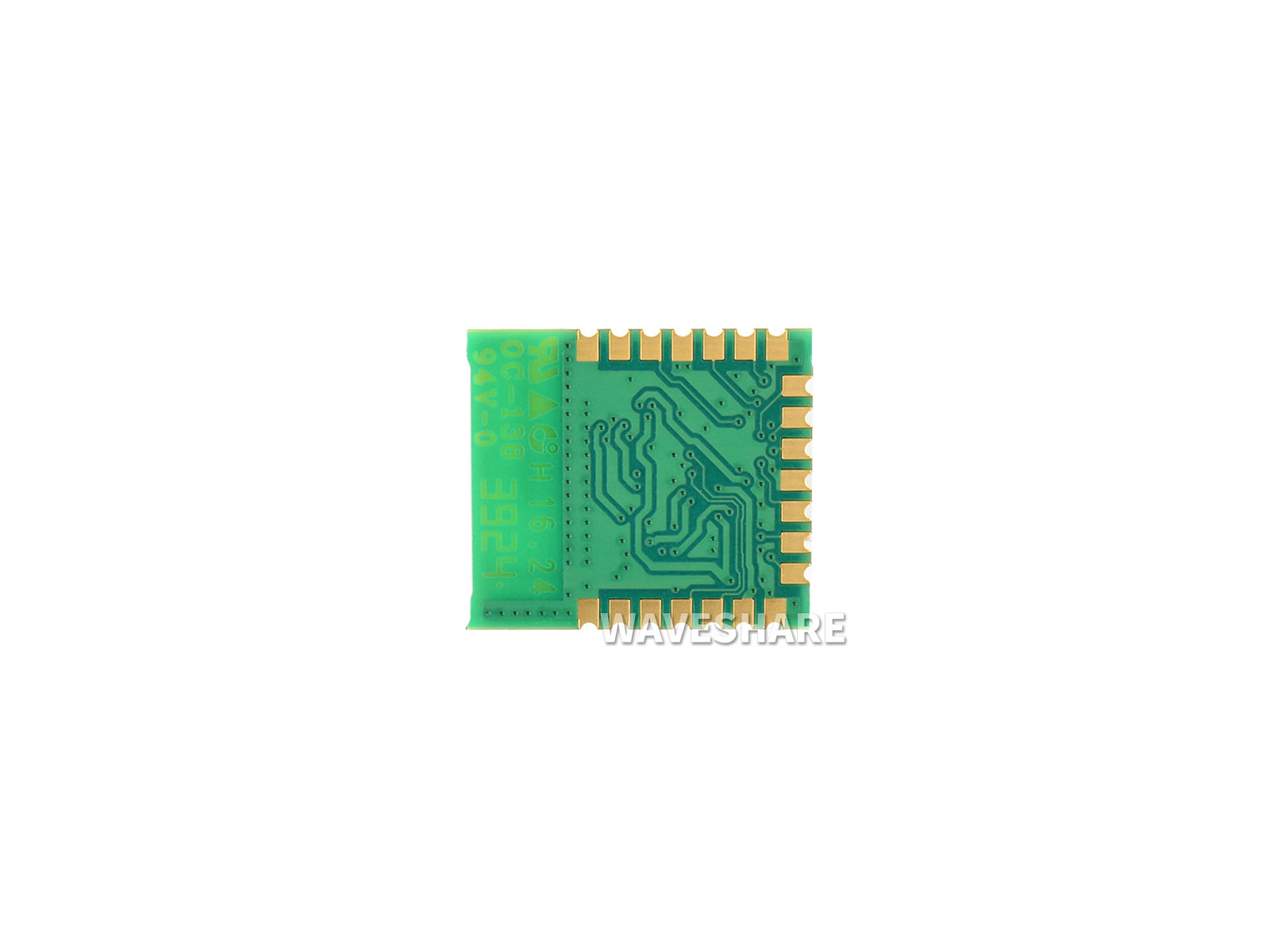

- Adopts castellated edge pads to allow for a variety of mounting options
- Features an on-board single 2.4GHz antenna for ease of design
- It has full modular certification, making integration straightforward with regard to regulatory compliance
Specifications
| Wi-Fi support | Wi-Fi 4 (802.11n), single-band (2.4 GHz) |
|---|---|
| Bluetooth support | Bluetooth 5.2; Bluetooth Classic and Bluetooth Low Energy (LE) |
| Compatibility | Full software compatibility with Pico W and Pico 2 W SDK |
| Simple GPIO expander | Three host-controlled GPIOs for added I/O capabilities |
| Minimal I/O overhead | Low-pin-count gSPI host interface allows for simplified integration with minimal I/O requirements |
| Single-antenna design | SISO1 configuration supports efficient single-antenna wireless performance.Wi-Fi and Bluetooth can coexist with a shared antenna |
| Connectivity | Integrated internal PA and LNA for signal range and reliability |
| Speed | Supports 20 MHz channels with data rates up to 96 Mbps (PHY rate) |
| Bluetooth range | Supports up to 100 m (Class 1) and 10 m (Class 2) |
| Operating temperature | -30°C ~ 70°C |
| Low power consumption | IEEE Power Save PM1 DTIM1 average rate 1: 1.19 mAReceive active rate MCS7 (at –50 dBm): 43 mATransmit active rate MCS7 (at 16 dBm): 271 mA |
| dimensions | 16.5 × 14.5 (mm) |
outline dimensions
Lieferumfang
Raspberry Pi Radio Module 2 x1
