SKU:WSAL22980

OV5647 Optical Image Stabilization Camera Module for Raspberry Pi, 5MP

OV5647-70 5MP Optical Image Stabilization Camera

For Sports Camera, Robotics projects, Wearable applications, etc.

Optical Image Stabilization System

Support dual-axis image stabilization, compensation angle ± 5°

OIS Camera

Non-OIS Camera

More Clear 1080P HD Video Recording

Specifications

Sensor	OV5647	CMOS size	1/4 inch
PIXELS	5MP	APERTURE	F 2.8
FOCAL LENGTH	3.2mm	FIELD OF VIEW	70°
DISTORTION	< 1.0%	FOCUSING	Fixed focus
Stabilization Type	OIS (optical image stabilization)	Stabilization Range	XY axis ± 5°
Image	2592 x 1944 static image resolution
Video recording	1920 × 1080p @30, 1280 × 720p @60, 640 × 480p @60, 640 × 480p @90

Device Support

Raspberry Pi series

Supports 4B / 3B+ / 3A+ Zero / Zero 2 W, and CM3/3+/4 (extra adapter board required)

Application Examples

Mini Size, Direct Integration Into Raspberry Pi-Powered Projects Suitable For Sorts Of Compact Applications

*Raspberry Pi 4B is NOT included.

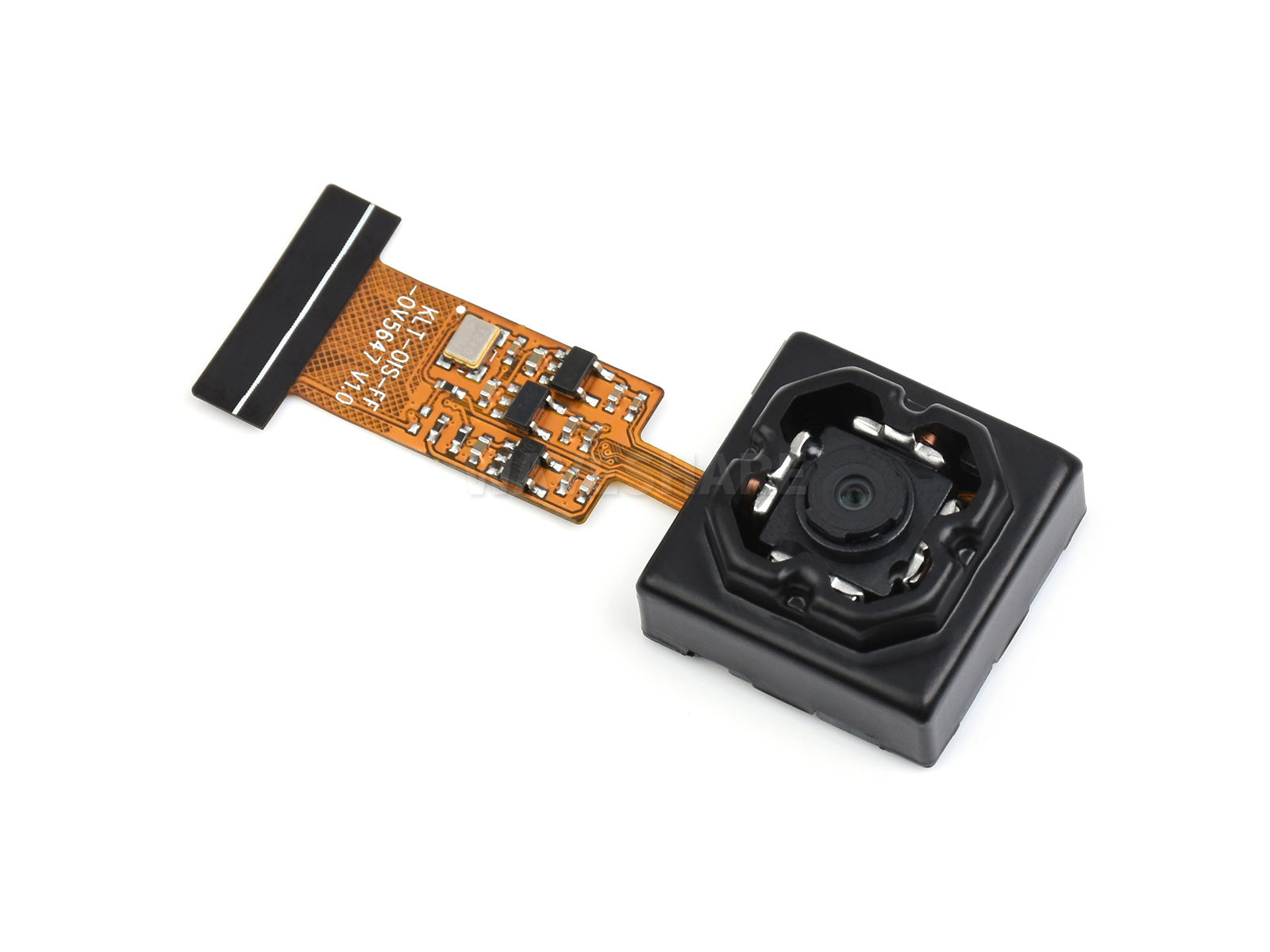

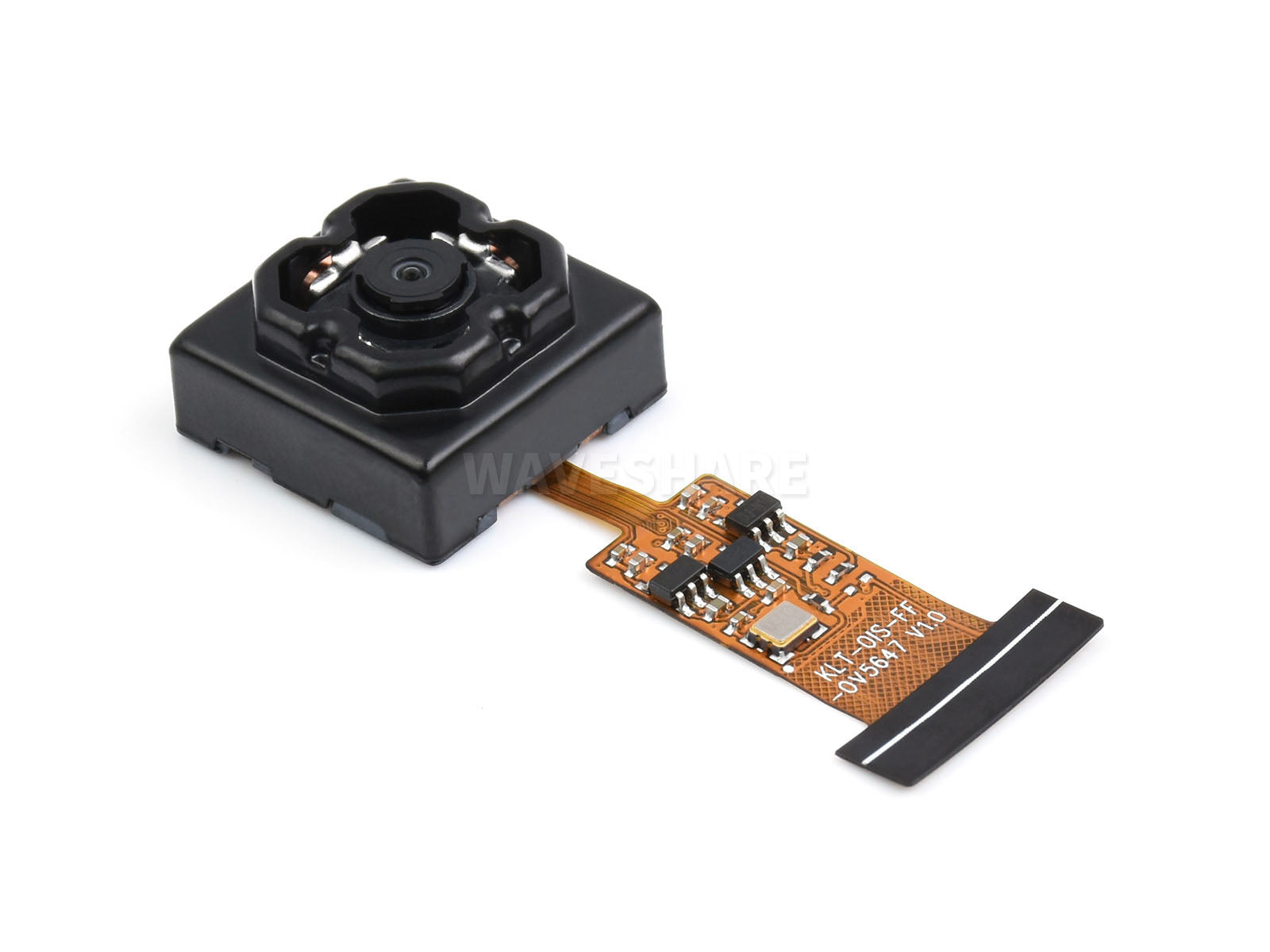

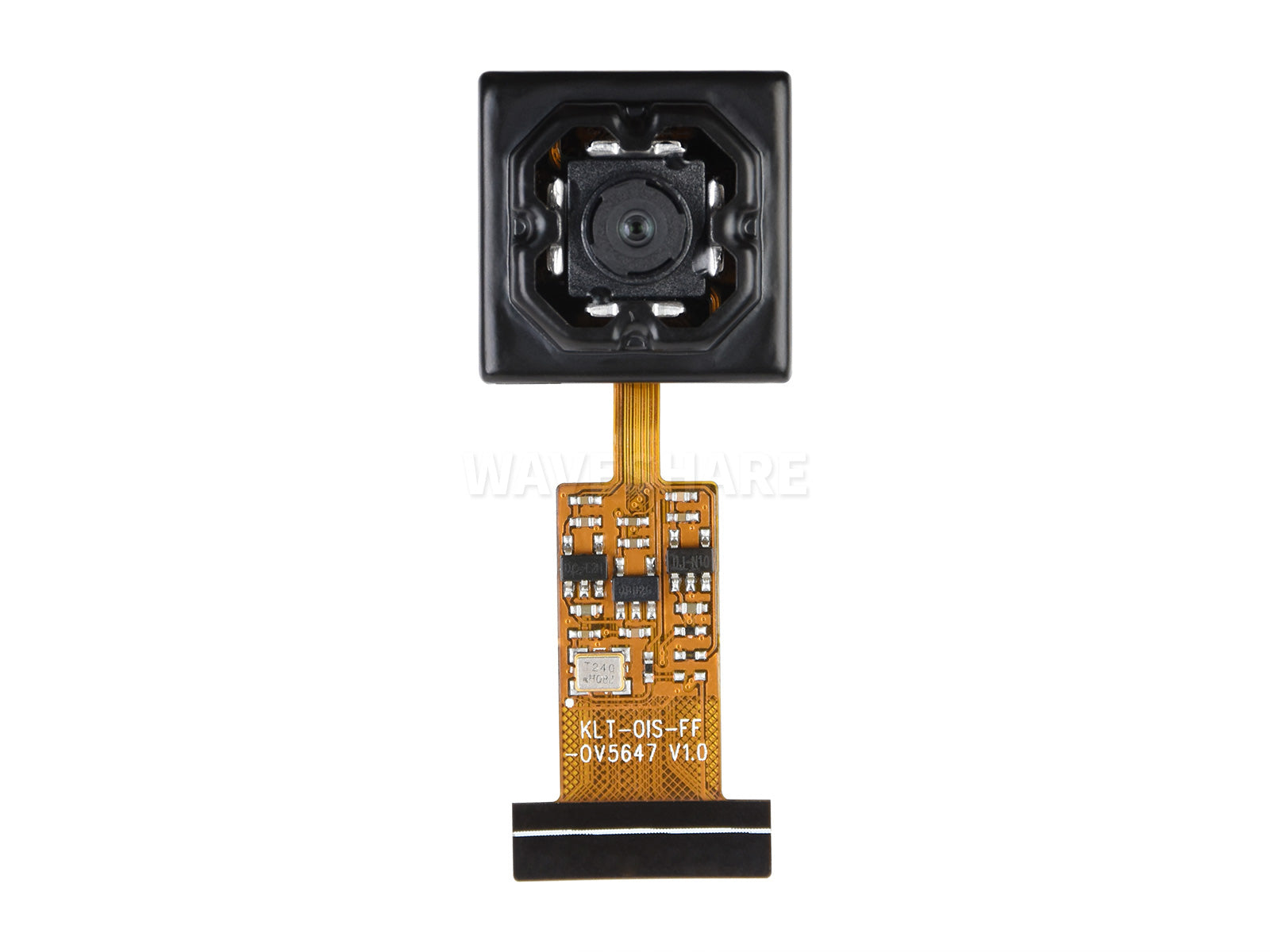

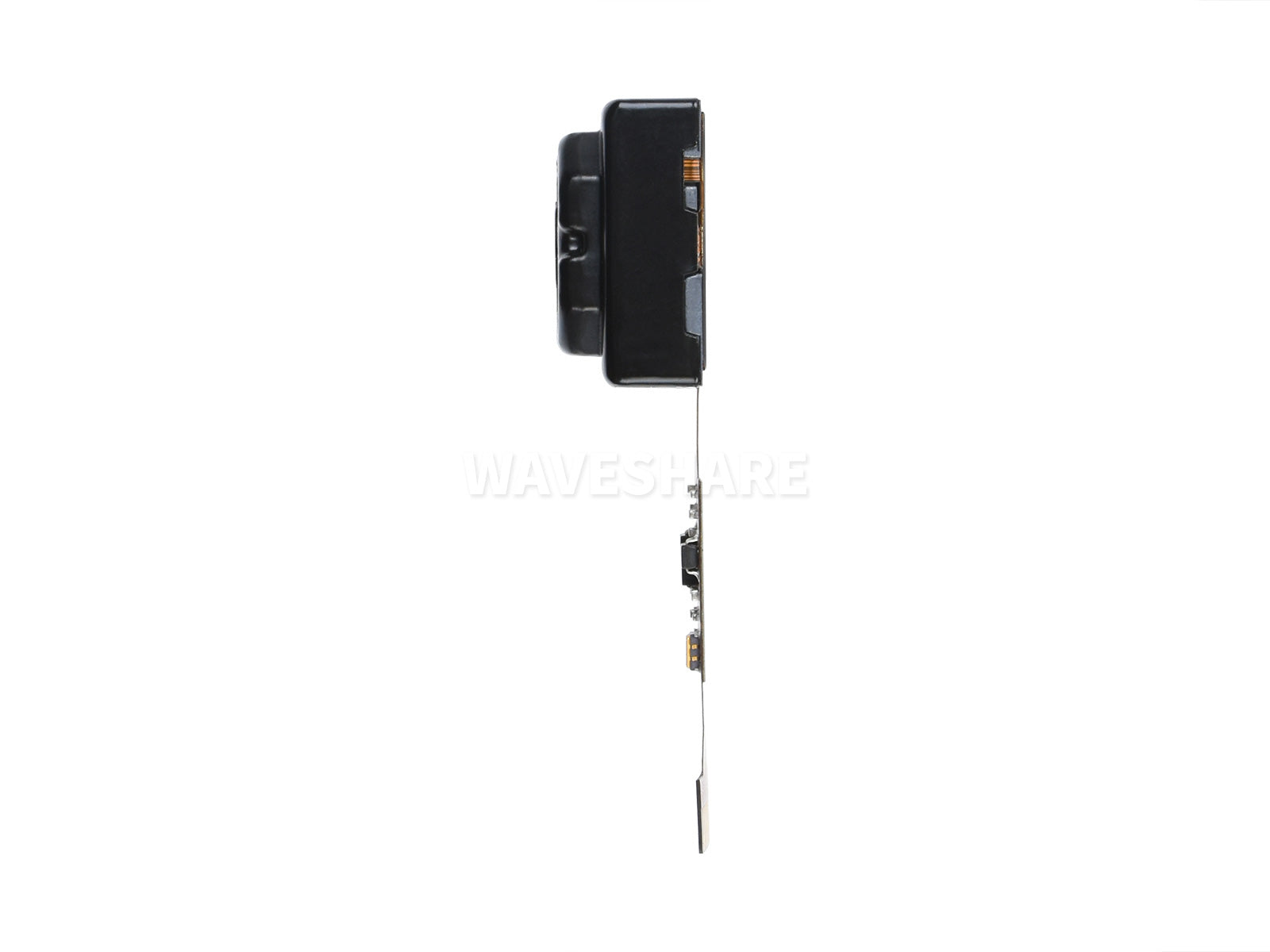

Product Show

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/OV5647-70_5MP_OIS_Camera

Lieferumfang

OV5647-70 5MP OIS Camera x1
