SKU:WSAL24710

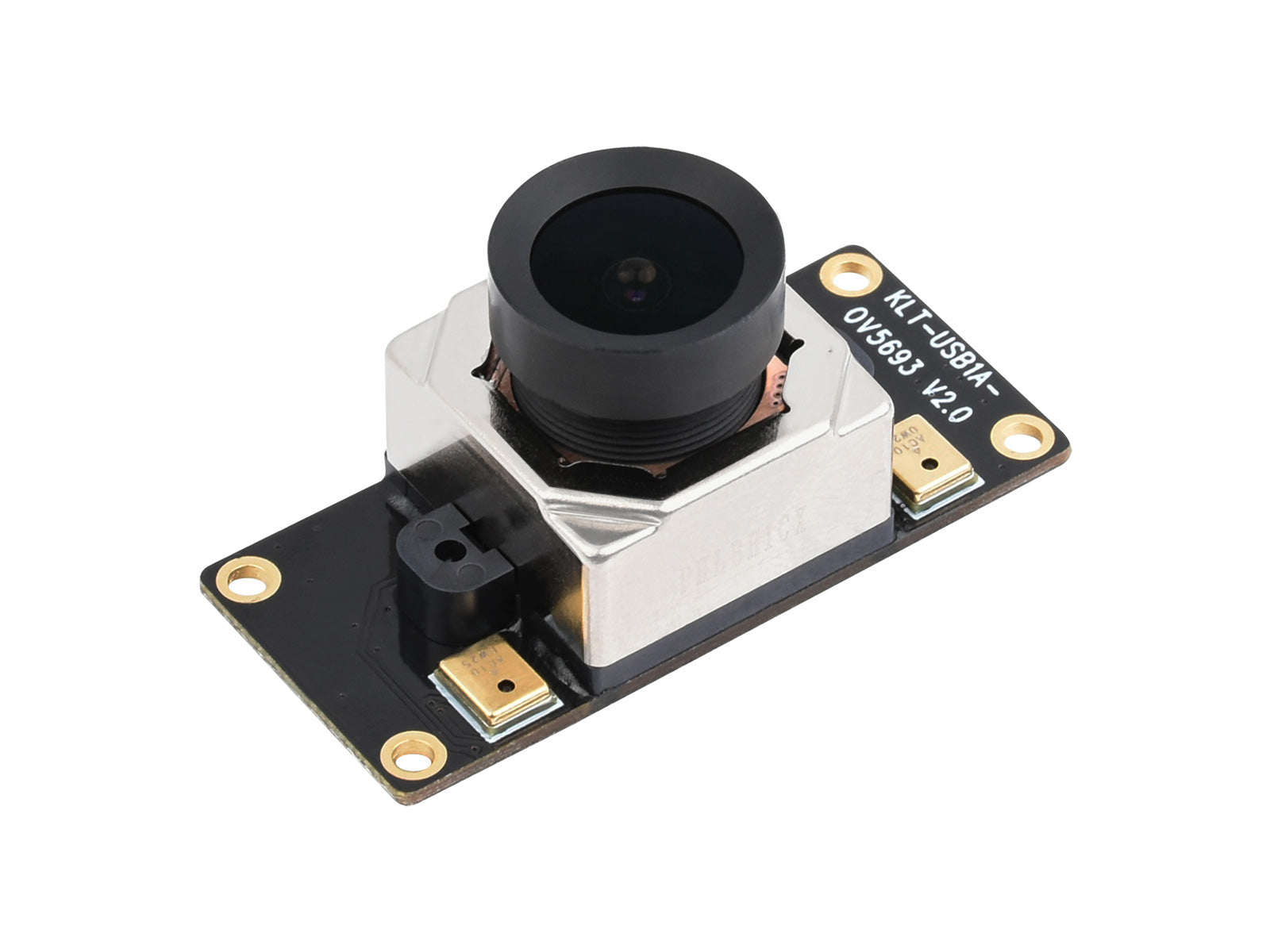

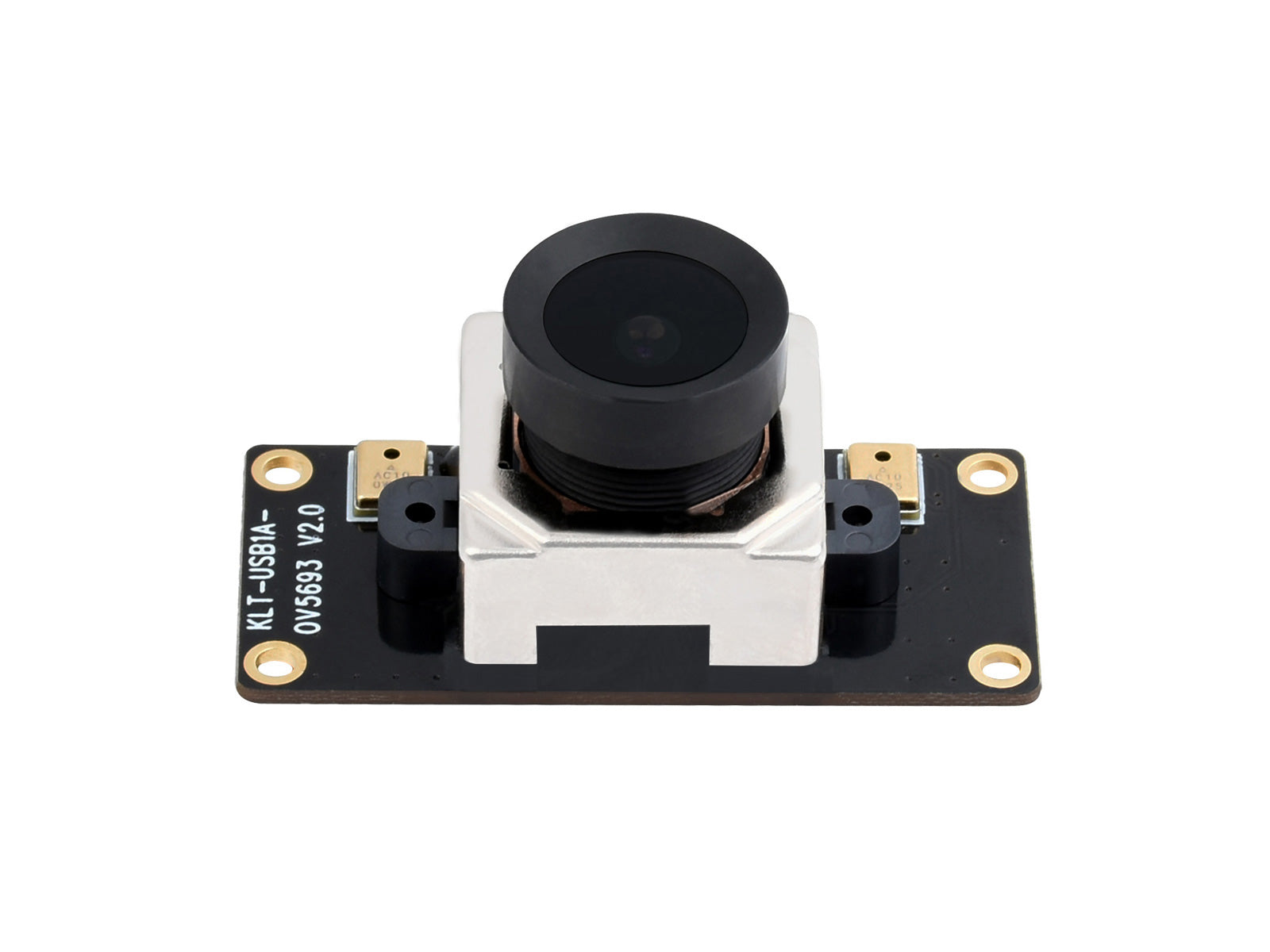

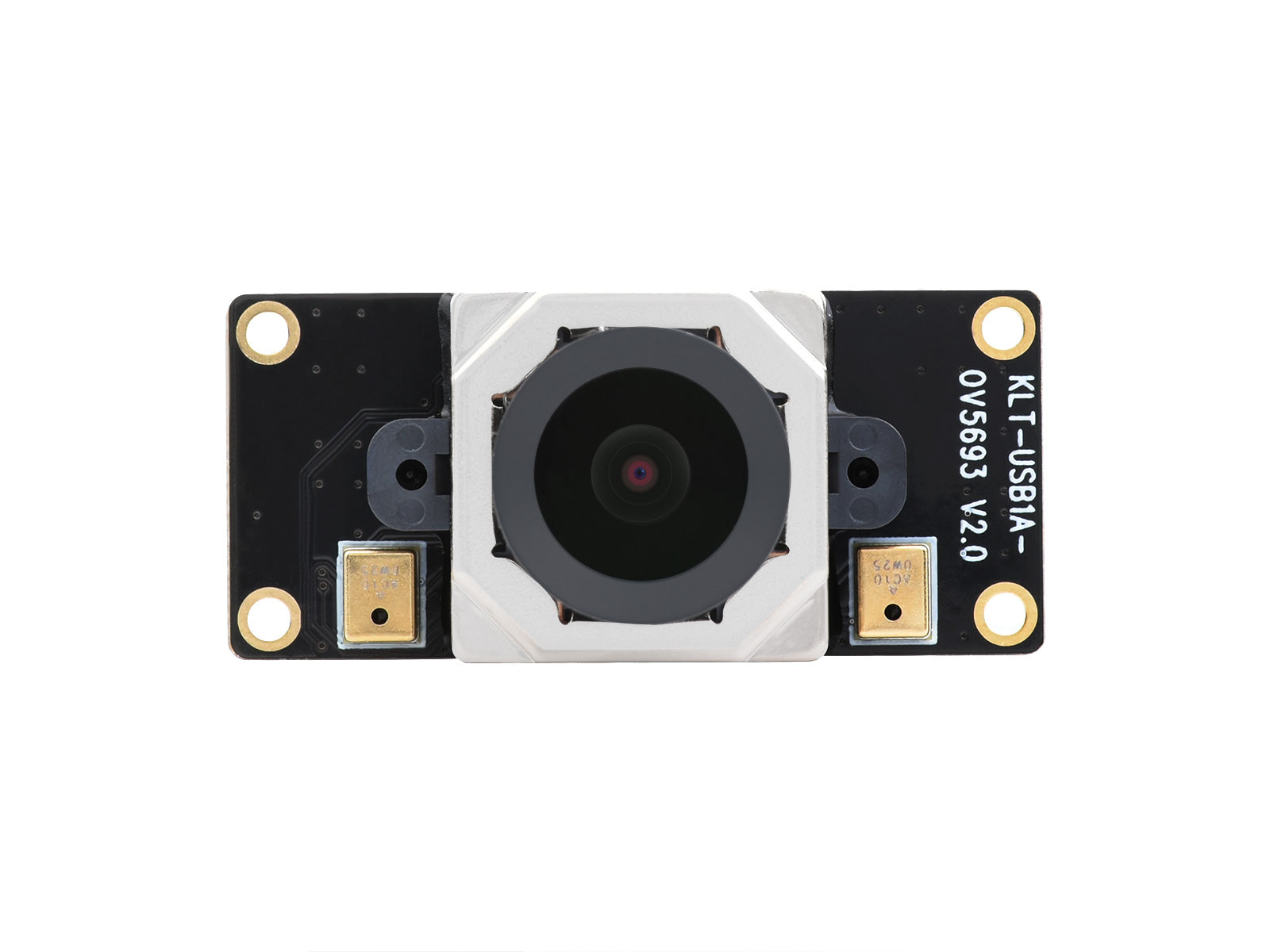

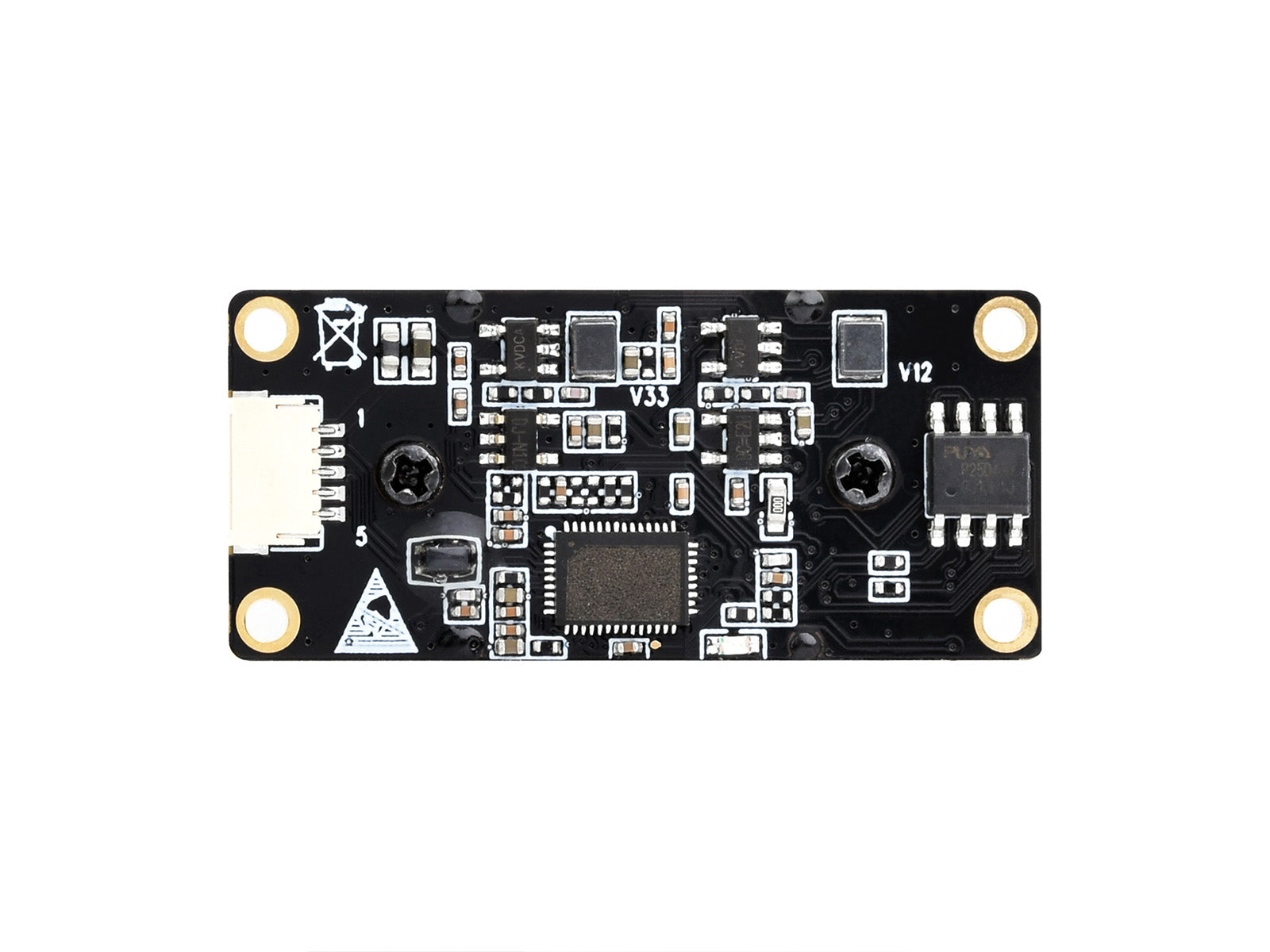

OV5693 5MP USB Camera, Fixed-focus, Auto Focusing, M12 Camera Module, Onboard Dual Microphones

5MP M12 camera module

OV5693 sensor, USB2.0 port, auto focusing

Specifications

Pixels	5MP
Sensor	OV5693
Interface	USB 2.0
Camera	Sensor size	1/4 inch
	Aperture (F)	2.1
	Focal length (EFL)	2.5 mm
	Field of view (FOV)	135°(D) 95°(H) 70°(V)
	Focusing	Auto focusing
Image	Format support	MJPG, YVY2
	Static image resolution	2592 × 1944
	Video recording	MJPG: 2592 × 1944 15FPS 1920 × 1080 15FPS 1280 × 720 15FPS 640 × 480 15FPS
		YUY2: 2592 × 1944 3FPS 1920 × 1080 5FPS 1280 × 720 10FPS 640 × 480 15FPS
audio	Onboard dual microphones
Operating voltage	5V ± 5%
Operating current	500mA
Camera size	18.00 × 18.00 × 19.69 mm
Module size	18.00 × 40.00 mm

Connecting with USB cable

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/OV5693_5MP_USB_Camera_(A)

Selection Guide

Part Number	Pixels	Sensor	Best Resolution	Dimension	Field of View	Shutter Mode	Feature
OV9281 1MP USB Camera (A)	1MP	OV9281	1280×720	25×25mm	105°	Global shutter	120FPS high frame rate, mono camera
OV2735 2MP USB Camera (A)	2MP	OV2735	1920×1080	25×25mm	96°	Rolling shutter	distortion-free
OV2710 2MP USB Camera (A)	2MP	OV2710	1920x1080	38x38mm	145°	Rolling shutter	Low-light sensitivity
GC2093 2MP USB Camera (A)	2MP	GC2093	1920x1080	38x38mm	170°	Rolling shutter	Wide dynamic range, backlit imaging, onboard microphone
SC2210 2MP USB Camera (A)	2MP	SC2210	1920x1080	38x38mm	110.8°	Rolling shutter	Large aperture, starlight-level
PS5268-2MP-USB-Camera-A	2MP	PS5268	1920x1080	30×30mm	112.6°	Rolling shutter	Wide dynamic range, IP67 water-resistant case
OS05A10 5MP USB Camera (A)	5MP	OS05A10	2592×1944	25×25mm	96°	Rolling shutter	wide dynamic range, distortion-free
OV5693 5MP USB Camera (A)	5MP	OV5693	2592x1944	18×40mm	135°	Rolling shutter	auto-focus
OV5693 5MP USB Camera (B)	5MP	OV5693	2592x1944	8.5×60.2mm	75°	Rolling shutter	Small size, auto-focus
OV5640 5MP USB Camera (B)	5MP	OV5640	2592x1944	9×62mm	68°	Rolling shutter	Small size, auto-focus
OV5640 5MP USB Camera (C)							Small size
IMX335 5MP USB Camera (A)	5MP	IMX335	2592x1944	38×38mm	106.9°	Rolling shutter	Manual focus, low-light sensitivity, wide dynamic range
IMX335 5MP USB Camera (B)	5MP	IMX335	2592x1944	25×24mm	175°	Rolling shutter	Fixed-focus, wide angle, low-light sensitivity, wide dynamic range
IMX335 5MP USB Camera (C)	5MP	IMX335	2592x1944	25×24.3mm	91.7°	Rolling shutter	Fixed-focus, low-light sensitivity, wide dynamic range, distortion-free, onboard microphone
IMX378 12MP USB Camera (A)	12MP	IMX378	3840×3032	30×30mm	79.8°	Rolling shutter	HD, auto-focus, onboard dual microphones
IMX179 8MP USB Camera (A)	8MP	IMX179	3288x2512	38x38mm	145°	Rolling shutter	HD, embedded digital mic
IMX179 8MP USB Camera (B)	8MP	IMX179	3264×2448	9×62mm	75°	Rolling shutter	HD, small size, auto-focus
IMX415 8MP USB Camera (A)	8MP	IMX415	3840×2160	38×38mm	95.5°	Rolling shutter	HD, auto-focus, onboard dual microphones, distortion-free
IMX678 8MP USB Camera (A)	8MP	IMX678	3840×2160	38×38mm	93°	Rolling shutter	HD, Low-light sensitivity, distortion-free
OS08A10 8MP USB Camera (A)	8MP	OS08A110	3840×2160	38×38mm	68°	Rolling shutter	HD, Low-light sensitivity, Low distortion
IMX258 13MP OIS USB Camera (A)	13MP	IMX258	4208×3120	38×38mm	123°	Rolling shutter	HD, OIS
AR0144 Stereo USB Camera (A)	1MP	AR0144	2560×800	66×30mm	74°	Global shutter	Frame-synchronized stereo output, distortion-free
IMX577 12MP USB Camera (A)	12MP	IMX577	3840×3024	34×34mm	113°	Rolling shutter	HD, distortion-free
IMX577 12MP USB Camera (B)	12MP	IMX577	3840×3024	34×34mm	-	Rolling shutter	HD, C/CS lenses support
OS02G10 Stereo USB Camera (A)	2MP	OS02G10	3840×1080	100×22mm	92°	Rolling shutter	Frame-synchronized stereo output, distortion-free

Lieferumfang

OV5693 5MP USB Camera (A) x1
