SKU:WSAL27480

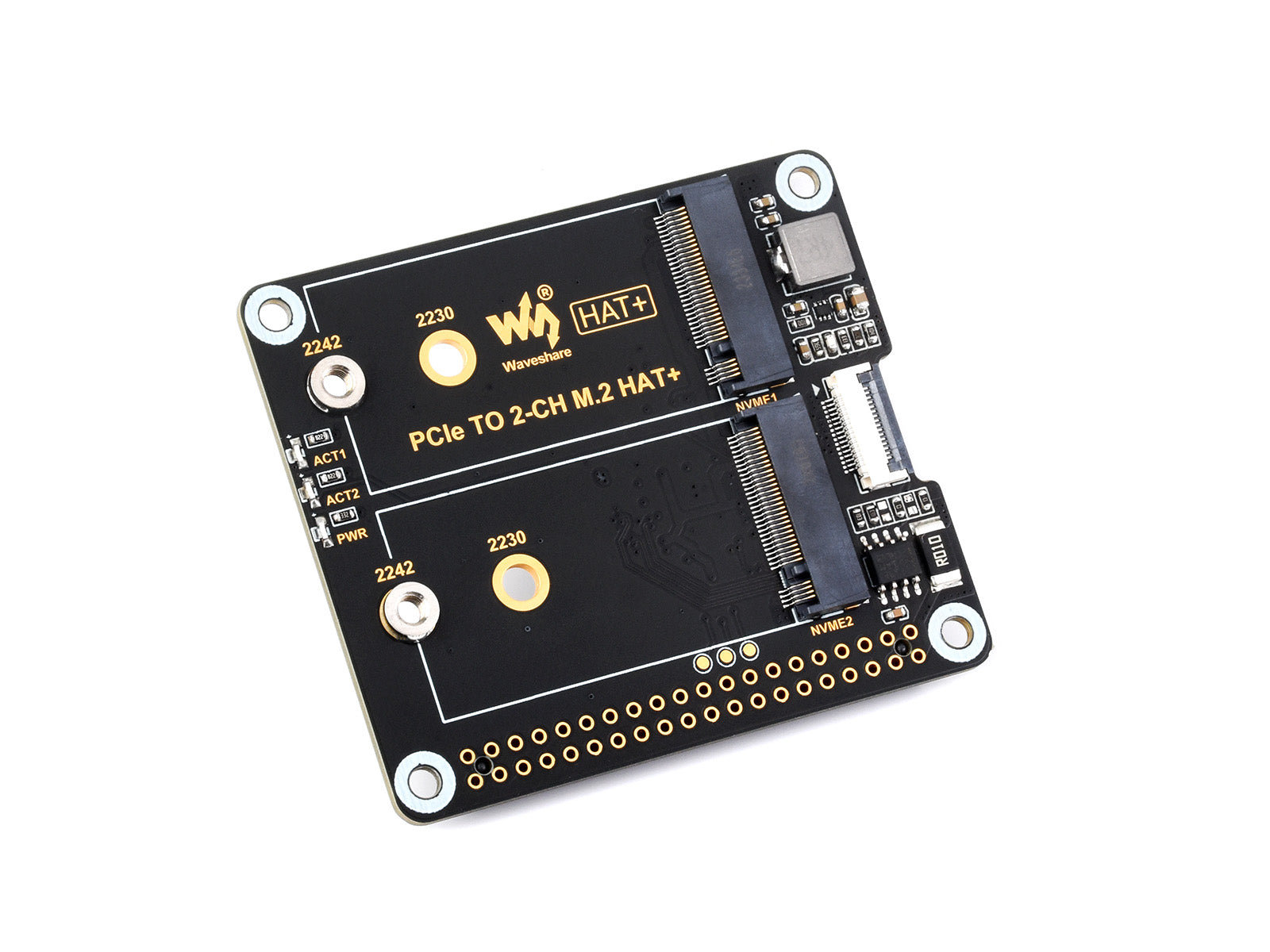

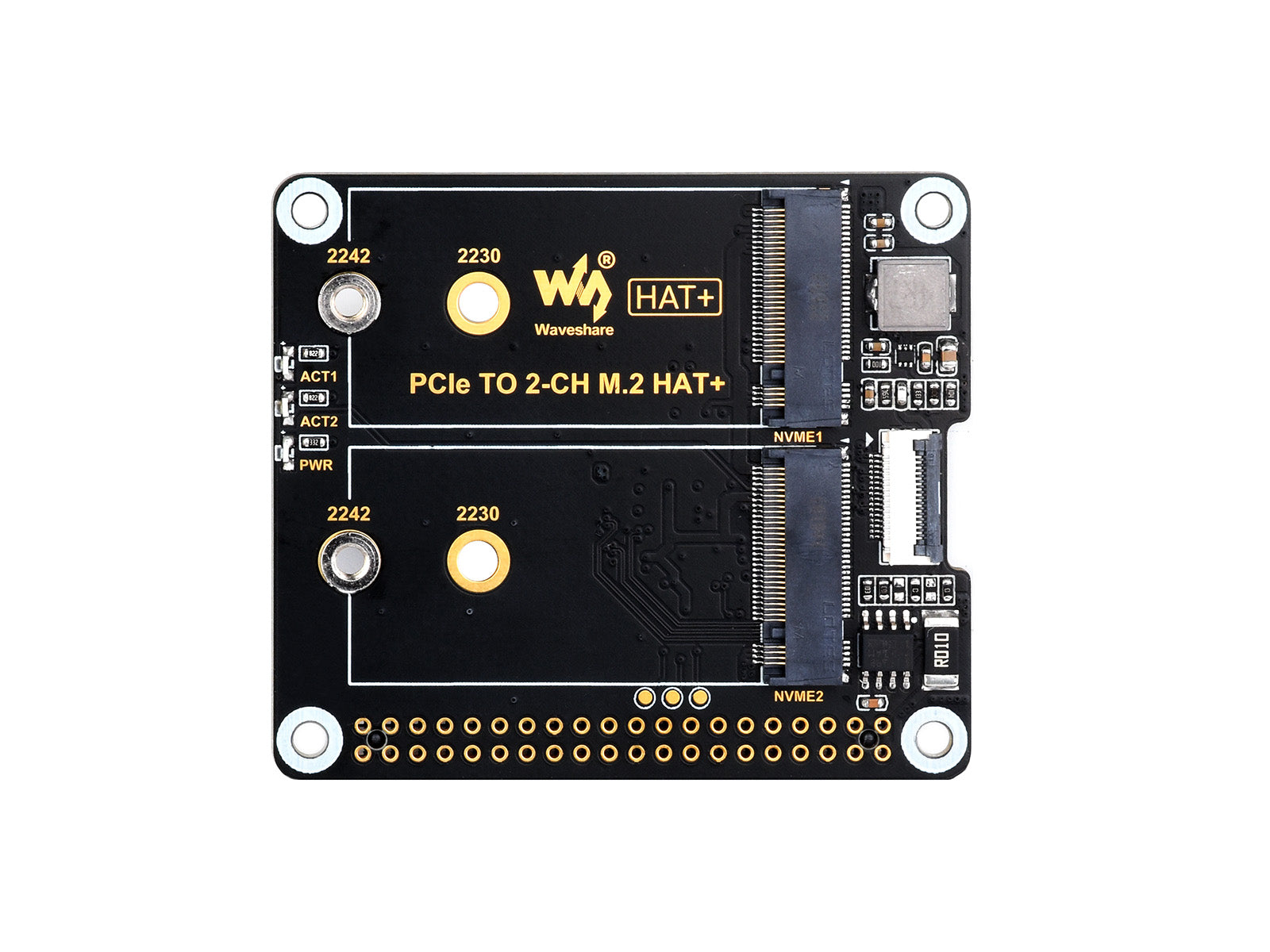

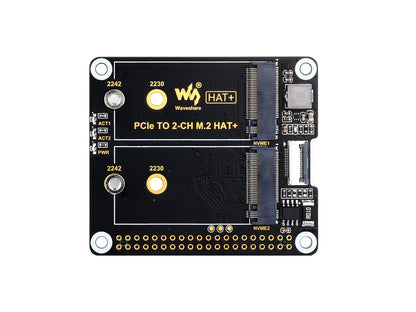

PCIe To 2-ch M.2 Adapter for Raspberry Pi 5, Compatible with 2230/2242 Size NVMe Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 M.2 HAT

PCIe To 2-ch M.2 Adapter

Designed for Raspberry Pi 5

2-ch NVMe Protocol M.2 Solid State Drive Adapter, High-speed Reading/Writing

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

Dual NVMe Solid State Drives Support

Compatible With 2230/2242 Size M.2 Solid State DrivesSupports PCIE x1 Gen2 only, Supports Booting PI5 From Solid State Drive

Onboard Dual LED Indicators

Easy to monitor the Working Status

Onboard Power Monitoring Chip And EEPROM

Real-time monitoring of Solid State Drive power status for More Stable operation

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/PCIe_TO_2-CH_M.2_HAT+

Lieferumfang

1. PCIe TO M.2 HAT+ x1
2. 2*20 Pin header x1
3. 16P-Cable-40mm x1
4. Screws pack x1
