SKU:WSAL33365

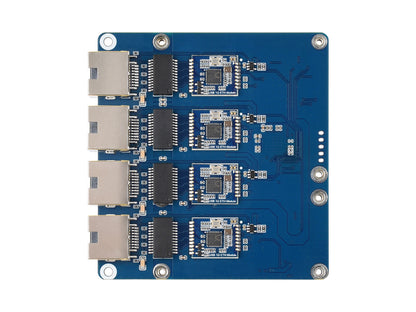

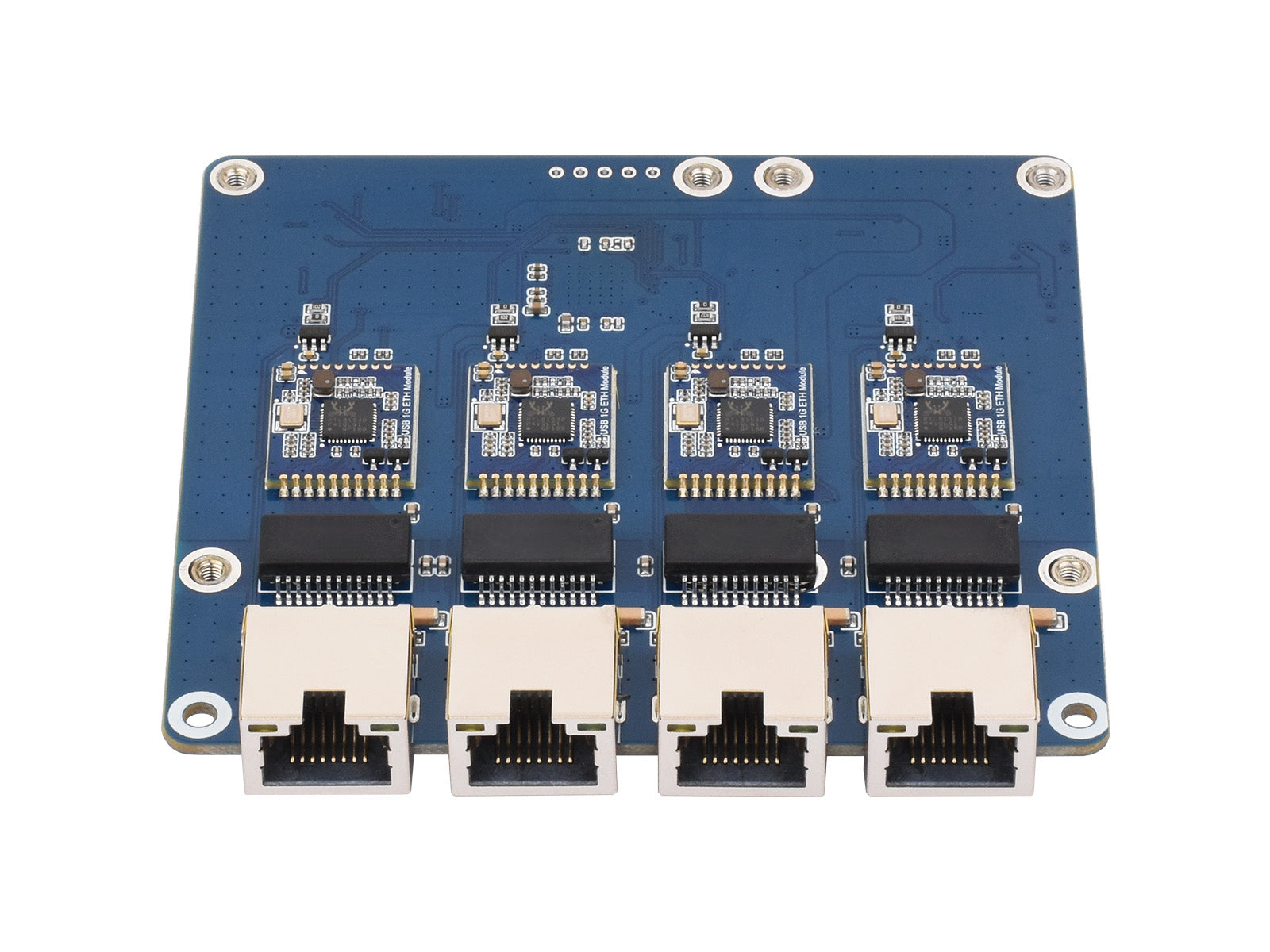

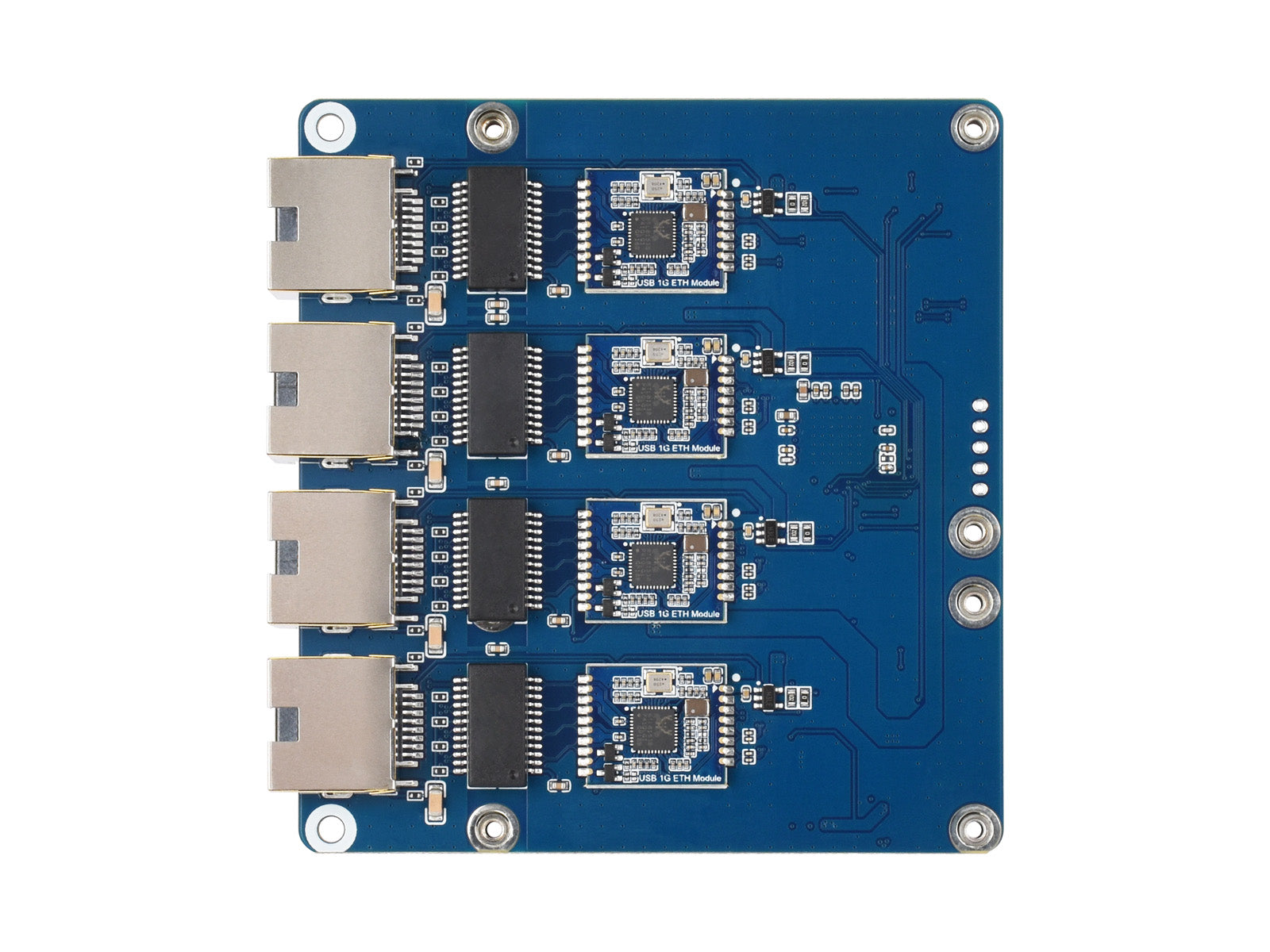

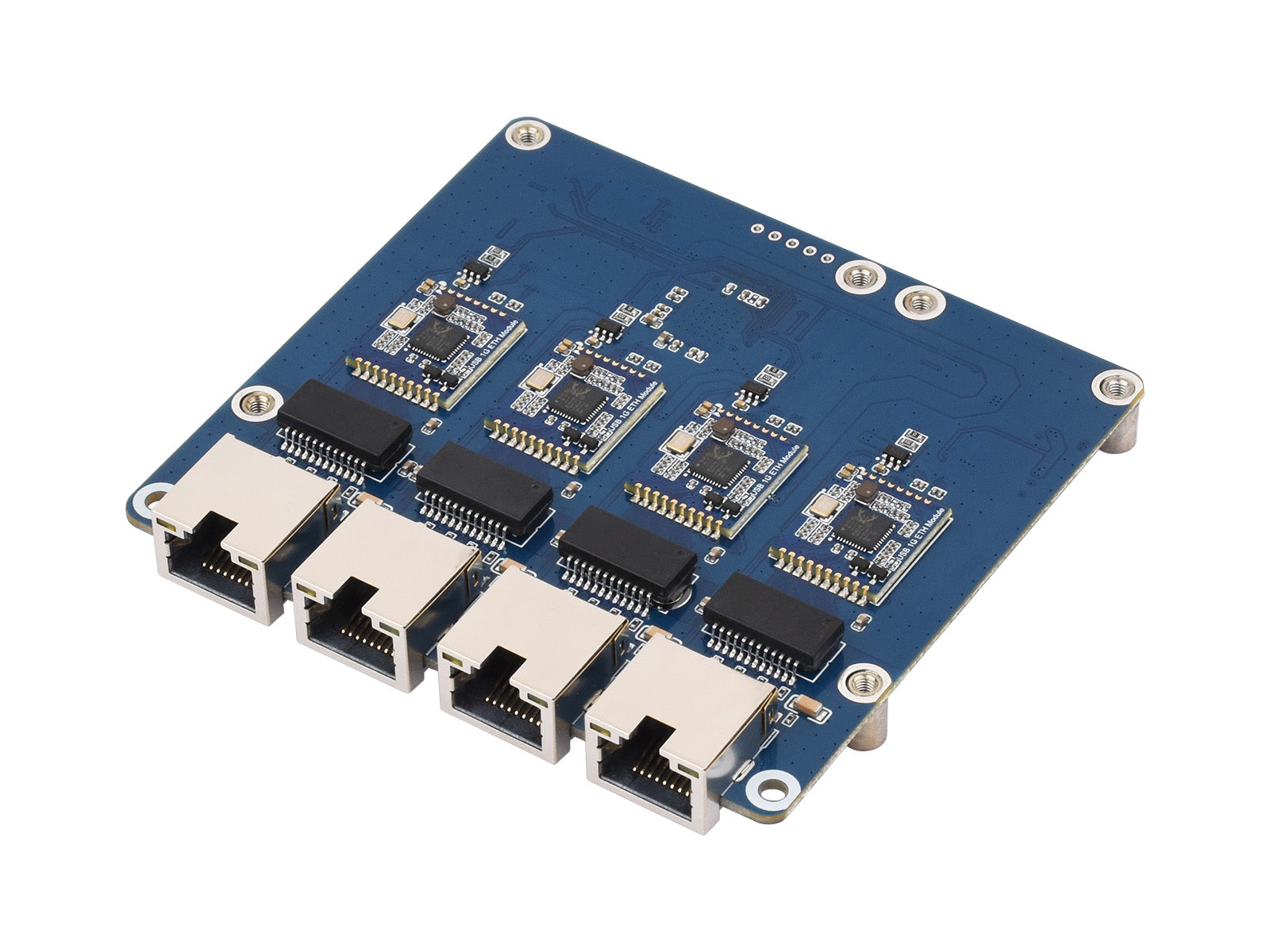

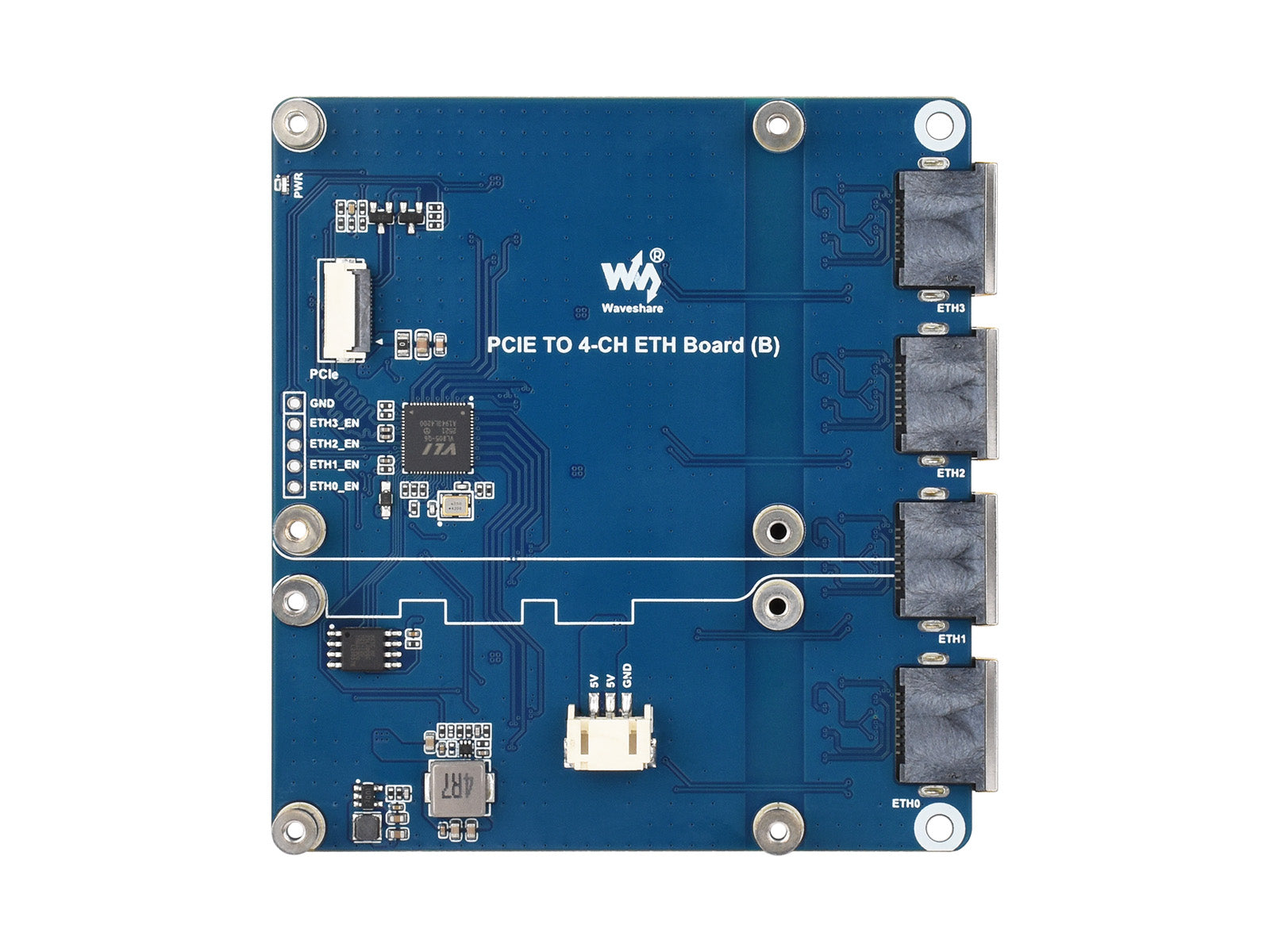

Kurzbeschreibung: PCIE TO 4-CH Gigabit / 2.5G ETH Board (B) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play

PCIe TO 4-Ch Gigabit / 2.5G ETH Board (B) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play

PCIe TO 4-ch ETH Port Adapter Board

Designed for Raspberry Pi 5

Supports Raspberry Pi OS, Driver-free, Plug and Play

Version Options

PCIE TO 4-CH Gigabit ETH Board (B)4-ch Gigabit ETH ports

PCIE TO 4-CH 2.5G ETH Board (B) 4-ch 2.5G ETH ports

Specifications

Version	Gigabit ETH	2.5G ETH
CONTROLLER chip	RTL8153	RTL8156
Expansion chip	VL805
Ethernet Port	RJ45 Ethernet ports
Power supply	5V
Network standard	10/100/1000Mbps	10/100/1000/2500Mbps
Indicator status	The green indicator keeps lighting, the yellow indicator keeps blinking

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

Power Supply Method

power supply via PCIe cable by default

* for reference only, please refer to the Package Content for detailed part list

Assembly Diagram

* for reference only, the Pi5 Connector AdapterandRaspberry Pi 5 are NOT included in the package, please purchase separately.

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/PCIE_TO_4-CH_2.5G_ETH_Board_(B)

PCIe adapter board selection

>

Product Model	Extended Interface	PCIe Version	mounting solution	Power monitoring	features
PCIe TO M.2 Board (D)	M.2_M_KEY	PCIe ×1 Gen2/3	on top		NVME, 2280
PCIe TO 2-CH M.2 HAT+ (B)	M.2_M_KEY × 2	PCIe ×1 Gen2	HAT+	√	2-ch NVME, 2280
PCIe TO 2-CH M.2 HAT+	M.2_M_KEY × 2	PCIe ×1 Gen2	HAT+	√	2-ch NVME, 2242
PCIe TO M.2 HAT+	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+	√	NVME, 2242
PCIe TO M.2 MINI	M.2_M_KEY	PCIe ×1 Gen2/3	on top		NVME, 2242, compact size
PCIe TO M.2 Board (C)	M.2_M_KEY	PCIe ×1 Gen2/3	on side		NVME, 2280, side-mounting
PCIe TO Gigabit ETH Board (C)	Gigabit ETH	PCIe ×1 Gen2	on side		Gigabit ETH port, side-mounting
PCIe TO 2.5G ETH Board (C)	2.5G ETH	PCIe ×1 Gen2	on side		2.5G ETH port, side-mounting
PCIe TO M.2 USB HAT+	M.2_M_KEY, USB3.2 × 4	PCIe ×1 Gen2	on top	√	NVME, 2280, expanded USB3.2 ports
PCIe TO 4G/5G M.2 USB3.2 HAT+	M.2_B_KEY, USB3.2 × 3	PCIe ×1 Gen2	HAT+	√	supports 4G/5G modules, expanded USB3.2 ports
PCIe TO USB 3.2 Gen1 Board (C)	USB3.2 × 4	PCIe ×1 Gen2	on side		expanded USB3.2 ports, side-mounting
PCIe TO USB 3.2 Gen1 HAT+	USB3.2 × 4	PCIe ×1 Gen2	HAT+	√	expanded USB3.2 ports
PCIe TO Gigabit ETH USB3.2 HAT+	USB3.2 × 3, Gigabit ETH	PCIe ×1 Gen2	HAT+	√	expanded USB3.2 ports and Gigabit ETH port
PCIe TO MiniPCIe GbE USB3.2 HAT+	USB3.2 × 2, MiniPCIe, Gigabit ETH	PCIe ×1 Gen2	HAT+	√	expanded MiniPCIe 4G module slot, USB3.2 ports and Gigabit ETH port
RM520N-GL 5G HAT+	M.2_B_KEY	PCIe ×1 Gen2	HAT+	√	access to 5G networking via PCIe interface, multiple 5G modules compatible
PoE M.2 HAT+	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, NVME, 2242
PoE M.2 HAT+ (B)	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, NVME, 2280
PoE M.2 HAT+ (C)	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, NVME, 2242
PoE M.2 E KEY HAT+	M.2_E_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, Wi-Fi, Bluetooth, 2230
PCIe TO ETH M.2 HAT+	M.2_M_KEY, Gigabit ETH	PCIe ×1 Gen2	HAT+	√	with Gigabit ETH port, NVME, 2280
PCIE TO M.2 E KEY HAT+	M.2_E_KEY	PCIe ×1 Gen2/3	HAT+		Wi-Fi, Bluetooth, M.2_E_KEY, 2230
PCIe TO MiniPCIe HAT+	MiniPCIe	PCIe ×1 Gen2	HAT+		Wi-Fi, Bluetooth, MiniPCIe
PCIe TO PCIe x1 Board (C)	PCIe ×1	PCIe ×1 Gen2/3	on side		Compatible with PCIe x1, x4, x8, and x16 devices
PCIe TO 2-CH PCIe HAT	PCIe 16PIN x2	PCIe ×1 Gen2	HAT		Expands 2-Ch PCIe FFC connectors
PCIe TO 4-CH PCIe HAT	PCIe 16PIN x4	PCIe ×1 Gen2	HAT		Expands 4-Ch PCIe FFC connectors
PCIE TO 4-CH NVME Board (B)	M.2_M_KEY × 4	PCIe ×1 Gen2	on bottom	√	4-ch NVME, 2280, onboard DC power jack
PCIe TO 2-CH SATA HAT+	SATA × 2	PCIe ×1 Gen2	on top		2-ch SATA interfaces
PCIE TO 4-CH 2.5G ETH Board (B)	2.5G ETH × 4	PCIe ×1 Gen2	on bottom	√	4-ch ETH ports
PCIE TO 4-CH Gigabit ETH Board (B)	Gigabit ETH × 4	PCIe ×1 Gen2	on bottom	√	4-ch ETH ports

Lieferumfang

PCIE TO 4-CH Gigabit ETH Board (B)

1. PCIE TO 4-CH Gigabit ETH Board (B) x1
2. 16P-Cable-40mm x1
3. Screws pack x1

1

2

3

PCIE TO 4-CH 2.5G ETH Board (B)

1. PCIE TO 4-CH 2.5G ETH Board (B) x1
2. 16P-Cable-40mm x1
3. Screws pack x1

1

2

3
