1 4

WSAL27834

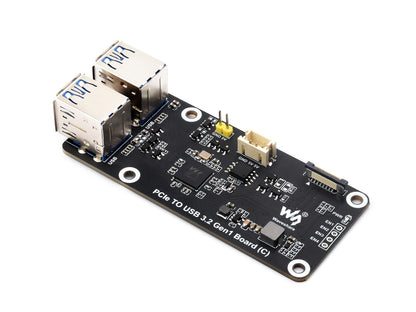

PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe Adapter

6.768 Ft
6.768 Ft 0 Ft
Sale Ausverkauft
Steuer enthalten. Versand wird an der Kasse berechnet.
PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe Adapter
PCIe TO USB 3.2 Gen1 Board (C)

Designed for Raspberry Pi 5

Supports Raspberry Pi OS, Driver-free, Plug and Play

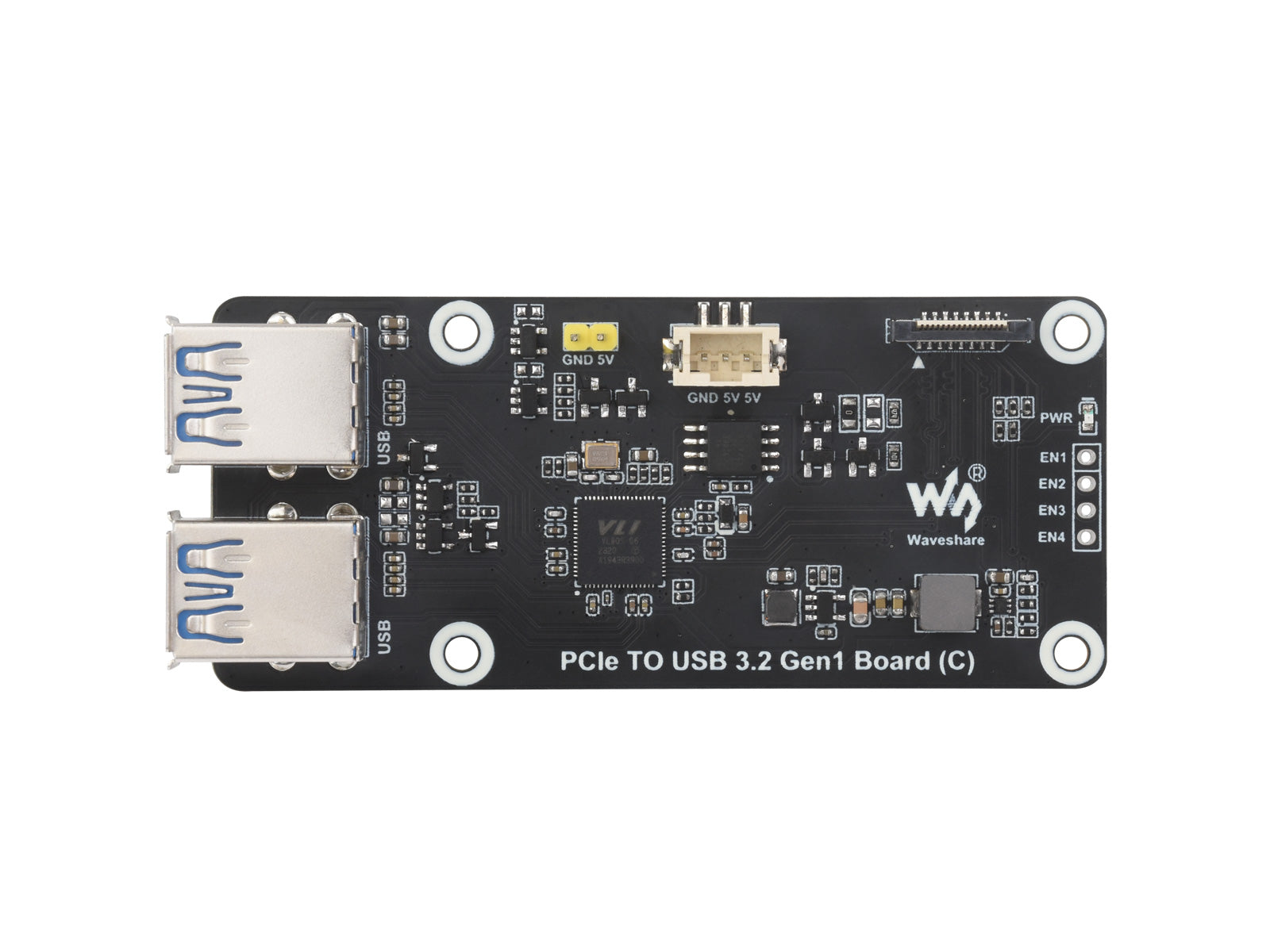

PCIe to 4-ch USB3.2 Gen1 Board (C), front view
Connecting to PI5 via 16PIN Cable
PCIe to 4-ch USB3.2 Gen1 Board (C), connecting to PI5
Specifications
Interface standard High-speed USB 3.2 Gen1
Communication rate5Gbps for single USB porttotal 5Gbps for 4-ch USB ports
USB output5V@Imax: 2A; USB-A connector
Power supply5V DC power supply header/connector
operating temperature0℃ ~ 75℃
5Gbps Ultra-fast Transmission

Extending 4x USB 3.2 Gen1 Ports, up to 500MB/s transmission speed theoretically. Enjoy stable and high-speed file transmission

PCIe to 4-ch USB3.2 Gen1 Board (C) up to 500MB/s transmission speed
Enabling up to 8-ch USB ports for the Raspberry Pi 5

PCIe to 4-ch USB 3.2 Gen 1 High-speed ports For Connecting More Peripherals

PCIe to 4-ch USB3.2 Gen1 Board (C), supports connecting to various USB devices

* the Raspberry Pi 5 is NOT included, please refer to the Package Content for detailed part list

4-ch power supply independent control

Allows controlling the power ON/OFF of each USB port via commands

PCIe to 4-ch USB3.2 Gen1 Board (C), allows controlling the power ON/OFF of each USB port via commands
Two Power Supply Methods

Supports Power Supply Via 2PIN header Or 3PIN connector

PCIe to 4-ch USB3.2 Gen1 Board (C), supports two power supply methods
Comes with Transparent acrylic mounting plate

Adopts side-mounting solution to save space above the Raspberry Pi 5Connecting to PI5 via 16PIN Cable

PCIe to 4-ch USB3.2 Gen1 Board (C), adopts side-mounting solution

* for reference only, please refer to the Package Content for detailed part list

Acrylic mounting bottom plate, Stable and not easy to loosen
PCIe to 4-ch USB3.2 Gen1 Board (C), with Acrylic mounting bottom plate
Outline dimensions
PCIe to 4-ch USB3.2 Gen1 Board (C), outline dimensions

Lieferumfang

  1. PCIe TO USB 3.2 Gen1 Board (C) x1
  2. Transparent acrylic mounting plate x1
  3. 16PIN PCIe cable x1
  4. PH2.0 3PIN cable x1
  5. Standoff pack x1
1PCIe to 4-ch USB3.2 Gen1 Board (C)
2
3
4
5
