SKU:WSAL27541
PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT For Raspberry Pi 5, 3x USB 3.2 Gen1, 1x Gigabit Ethernet, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe HAT
Abholverfügbarkeit konnte nicht geladen werden
PCIe To Gigabit Ethernet And USB 3.2 Gen1
Designed for Raspberry Pi 5, driver-free, plug and play
Based on 16PIN PCIe Interface of Raspberry Pi 5
* for reference only, please refer to the Package Content for detailed part list
Extends The PCIe Interface To 3x High Speed USB 3.2 Gen1 Ports for connecting more peripherals
Equipped with RTL8153B high-performance Gigabit ETH chip, sinking design of network port, neat and beautiful
Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., stable and reliable network speed
Real-time monitoring of power status, supports USB port power control via software

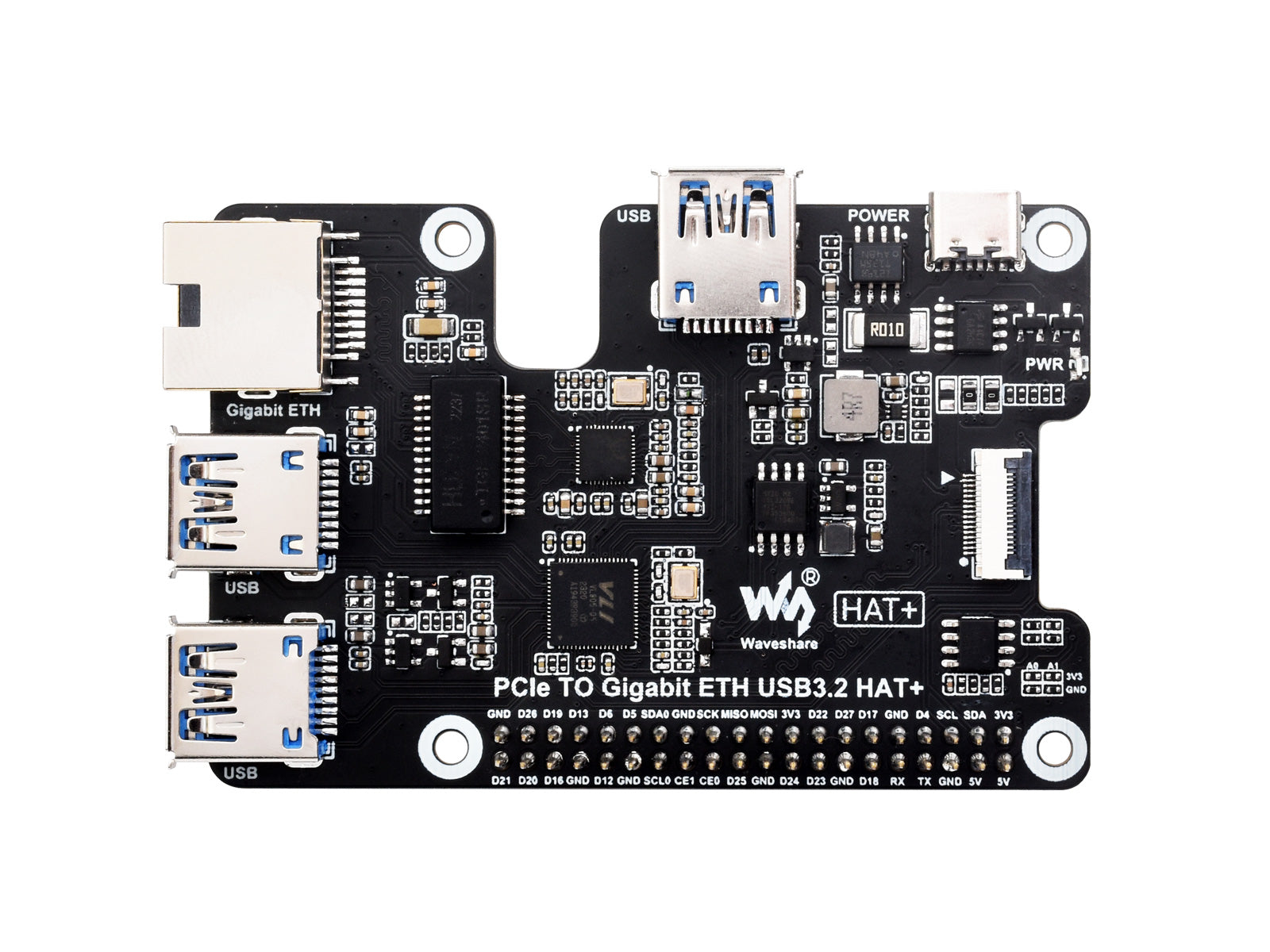

- VL805 PCIe to USB 3.2 Gen1 HUB chip
- RTL8153B USB to Gigabit ETH chip
- INA219Power monitoring chip
- EEPROMfor saving HAT ID and product information
- 16PIN PCIe interface for connecting to the PCIe interface of Raspberry Pi 5
- Raspberry Pi GPIO header for connecting Raspberry Pi 5
- Gigabit Ethernet portup to 1000Mbps data rate, compatible with 100Mbps
- USB 3.2 Gen1 expanded portsUSB1~USB3
- Power portfor external Type-C 5V DC power supply
- PWR LEDPower indicator
* for reference only, the Raspberry Pi 5andcooling fan are NOT included, please refer to the Package Content for detailed part list
Lieferumfang
- PCIe TO Gigabit ETH USB3.2 HAT+ x1
- Network cable ~1.5m x1
- 16P-Cable-40mm x1
- Standoff pack x1
