SKU:WSAL30134

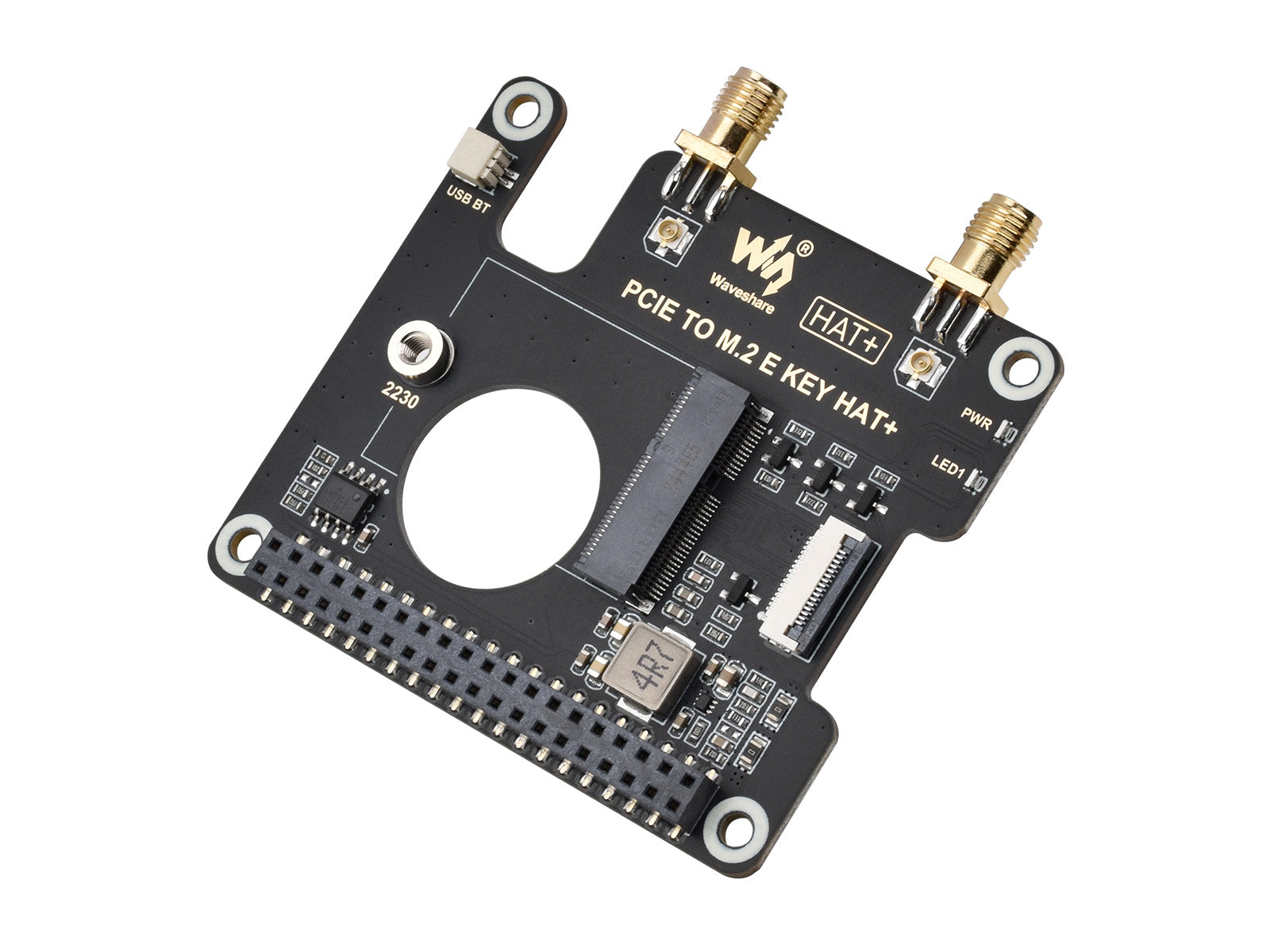

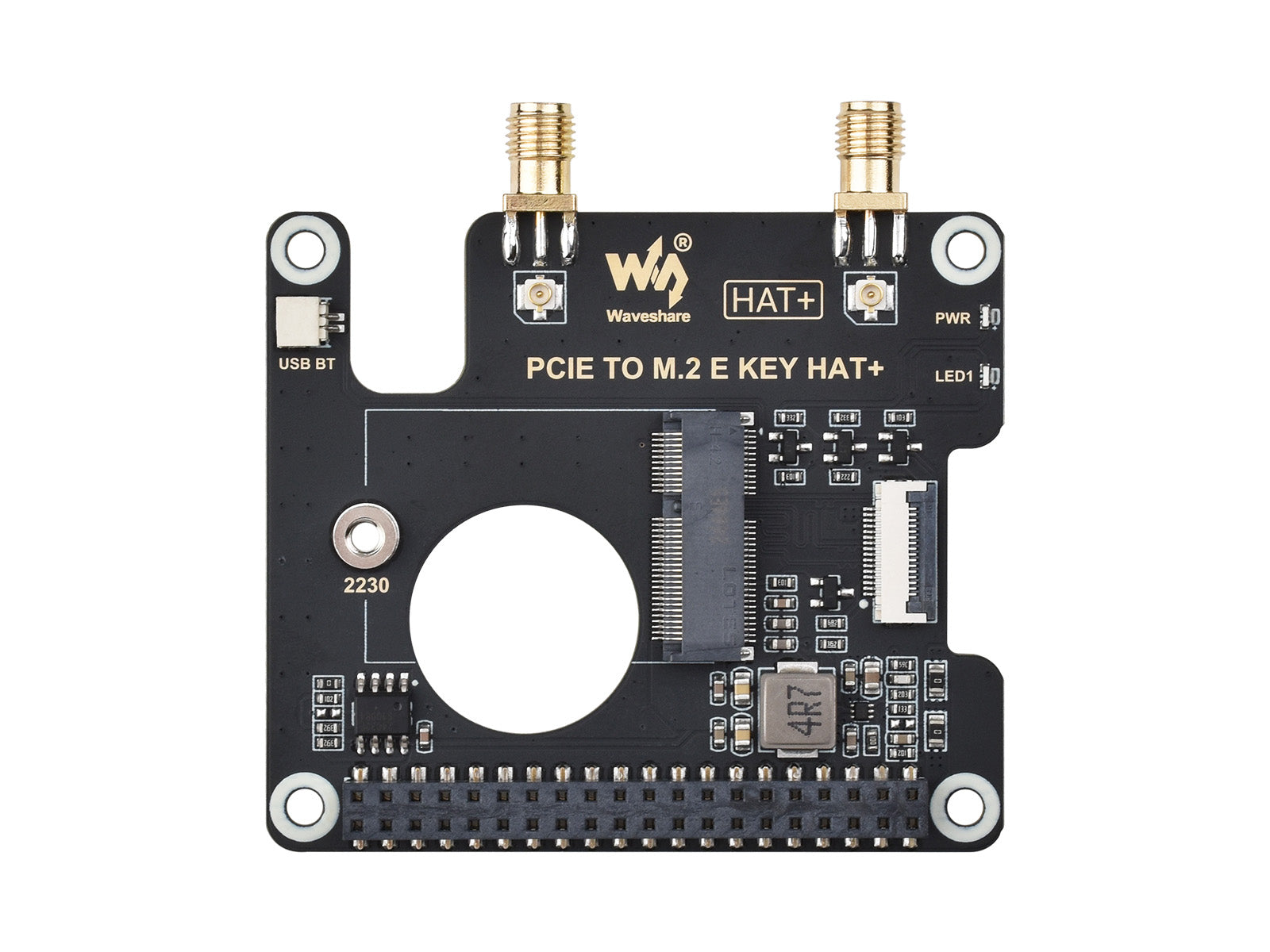

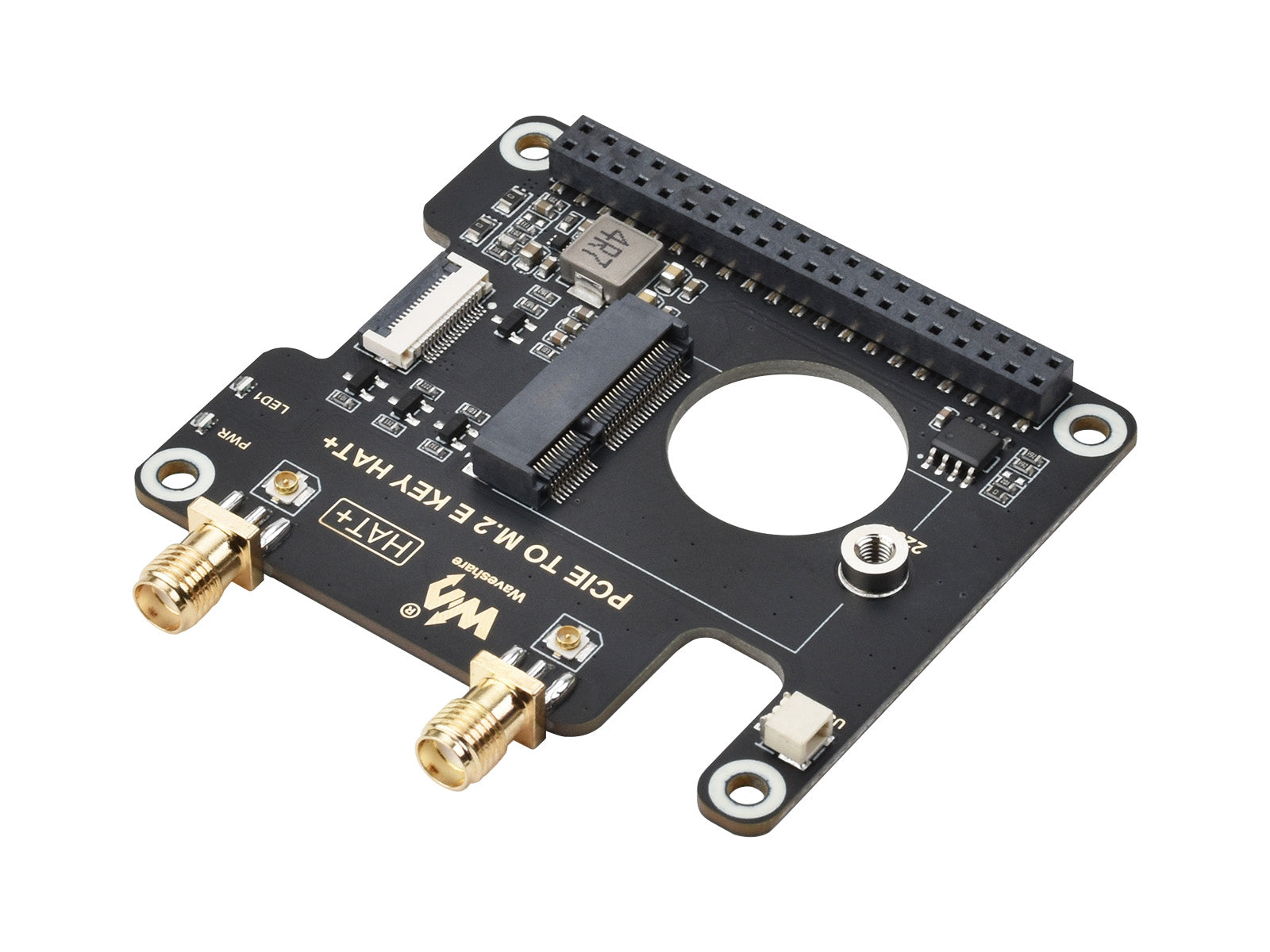

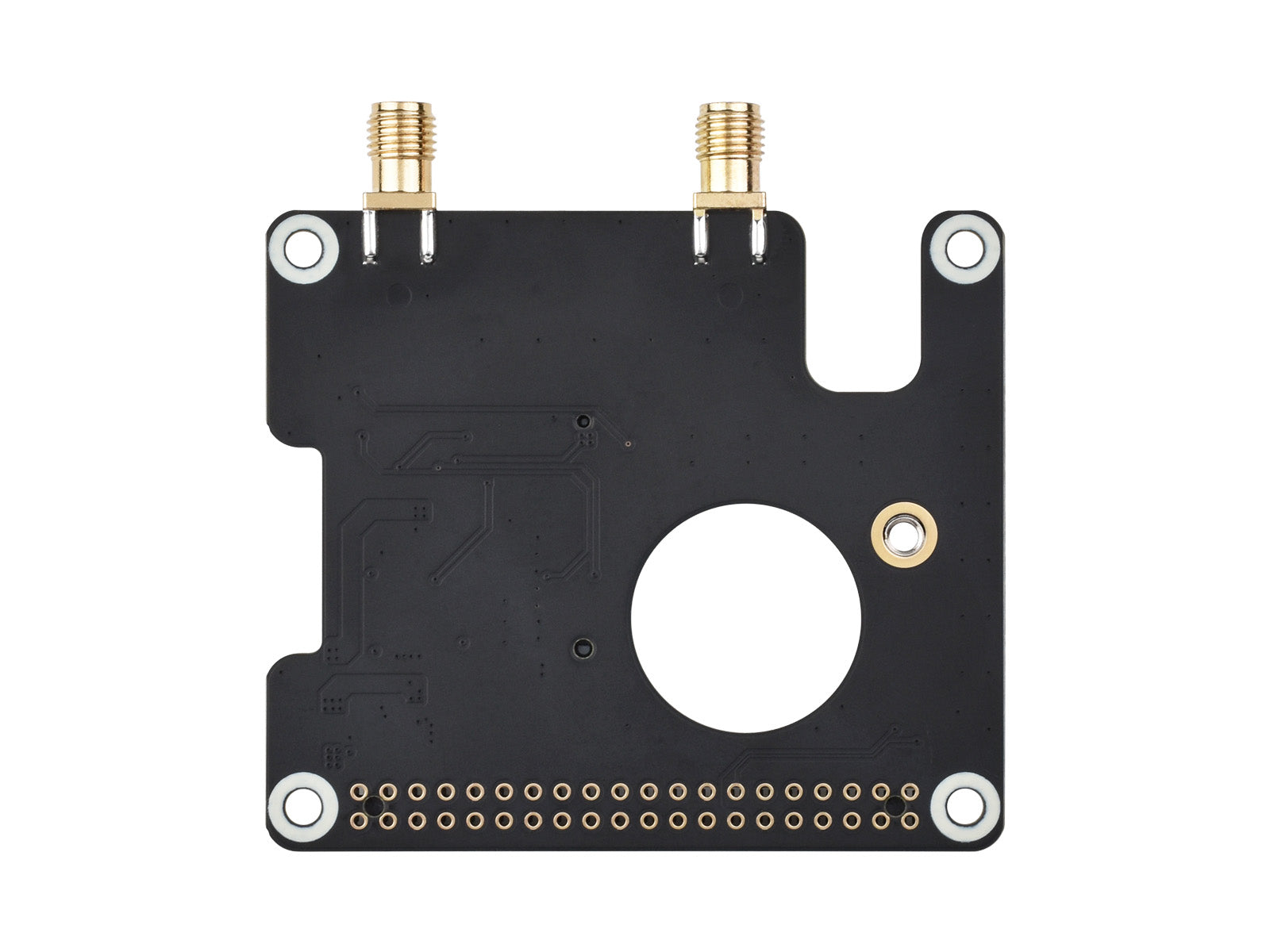

PCIe To M.2 E KEY HAT for Raspberry Pi 5, Compatible With Various NGFF (M.2 E Key) Wireless NIC, Supports USB Bluetooth Connection And HAT+ Standard, Raspberry Pi 5 PCIe HAT

PCIe To M.2 E KEY HAT

Designed for Raspberry Pi 5

Compatible With Various NGFF (M.2 E Key) Wireless NIC

Kit Selection

PCIE TO M.2 E KEY HAT+ Acce A

This kit includes PCIE TO M.2 E KEY HAT+ kit, Wireless-AX210 module and WiFi antenna (2pcs).

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

Compatible with wireless NIC

suitable for A/E Key and E Key

Various wireless NIC support

Supports the following modules, with more compatible modules coming soon

Model	RTL8822CE		AX200		AX210			BE200
Wi-Fi Version	Wi-Fi 5		Wi-Fi 6		Wi-Fi 6E			Wi-Fi 7
Wi-Fi Band	2.4GHz	5GHz	2.4GHz	5GHz	2.4GHz	5GHz	6GHz	2.4GHz	5GHz	6GHz
Wi-Fi Rate	300Mbps	867Mbps	574Mbps	2400Mbps	574Mbps	2400Mbps	2400Mbps	574Mbps	2400Mbps	5800Mbps
Interface	NGFF (M.2 A/E Key)							NGFF (M.2 E Key)
Bluetooth Version	5.0		5.2		5.3			5.4
Technical Support	MU-MIMO
Antenna Connector	IPEX 4 Connector
System Support	Linux, Windows 10 / 11
Dimensions	22.0 × 30.0 × 2.4mm

Onboard SMA female antenna connector

for easy antenna mounting

* for reference only, please refer to the Package Content for detailed part list

Supports USB Bluetooth connection

Supports inputting Bluetooth signal into the Raspberry Pi via USB interface

(* this function is only available after connecting the Wireless NIC module)

how to install

* for reference only, please refer to the Package Content for detailed part list

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/PCIE_TO_M.2_E_KEY_HAT+

PCIe adapter board selection

>

Product Model	Extended Interface	PCIe Version	mounting solution	Power monitoring	features
PCIe TO M.2 Board (D)	M.2_M_KEY	PCIe ×1 Gen2/3	on top		NVME, 2280
PCIe TO 2-CH M.2 HAT+ (B)	M.2_M_KEY × 2	PCIe ×1 Gen2	HAT+	√	2-ch NVME, 2280
PCIe TO 2-CH M.2 HAT+	M.2_M_KEY × 2	PCIe ×1 Gen2	HAT+	√	2-ch NVME, 2242
PCIe TO M.2 HAT+	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+	√	NVME, 2242
PCIe TO M.2 MINI	M.2_M_KEY	PCIe ×1 Gen2/3	on top		NVME, 2242, compact size
PCIe TO M.2 Board (C)	M.2_M_KEY	PCIe ×1 Gen2/3	on side		NVME, 2280, side-mounting
PCIe TO Gigabit ETH Board (C)	Gigabit ETH	PCIe ×1 Gen2	on side		Gigabit ETH port, side-mounting
PCIe TO 2.5G ETH Board (C)	2.5G ETH	PCIe ×1 Gen2	on side		2.5G ETH port, side-mounting
PCIe TO M.2 USB HAT+	M.2_M_KEY, USB3.2 × 4	PCIe ×1 Gen2	on top	√	NVME, 2280, expanded USB3.2 ports
PCIe TO 4G/5G M.2 USB3.2 HAT+	M.2_B_KEY, USB3.2 × 3	PCIe ×1 Gen2	HAT+	√	supports 4G/5G modules, expanded USB3.2 ports
PCIe TO USB 3.2 Gen1 Board (C)	USB3.2 × 4	PCIe ×1 Gen2	on side		expanded USB3.2 ports, side-mounting
PCIe TO USB 3.2 Gen1 HAT+	USB3.2 × 4	PCIe ×1 Gen2	HAT+	√	expanded USB3.2 ports
PCIe TO Gigabit ETH USB3.2 HAT+	USB3.2 × 3, Gigabit ETH	PCIe ×1 Gen2	HAT+	√	expanded USB3.2 ports and Gigabit ETH port
PCIe TO MiniPCIe GbE USB3.2 HAT+	USB3.2 × 2, MiniPCIe, Gigabit ETH	PCIe ×1 Gen2	HAT+	√	expanded MiniPCIe 4G module slot, USB3.2 ports and Gigabit ETH port
RM520N-GL 5G HAT+	M.2_B_KEY	PCIe ×1 Gen2	HAT+	√	access to 5G networking via PCIe interface, multiple 5G modules compatible
PoE M.2 HAT+	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, NVME, 2242
PoE M.2 HAT+ (B)	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, NVME, 2280
PoE M.2 HAT+ (C)	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, NVME, 2242
PoE M.2 E KEY HAT+	M.2_E_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, Wi-Fi, Bluetooth, 2230
PCIe TO ETH M.2 HAT+	M.2_M_KEY, Gigabit ETH	PCIe ×1 Gen2	HAT+	√	with Gigabit ETH port, NVME, 2280
PCIE TO M.2 E KEY HAT+	M.2_E_KEY	PCIe ×1 Gen2/3	HAT+		Wi-Fi, Bluetooth, M.2_E_KEY, 2230
PCIe TO MiniPCIe HAT+	MiniPCIe	PCIe ×1 Gen2	HAT+		Wi-Fi, Bluetooth, MiniPCIe
PCIe TO PCIe x1 Board (C)	PCIe ×1	PCIe ×1 Gen2/3	on side		Compatible with PCIe x1, x4, x8, and x16 devices
PCIe TO 2-CH PCIe HAT	PCIe 16PIN x2	PCIe ×1 Gen2	HAT		Expands 2-Ch PCIe FFC connectors
PCIe TO 4-CH PCIe HAT	PCIe 16PIN x4	PCIe ×1 Gen2	HAT		Expands 4-Ch PCIe FFC connectors
PCIE TO 4-CH NVME Board (B)	M.2_M_KEY × 4	PCIe ×1 Gen2	on bottom	√	4-ch NVME, 2280, onboard DC power jack
PCIe TO 2-CH SATA HAT+	SATA × 2	PCIe ×1 Gen2	on top		2-ch SATA interfaces
PCIE TO 4-CH 2.5G ETH Board (B)	2.5G ETH × 4	PCIe ×1 Gen2	on bottom	√	4-ch ETH ports
PCIE TO 4-CH Gigabit ETH Board (B)	Gigabit ETH × 4	PCIe ×1 Gen2	on bottom	√	4-ch ETH ports

Lieferumfang

PCIE TO M.2 E KEY HAT+

1. PCIE TO M.2 E KEY HAT+ x1
2. 2*20 Pin header x1
3. IPEX 1 to IPEX 4 adapter cable ~6cm (2pcs) x1
4. Type-A to SH1.0 2Pin cable x1
5. 16P-Cable-40mm x1
6. Screws pack x1

PCIE TO M.2 E KEY HAT+ Acce A

1. PCIE TO M.2 E KEY HAT+ kit:
   • PCIE TO M.2 E KEY HAT+ x1
   • Screws pack x1
   • IPEX 1 to IPEX 4 adapter cable ~6cm (2pcs) x1
   • 2*20 Pin header x1
   • Type-A to SH1.0 2Pin cable x1
   • 16P-Cable-40mm x1
2. Wireless-AX210 x1
3. WiFi antenna ~11cm x2
