SKU:WSAL33024

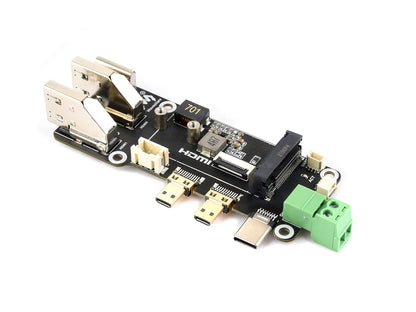

PCIe To M.2 Multifunctional Adapter, Compatible with Raspberry Pi 5, Two Power Supply Methods, Supports Dual 4K Outputs

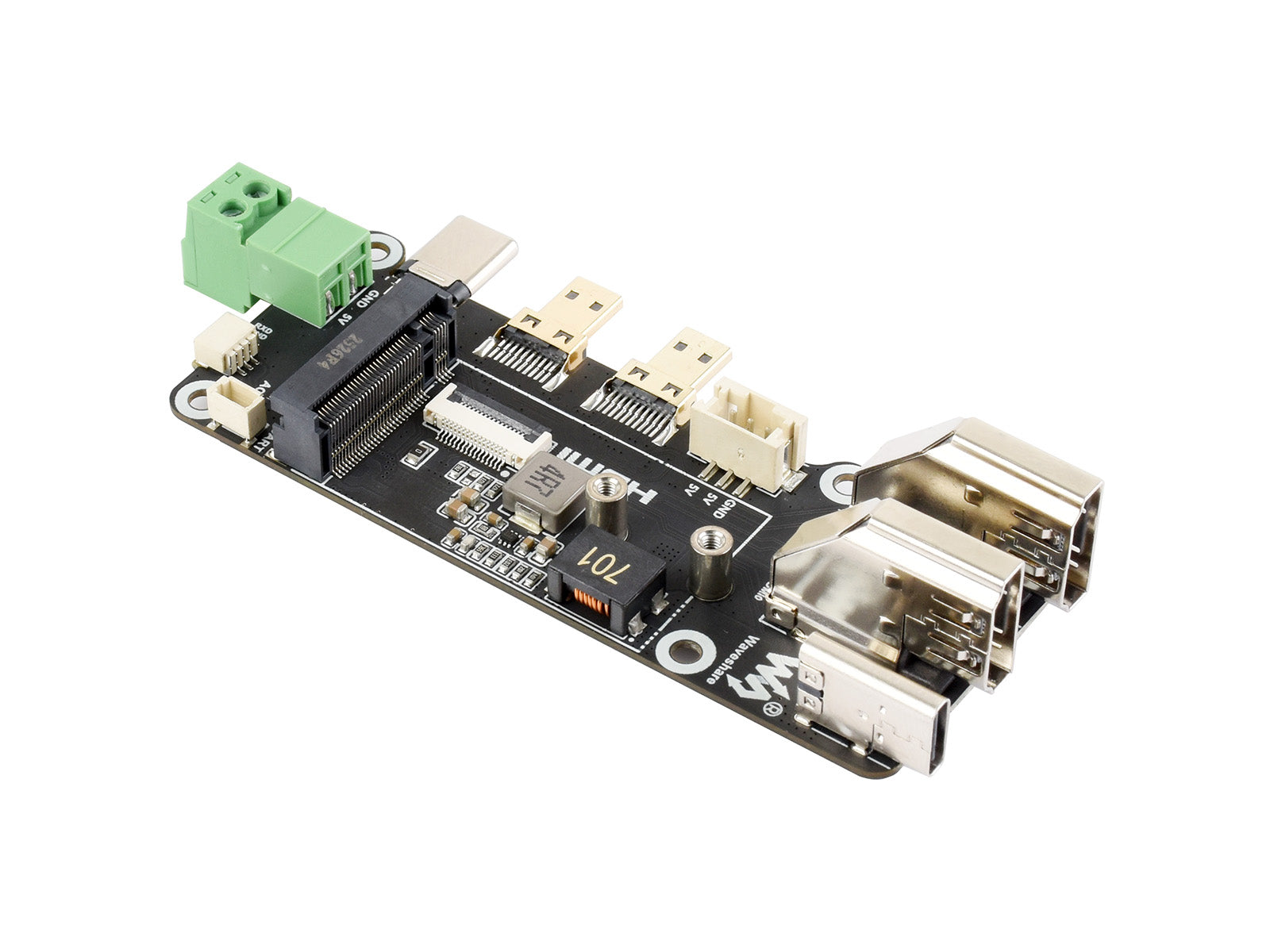

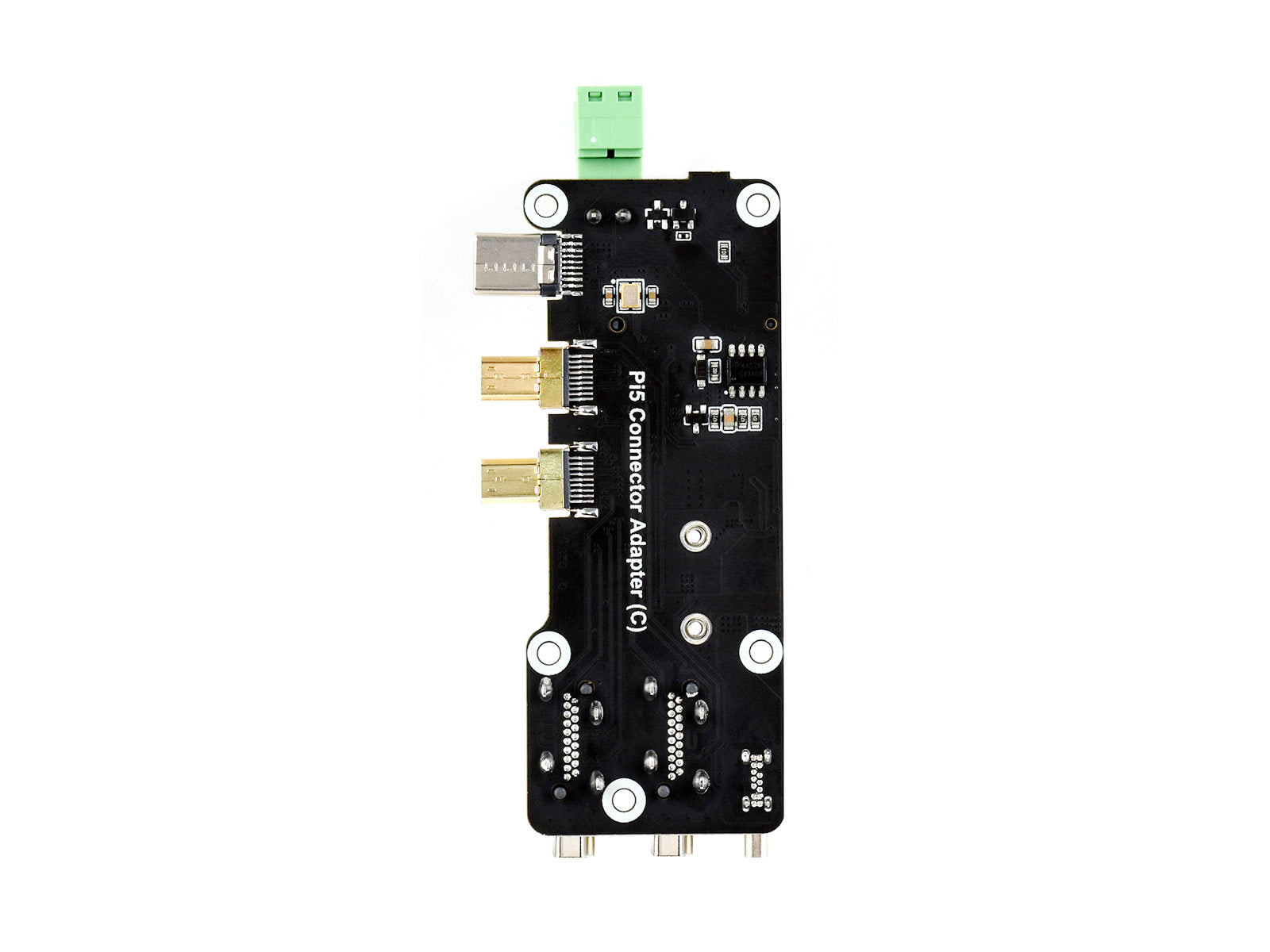

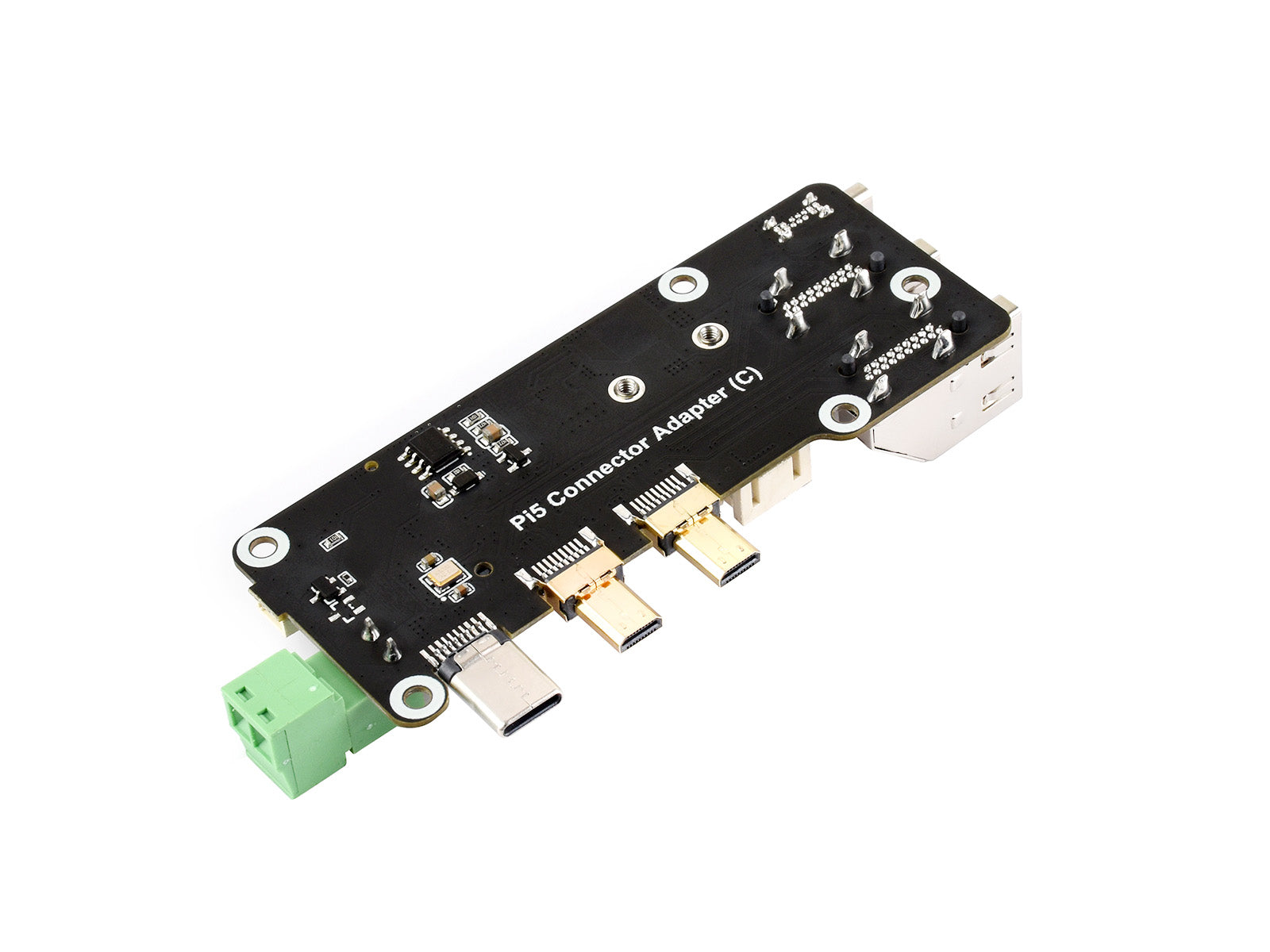

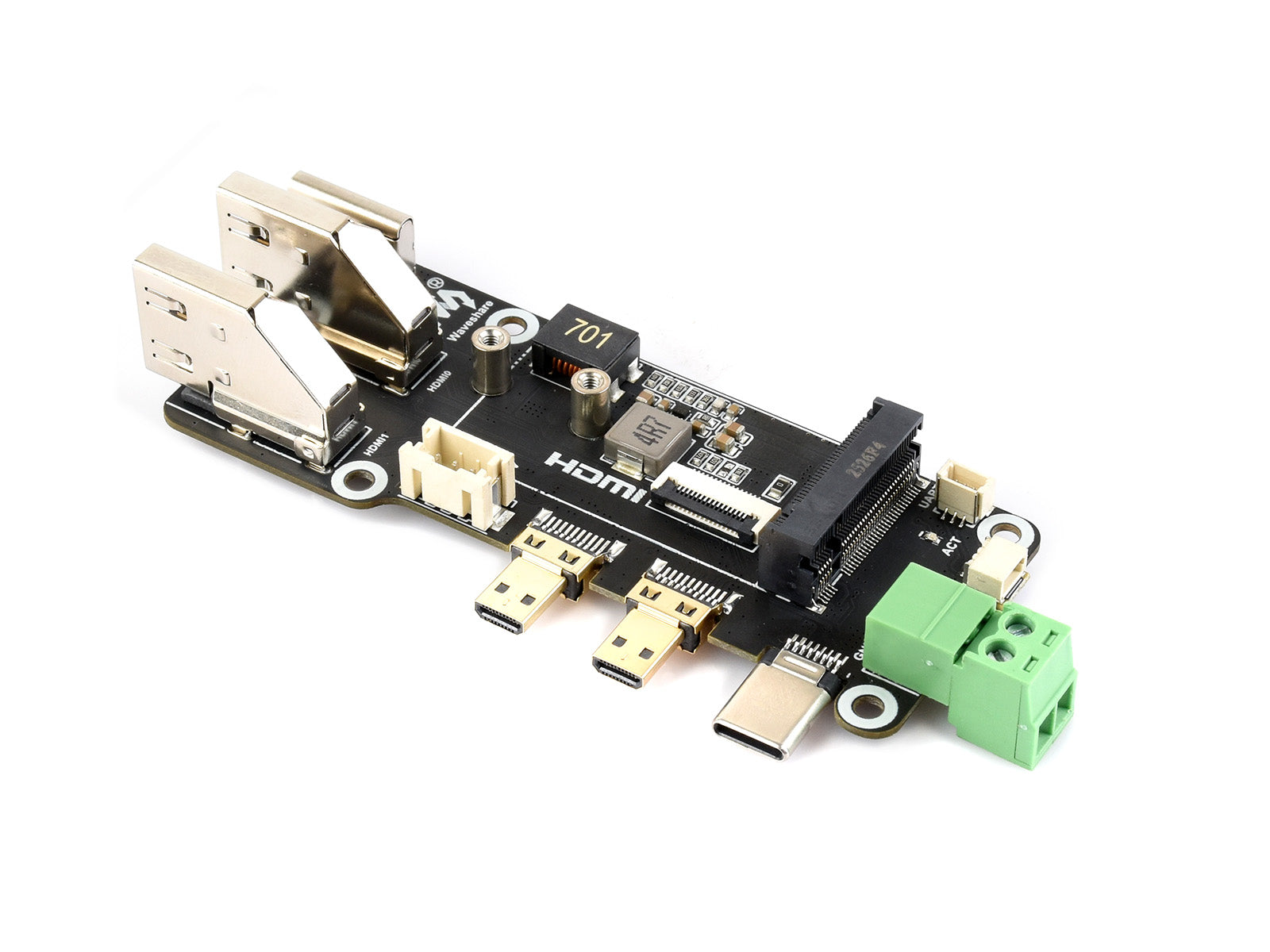

PCIe To M.2 Multifunctional Adapter

Supports Raspberry Pi 5, Dual 4K Outputs

Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, Improves Working Efficiency

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

NVMe Solid State Drives Support

Compatible With 2230 / 2242 Size M.2 Solid State DrivesSupports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive

Easy to connect the HDMI screens

Converts Micro HDMI Interfaces to HDMI Female Ports for easier connection

Two Power Supply Methods

Supports Power Supply via Type-C port or Screw Terminal

Dual 4K Outputs

Assembly Example

* for reference only, please refer to the Package Content for detailed part list

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/Pi5_Connector_Adapter_(C)

Lieferumfang

1. Pi5 Connector Adapter (C) x1
2. FFC 16PIN cable ~100mm x2
3. 3PIN cable 100mm x1
4. 3PIN squid cable 100mm x1
5. SSD mounting screw x1

1

2

3

4

5
