SKU:WSAL26847

PCIe To USB 3.2 Gen1 HAT for Raspberry Pi 5, PCIe to USB HUB, 4x High Speed USB Ports, driver-free, plug and play, HAT + Standard

PCIe TO USB 3.2 Gen1 HAT

Designed for Raspberry Pi 5, driver-free, plug and play

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

More USB Capability For Raspberry Pi 5

Extends The PCIe Interface To 4x High Speed USB 3.2 Gen1 Ports for connecting more peripherals

Onboard Power Monitoring Chip And EEPROM

Real-time monitoring of power status, supports USB port power control via software

Reserved Airflow Vent for Cooling fan

Better Cooling Effect For Pi5, more stable operation

* for reference only, the Raspberry Pi 5andcooling fan are NOT included

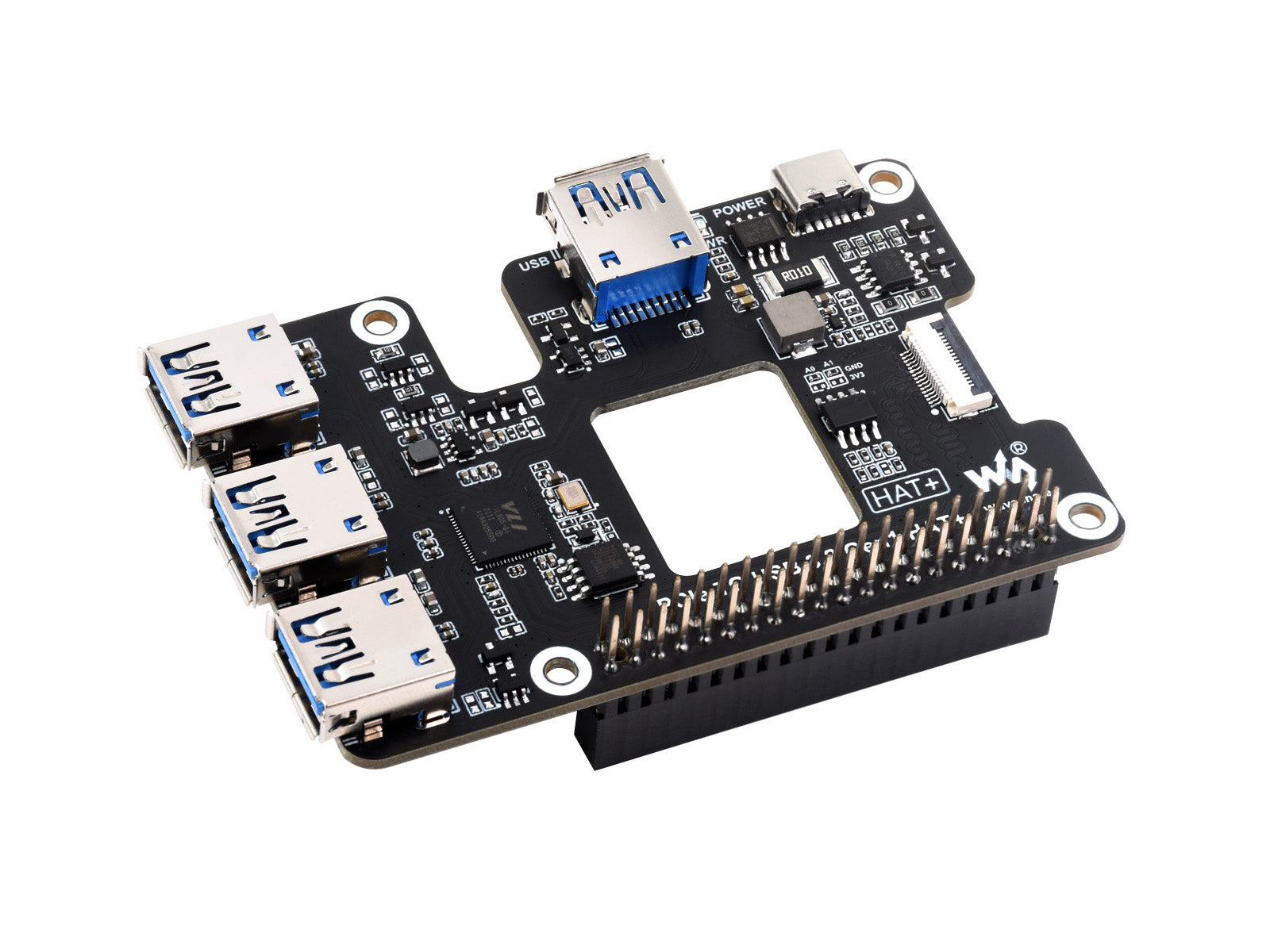

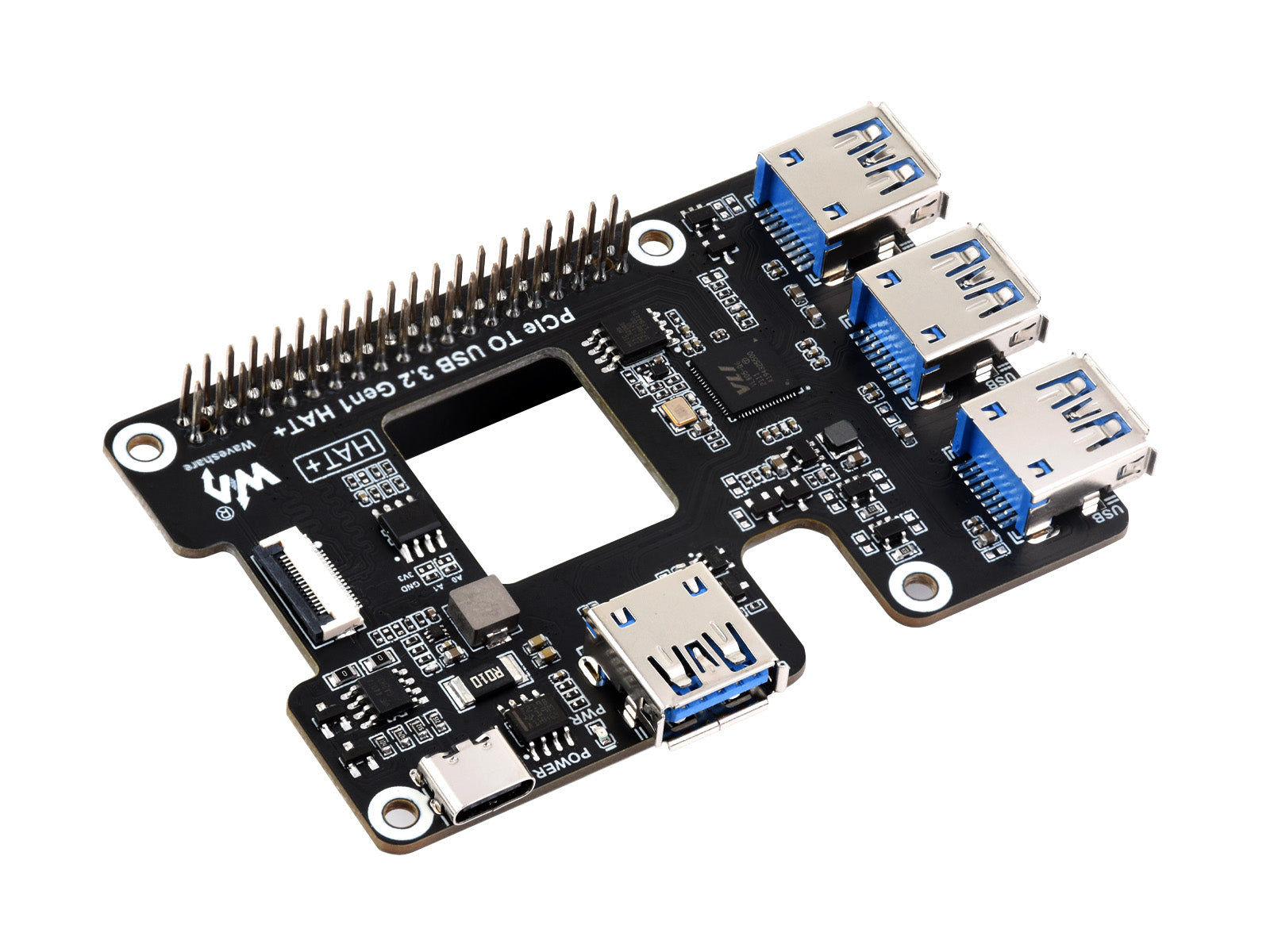

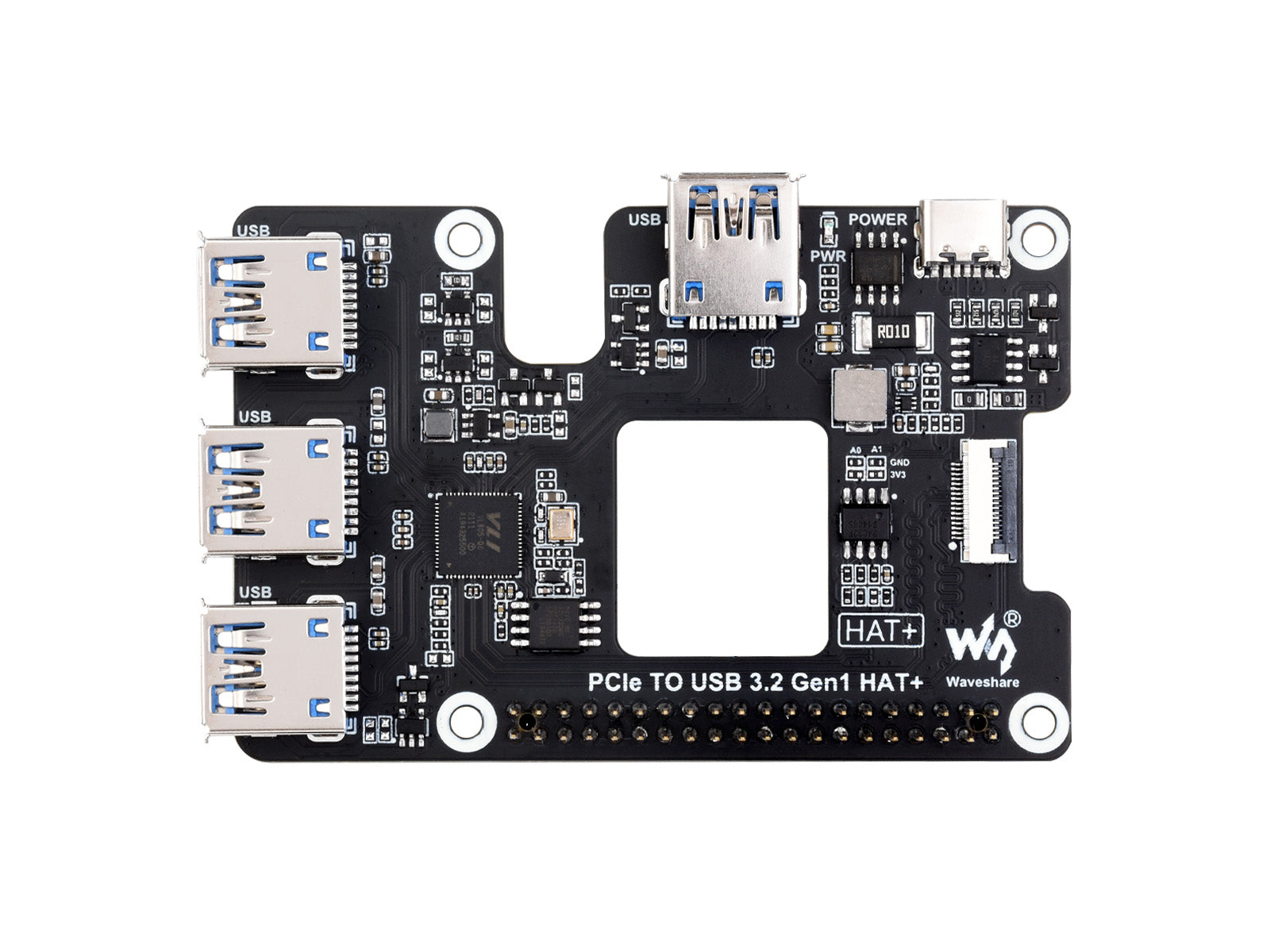

What's On Board

1. Raspberry Pi GPIO header for connecting Raspberry Pi 5
2. USB 3.2 Gen1 expanded portsUSB1~USB4
3. INA219Power monitoring chip
4. Power portfor external Type-C 5V DC power supply

5. PWR LEDPower indicator
6. MX25L3206 FLASH chip
7. VL805 PCIe to USB 3.2 Gen1 HUB
8. PCIe interface for connecting to the PCIe interface of Raspberry Pi 5

How to install

* for reference only, please refer to the Package Content for detailed part list

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/PCIe_TO_USB_3.2_Gen1_HAT+

Lieferumfang

1. PCIe TO USB 3.2 Gen1 HAT+ x1
2. Standoff pack x1
3. 16P-Cable-40mm x1
