SKU:WSAL25102

PD20W Fast Charger, USB Type-C Wall Charger Block, US Plug, intelligently adjusts the charging rate Without Damaging the Device

Specifications

Total power	20W Max (18W compatible)
Input	AC 100-240V 50/60Hz 0.5A MAX
Output	DC 5V3A / 9V2.2A / 12V1.67A
Output Interface	USB Type-C
Weight	~ 50g
Dimensions	43.0×39.0×26.8mm

20W Fast Charging

Compatible with multiple charging protocols such as PD/SCP/FCP/QCHigh-Speed Charging, safe and fast

* for reference only, the Type-C data cable is NOT included

Intelligent fast charging without damaging the device

Intelligently matches the required current for devices, provides stable output; intelligently adjusts the charging rate for safer use

Lightweight, and Convenient to use

compact in design, it is convenient to carry on trips for a better use experience

Multi-Device Compatible

Suitable for most mobile phones, tablets, and other devices, needs to be used with a Type-C interface fast charging cable

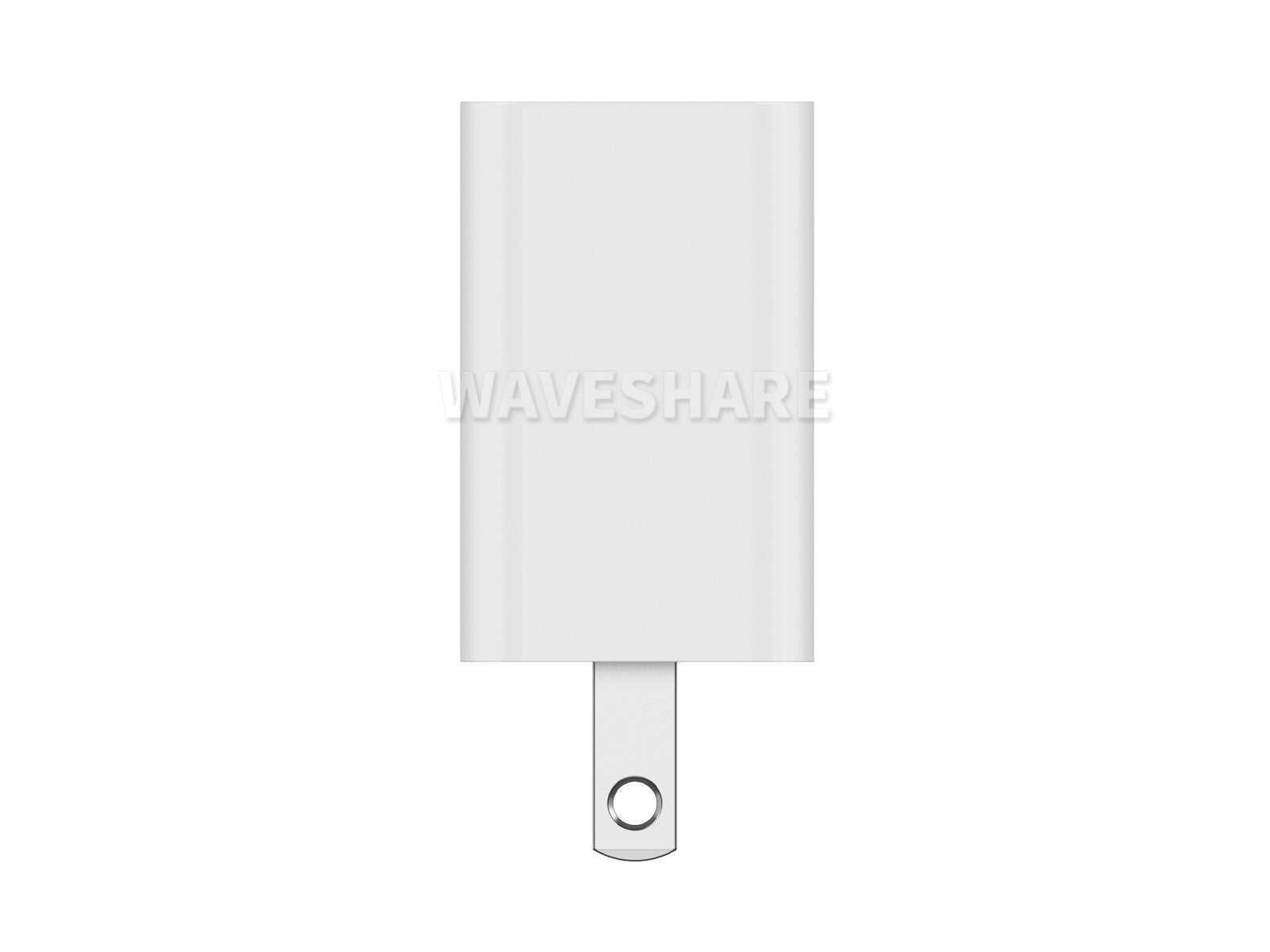

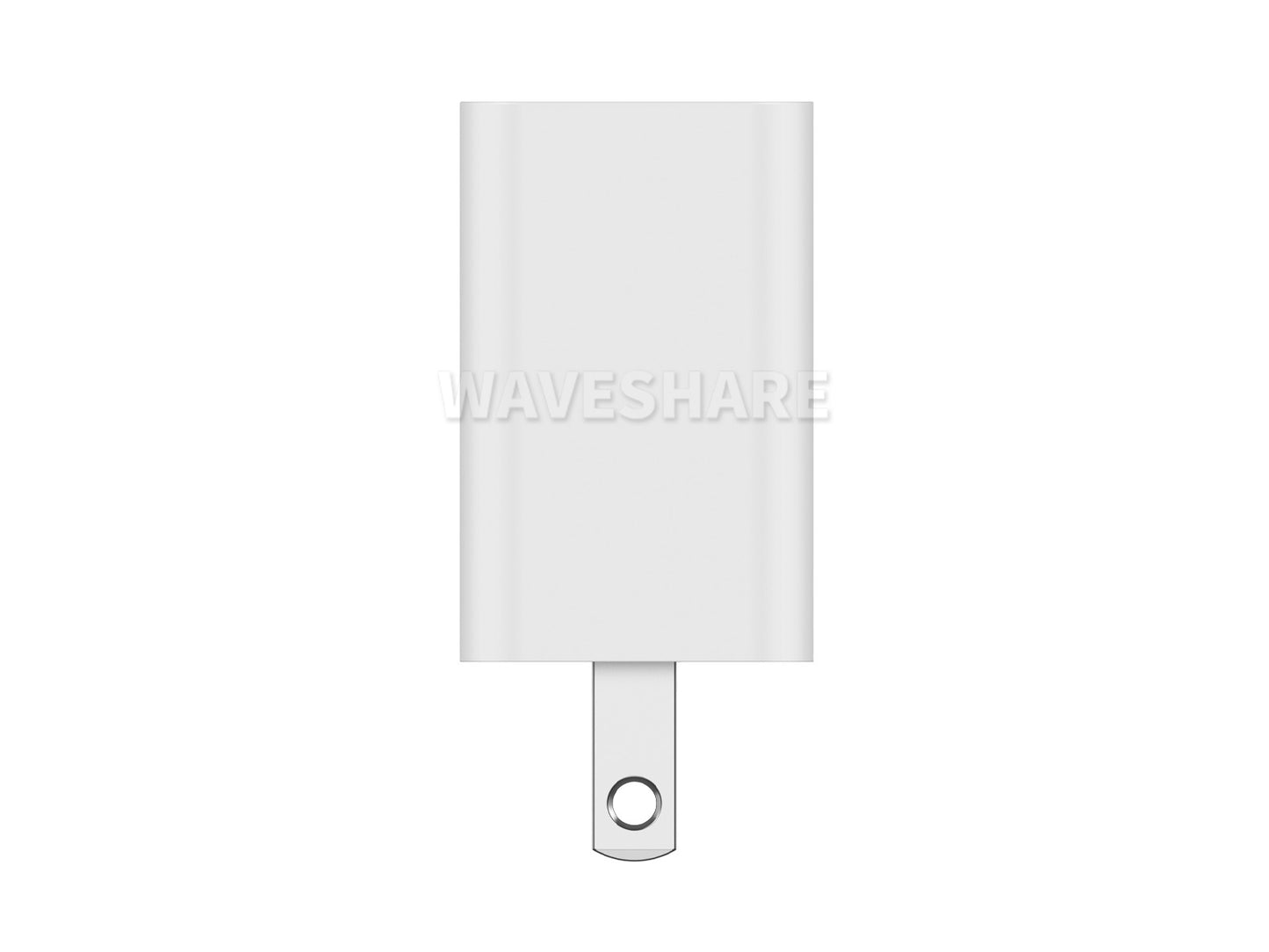

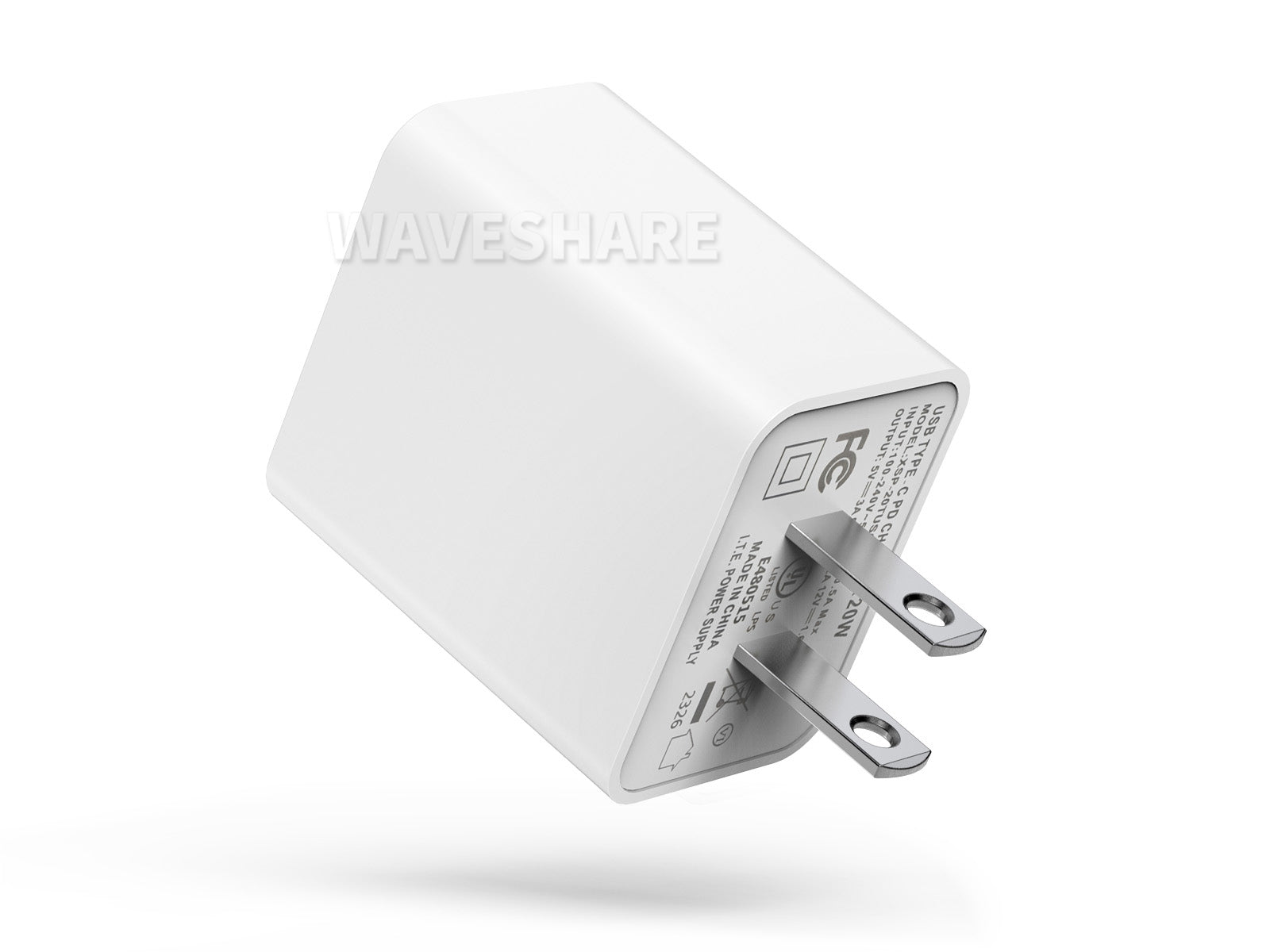

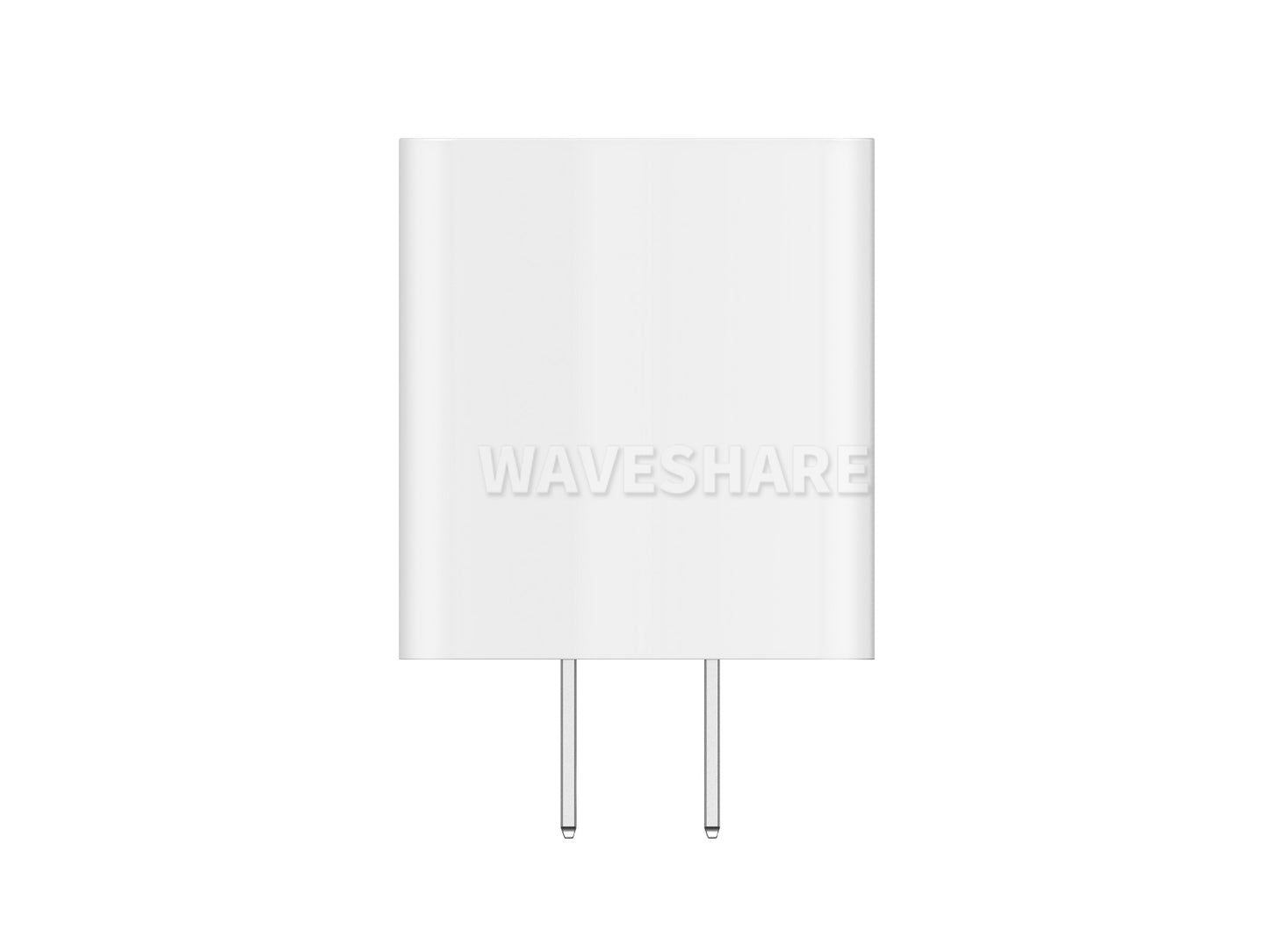

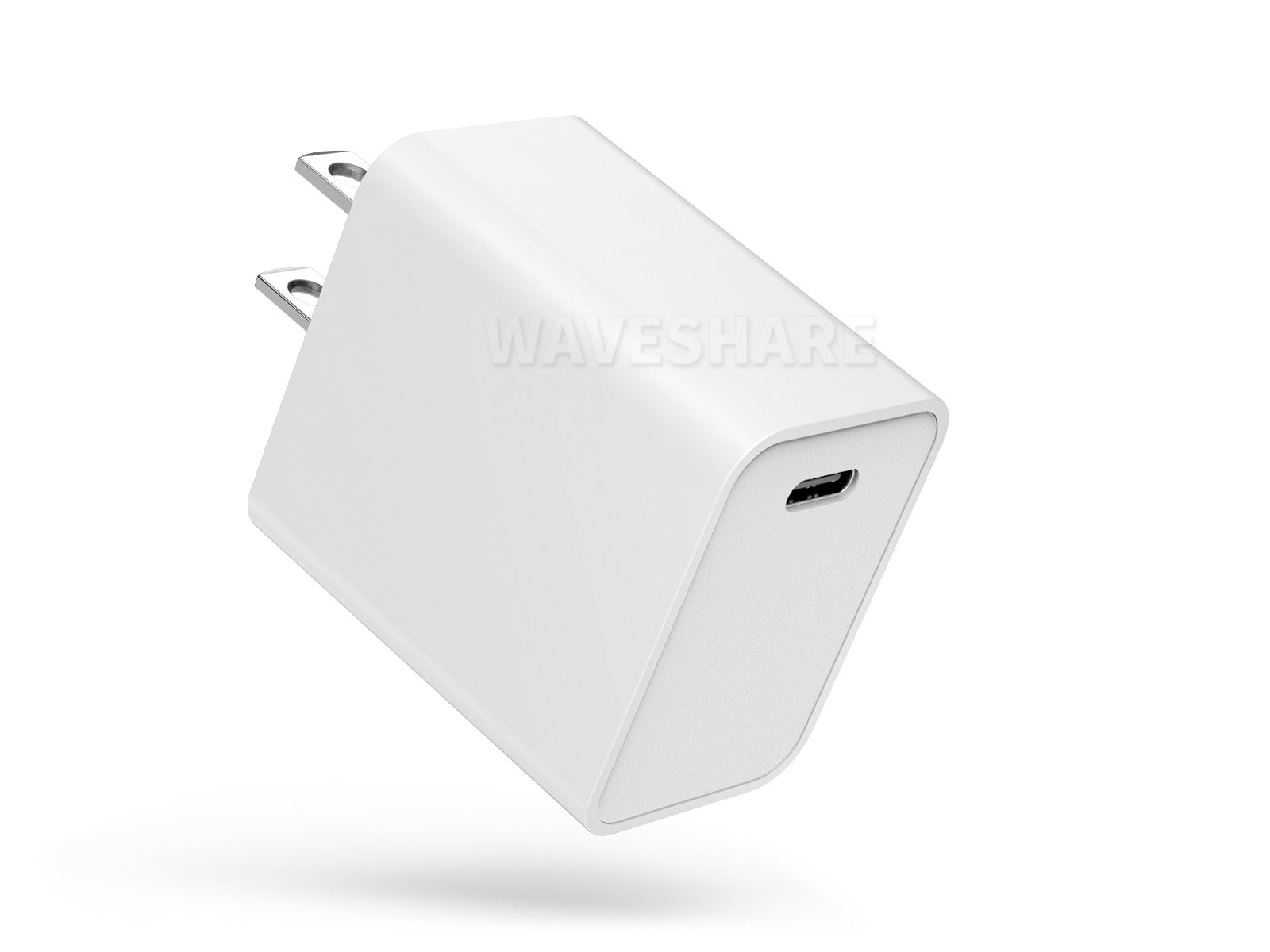

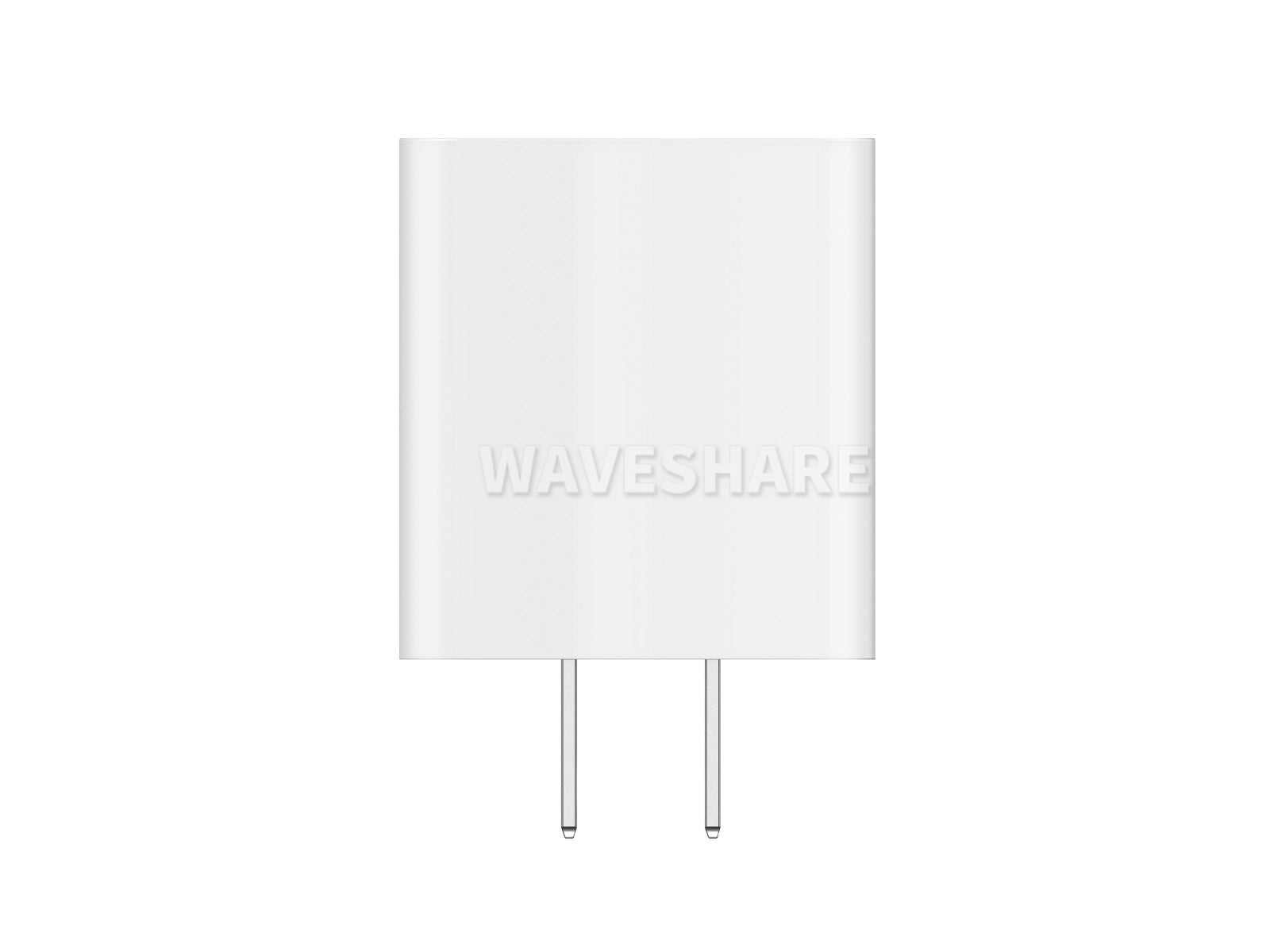

Product Show

Outline dimensions

Lieferumfang

PD-020A-US x1
