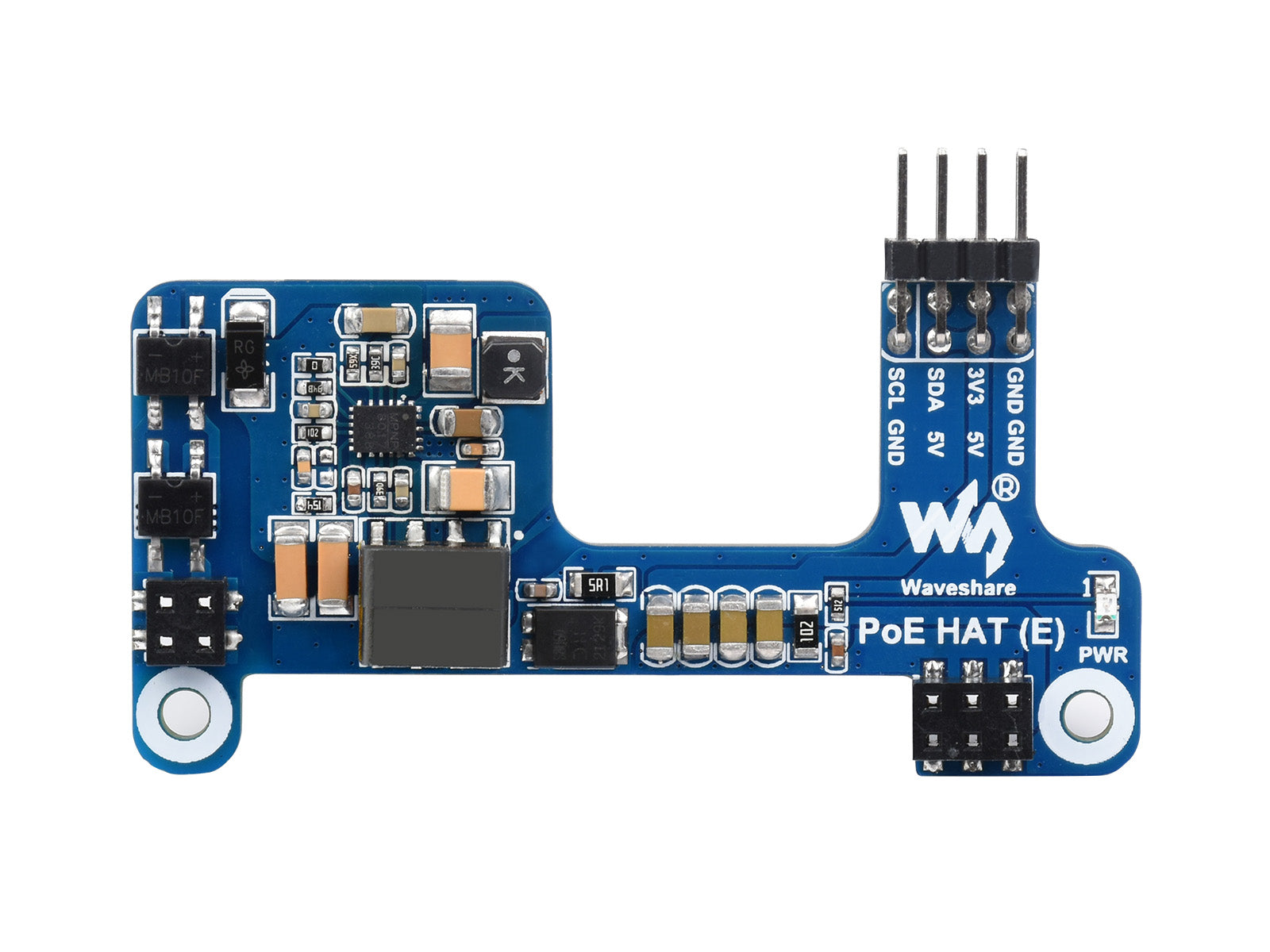

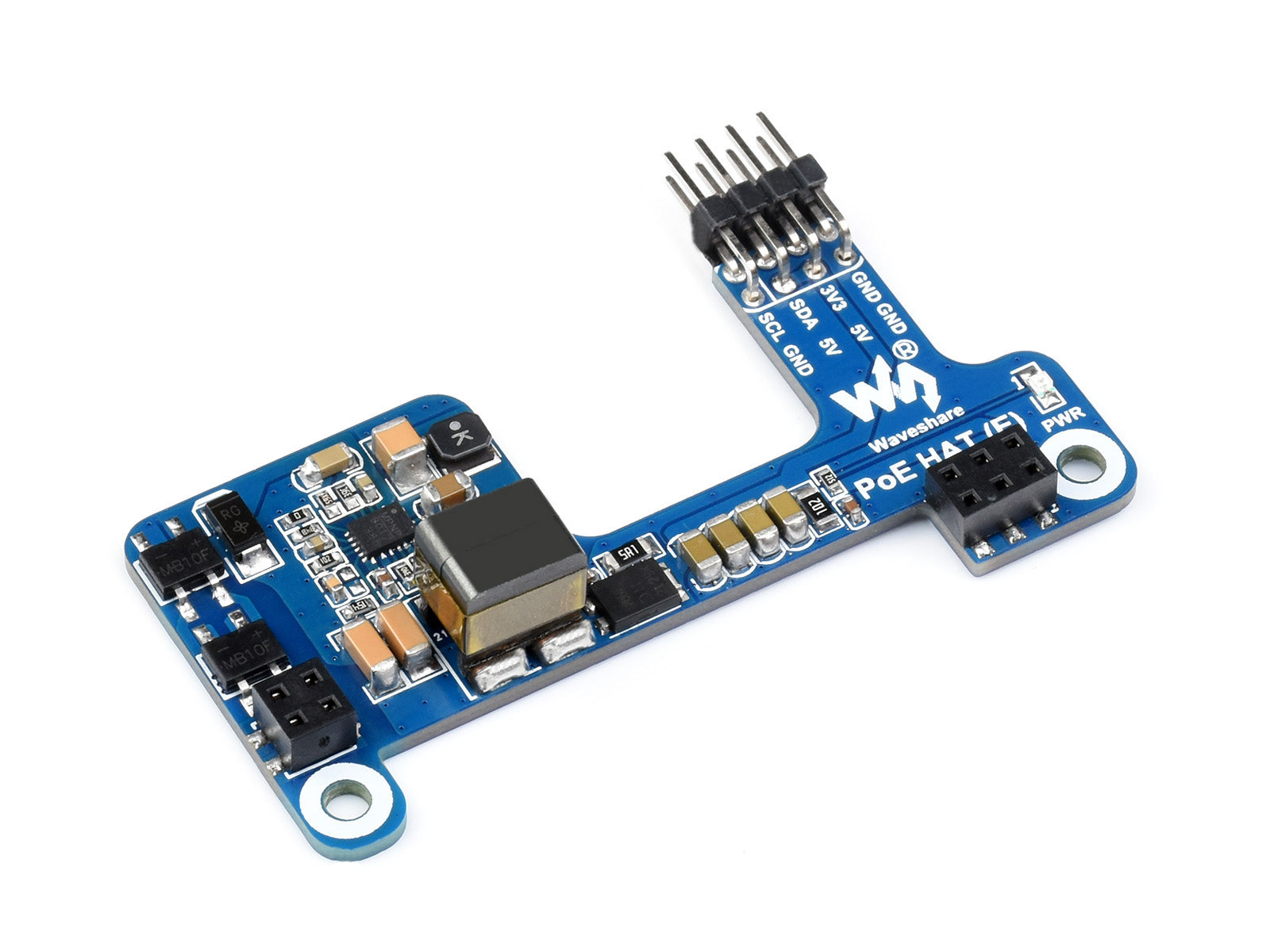

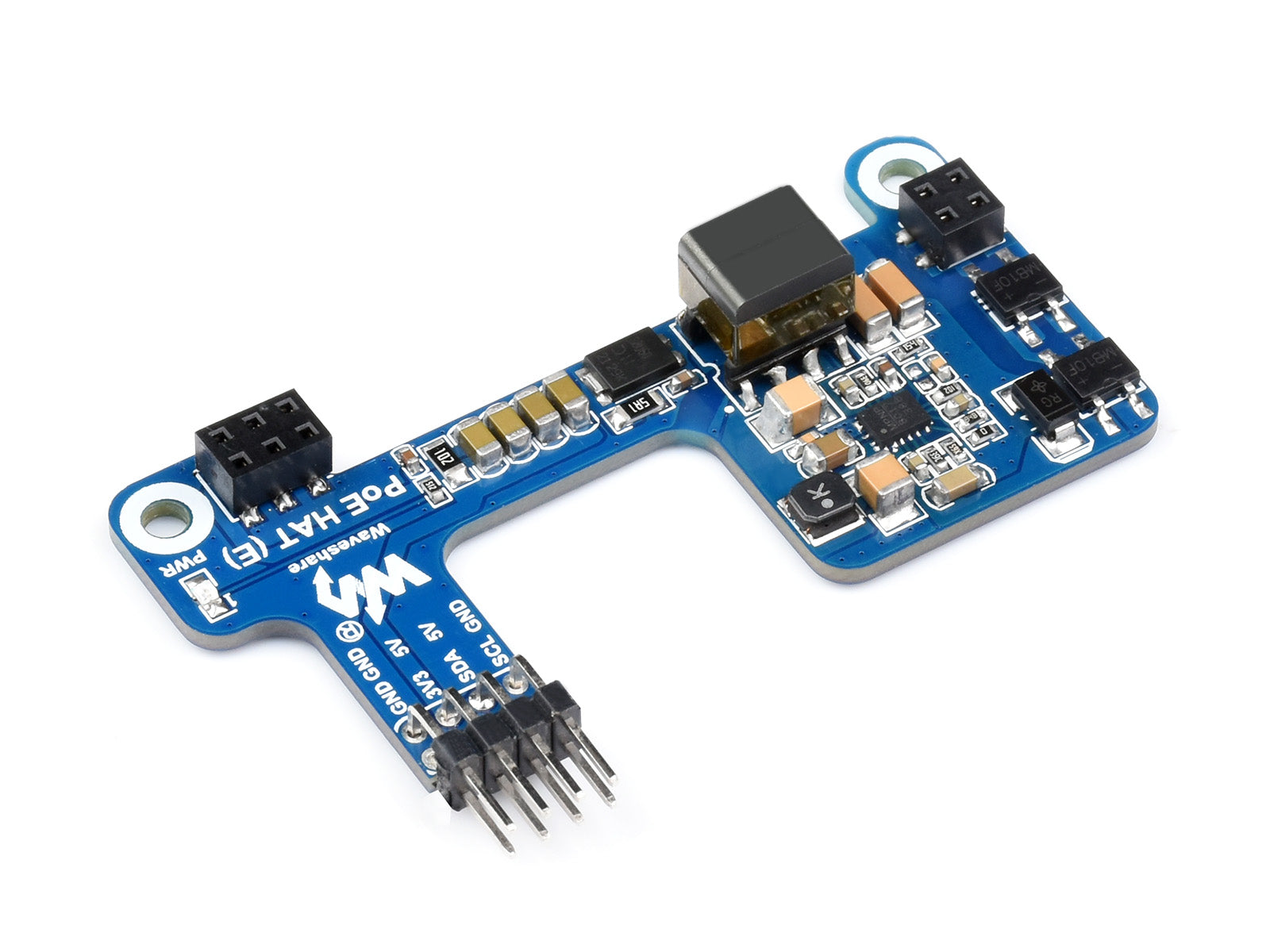

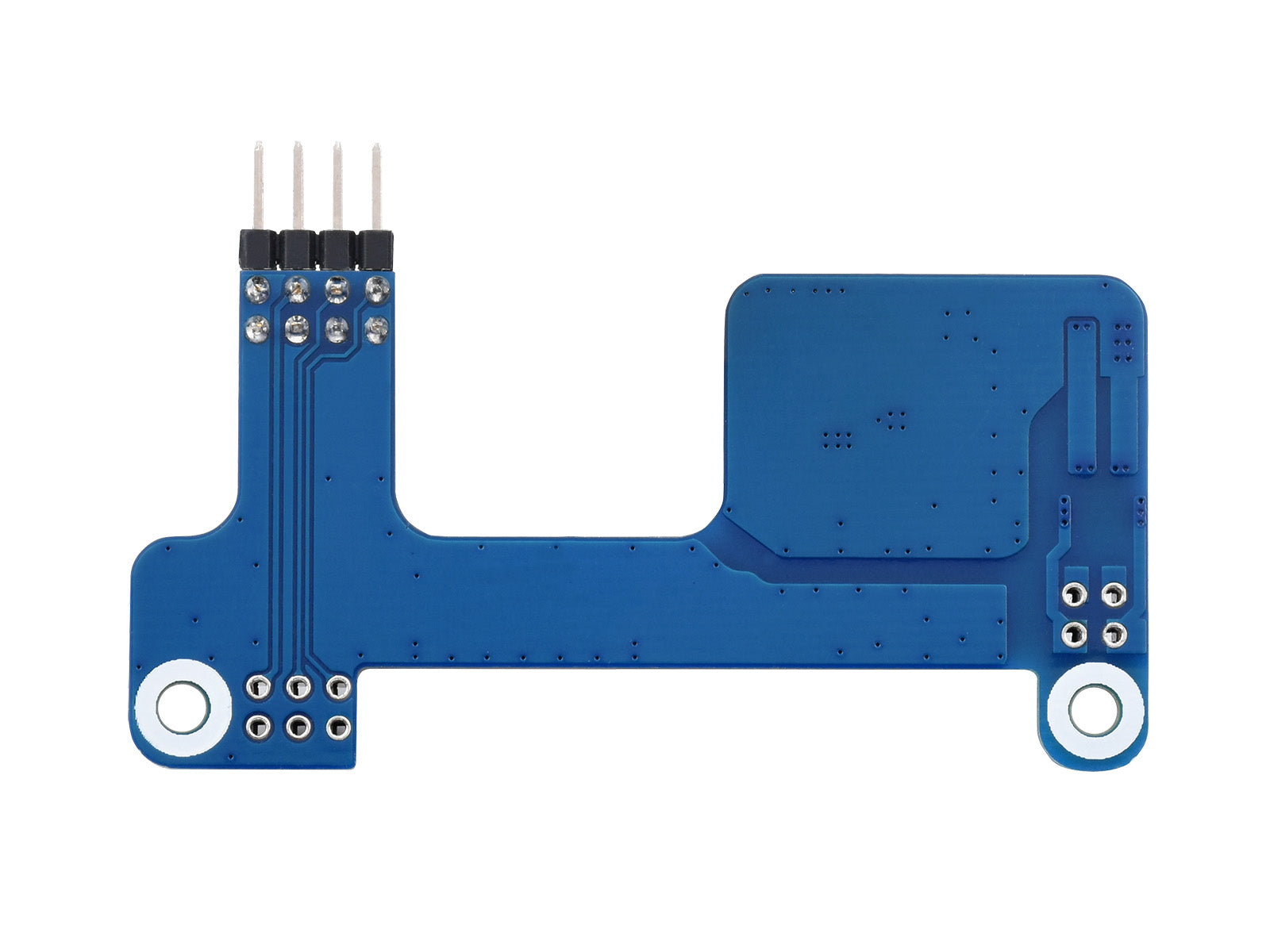

Power over Ethernet HAT (E) for Raspberry Pi 3B+/4B, 802.3af-compliant

Mini POE HAT for Raspberry Pi

Power Over Ethernet HAT for Raspberry Pi 3B+/4B, IEEE 802.3af-compliant

Mini Body, More Space-Saving

Features at a glance

ThePoE HAT (E) is a mini 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

• Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case
• PoE (Power Over Ethernet) capability，IEEE 802.3af-compliant
• Fully isolated switched-mode power supply (SMPS)
• Smaller and more flexible with a more compact component layout

Specifications

PoE power input	37V ~ 57V DC in
Power output	5V 2.5A DC out
Network standard	IEEE 802.3af PoE
Dimensions	65.00 × 32.00mm

For use with Raspberry Pi 3B+/4B

Compatible with official case

Support connecting cooling fan

Power Over Ethernet

providing both network connection and power supply for your Raspberry Pi in one cable

Raspberry Pi, official case, heatsink, cooling fan and PoE equipment are NOT included.

Onboard resources

Outline dimensions

Resources & Services

WIKI:www.waveshare.com/wiki/PoE_HAT_(E)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection guide

Product	Supported Pi	PoE standard	PoE power output	Feature
Raspberry Pi PoE+ HAT	Pi 3B+/4B	802.3af/at	5V 4A	Raspberry Pi official (second generation)
PoE HAT (B)		802.3af	5V 2.5A	with OLED display, cost effective
PoE HAT (C)		802.3af/at	5V 4A / 12V 2A	high power, cost effective
PoE HAT (D)		802.3af	5V 2.5A	tailored for Raspberry Pi official case, cost effective
PoE HAT (E)		802.3af	5V 2.5A	mini body, tailored for Raspberry Pi official case, cost effective
PoE HAT (F)	Pi 5 / CM 5	802.3af/at	5V 4.5A / 12V 2A	with metal heatsink, high power, cost effective
PoE HAT (G)		802.3af/at	5V 5A (MAX)	compact and easy to assemble, high power, tailored for Raspberry Pi official case, cost effective
PoE HAT (H)		802.3af/at	5V 5A (MAX)	compact and easy to assemble, high power, tailored for Raspberry Pi official case, cost effective, isolated SMPS

Lieferumfang

PoE HAT (E) x1
