SKU:WSAL26399

Power Over Ethernet HAT (F) For Raspberry Pi 5 / CM 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at network standard

POE HAT for Raspberry Pi 5

Power Over Ethernet HAT For Raspberry Pi 5 / CM 5, Supports 802.3af/at Network Standard

12V and 5V power outputs to support more peripherals

Features at a glance

ThePoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory (PoE+) for the Raspberry Pi 5 / CM 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

• Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5 / CM 5
• PoE / PoE+ capability，IEEE 802.3af/at-compliant
• Fully isolated switched-mode power supply (SMPS)
• Onboard high speed active cooling fan, with metal heatsink, better heat dissipation

Specifications

PoE power input	38V ~ 57V DC in
Power output	GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX)
Dimensions	56.5 × 70.0mm
Network standard	IEEE 802.3af/at PoE / PoE+

Suitable for Raspberry Pi 5 / CM 5

Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

PoE / PoE+ support

providing both network connection and power supply for your Raspberry Pi in one cable

* for reference only, the Raspberry Pi 5 and switch are NOT included.

Onboard 5V & 12V header outputs

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)be able to power extra devices while providing stable power to Raspberry Pi

Active Cooling fan

Accelerate Cooling Effect, More Stable Performance

Onboard High Power Buck Chip

Incorporates original voltage buck chipproviding up to 5A under sufficient heat dissipation condition

How to Install

Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT

* for reference only, please refer to the Package Content for detailed part list

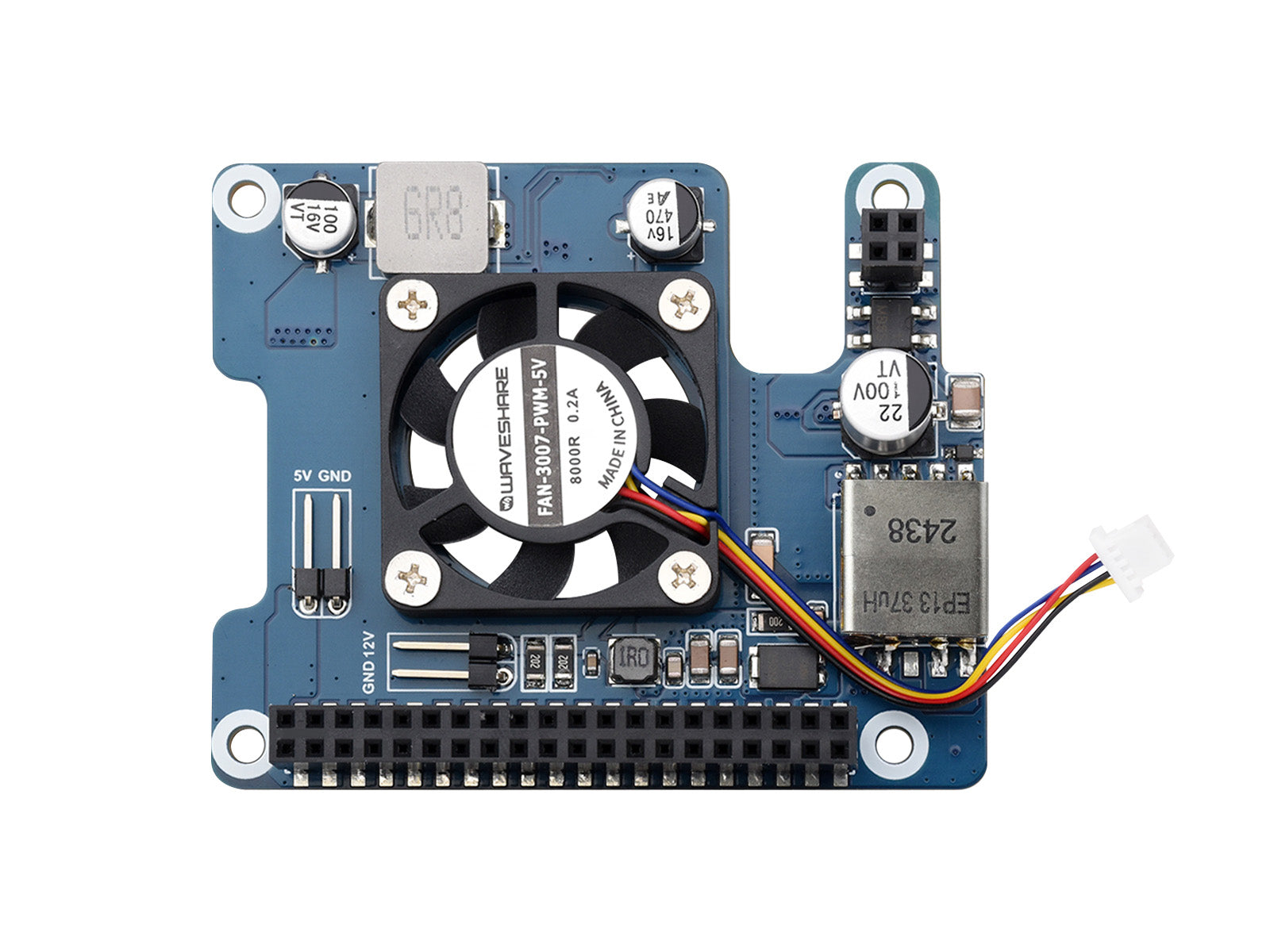

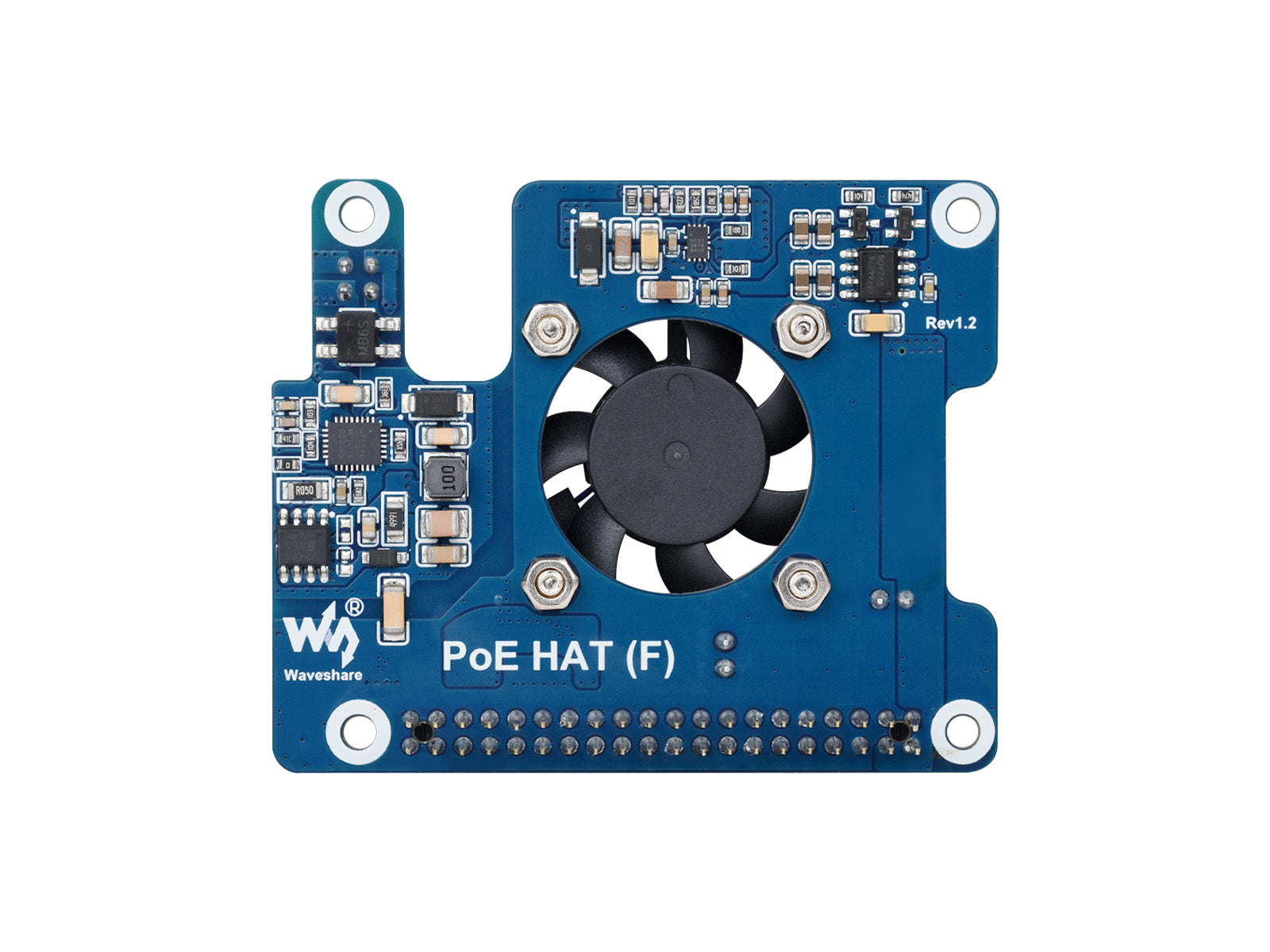

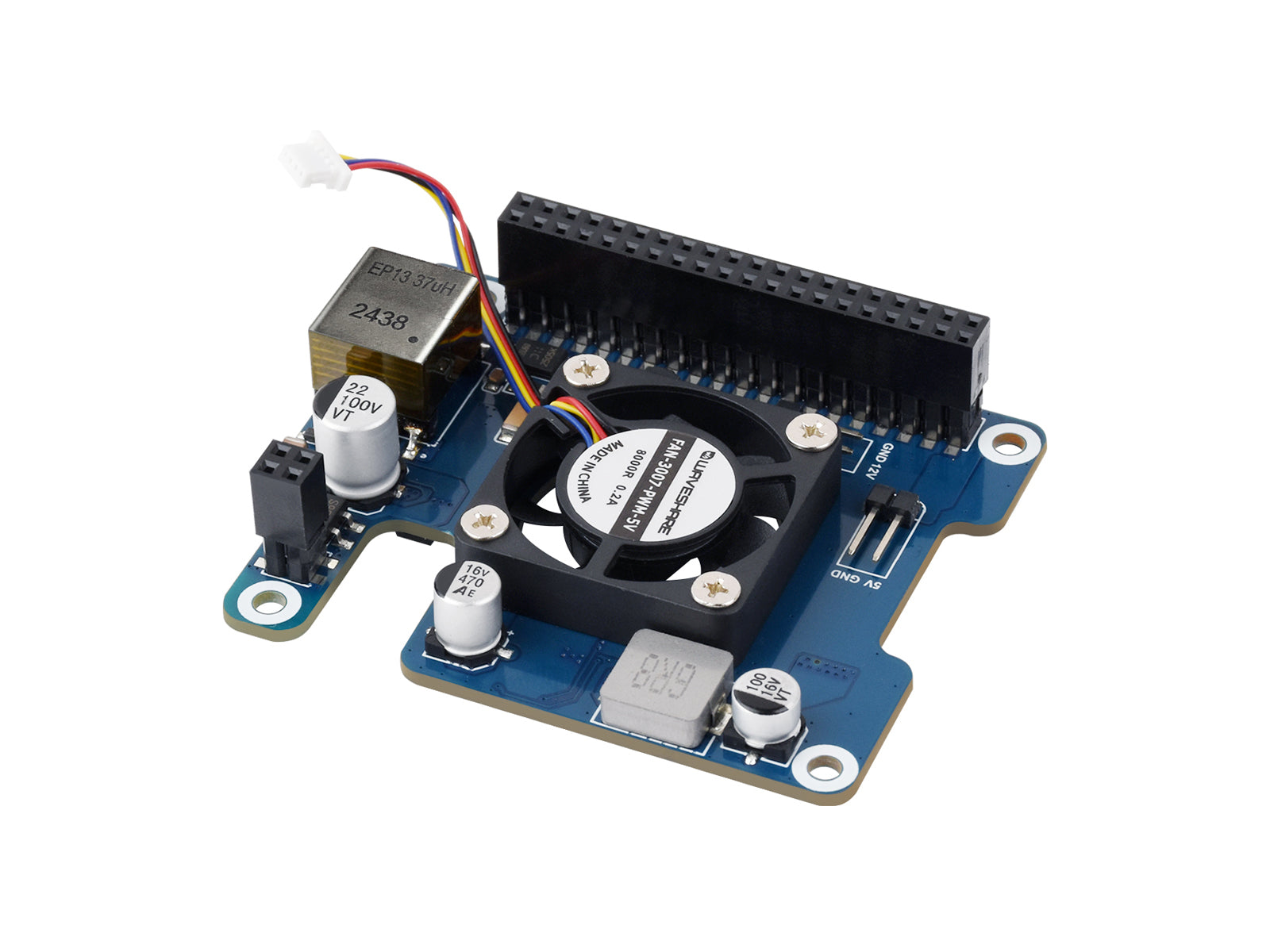

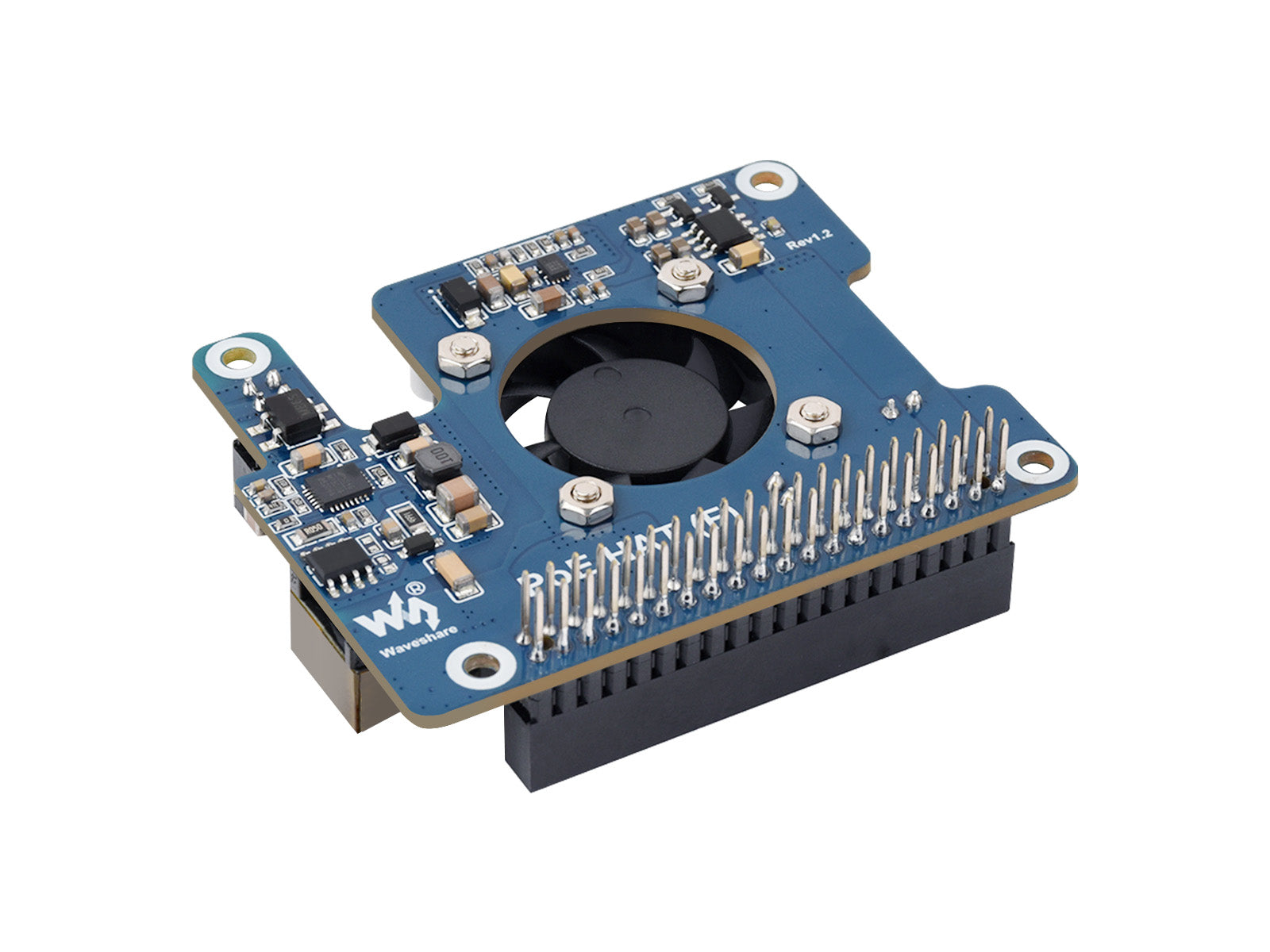

Product show

Outline dimensions

Resources & Services

---

WIKI:www.waveshare.com/wiki/PoE_HAT_(F)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection guide

Product	Supported Pi	PoE standard	PoE power output	Feature
Raspberry Pi PoE+ HAT	Pi 3B+/4B	802.3af/at	5V 4A	Raspberry Pi official (second generation)
PoE HAT (B)		802.3af	5V 2.5A	with OLED display, cost effective
PoE HAT (C)		802.3af/at	5V 4A / 12V 2A	high power, cost effective
PoE HAT (D)		802.3af	5V 2.5A	tailored for Raspberry Pi official case, cost effective
PoE HAT (E)		802.3af	5V 2.5A	mini body, tailored for Raspberry Pi official case, cost effective
PoE HAT (F)	Pi 5 / CM 5	802.3af/at	5V 4.5A / 12V 2A	with metal heatsink, high power, cost effective
PoE HAT (G)		802.3af/at	5V 5A (MAX)	compact and easy to assemble, high power, tailored for Raspberry Pi official case, cost effective
PoE HAT (H)		802.3af/at	5V 5A (MAX)	compact and easy to assemble, high power, tailored for Raspberry Pi official case, cost effective, isolated SMPS

Lieferumfang

1. PoE HAT (F) x1
2. Metal heatsink x1
3. Thermal tape (3PCS) x1
4. Screws pack x1
