R800C GSM/GPRS HAT For Raspberry Pi
R800C GSM/GPRS HAT for Raspberry Pi
Support 2G Communication, Phone Call & SMS
Features at a glance
TheR800C GSM/GPRS HAT is a handy, low power Raspberry Pi HAT which features multi-communication functionalities: GSM, GPRS, and phone call, applicable to countries or regions with 2G network coverage, up to 85.6kbps GPRS speed. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, and so on.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano
- Supports SMS, phone call, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc.
- UART interface, for connecting controller boards like Arduino/STM32
- Onboard voltage translator, 3.3V by default, switch to 5V via jumper
- 2x LED indicators, easy to monitor the working status
- SIM card slot, supports 1.8V/3V SIM card
- Baudrate: 2400bps ~ 115200bps (115200bps by default)
- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: GSM 11.14 Release 99
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
| GSM / GPRS / Audio | |
|---|---|
| Frequency band | GSM: 850/900/1800/1900 MHz Quad-band auto search Compliant to GSM phase 2/2+ |
| Emitting power | Class 4 (2W @ 900 MHz) Class 1 (1W @ 1800 MHz) |
| GPRS connectivity | GPRS multi-slot class 12/10 (default) GPRS multi-slot class 1~12 (configurable) |
| GPRS data feature | UL/DL speed: ≤85.6kbps Supports Packet Broadcast Control Channel (PBCCH) Coding schemes: CS-1, CS-2, CS-3, CS-4 Supports PAP (Password Authentication Protocol) for PPP connection Supports Unstructured Supplementary Service Data (USSD) |
| SMS | Supports: MT, MO, CB, Text, PDU SMS storage: SIM card |
| Audio | Voice encode/decode mode: Half Rate, Full Rate, Enhanced Full Rate, Adaptive Multi Rate Support echo cancellation Support noise reduction |
| Others | |
| Power supply | 5V |
| Logic level | 5V / 3.3V (default) |
| Operating temperature | -40°C ~ 85°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 30.2 x 65mm |
Standard Raspberry Pi 40PIN GPIO header
Compatible with Raspberry Pi series boards, Jetson Nano
Connecting with Raspberry Pi Zero
Connecting with Raspberry Pi 4B
Connecting with Jetson Nano
Connecting with Jetson Nano LITE
* For reference only, the above controller boards are not included.
Phone Call & SMS Support
Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

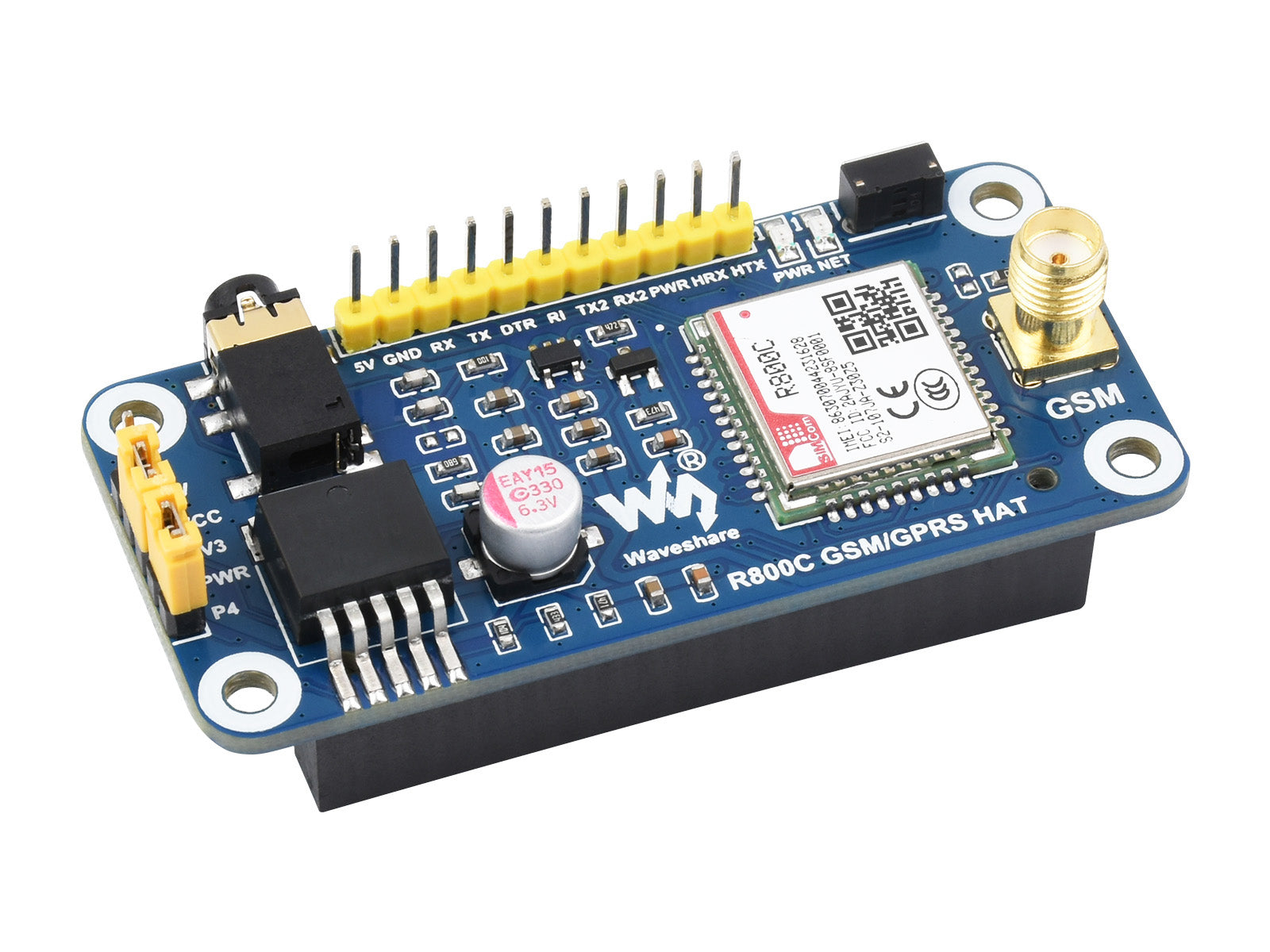

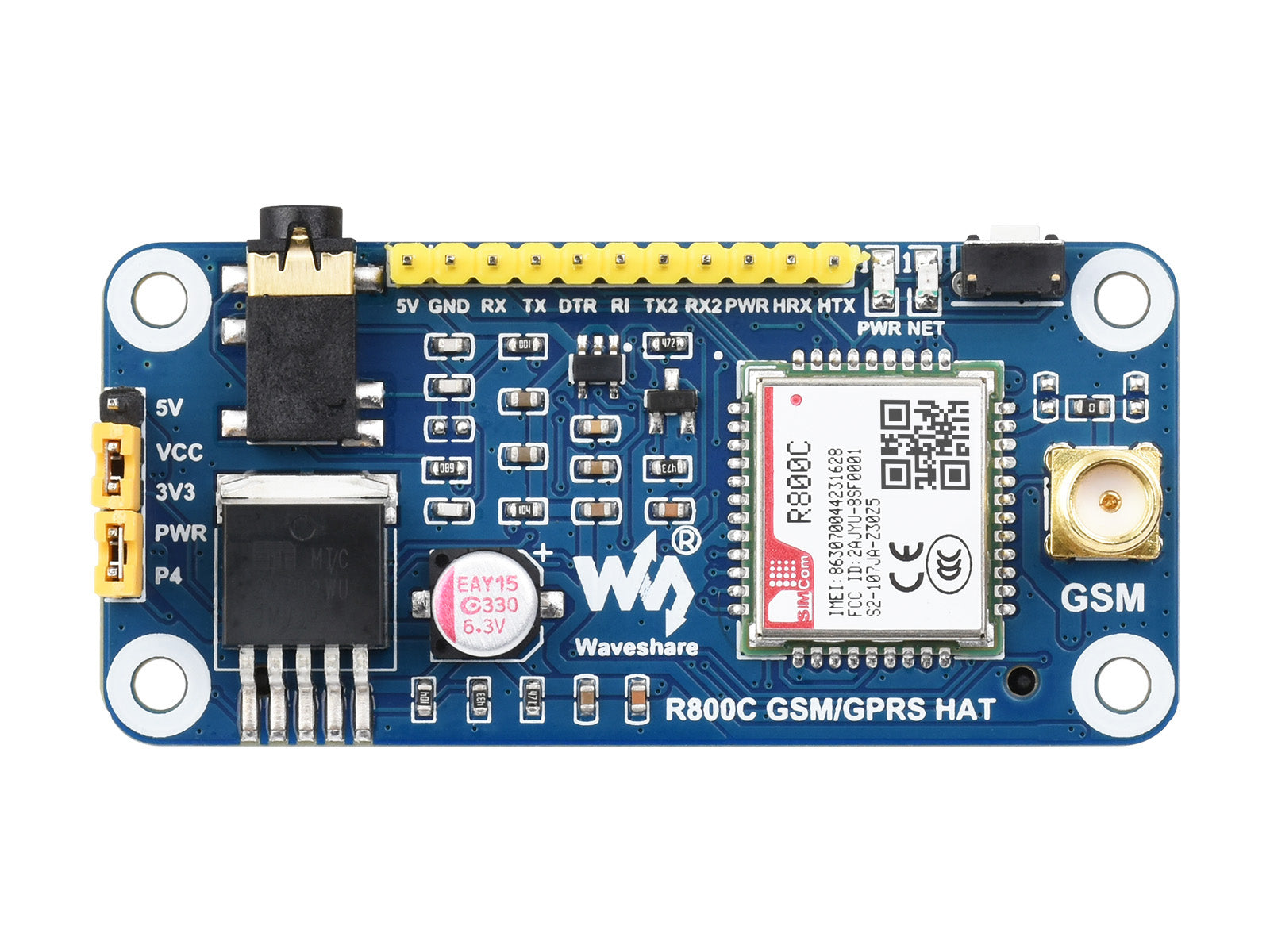

What's on board
- R800C module
- RT9193-33 power chip
- MIC29302 power chip
- TXS0108EPWR voltage translator translates 3.3V/5V into 1.8V

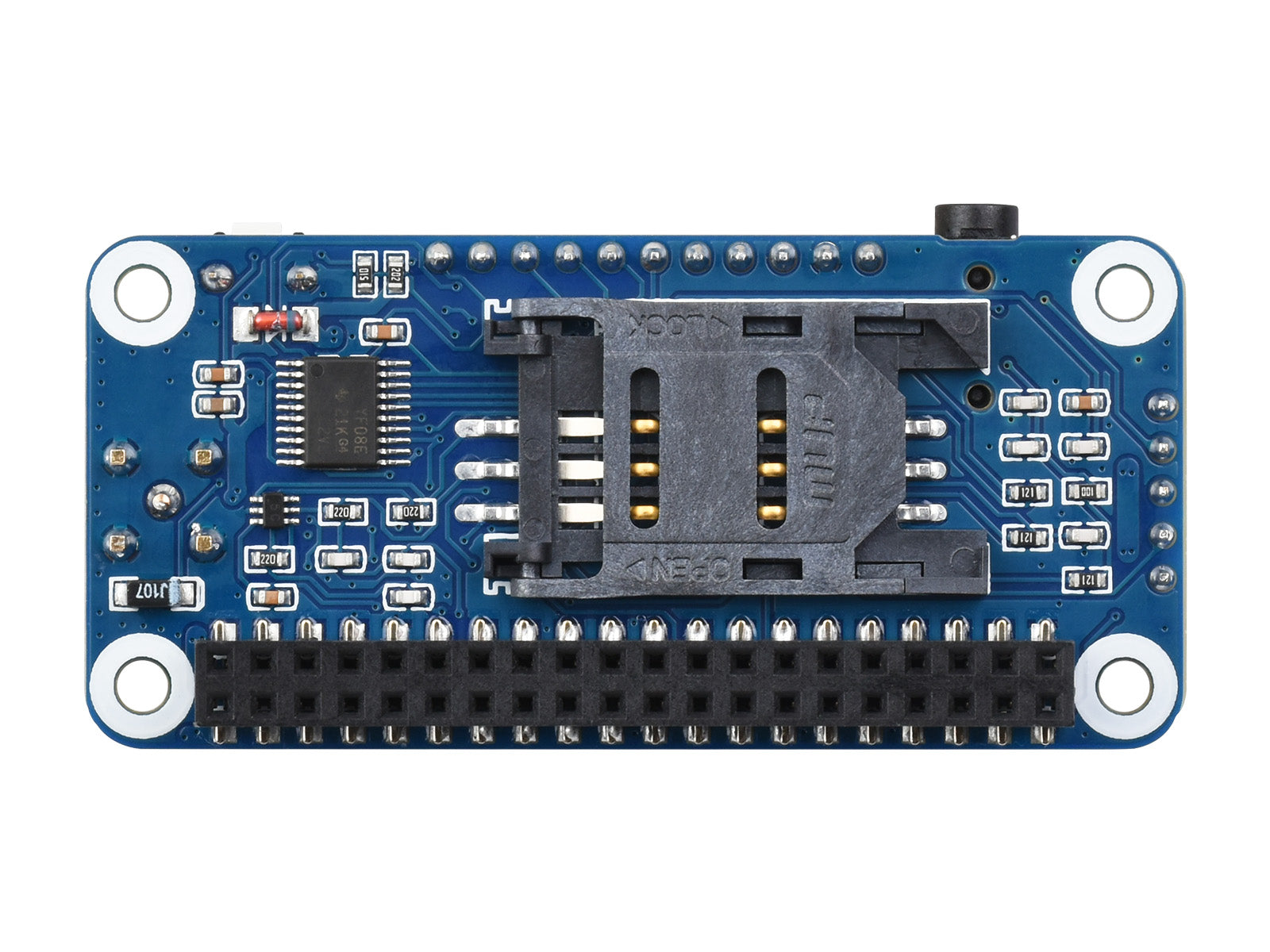

- Raspberry Pi GPIO Header for connecting with Raspberry Pi
- Operating voltage selection jumper VCC-3.3V: set operating voltage as 3.3VVCC-5V: set operating voltage as 5V
- PWR selection jumper PWR-P4: startup/shutdown by the Raspberry Pi P4 pin
- 3.5mm earphone/mic jack
- R800C control header for easily connecting with host boards like STM32
- GSM Antenna Connector

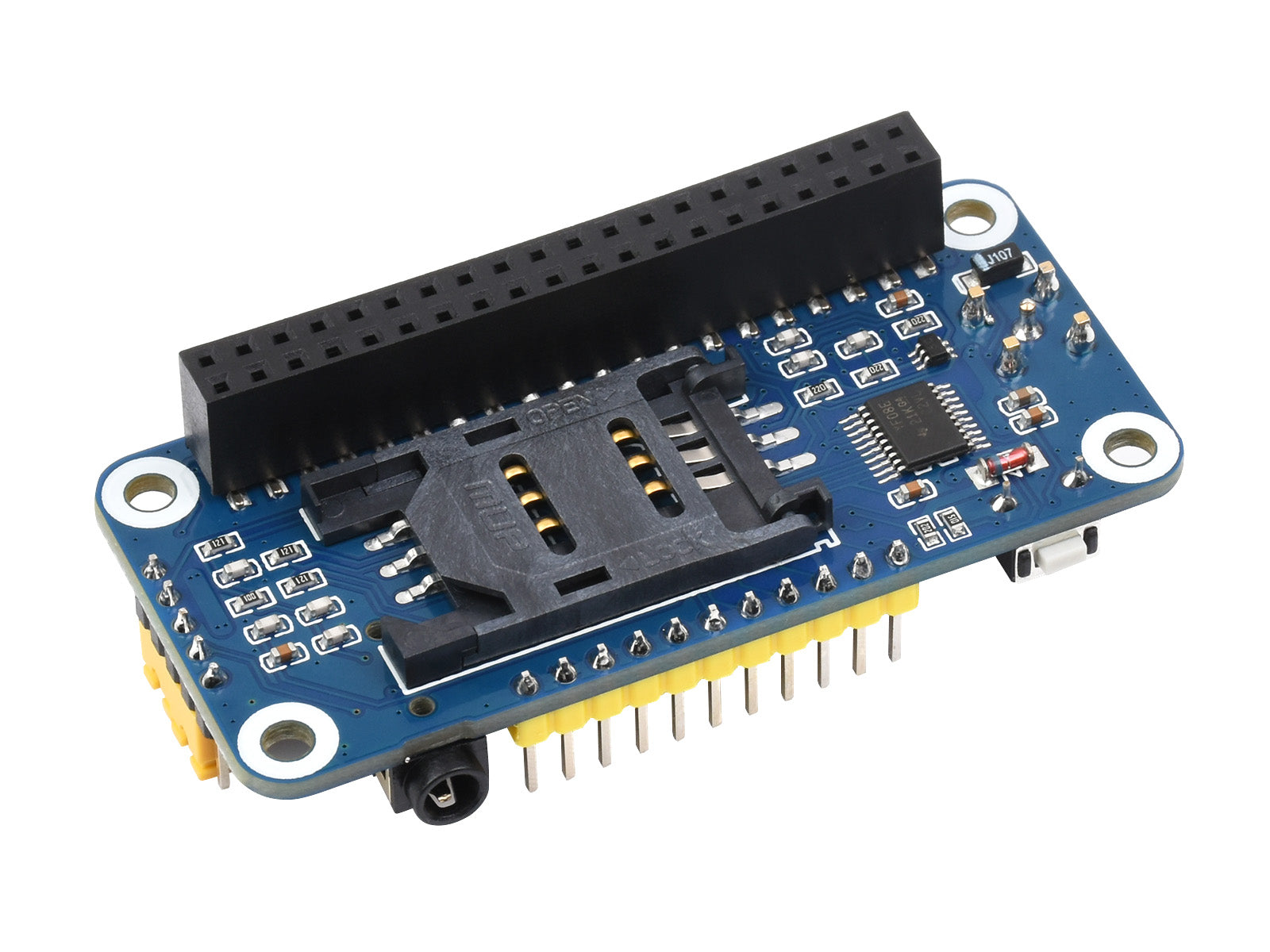

- SIM Card slot
- R800C power on/off Press for 1s to start up the R800C.Press for 1s to shutdown the R800C after booting
- NET Indicator Fast flashing when module starts, flashing slowly after GSM register succeed
- Power Indicator
Pinout definition
Product Show
Outline Dimensions
Product Selection
| Product | SIM868 | SIM800C | R800C |
|---|---|---|---|
| Frequency Band | |||
| GSM | GSM: 850/900/1800/1900 MHz Quad-band auto search Compliant to GSM phase 2/2+ | ||
| GNSS | GPS, GLONASS, BeiDou | - | |
| Bluetooth | Integrates AT commandsCompliant to Bluetooth specification3.0 + EDRSupport functions such as SPP, OPP, HFP/HSP | - | |
| Data Transmission | |||
| GPRS (Kbps) | 85.6(DL)/85.6(UL) | ||
| Others | |||
| Network protocol | TCP/UDP/HTTP/HTTPS/SSL/TLS/FTP, etc. | ||
| Internet access | PPP | ||
| SIM card slot | 1.8V/3V | ||
| UART | Support UART to send and receive AT commands | ||
| USB port | for testing AT commands, getting GPS positioning data, firmware upgrade, etc. | for powering and catching log | - |
| Audio | Onboard audio jack for phone calls | - | Onboard audio jack for phone calls |
| Antenna connector | GSM antenna + Bluetooth antenna + GNSS antenna | GSM antenna + Bluetooth antenna | GSM antenna |
| Power supply | 5V (USB port or pinheader) | ||
| Logic level | 5V/3.3V (default) | ||
| Operating temperature | -40 ~ 85°C | ||
| Storage temperature | -45°C ~ 90°C | ||
| Dimensions | 30.4 × 65.0mm | 30.5 × 65.0mm | |
| Applications | |||
| Applicable regions | Applicable to countries or regions with 2G network coverage | ||
| Examples | Environmental monitoring, Smart payment, Smart home, Smart city, Intelligent agriculture and animal husbandry, etc. | ||
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Lieferumfang
- R800C GSM/GPRS HAT x1
- GSM Antenna x1
- RPi screws pack (2pcs) x1
