SKU:WSAL25871

Raspberry Pi CM4 To 3B Adapter B version, Alternative Solution for Raspberry Pi 3 Model B/B+

Raspberry Pi CM4 To 3B Adapter

Alternative Solution for Raspberry Pi 3 Model B/B+

Features at a glance

• Onboard standard CM4 connector, support access to CM4 Lite / eMMc series boards with Quad Core Cortex A72 64-bit processor, more powerful performance
• Easily compatible with the interfaces of Raspberry Pi 3B / 3B+ boards
• Onboard headphone jack (extended from USB)
• Onboard 4-ch USB ports, compatible with USB 2.0 / 1.1 transmission
• Onboard RJ45 Gigabit Ethernet port, 10 / 100 / 1000 M adaptive
• Onboard PoE header, for connecting PoE HATs

Version Options

CM4-to-Pi3-Adapter

CM4-to-Pi3-Adapter-BOnboard higher CM4 connector

Based on Raspberry Pi CM4

Use CM4 to reproduce the original appearance of the 3B series as much as possible More Cost-effective Choice

for reference only, CM4 is NOT included

Install CM4 Easily

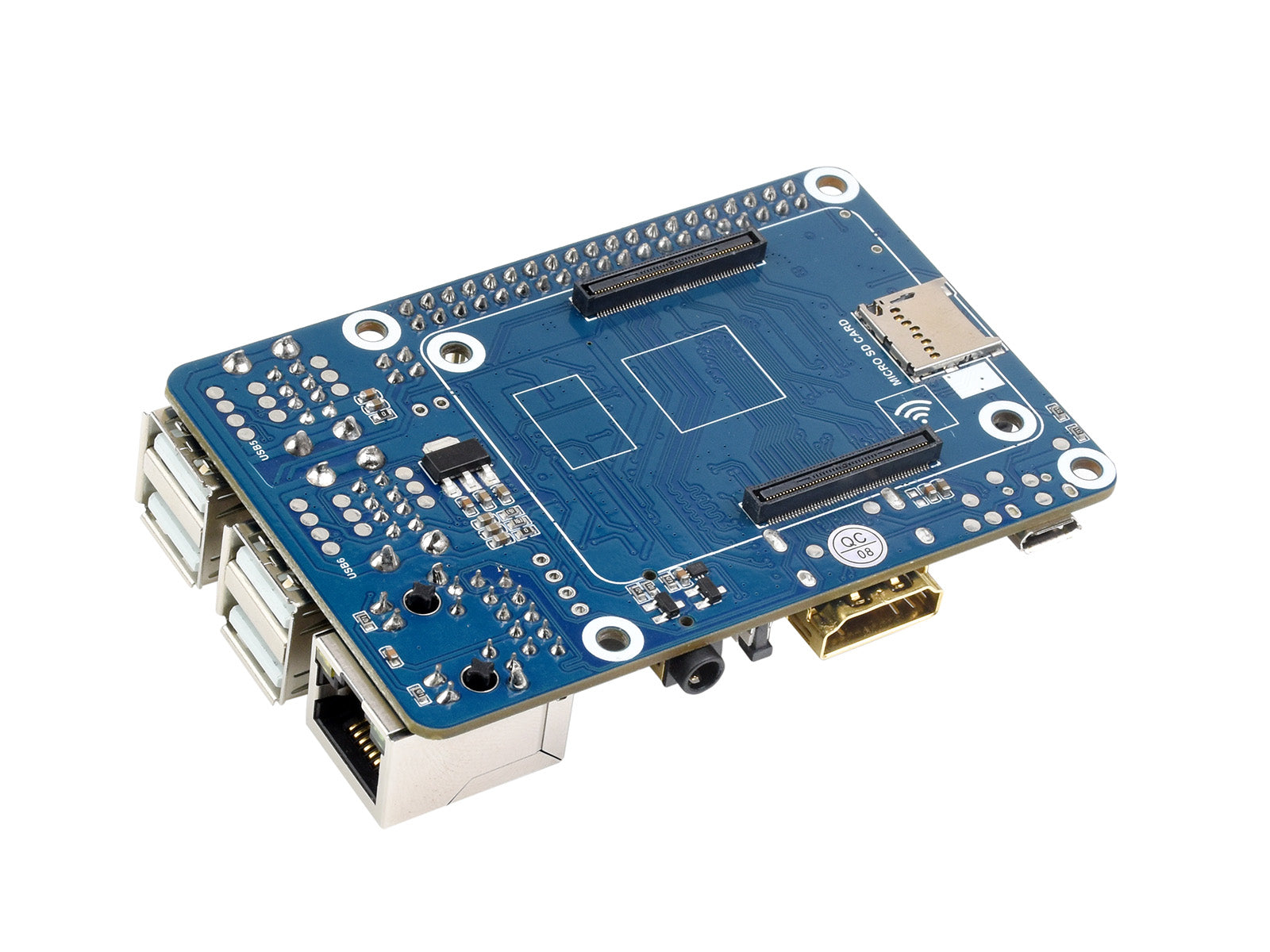

Onboard Standard CM4 Connector Support Access To Compute Module 4 Lite / eMMC Series Boards

for reference only, CM4 is NOT included.

Interface Introduction

Onboard 4-ch USB Interface, Gigabit Ethernet Port and HDMI Port, etc.

Compatible with Pi 3B Series HATs

Easy access to Pi 3B series HATs or other development projects

for reference only, Pioneer600 is NOT included.

Extended 3.5mm Headphone Jack

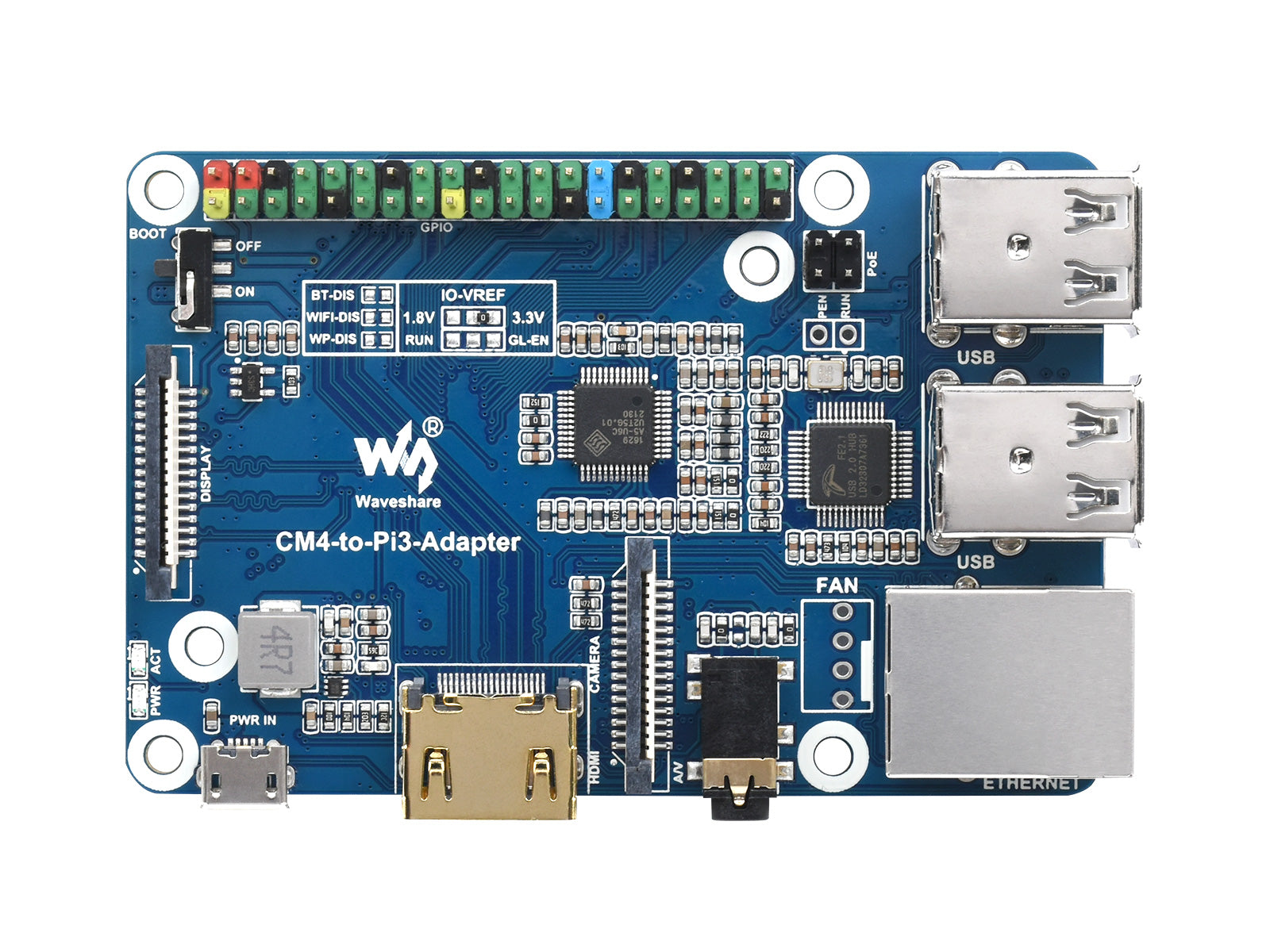

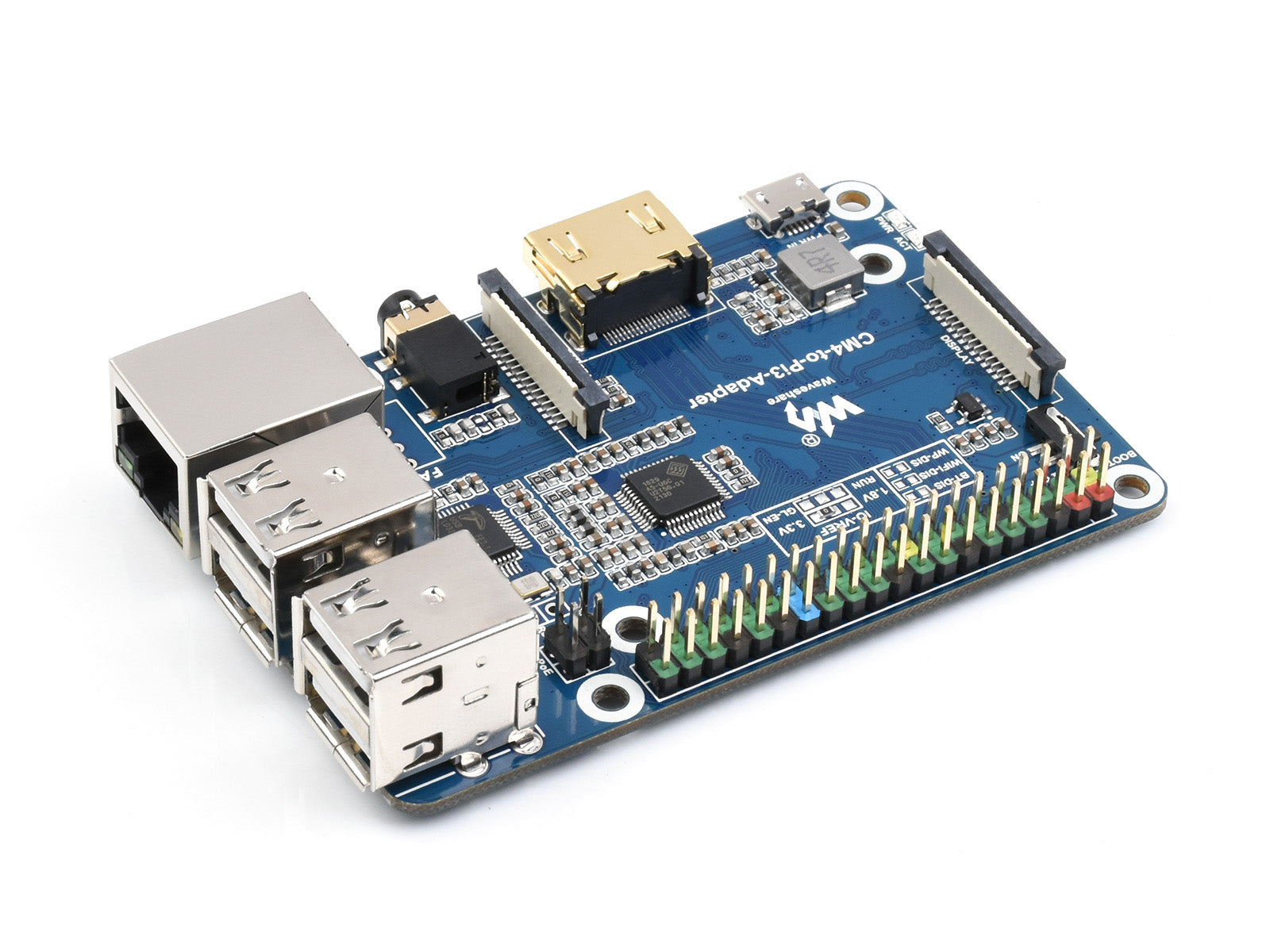

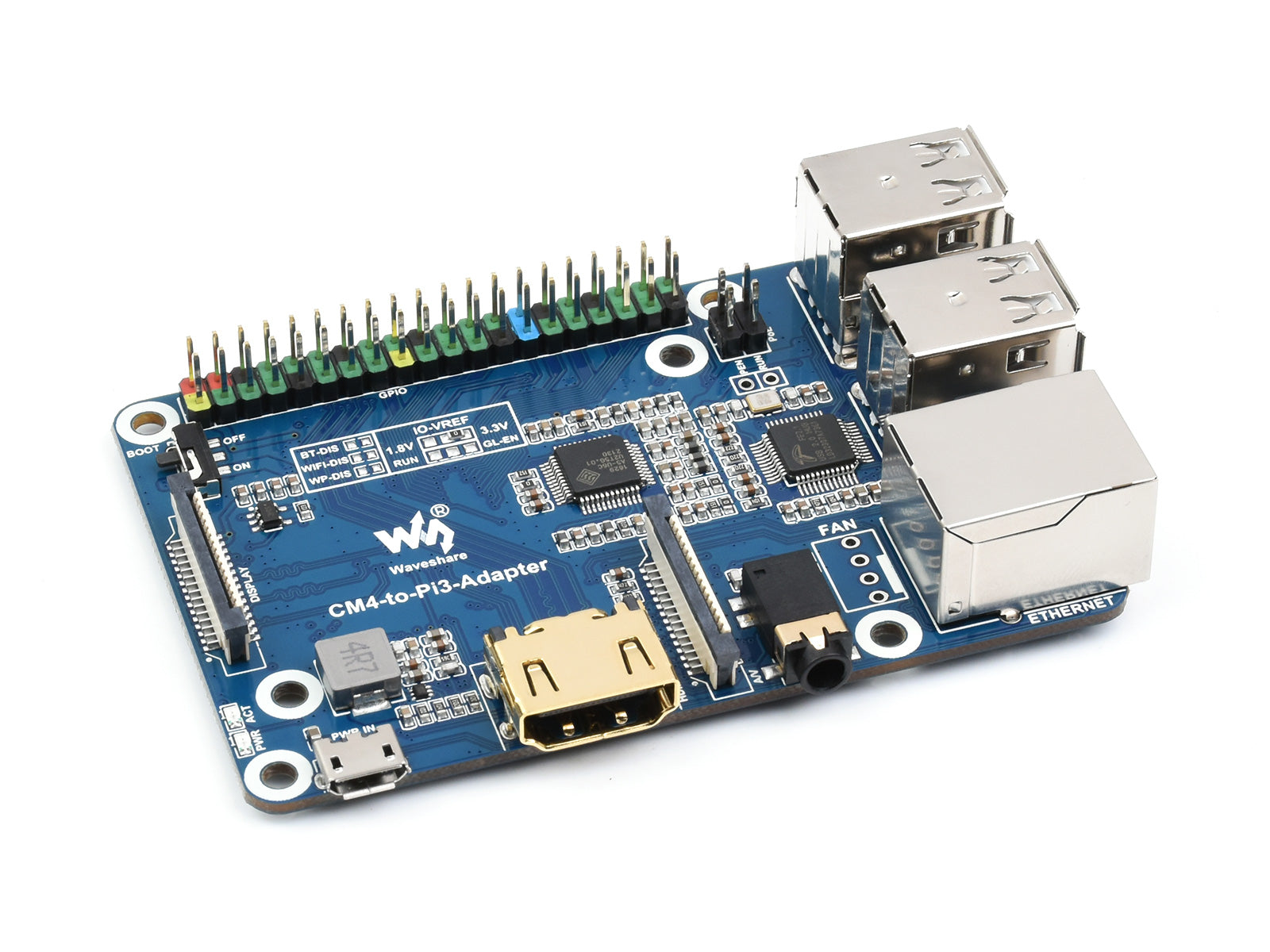

Product show

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/CM4-to-Pi3-Adapter

Raspberry Pi 3B / 3B+ Alternative SolutionSelection Guide

PART NUMBER	GPIO	USB	Ethernet Port	Headphone Jack	CSI	HDMI	DSI	TF Card Slot
3B/3B+	40PIN	4-ch	100M	√	√	√	√	√
CM4-to-Pi3-Adapter	40PIN	4-ch	1000M	√	√	√	√	√
CM4-to-Pi3-Adapter-B	40PIN	4-ch	1000M	√	√	√	√	√
Zero-to-Pi3-Adapter (A)	40PIN	4-ch	100M	-	-	√	-	√*
Zero-to-Pi3-Adapter (B)	40PIN	4-ch	100M	√	-	√	-	√
* Indicates that will use the original interface of the Pi.

Lieferumfang

1. CM4-to-Pi3-Adapter-B x1
2. Screws pack x1
