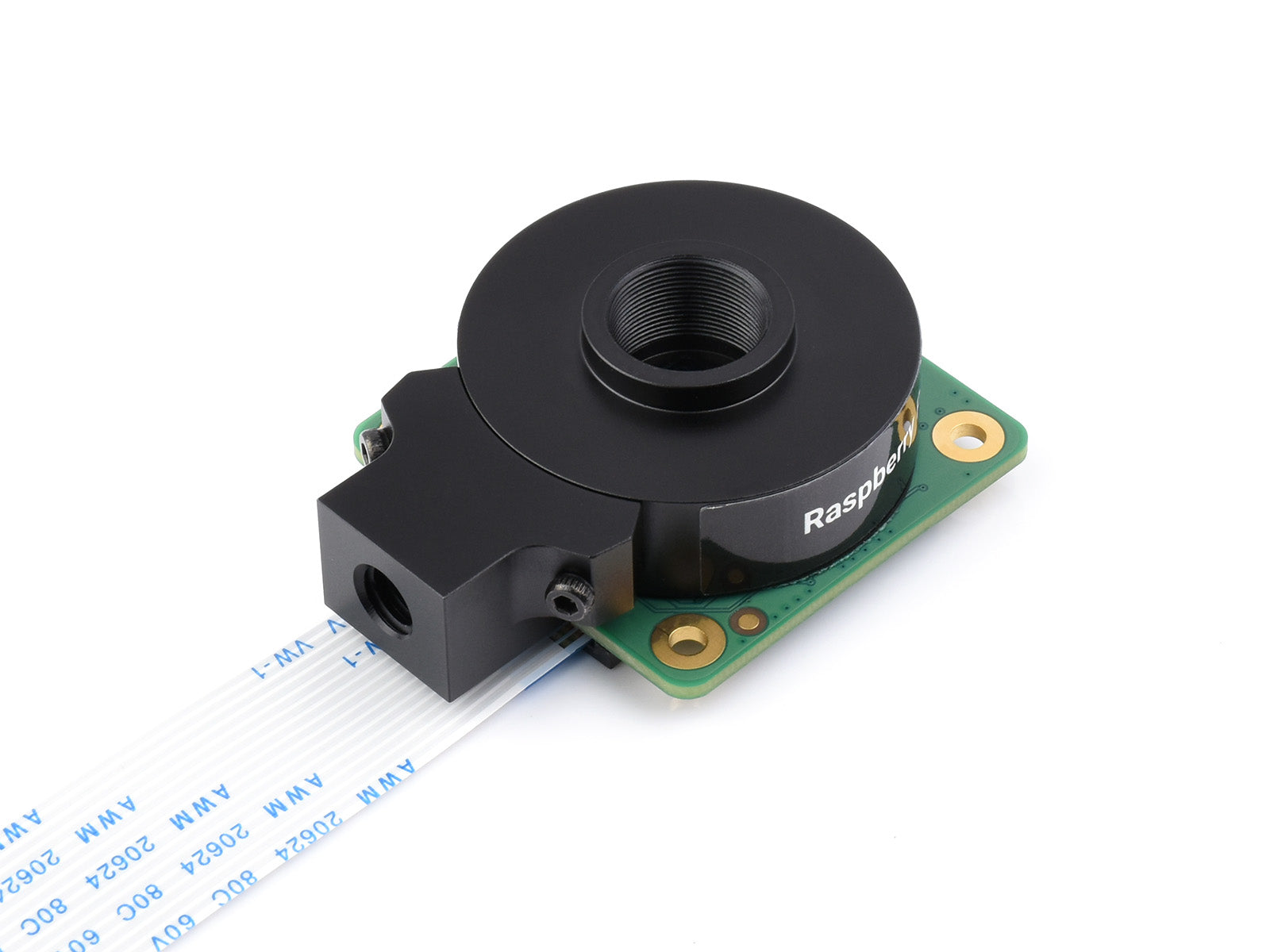

Raspberry Pi High Quality Camera M12, 12.3MP IMX477R Sensor, High Sensitivity, Supports M12 mount Lenses, Compatible with Raspberry Pi series boards

Raspberry Pi High Quality Camera M12

M12 mount | Compatible with Raspberry Pi series boards

Features at a glance

TheRaspberry Pi HQ Camera M12 is the M12 mount version of the Raspberry Pi High Quality Camera, adopts the IMX477R sensor, compact in size, and provides 12.3MP high resolution and excellent low-light performance. Features an M12 mount and requires a M12 lens to work, for integration into industrial and commercial applications which require a higher level of visual fidelity. The Raspberry Pi HQ Camera M12 is compatible with all Raspberry Pi series boards.

Specifications

Sensor	IMX477R
	12.3MP, 4056 (H) × 3040 (V)
	7.9mm CMOS diagonal size
	1.55µm (H) × 1.55µm (V) pixel size
Output	RAW12 / 10 / 8, COMP8
Back focus	Adjustable
Lens Support	M12
IR cut filter	Integrated
Tripod mount	1/4″-20

M12 Lens Selection

Model	Field of view	FOCAL LENGTH	APERTURE	DISTORTION	Lens Material	Back focal length	Resolution
WS1842714	184.6°	2.72mm	2.5	<-21%	8G+IR	3.06mm	14MP
WS1132712	113°	2.7mm	2.8	<-1.5%	5G2P+IR	4.97mm	12MP
WS1053516	105°	3.56mm	2.5	<-16.5%	4G3P+IR	5.92mm	16MP
WS1603212	136°	3.2mm	2.0	<-64%	8G+IR	6.08mm	12MP
WS0698012	69°	8mm	1.8	<-15.68%	8G+IR	6.8mm	12MP

Higher resolution, better imaging effect

Compared to 8MP of normal Raspberry Camera, the High Quality Camera offers up to 12.3MP, along with nearly 50% greater area per pixel, delivering better imaging effect

Higher resolution support

Large pixels for clearer imaging

Using with different lens

Working with Raspberry Pi

Connecting with Raspberry Pi 4B

Connecting with Raspberry Pi 5

Connecting with Raspberry Zero 2 W

* for reference only, Raspberry Pi 4B,Raspberry Pi 5,Zero 2 W,M12 Lens,black FPCandyellow FPC are NOT included.

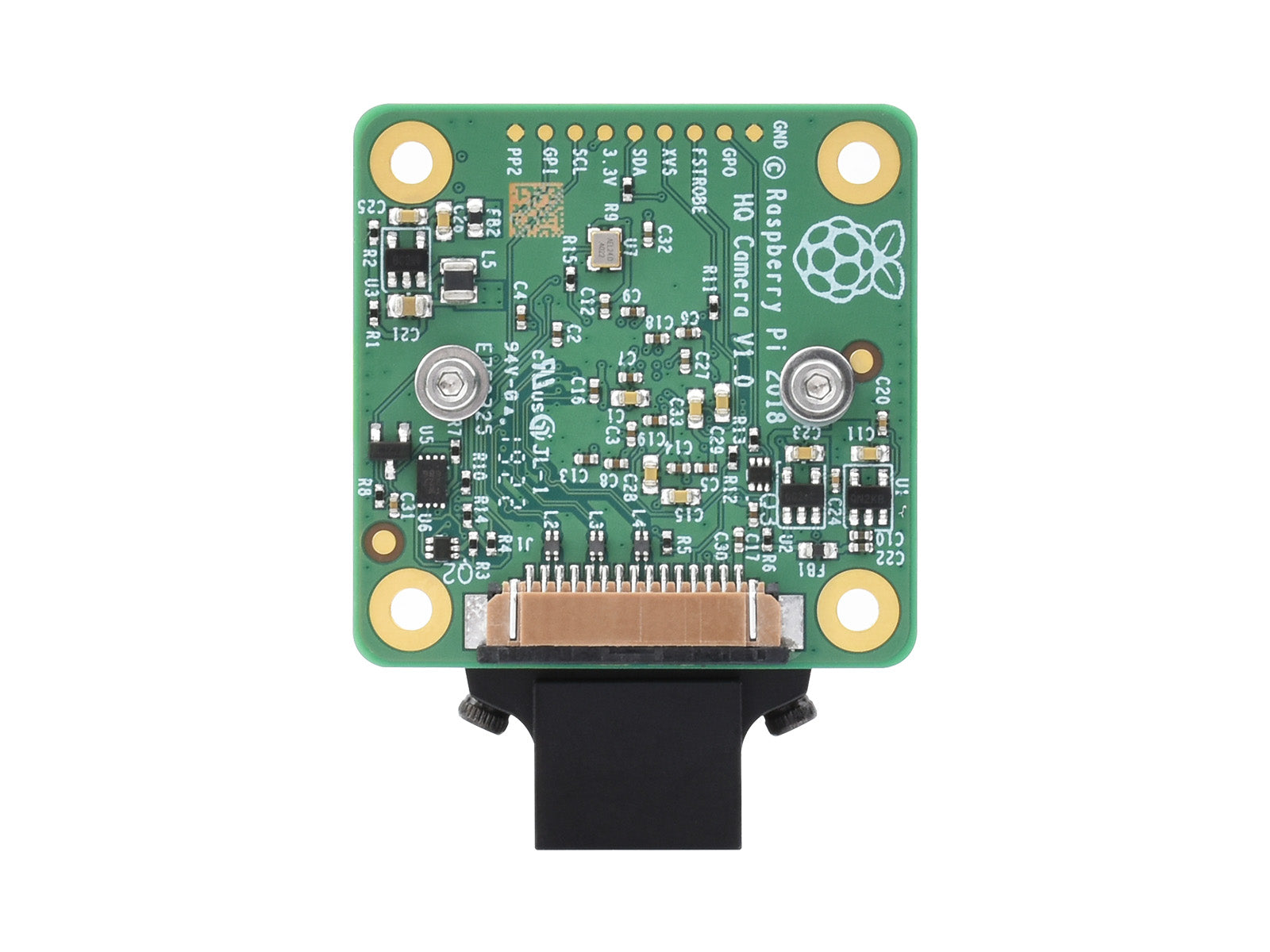

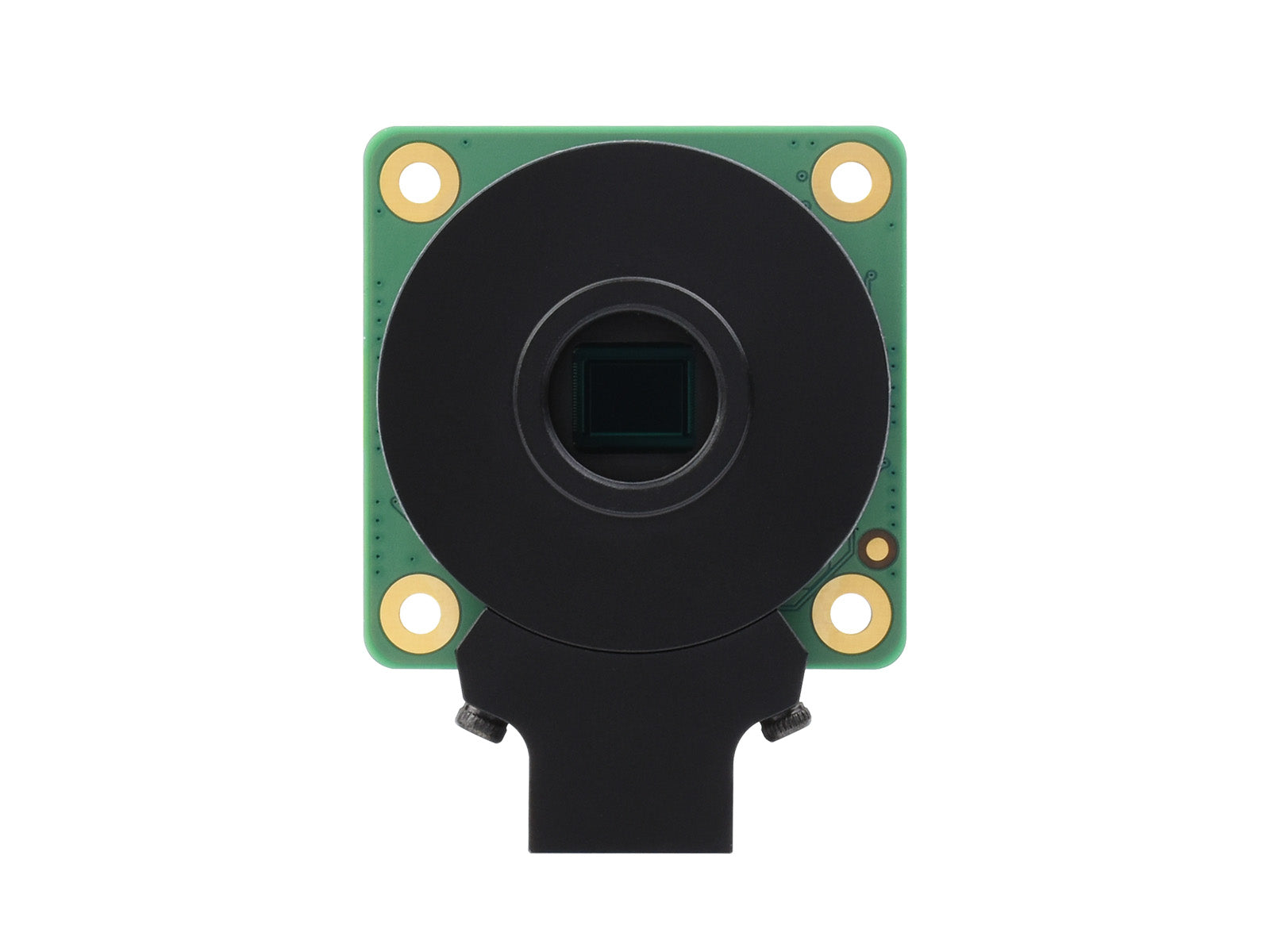

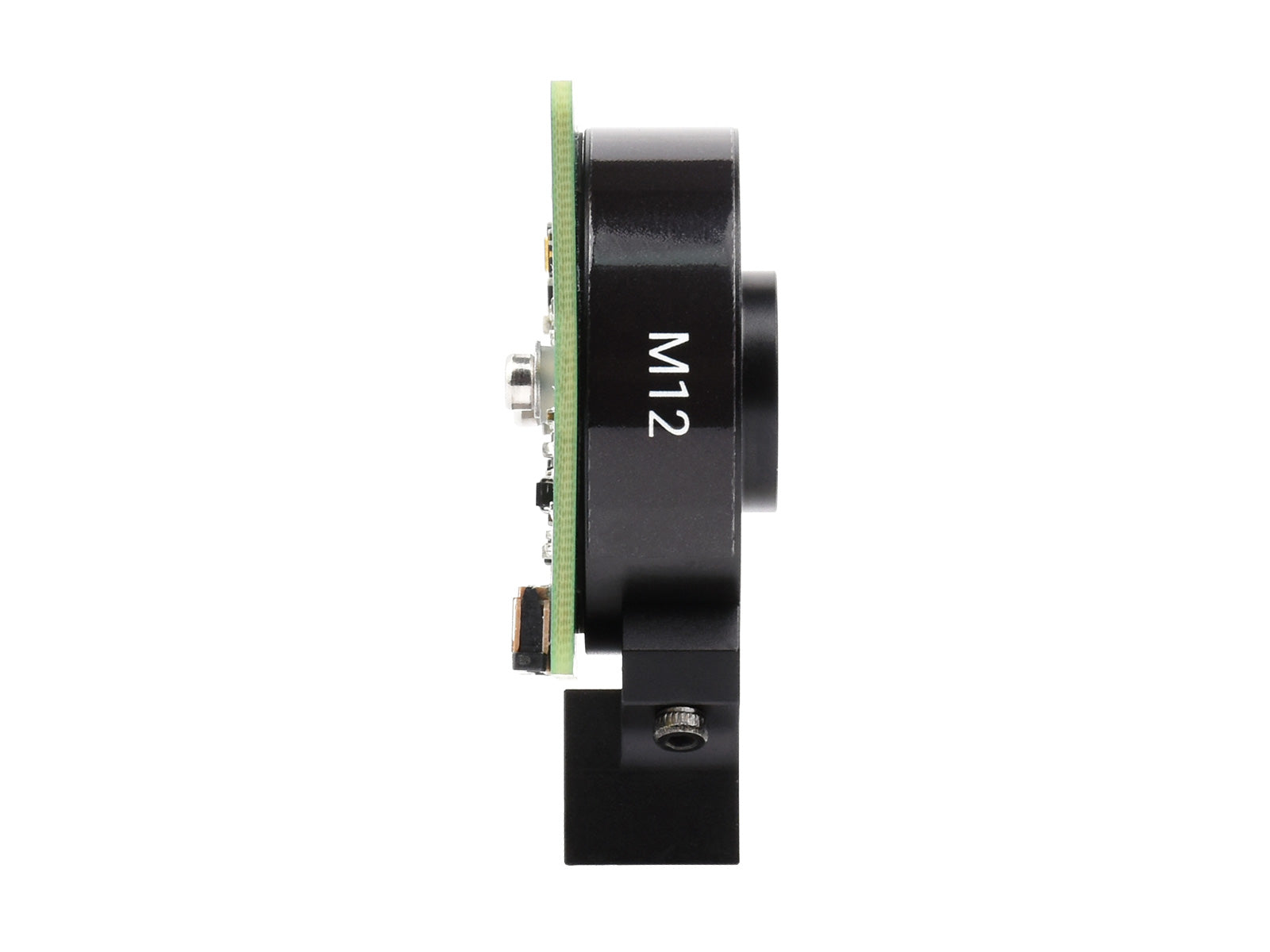

Product Show

Outline Dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/Raspberry_Pi_HQ_Camera

Selection Guide

Part Number	Pixels	Sensor	CMOS Size	IR-CUT Filter	Lens Support	FoV (°)	Aper-ture (F)	Focal Length (mm)	Dimen-sions (mm)	For use with
Raspberry Pi HQ Camera	12.3MP	IMX477	7.9mm	integrated	C/CS	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX477 12.3MP Camera						-	-	-	38*38	Raspberry Pi, CM3/3+/4, Jetson series boards
Raspberry Pi HQ Camera M12					M12	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX477 IR-CUT Camera (A)						90	2.0	3.95	38*38	Raspberry Pi, CM3/3+/4/5, Jetson series boards
IMX477-160 12.3MP Camera						160	2.2	2.75	25*24	Raspberry Pi, CM3/3+/4/5, Jetson series boards
Raspberry Pi Global Shutter Camera	1.6MP	IMX296	6.3mm		C/CS	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX296 Global Camera (A)	1.6MP	IMX296	6.3mm		C/CS	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX296-130 BW Camera	1.6MP	IMX296	6.3mm		M12	130	1.6	3.0	38*38	Raspberry Pi, CM3/3+/4/5

Lieferumfang

1. Raspberry Pi HQ Camera M12 x1
2. Dust cap x1
3. M12 mount connector (3PCS) x1
4. 15-pin FFC (opposite sides contact) x1
