Raspberry Pi Original Global Shutter Camera Module, Supports C/CS mount lenses, 1.6MP, High-speed Motion photography, Compatible With Raspberry Pi Series Boards

Raspberry Pi Global Shutter Camera

Supports C/CS mount lenses | Compatible with Raspberry Pi series boards

Features at a glance

TheRaspberry Pi Global Shutter Camera is the latest global shutter camera module from Raspberry Pi Foundation, based on the IMX296 sensor, with 1.6MP resolution. It is capable of capturing fast moving objects without the Jelly-Effect of rolling shutters, ideal for fast motion photography and machine vision applications.With a large pixel size of 3.45μm × 3.45μm providing high light sensitivity, the Global Shutter Camera can operate with short exposure times (as low as 30μs with adequate lighting), an advantage for high-speed photography.The Raspberry Pi Global Shutter Camera includes a C- to CS-mount adapter, suitable for industrial lenses with C or CS mount. This module is compatible with all Raspberry Pi series boards.

Specifications

Sensor	Model:	IMX296LQR-C
	Resolution:	1.58 MP (color), 1456 × 1088
	CMOS diagonal size:	6.3mm
	Pixel size:	3.45µm × 3.45µm
Output	RAW10
Back focus	Adjustable (12.5~22.4mm)
Lens Support	C-mount / CS-mount (C-CS adapter included)
IR cut filter	Integrated
Tripod mount	1/4″-20
Weight	41g
Cable length	150mm

Lens Selection

Product	6mm Wide Angle Lens	16mm Telephoto Lens	25mm Telephoto Lens	35mm Telephoto Lens	8-50mm Zoom Lens	100X Microscope Lens for Pi
Image format	1/2"	1"	2/3"	1"	1/2.3"	1/2"
Focal length	6mm	16mm	25mm	35mm	8-50mm	-
Aperture	F1.2	F1.4-16	F1.4-16	F1.7-16	F1.4	-
OPTICAL MAGNIFICATION	-					0.12X~1.8X
ZOOM RATIO	-					15:01
Mount	CS-mount	C-mount				C/CS-mount
Angle of view	63°	1" 44.6° × 33.6° 2/3" 30.0° × 23.2° 1/1.8" 24.7° × 18.6° 1/2" 21.8° ×16.4°	2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5°	1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9°	45°-5.35°	-
Back focus	7.53mm	17.53mm				-
Optical length	-	67.53mm	-
Distortion	-	1"（-0.7%） 1/2"（-0.5%） 1/3"（-0.15%）	0.05%	0.35%	-	< -0.1%
M.O.D.	0.20m	0.20m	0.25m	0.30m	0.20m	2.4mm
Dimensions	Φ30.00 × 34.00mm	Φ39.00 × 50.00mm	Φ34.00 × 34.00mm	Φ35.00 × 34.00mm	Φ40.00×68.30mm	Φ39.00×112.00mm
Operation	Manual aperture adjustment					Fixed aperture
Weight	53g	133.7g	82g	78g	148g	202g

Global shutter, more clear imaging

the global shutter eliminates jello-effect while shooting fast moving objects more suitable for high-speed motion capturing

Rolling Shutter

Global Shutter

with mounted lens

Supports camera tripod

Working with Raspberry Pi

Connecting with Raspberry Pi 4B

Connecting with Raspberry Pi 5

Connecting with Raspberry Zero 2 W

* for reference only, Raspberry Pi 4B,Raspberry Pi 5,Zero 2 W,16mm Telephoto Lens,100X Microscope Lens,black FPCandyellow FPC are NOT included.

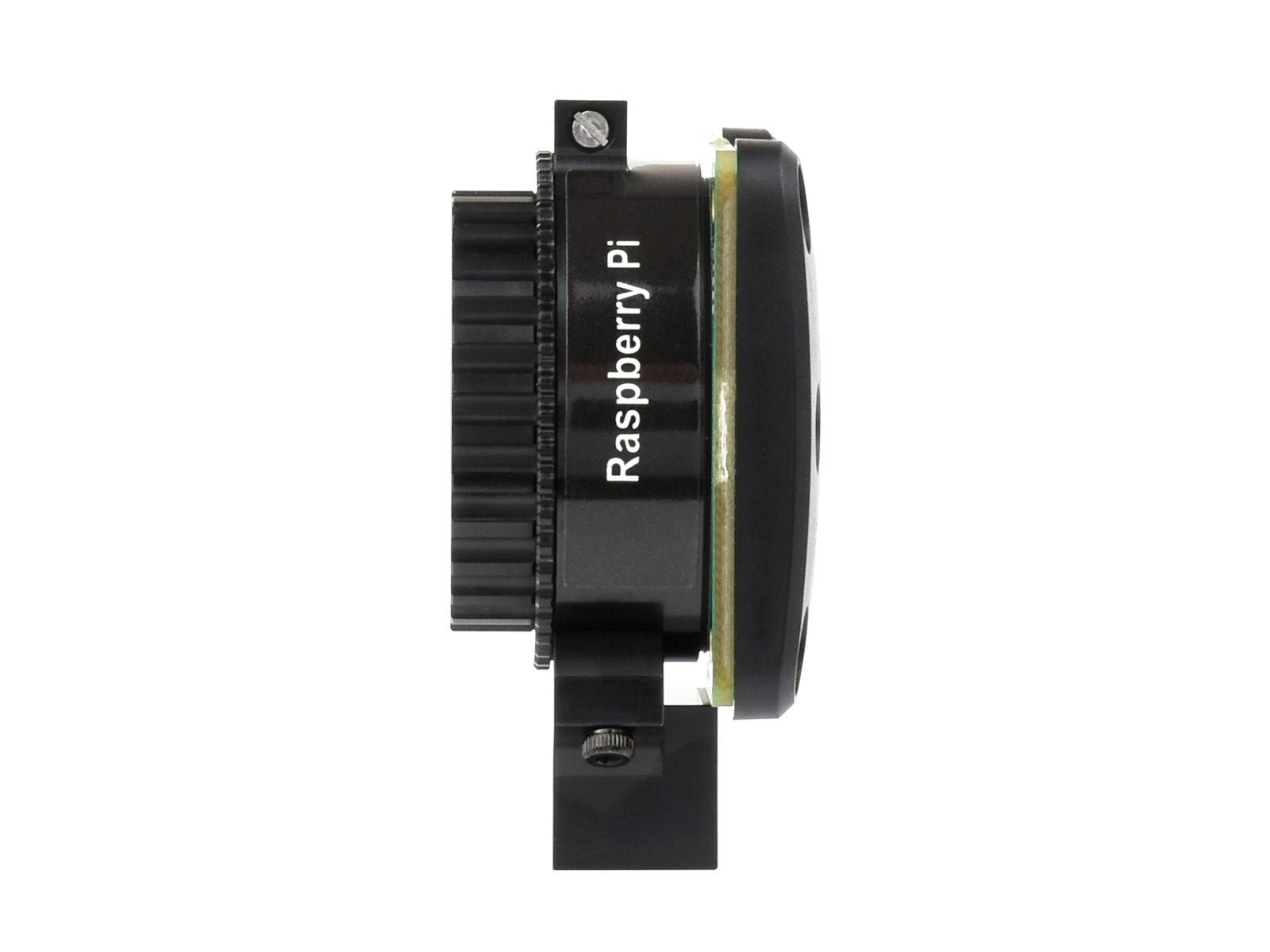

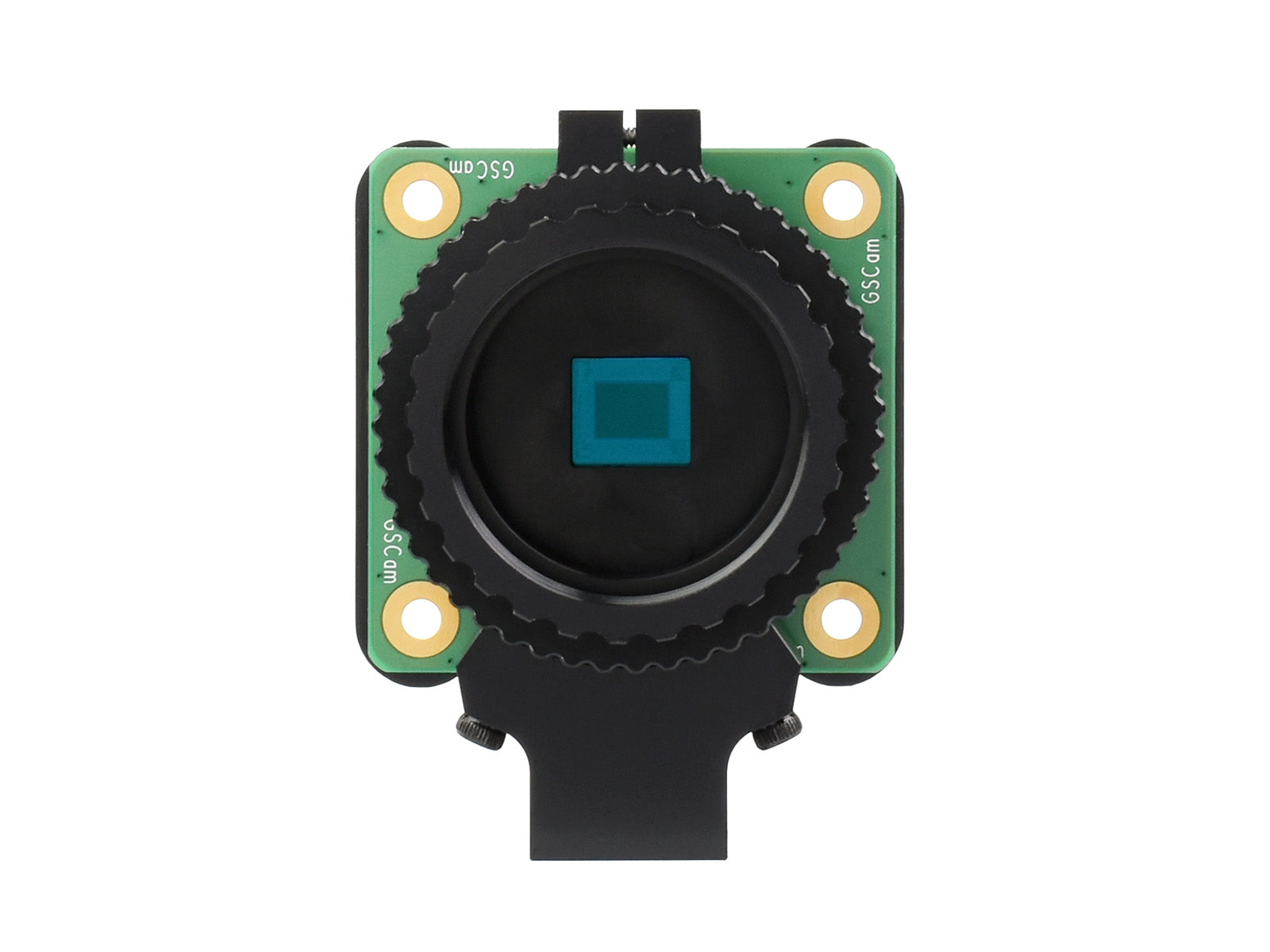

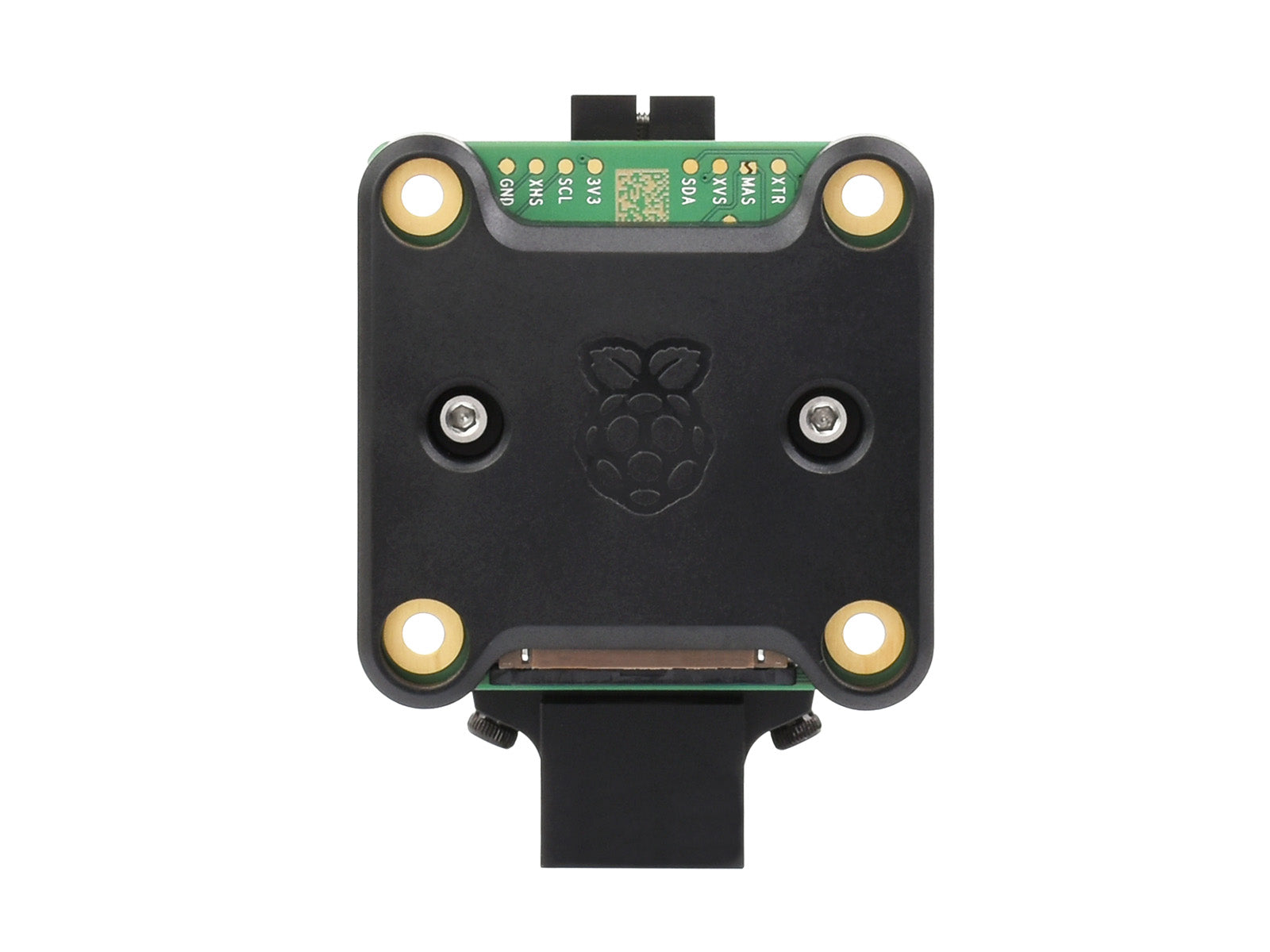

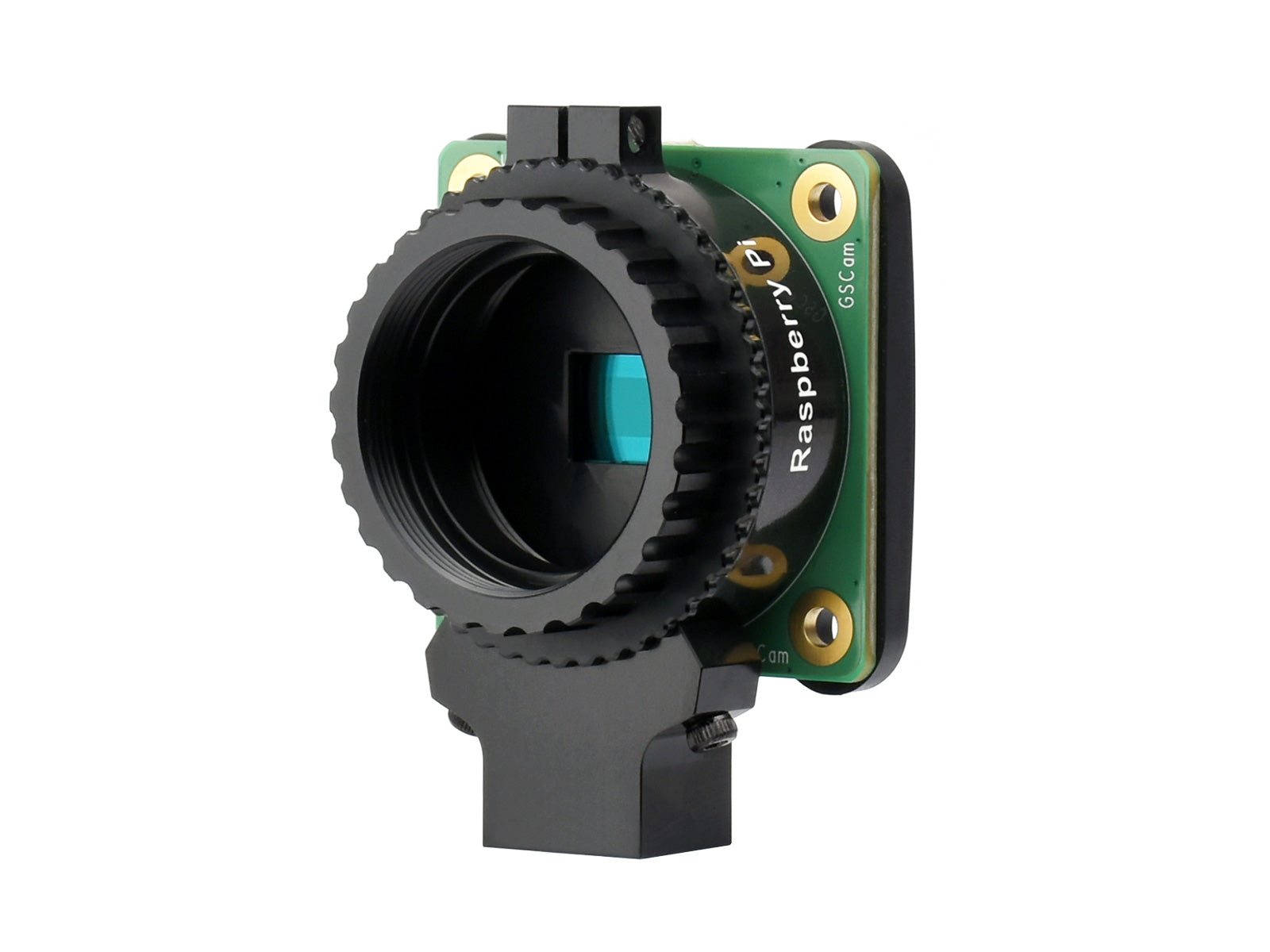

Product Show

Outline Dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/Raspberry_Pi_Global_Shutter_Camera

Selection Guide

Part Number	Pixels	Sensor	CMOS Size	IR-CUT Filter	Lens Support	FoV (°)	Aper-ture (F)	Focal Length (mm)	Dimen-sions (mm)	For use with
Raspberry Pi HQ Camera	12.3MP	IMX477	7.9mm	integrated	C/CS	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX477 12.3MP Camera						-	-	-	38*38	Raspberry Pi, CM3/3+/4, Jetson series boards
Raspberry Pi HQ Camera M12					M12	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX477 IR-CUT Camera (A)						90	2.0	3.95	38*38	Raspberry Pi, CM3/3+/4/5, Jetson series boards
IMX477-160 12.3MP Camera						160	2.2	2.75	25*24	Raspberry Pi, CM3/3+/4/5, Jetson series boards
Raspberry Pi Global Shutter Camera	1.6MP	IMX296	6.3mm		C/CS	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX296 Global Camera (A)	1.6MP	IMX296	6.3mm		C/CS	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX296-130 BW Camera	1.6MP	IMX296	6.3mm		M12	130	1.6	3.0	38*38	Raspberry Pi, CM3/3+/4/5

Lieferumfang

Raspberry Pi Camera Cable, two appearances shipped randomly. Only the appearance differs and the product functions are identical.

1. Raspberry Pi Global Shutter Camera ×1
2. C-CS adapter ×1
3. Dust cap ×1
4. Screwdriver ×1
5. FFC cable + Raspberry Pi Camera Cable ×1
6. Packing box ×1
