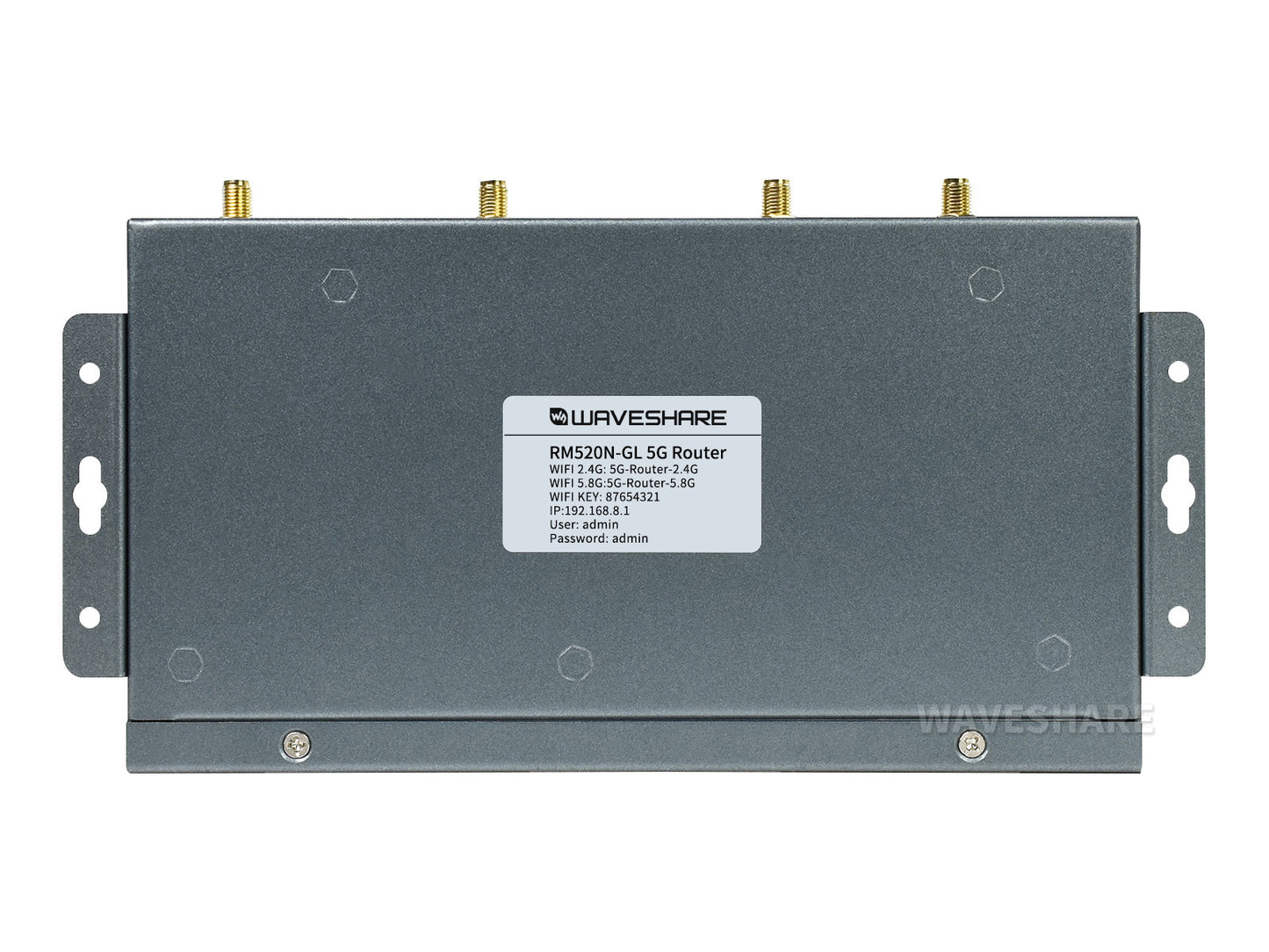

RM520N-GL industrial 5G Router, wireless CPE, snapdragon X62 onboard, 5G Global Band Module, Gigabit Ethernet and WiFi

Name: RM520N-GL industrial 5G Router, wireless CPE, snapdragon X62 onboard, 5G Global Band Module, Gigabit Ethernet and WiFi
Brand: WaveShare
SKU: WSAL25520
Price: 171574.16 HUF
Availability: InStock

171.574 Ft

171.574 Ft 0 Ft

Sale Ausverkauft

Steuer enthalten. Versand wird an der Kasse berechnet.

Menge

Prohibited by the module manufacturer QUECTEL, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

RM520N-GL industrial 5G Router, wireless CPE, snapdragon X62 onboard, 5G Global Band Module, Gigabit Ethernet and WiFi, 5G/4G/3G and 3GPP R16 support

RM520N-GL industrial 5G wireless Router

Supports multi network standards including 5G and LTE-A, Global Band

Adopts RM520N-GL 5G Global Band Module, supports 5G/4G/3G and 3GPP R16Supports NSA and SA modes, applicable for regions with 5G Sub-6G signal coverage

Specifications

Product		SIM8200EA-M2 5G Router	RM520N-GL 5G Router
5G wireless specification
5G Sub-6G	SA	n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
5G Sub-6G	NSA	n41, n77, n78	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
4G	LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
	LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48	B34, B38, B39, B40, B41, B42, B43, B48
	LAA	-	B46
UMTS	WCDMA	B1, B2, B3, B4, B5, B8	B1, B2, B4, B5, B8, B19
GNSS		GPS / GLONASS / BeiDou(Compass) / Galileo / QZSS (only supported by RM520N-GL)
DATA RATE
5G Sub-6G	SA	2.4 Gbps (DL) / 500 Mbps (UL)	2.4 Gbps (DL) / 900 Mbps (UL)
5G Sub-6G	NSA	2.4 Gbps (DL) / 500 Mbps (UL)	3.4 Gbps (DL) / 550 Mbps (UL)
LTE		1 Gbps (DL) / 200 Mbps (UL)	1.6 Gbps (DL) / 200 Mbps (UL)
HSPA+		42 Mbps (DL) / 5.76 Mbps (UL)
WiFi wireless specification
WiFi standard		IEEE802.11b/g/n, IEEE802.11Wi-Fi 5(a/b/g/n/ac) compliant, 2.4GHz, 5.8GHz, 2T2R, supports AP mode
Data rate		2.4GHz: up to 300Mbps 5.8GHz: up to 866Mbps
Authentication		supports encryption methods including WEP, WPA, WPA2, etc.

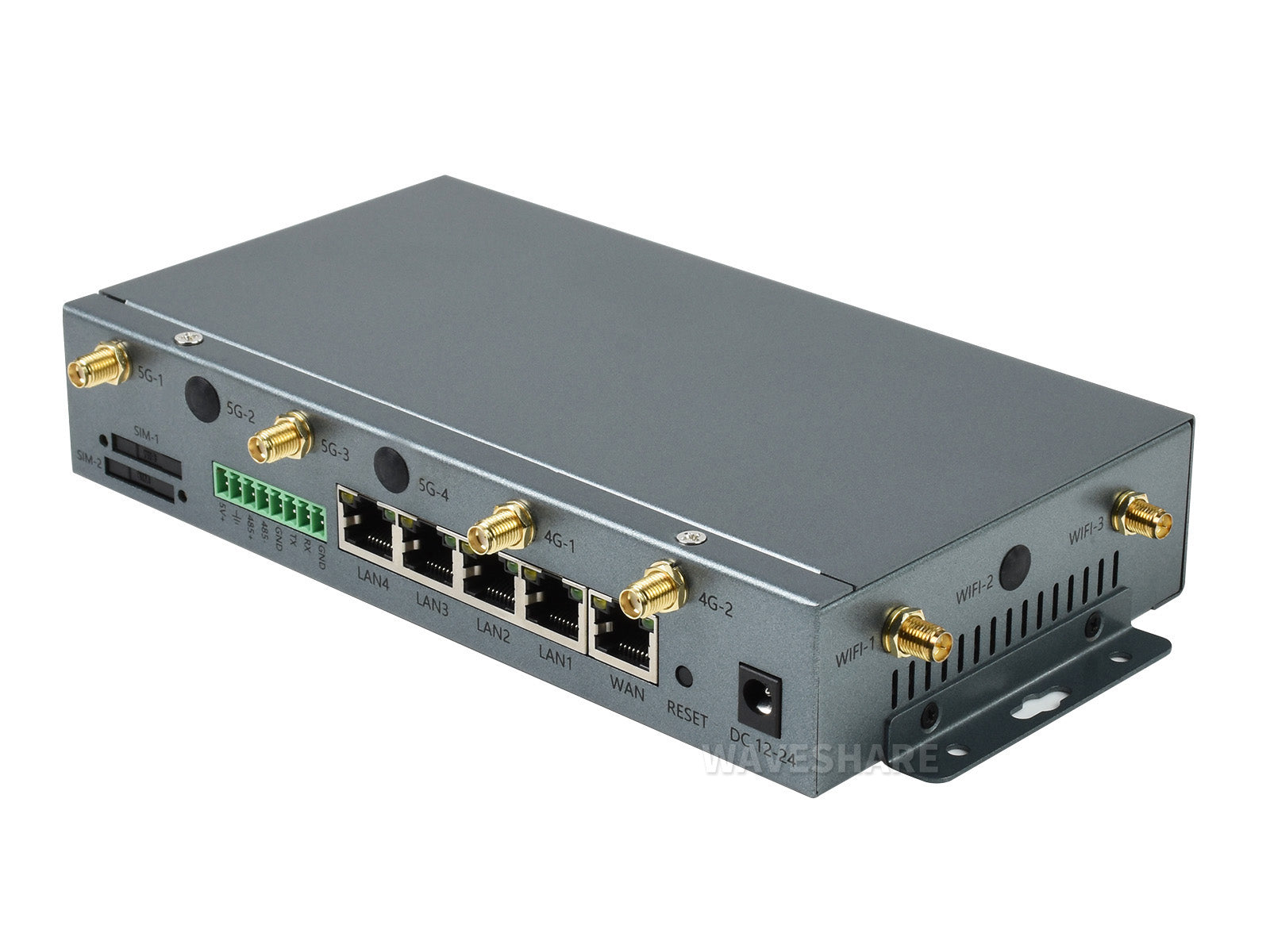

Interfaces
M.2		1x connector, comes with 1x SIM8200EA-M2 module by default, supports other 5G modules	1x connector, comes with 1x RM520N-GL module by default, supports other 5G modules
mini PCIE		3x connectors, comes with 1x 2.4GHz and 1x 5.8GHz WiFi module, allows connecting one more 4G module
WAN		1x 10 / 100 / 1000M Ethernet, auto-negotiation MDI/MDIX, embedded 1.5KV electromagnetic isolation protection(the WAN RJ45 can be used as LAN RJ45 port, so there could be totally 5x LAN RJ45 port)
LAN		4x 10 / 100 / 1000M Ethernet, auto-negotiation MDI/MDIX, embedded 1.5KV electromagnetic isolation protection
Serial port		1x RS232 + 1x RS485, embedded ESD protection
SIM/UIM card slot		drawer SIM card slot, prevents the SIM card from dropping out, embedded 15KV ESD protection

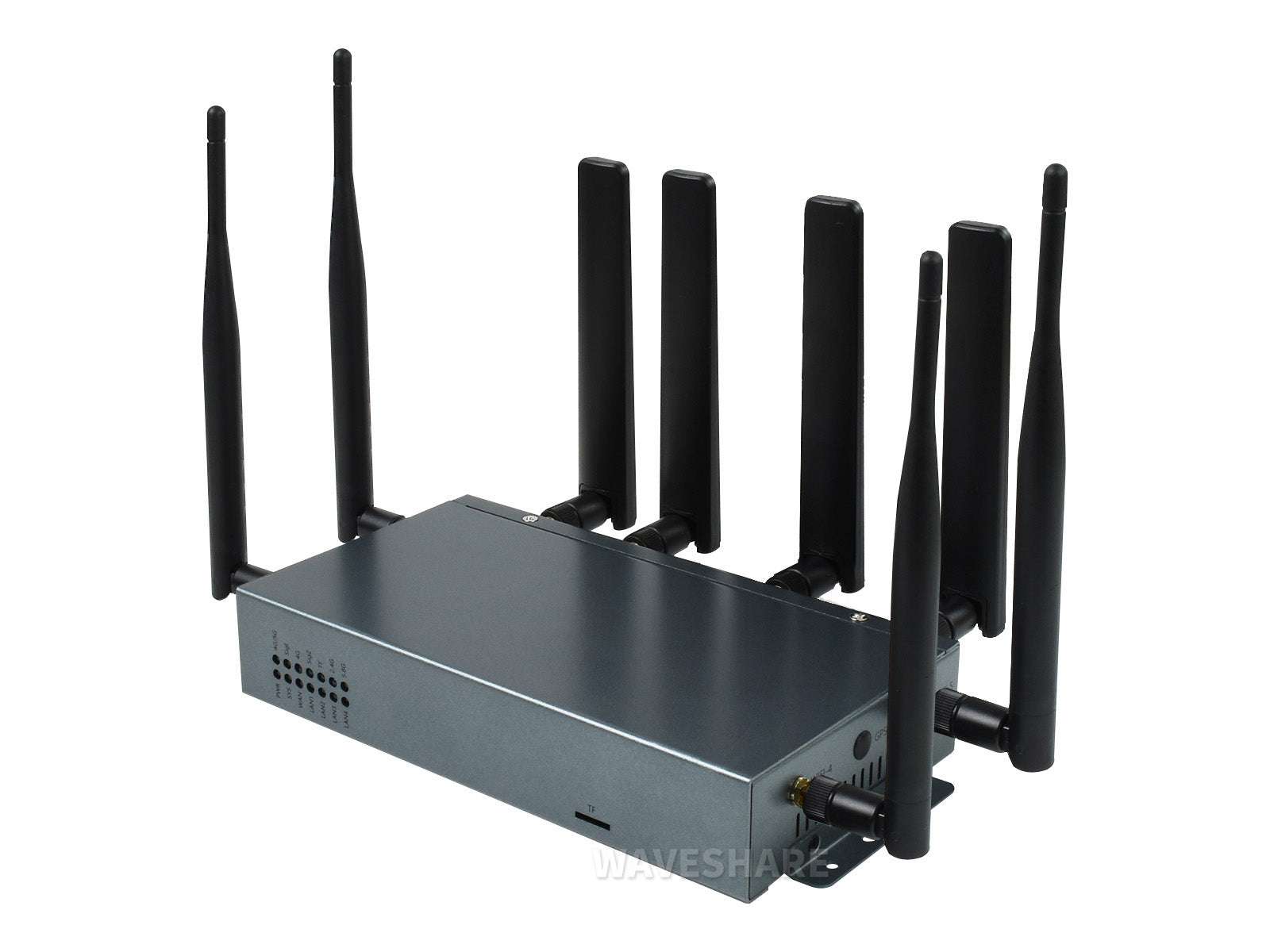

Antenna connector		SMA standard antenna connector, comes with 6x 5G antennas, 4x WiFi antennas by default	SMA standard antenna connector, comes with 4x 5G antennas, 4x WiFi antennas by default
TF card slot		for external storage
Power supply		standard power supply interface, supply 12~24V input, embedded power supply phase-reversal protection and over-voltage protection
RESET button		press and hold for 5~10s then release, restores the router to factory setting
Indicators		PWR, SYS, 5G, 4G, WAN, LAN, TF, 2.4G, 5.8G status indicators
Power supply
Power adapter		DC 12V/2A
Power input range		12 ~ 24V
Power consumption		data mode: ＜1A@12V, idle mode: ＜500mA@l2V
Mechanical
Case		Metal case, IP30 protection level
Dimensions		195 × 107 × 37mm
Operating temperature		-35 ~ +75ºC
Storage temperature		-40 ~ +85ºC
Relative humidity		95% (non-condensing)

Supports 5G/4G/3G Networking, Global Band

Supports 5G NSA (4G And 5G Co-Networking) And SA (5G Standalone Networking)Supports 4G/3G Network

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

High speed 5G network experience

enjoy high speed 5G networking via the Gigabit Ethernet port or WiFi connection

RS232/RS485 serial communication

supports multi modes including TCP/UDP transparent forwarding, Modbus, and MQTT

industrial design, stable & reliable

Quality metal case, with multi protections like ESD protection, surge protection, electric fast pulse protection, power supply phase-reversal protection.Embedded hardware watchdog, allows self-detection on failure, self-recovery, ensures stable and reliable running.

More safe & stable data transmission

Supports provider VPN access, adopts financial-level data security standard, dual WAN/Wired/Wireless connections with mutual backup, reducing communication failure probability, providing stable and reliable data transmission. Supports general VPN protocols like PPTP, L2TP, GRE, OpenVPN, multi-layer encryption, more safe transmission.

Customizable software/hardware

Standardized and modular base board interface design. Onboard 1x M.2 connector, 3x mini PCIE connectors, allows connecting 1x 5G module, 1x 4G module, and 2x WiFi modules at one time. Comes with 1x RM520N-GL 5G module and 2x WiFi module by default, you can flexibly customize or upgrade the software/hardware by yourself.
