Round 2D Codes Scanner Module, Barcode/QR code Reader, With LED Indicator, Small Size, Easy to Integrate

2D Codes Scanner Module

1D/2D Codes Recognition | Small Size | Screen scanning

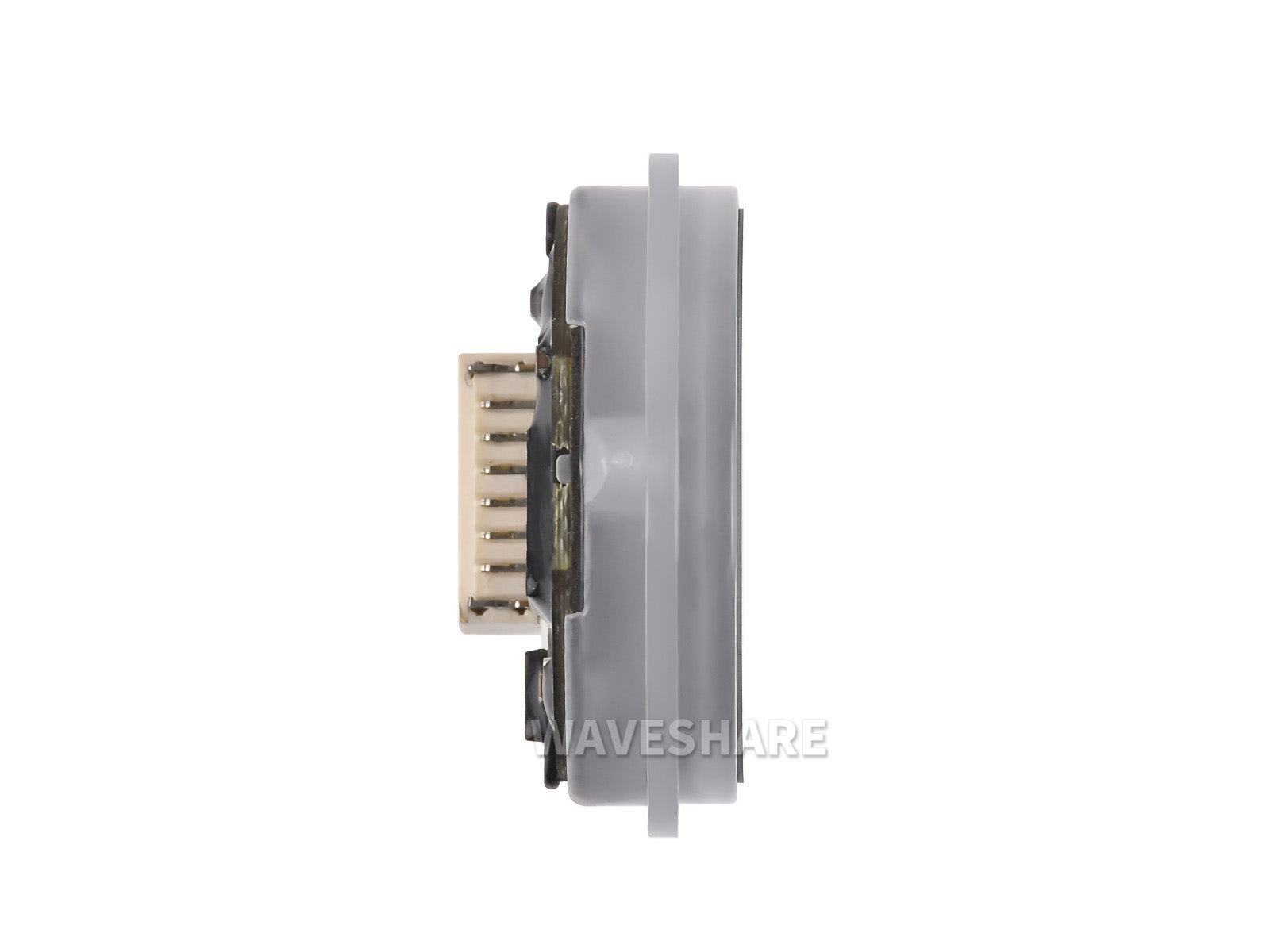

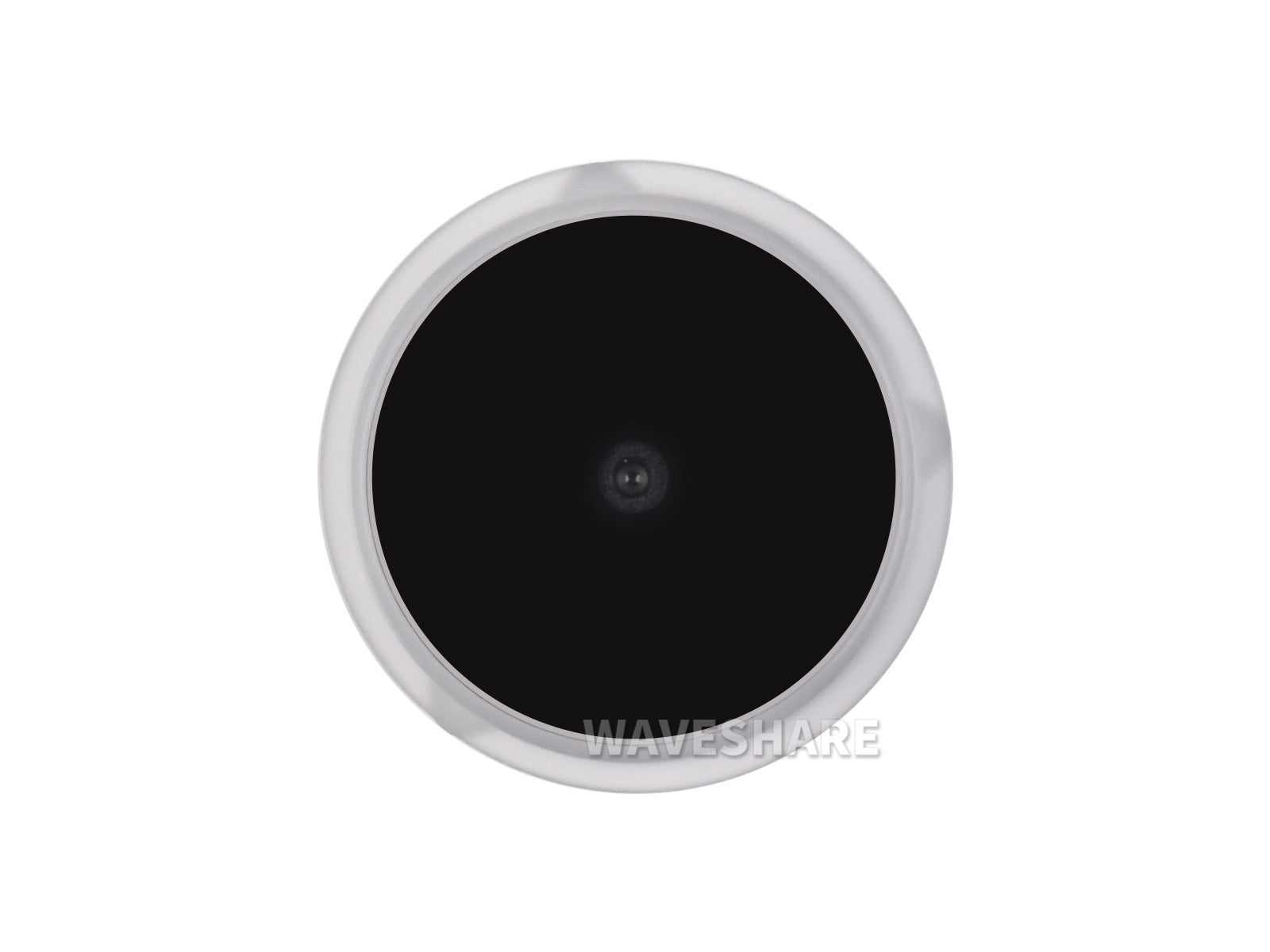

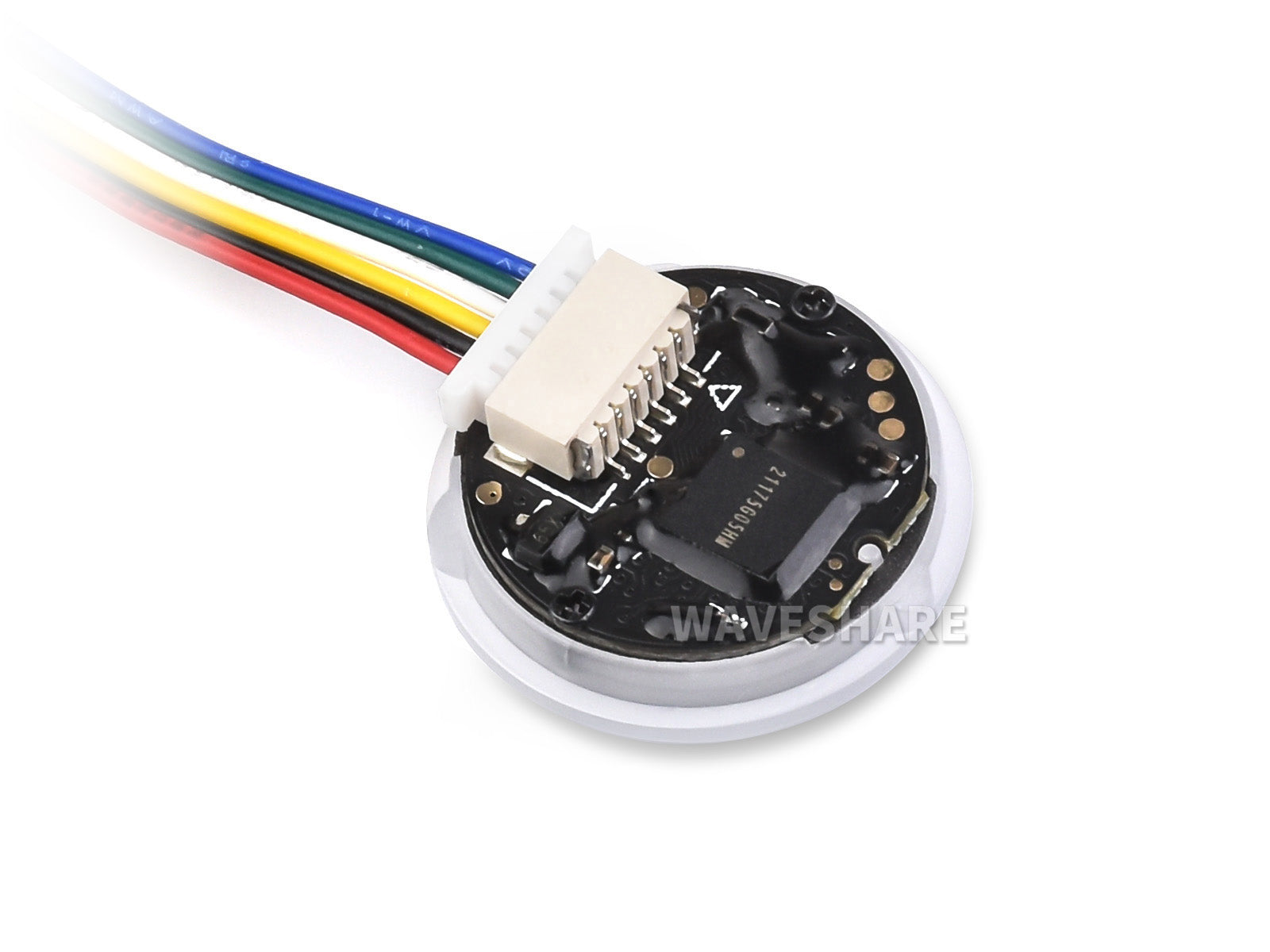

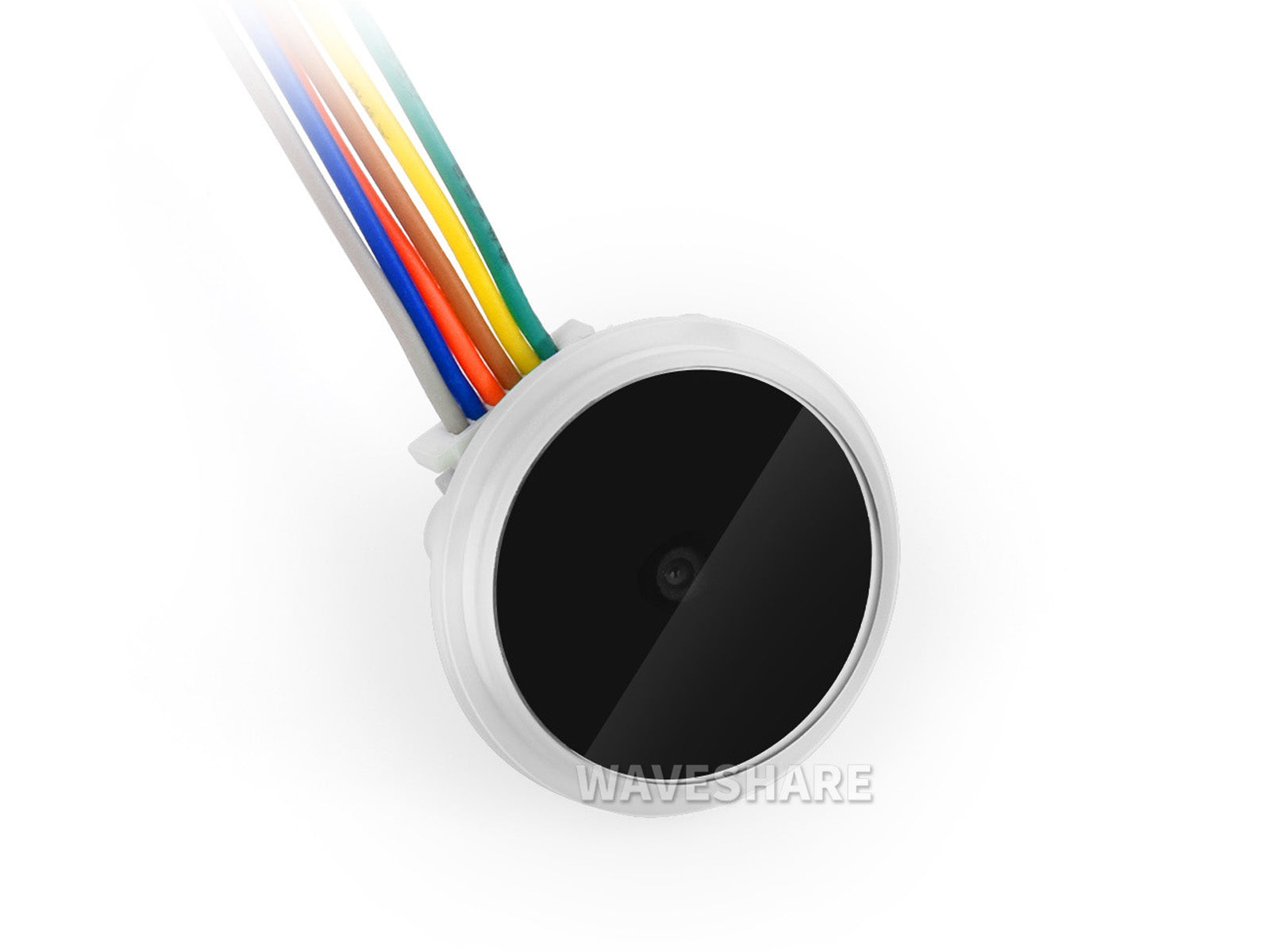

TheBarcode Scanner Module (D) is a round 2D barcode scanner module with LED indicator, highly integrated and compact size, suitable for elevator and other code scanning applications. Adopts advanced image recognition algorithms, easy to decode various 1D or 2D codes. Onboard UART interface, can be easily integrated into kinds of embedded devices.

Specifications

Resolution		640 × 480
Scan angles		horizontal 70°, vertical 55°, roll 360°
Scan mode		Sensing, Continuous
Accuracy		1D code ≥5mil2D code ≥10mil
Communication Interface		UART port (9600 8N1 by default)
LED Indicator		Blue: scanning Green: decoded successfully
Power Supply		3.3V
Current		120mA
Protection	ESD protection	contact discharge 6 kV, air discharge ±12KV
Protection	IP protection	IP54 (front side)
Temperature	Operating	-30 ~ +70°C
Temperature	Storage	-40 ~ +80°C
Working humidity		5%RH ~ 95%RH (non-condensing)

Decoding Capability

CODE TYPE	BARCODE	DEFAULT READABLE	DEFAULT Disable
2D	QR Code	√
	DataMatrix	√
	PDF417	√
1D	EAN-13	√
	EAN-8	√
	UPC-A	√
	UPC-E	√
	Codabar	√
	Code 128	√
	Code 93	√
	Code 39	√
	Code 11		√
	Interleaved 2 of 5		√
	Industrial 2 of 5		√
	Matrix 2 of 5		√
	CS Databar(RSS)		√
	MSI-Plessey		√
