RP2350 2.8inch Round Display Development Board, 480×480, Based On The Raspberry Pi RP2350B Dual-core & Dual-architecture Microcontroller, RGB Interface
Regulärer Preis
17.153 Ft
Verkaufspreis
17.153 Ft
Regulärer Preis
0 Ft
Einzelpreis
pro
Sale
Ausverkauft
Steuer enthalten.
Versand wird an der Kasse berechnet.
Abholverfügbarkeit konnte nicht geladen werden
RP2350 2.8inch Round Display Development Board, 480×480, Based On The Raspberry Pi RP2350B Dual-core & Dual-architecture Microcontroller, RGB Interface
RP2350 2.8″ Round LCD Development Board
480×480 resolution, multiple peripheral interfaces
Features
RP2350-Touch-LCD-2.8C is a high-performance, highly integrated MCU board designed by Waveshare. Integrates high-capacity Flash, with onboard 2.8inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other RP2350 applications.
- RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
- 520KB of SRAM, and 16MB of onboard Flash memory, with reserved solder pads for PSRAM chip expansion
- Onboard 2.8inch LCD display, 480×480 resolution
- Supports touch control via I2C interface, with interrupt support
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
Display parameters
| Display Panel | IPS | Display Size | 2.8 inch |
|---|---|---|---|
| Resolution | 480 × 480 | Contrast Ratio | 1200:1 |
| Communication Interface | RGB | Driver IC | ST7701 |
| Touch Interface | I2C | Touch IC | GT911 |
Application Scenarios

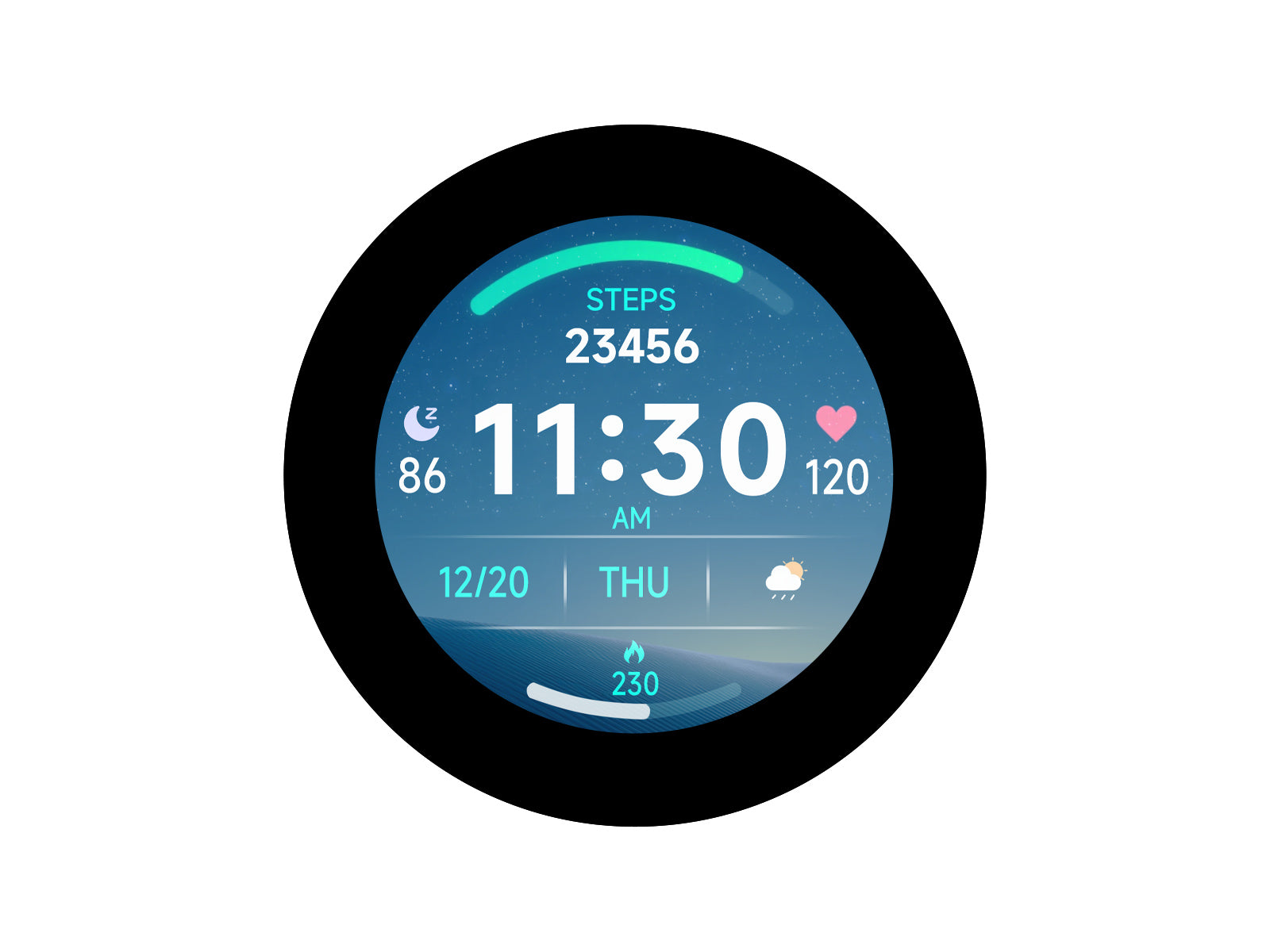

IPS Display Panel
Excellent display performance, 160° viewing angle
dual-core, dual-architecture
The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
Support C/C++, MicroPython, Arduino IDE
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Supports multiple peripherals
Supports the expansion of multiple peripherals via GPIO, UART, and I2C interfaces, etc.

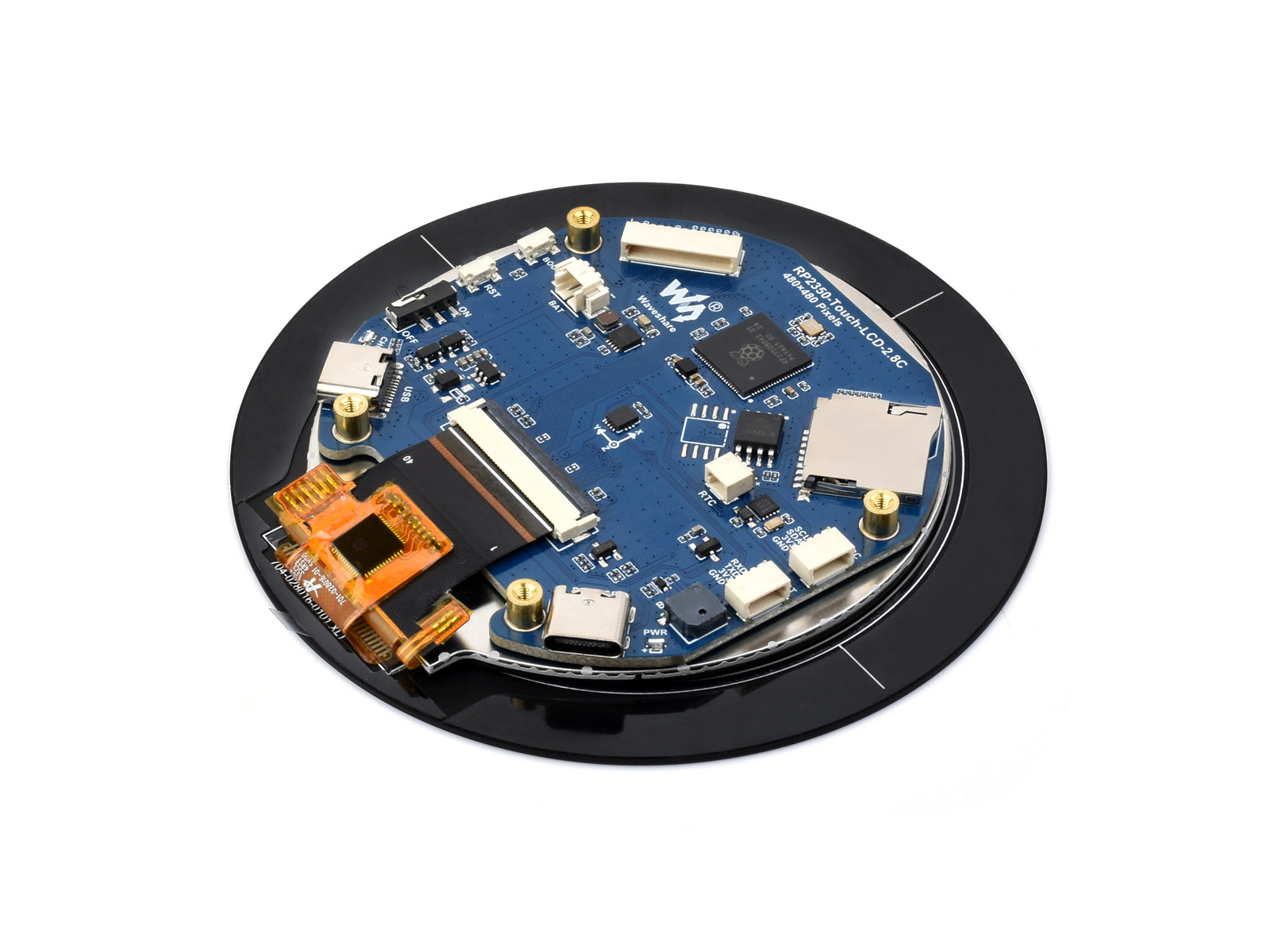

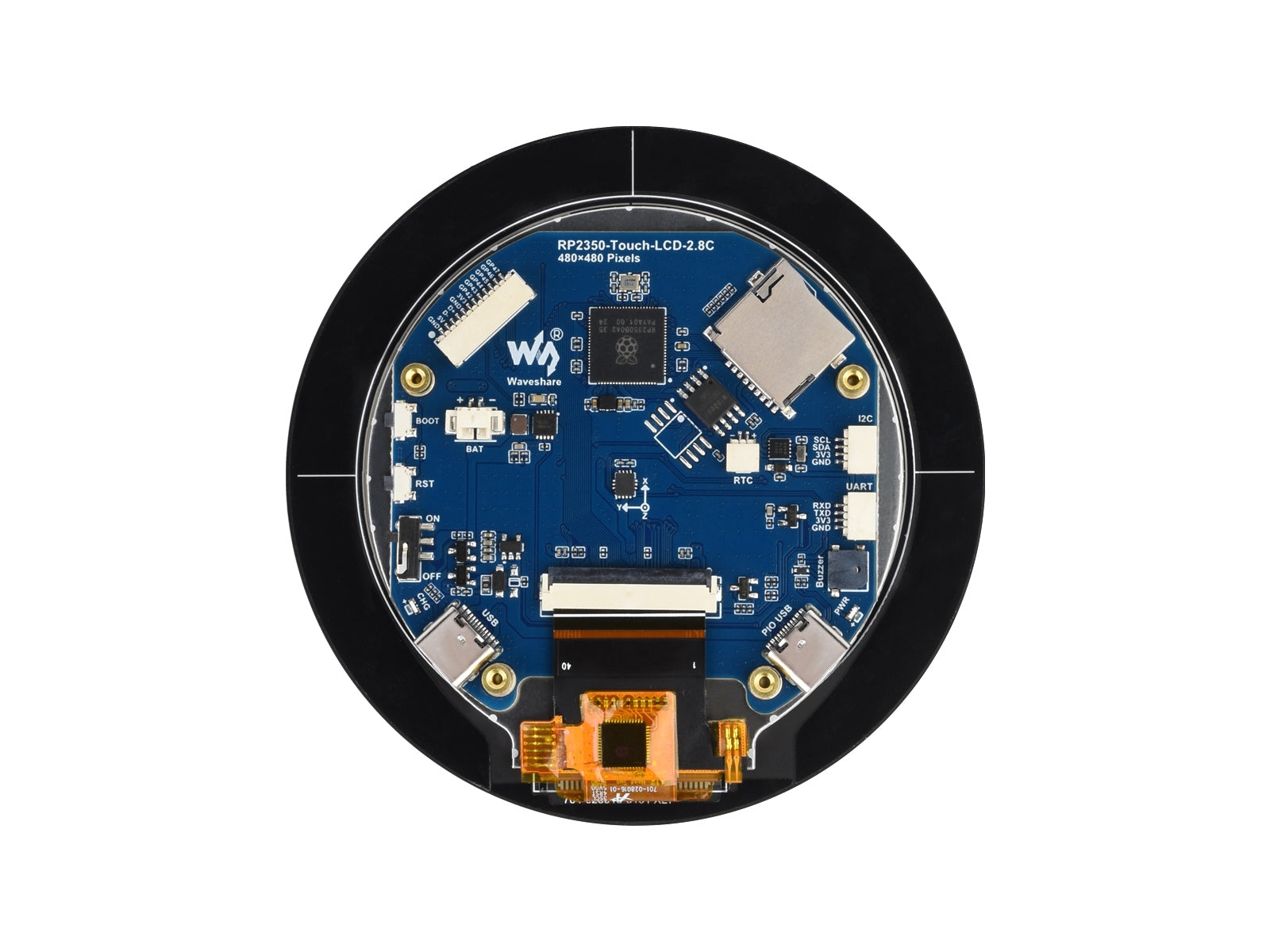

What's On Board
- RP2350B Dual-core and dual-architecture design, up to 150 MHz operating frequency
- 16MB Flash
- Reserved PSRAM chip solder pads
- TF card slot
- RTC battery headerfor connecting rechargeable RTC battery
- PCF85063RTC chip
- I2C headerconnecting with internal chip, only supports the I2C peripherals and cannot be mapped to other functions
- UART header
- Buzzer
- PIO-USB Type-C port for using as a USB host or device via PIO
- USB Type-C connector for programming, USB 1.1 with device and host support
- ME6217C33M5GLow dropout regulator, 800mA output (Max.)
- Charge indicatorLithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
- Battery power supply ON/OFF
- RESET button
- BOOT button
- MX1.25 battery headerMX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging
- ETA6096Battery recharge manager
- QST attitude sensor
- 12PIN multi-functional pin header
outline dimensions
Pico Product Selection
| PRODUCT | Voltage regulator chip | USB | Flash | Lithium battery header | Onboard LCD |
|---|---|---|---|---|---|
| RP2350 chip | |||||
 Raspberry Pi Pico 2 | DC-DC, 800mA | Micro USB | 4MB | - | - |
 Raspberry Pi Pico 2 W | DC-DC, 800mA | Micro USB | 4MB | - | with WIFI and Bluetooth |
 Raspberry Pi Pico 2 WH | DC-DC, 800mA | Micro USB | 4MB | - | with WIFI and Bluetooth |
 CAN ver. | DC-DC, 2000mA | Type-C | 4MB | - | CAN interface |
 Type-A ver. | LDO, 500mA | Type-A | 4MB | - | - |
 Type-C ver. | LDO, 800mA | Type-C | 4MB | - | - |
 Tiny ver. | LDO, 800mA | Separate Type-C port adapter | 4MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
 RGB Matrix ver. | LDO, 800mA | Type-C | 16MB | - | Onboard 8 x 8 RGB LED Matrix |
 ETH Port ver. | LDO, 800mA | Type-C | 4MB | - | with Ethernet port |
 USB ver. | LDO, 500mA | Type-A, Type-C | 2MB | - | with PIO-USB Type-A and USB Type-C port |
 core board | LDO, 800mA | Separate Type-C port adapter | 16MB | - | - |
 wireless Plus ver. | LDO, 800mA | Type-C | 16MB | - | Supports Wi-Fi and Bluetooth |
 1.28inch Round LCD ver. | LDO, 300mA | Type-C | 4MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
 1.28inch Round Touch LCD ver. | LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS touch LCD |
 1.43inch Round Touch AMOLED ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.43inch AMOLED Touch LCD |
 1.64inch Touch AMOLED ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.64inch AMOLED Touch LCD |
 1.75inch Round Touch AMOLED ver. | DC-DC, 2000mA LDO,300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.75inch AMOLED Touch LCD |
 1.8inch Touch AMOLED ver. | DC-DC, 2000mA LDO，300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.8inch AMOLED Touch LCD |
 1.46inch Round Touch ver. | DC-DC, 2000mA | Type-C | 16MB | - | 1.46inch touch LCD |
 1.47inch LCD ver. | LDO, 300mA | Type-C | 16MB | - | 1.47inch IPS LCD |
 1.47inch LCD USB ver. | LDO, 300mA | Type-A | 16MB | - | 1.47inch IPS LCD |
 1.54inch LCD ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.54inch IPS LCD |
 1.54inch Touch LCD ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.54inch IPS Touch LCD |
 1.69inch Touch LCD ver. | LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.69inch Touch LCD |
 2inch Touch LCD ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2inch Touch LCD |
 2.1inch Round Touch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2.1inch Touch LCD |
 2.1inch Round Curved Touch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2.1inch 2.5D Curved Touch LCD |
 2.41inch Touch AMOLED ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2.41inch Touch AMOLED |
 2.8inch Touch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2.8inch IPS Touch LCD |
 2.8inch Round Touch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2.8inch IPS Touch LCD, RGB interface |
 3.49inch Touch LCD ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 3.49inch IPS Touch LCD |
 3.5inch Touch LCD ver. | DC-DC, 2000mALDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 3.5inch Touch LCD |
 4inch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 4inch IPS LCD, RGB interface |
 4inch Touch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 4inch IPS Touch LCD, RGB interface |
 4.3inch Touch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 4.3inch IPS Touch LCD, RGB interface |
 7inch Touch LCD ver. | DC-DC, 3000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 7inch IPS Touch LCD, RGB interface |
 7inch LCD ver. | DC-DC, 3000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 7inch IPS LCD, RGB interface |
 0.96 LCD ver. | DC-DC, 2000mA | Type-C | 4MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
 Plus ver. | DC-DC, 2000mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
 DVI port ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | Onboard DVI interface, TF card slot and PIO-USB port |
| RP2040 chip | |||||
 Raspberry Pi Pico W | DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
 Raspberry Pi Pico WH | DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
 Raspberry Pi Pico | DC-DC, 800mA | Micro USB | 2MB | - | - |
 Raspberry Pi Pico H | DC-DC, 800mA | Micro USB | 2MB | - | - |
 Type-A ver. | LDO, 500mA | Type-A | 4MB | - | - |
 Mini ver. | LDO, 800mA | Type-C | 2MB | - | - |
 Tiny ver. | LDO, 500mA | Separate Type-C port adapter | 2MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
 RGB Matrix ver. | LDO, 500mA | Type-C | 2MB | - | Onboard 5×5 RGB LED matrix |
 BLE ver. | LDO, 300mA | Separate Type-C port adapter | 2MB | - | Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC |
 ETH Port ver. | LDO, 500mA | Type-C | 4MB | - | with Ethernet port |
 0.99inch Round LCD with case ver. | LDO, 500mA | Type-C | 2MB | - | 0.99inch IPS LCD, CNC metal case |
 1.28inch Round LCD ver. | LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
 1.28inch Round LCD with case ver. | LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD, CNC metal case |
 1.28inch Round Touch LCD ver. | LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD |
 1.28inch Round Touch LCD with case ver. | LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD, CNC metal case |
 1.69inch Touch LCD ver. | LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.69inch Touch LCD |
 1.85inch Touch LCD ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.85inch Touch LCD |
 0.96 LCD ver. | DC-DC, 1800mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
 Plus ver. | DC-DC, 1800mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
 DVI port ver. | LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | Onboard DVI interface, TF card slot and PIO-USB port |
 Cam & LCD ver. | - | Type-C | 16MB | - | Onboard grayscale camera and 1.14inch IPS LCD display |
Lieferumfang
- RP2350-Touch-LCD-2.8C x1
- SH1.0 12PIN cable ~100mm ×1
- SH1.0 4PIN cable ~100mm ×2
