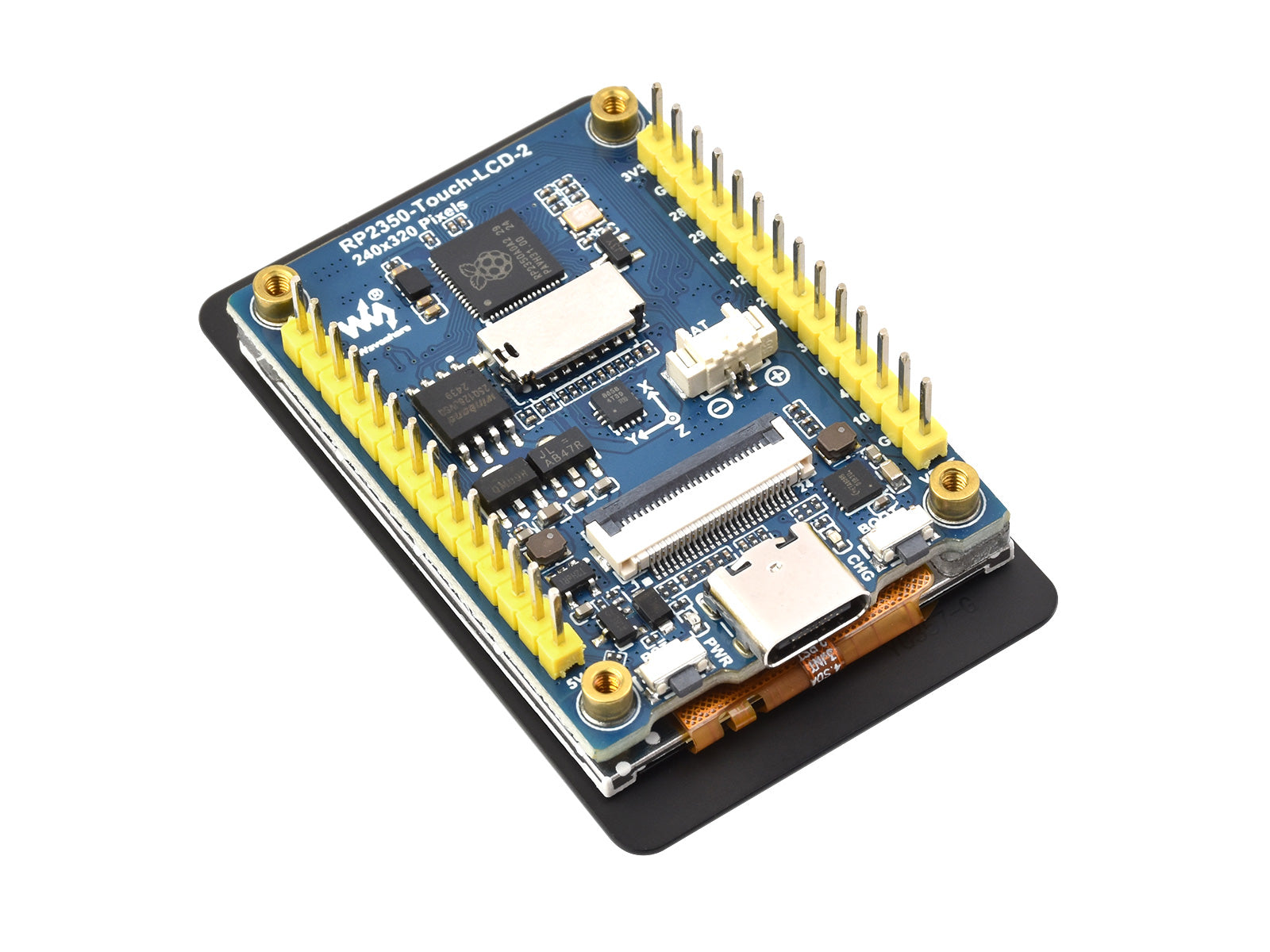

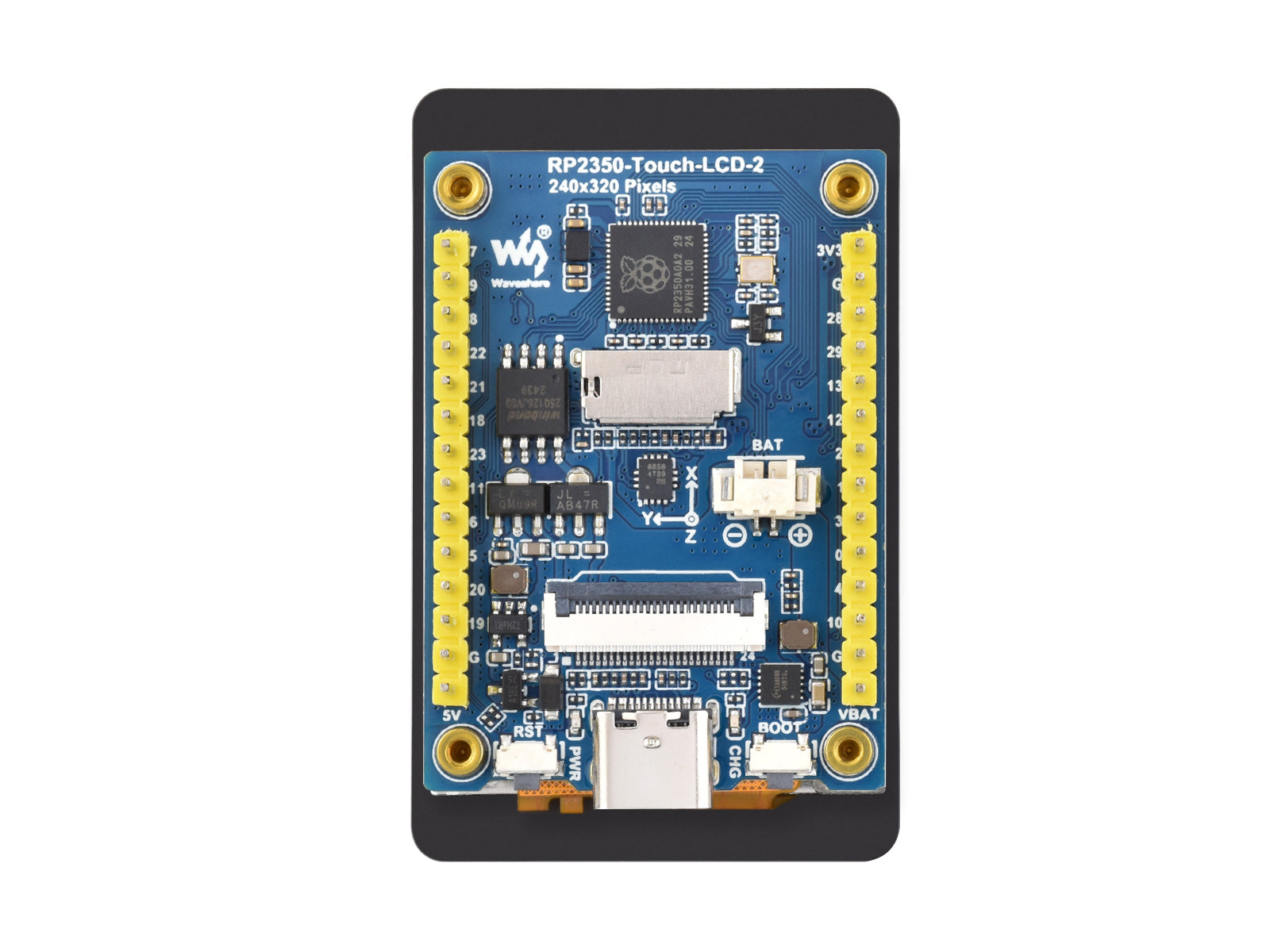

RP2350 2inch Capacitive Touch Display Development Board, 240×320 Pixels, IPS Panel, 262K Color, Onboard Camera Interface

RP2350-Touch-LCD-2 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 2inch capacitive touch LCD, camera interface, TF card slot, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into the products quickly.

Key features include:

• RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB SRAM and 16MB onboard Flash memory
• Type-C connector, improving device compatibility, easier to use

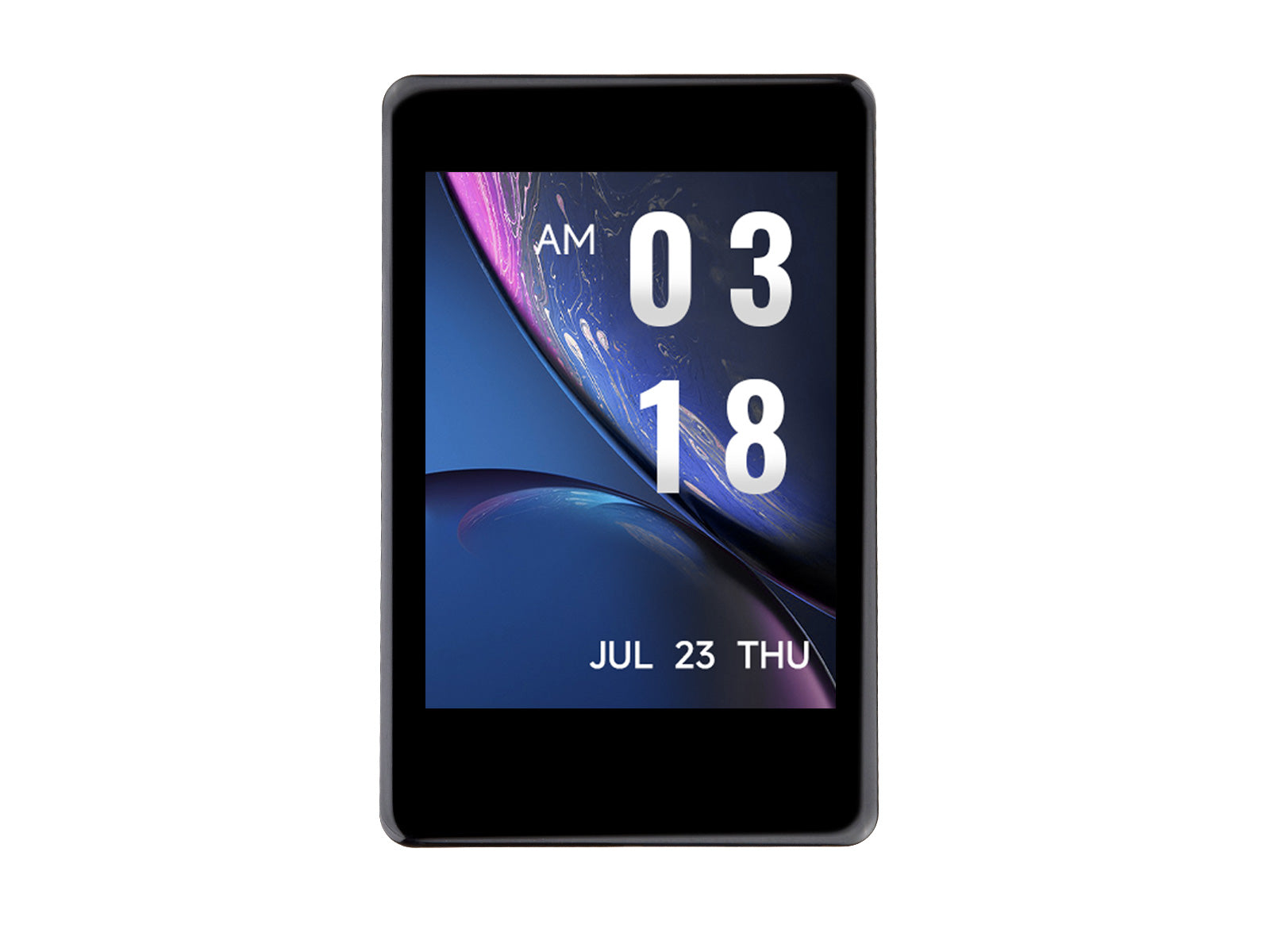

• Onboard 2inch capacitive touch display, 240 × 320 resolution, 262K color
• Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition
• Lithium battery recharge/discharge header, suitable for mobile devices
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Adapting 22 × GPIO pins for flexible configuration of pin function
• 2 × SPI, 2 × I2C, 2 × UART, 2 × 12-bit ADC, 14 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• 12 × Programmable I/O (PIO) state machines for custom peripheral support
