SKU:WSAL27476

RTL8822CE Wireless NIC, 2.4G/5GHz Dual-Band WiFi 5, Bluetooth 5.0, High Speed And Low Latency, RTL8822CE-CG core, High Speed Wireless Card

Wireless RTL8822CE NIC

Dual-Band WiFi

Bluetooth 5.0

Features At A Glance

• Supports 2.4G/5GHz dual-band, the speed up to 300Mbps in the 2.4GHz band and 867Mbps in the 5GHz band
• Bluetooth 5.0 standard, compatible with Bluetooth 2.1+EDR
• Adopts NGFF (M.2 A/E Key) interface
• Supports 802. 11ac Wave-2 MU-MIMO and 802. 2.4/5G dual-band 11n MIMO
• Supports Linux, Windows 10/11, etc.

Module and Expansion Board support

Jetson Xavier NX

Jetson Orin NX/Nano

Jetson Nano

Jetson Xavier NX IO Baseboard

Jetson Orin NX/Nano IO Baseboard

Jetson Nano IO Baseboard (supports jetpack v4.6.1 or greater)

Adopts RTL8822CE-CG Core

Supports IEEE 802.11 a/b/g/n/ac

Dual-band Wi-Fi

Supports 2.4G/5GHz dual-band, the speed up to 300Mbps in the 2.4GHz band and 867Mbps in the 5GHz band

Bluetooth 5.0 with BLE support

Can be connected to Bluetooth devices such as mobile phones, computers, gamepads, etc. for wireless connection and transmission

Interface Introduction

Access to antenna via IPEX connector

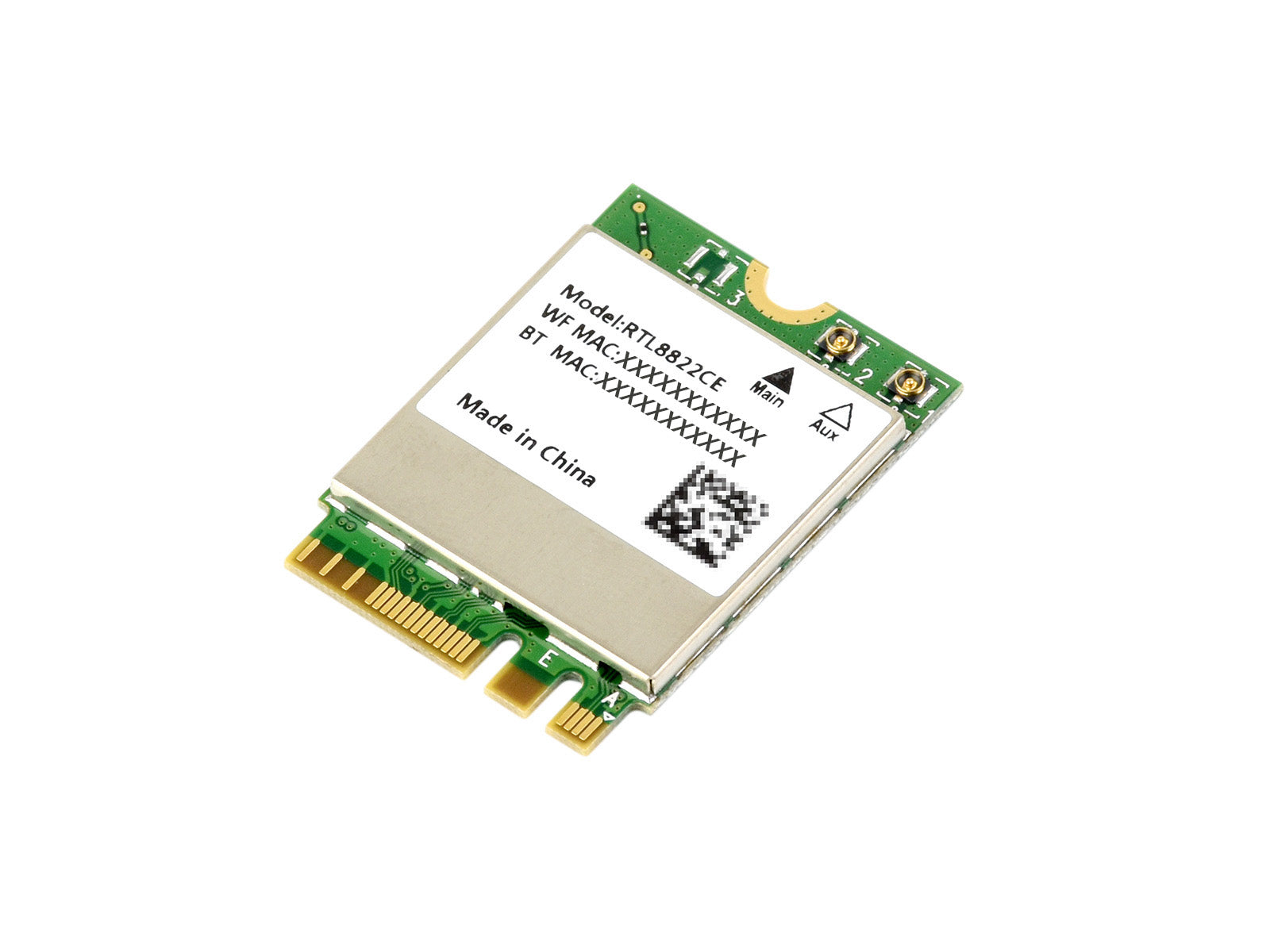

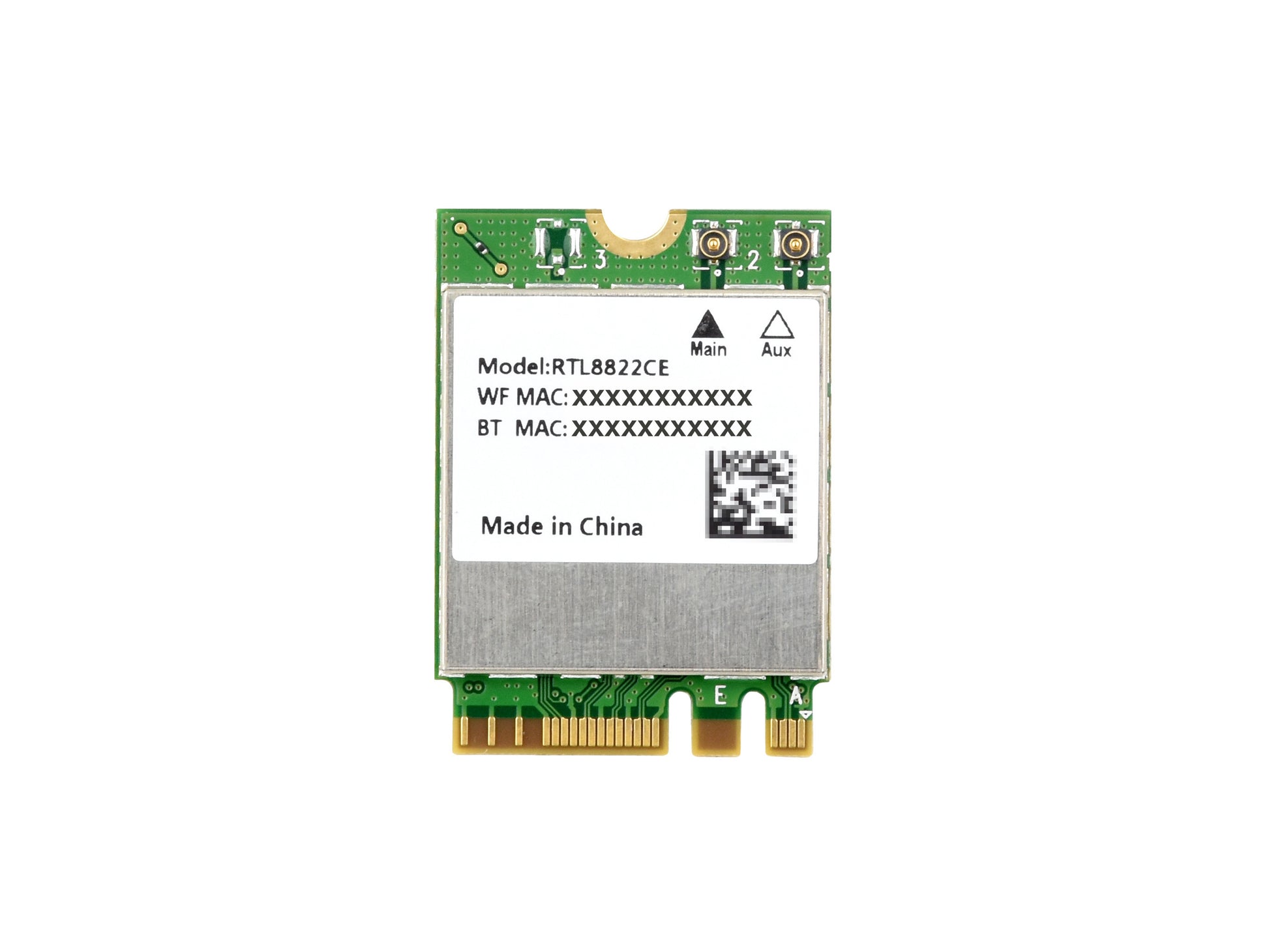

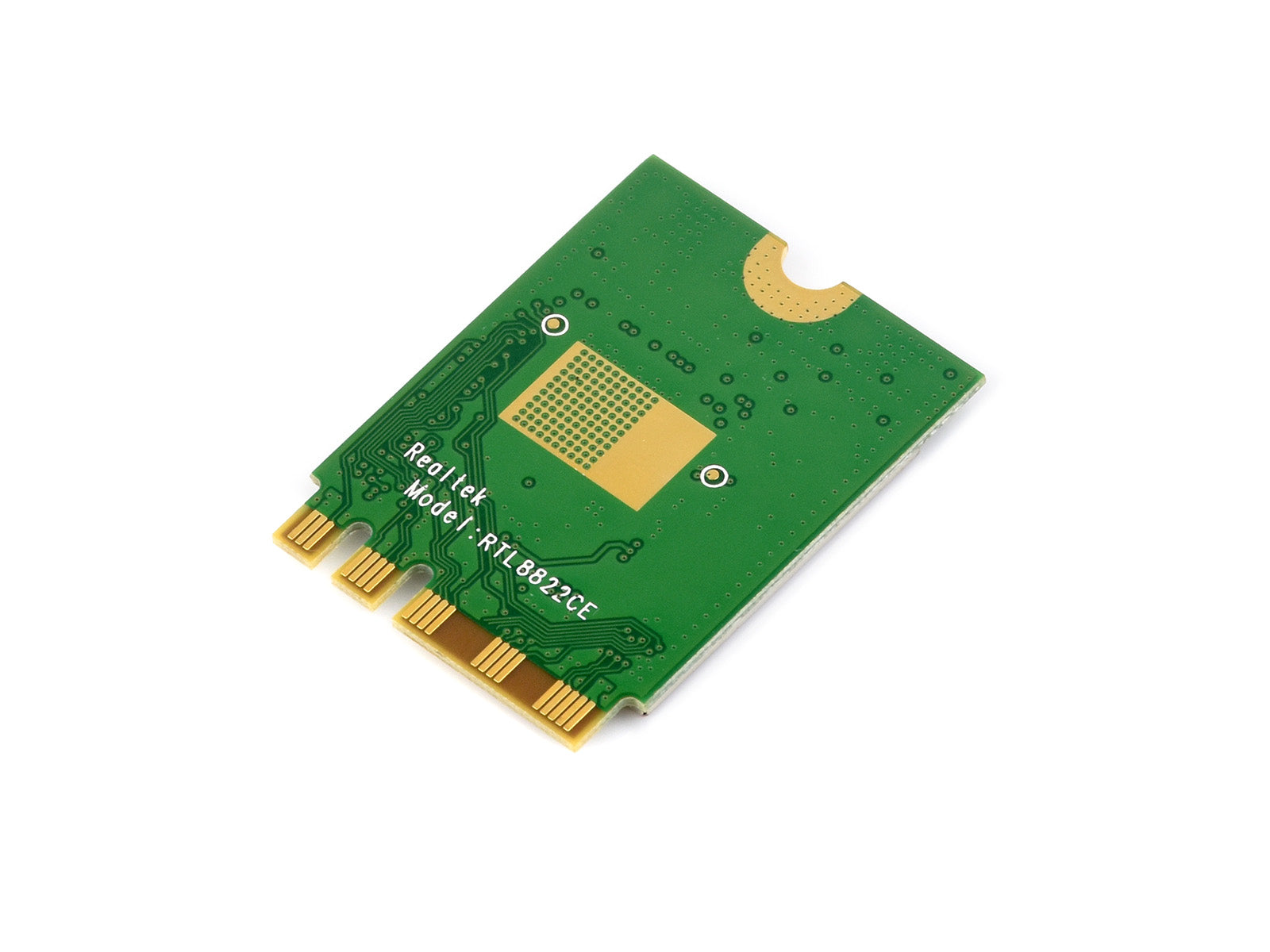

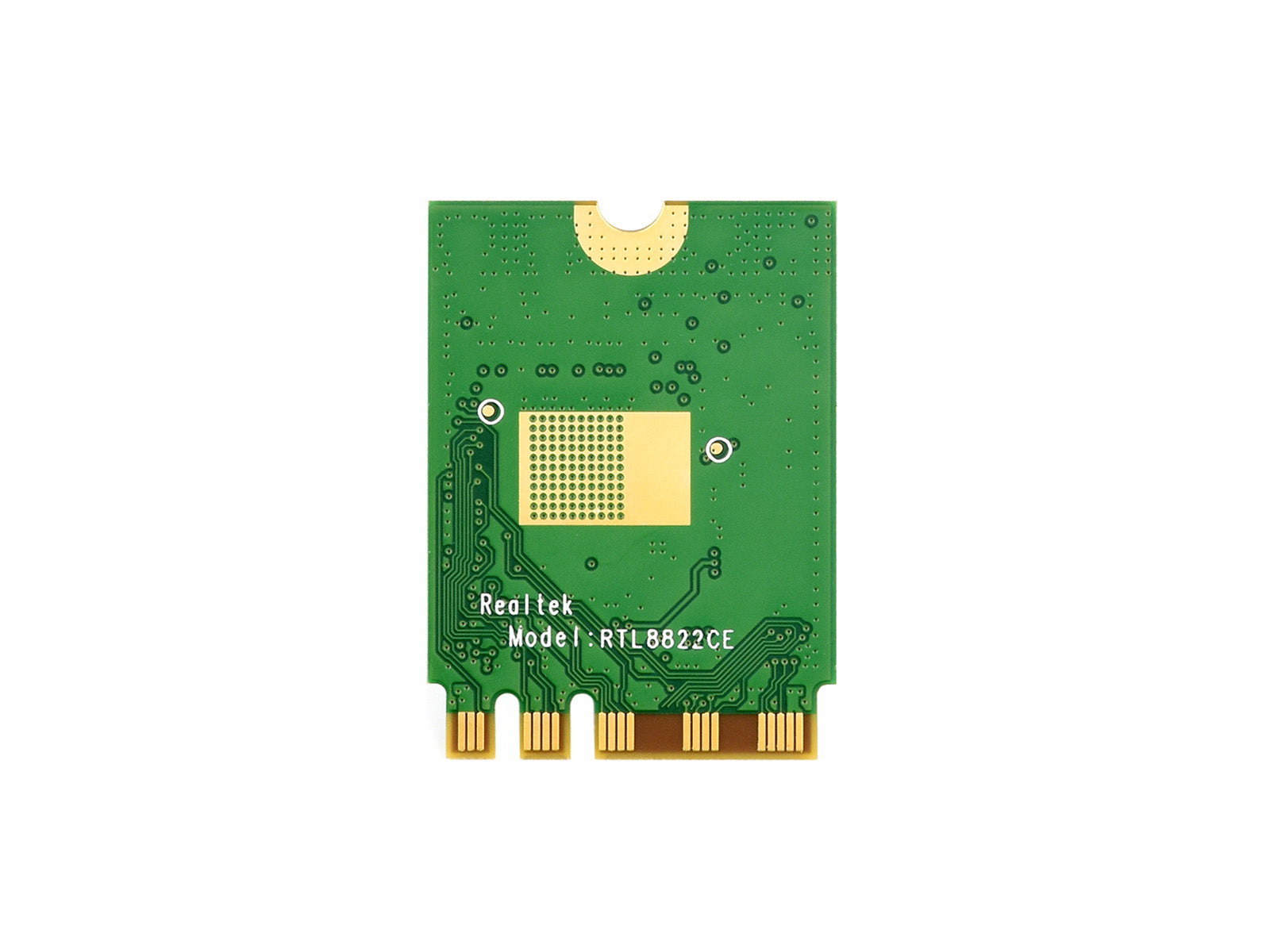

Product Show

Outline dimensions

Resources & Services

WIKI:www.waveshare.com/wiki/Wireless-RTL8822CE

Lieferumfang

1. Wireless-RTL8822CE x1
2. IPEX to SMA cable ~20cm x2
3. Antenna x2

1

2

3
