Sense HAT (C) for Raspberry Pi, Onboard Multi Powerful Sensors, Supports External Sensors

Sense HAT (C) for Raspberry Pi

Specially Designed For Raspberry Pi

Onboard Gyroscope, Accelerometer, Magnetometer, Barometer, Temperature and humidity sensor, etc.Communicated Via I2C Interface, Supports External Sensors

Features at a glance

Trying to make the Pi become a robot that can detect movement and orientation? Or using the Pi to collect environmental temperature, humidity, and barometric pressure data? This HAT would be your ideal choice.

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• Onboard QMI8658C+AK09918 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic
• Onboard SHTC3 digital temperature and humidity sensor, allows monitoring the environment
• Onboard LPS22HB barometric pressure sensor, allows monitoring the environment
• Onboard TCS34725 color sensor, identifies the color of nearby object
• Onboard SGM58031, 4-ch 16-bit precision ADC, AD expansion to support more external sensors
• Brings I2C control pins, for connecting other host boards like STM32
• Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications

QMI8658c Motion Sensor(3-axis accelerometer and 3-axis gyroscope)
I2C Address	0x6B
Accelerometer Resolution	16-bit
Accelerometer Measurement Range (configurable)	±2, ±4, ±8, ±16 (g)
Gyroscope Resolution	16-bit
Gyroscope Measurement Range (configurable)	±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048 (°/sec)
AK09918 3-axis magnetometer
I2C Address	0x0C
Resolution	16-bit
Measurement Range (configurable)	±4912 µT
SHTC3 Digital Temperature And Humidity Sensor
I2C Address	0x70
Temperature Ranging	-30 ~ 100°C (Accuracy ±0.2°C)
Humidity Ranging	0% ~ 100% RH (Accuracy ±2% RH)
LPS22HB Barometric Pressure Sensor
I2C Address	0x5C
Measurement Range	260 ~ 1260 hPa
Accuracy (ordinary temperature)	±0.025 hPa
Speed	1Hz - 75Hz
SGM58031 ADC Converter
I2C Address	0x48
Channels	4
Accuracy	16-bit
TCS34087 Color Sensor
I2C Address	0x29
Gain Ratio	0.5×, 1×, 2×, 4×, 8×, 16×, 32×, 64×, 256×, 512×, 1024×, 2048×

Standard Raspberry Pi 40PIN GPIO Header

Customized For Raspberry Pi Series Board

for reference only, Raspberry Pi 4B is NOT included.

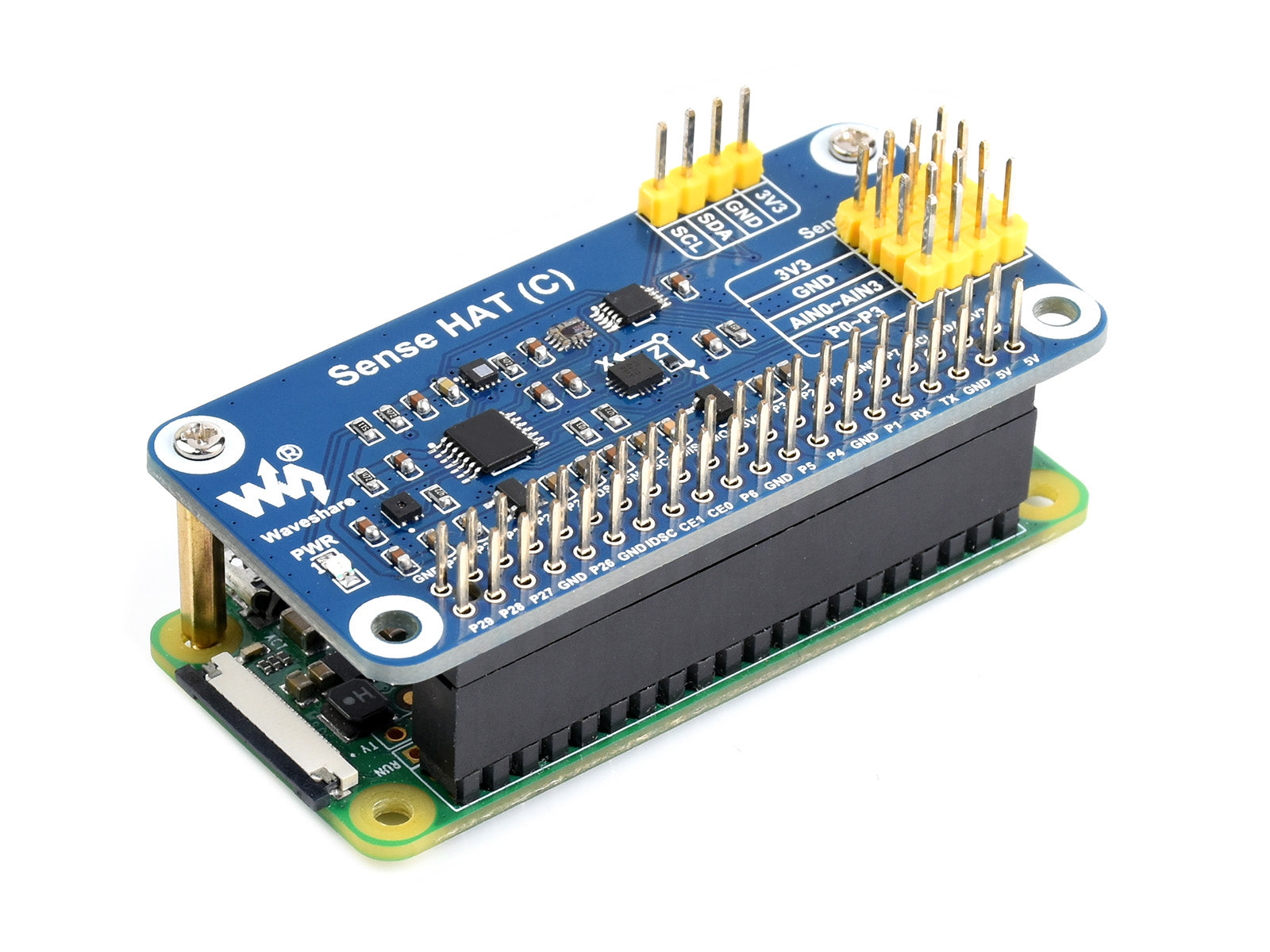

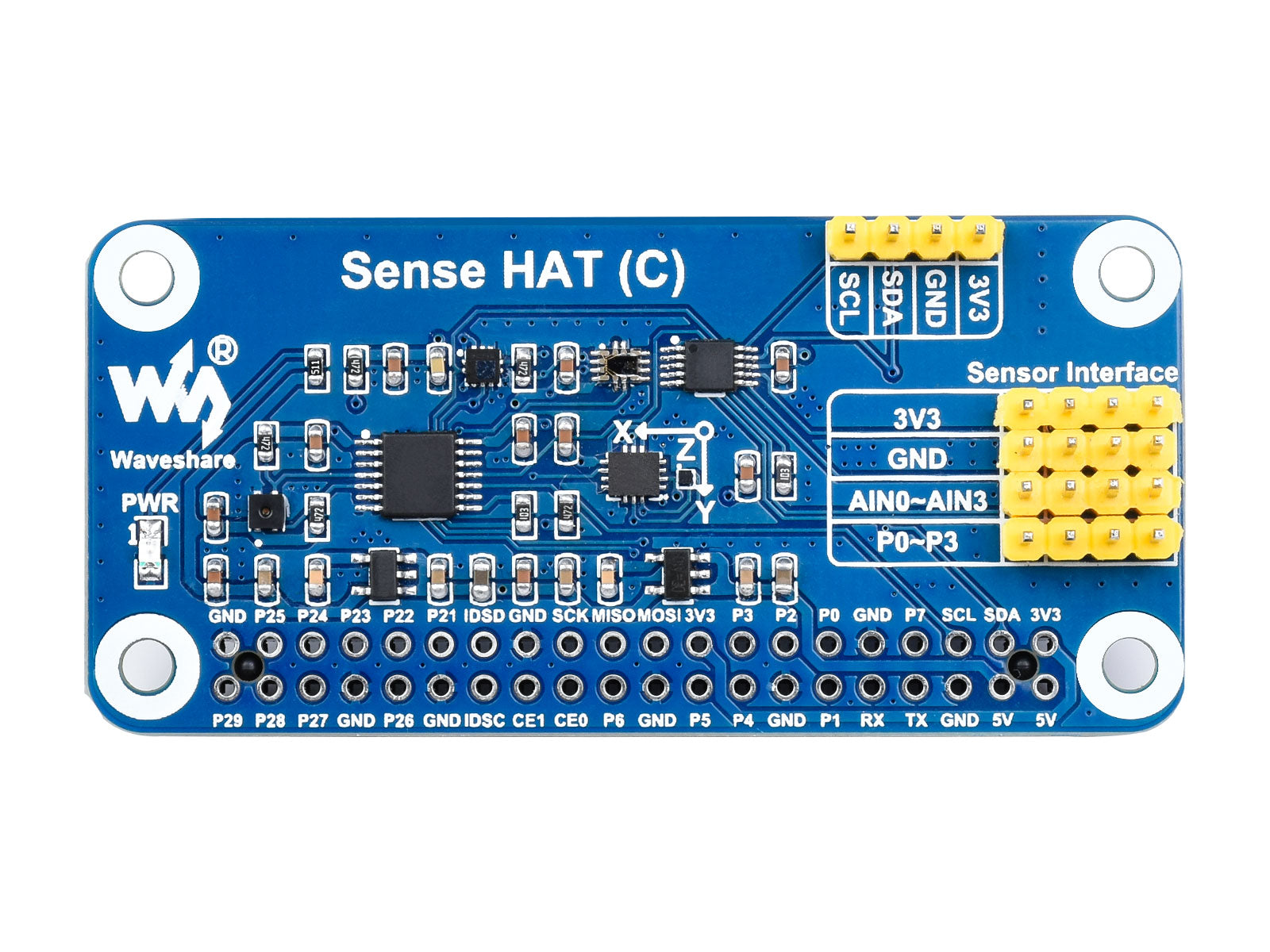

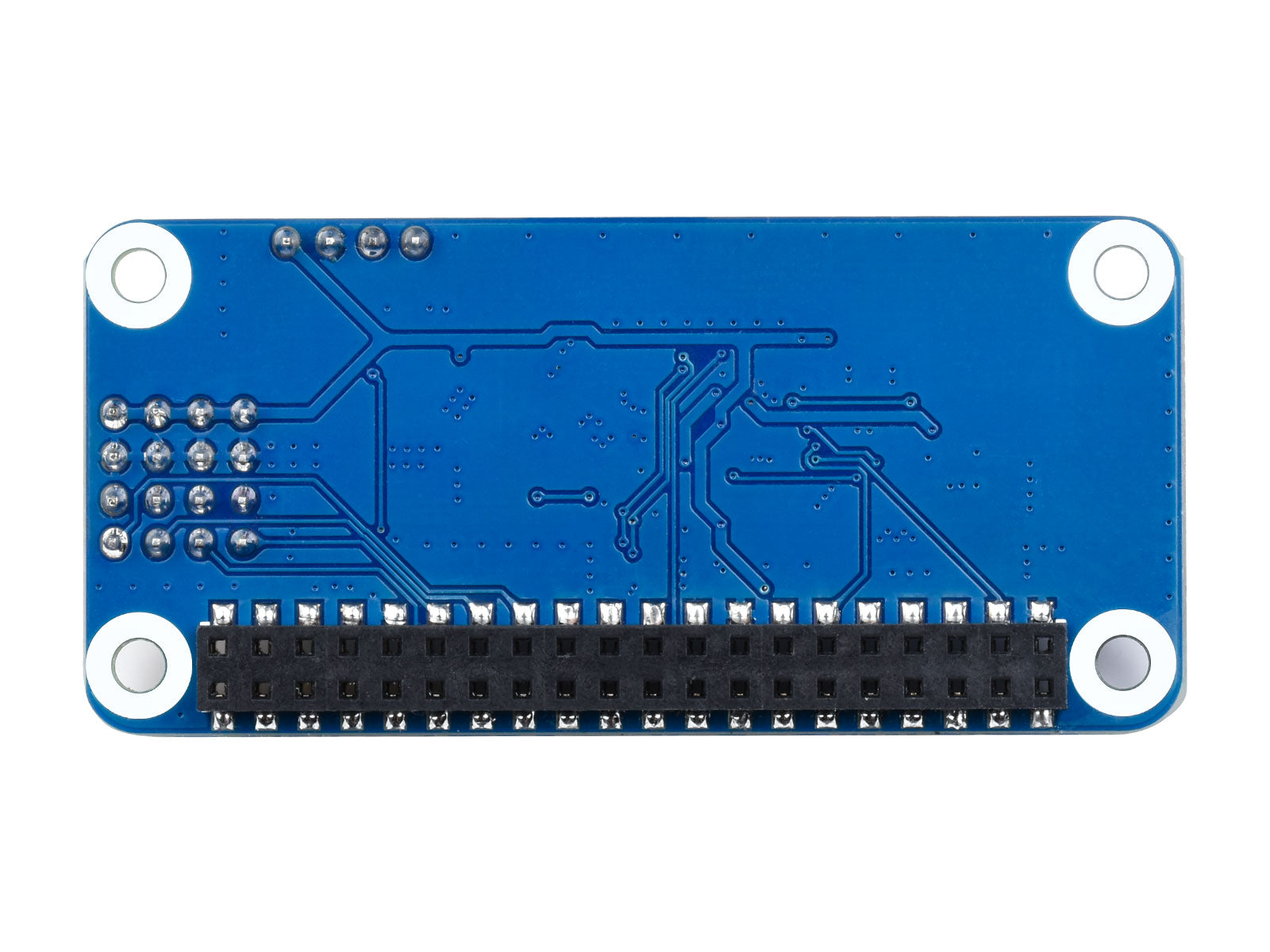

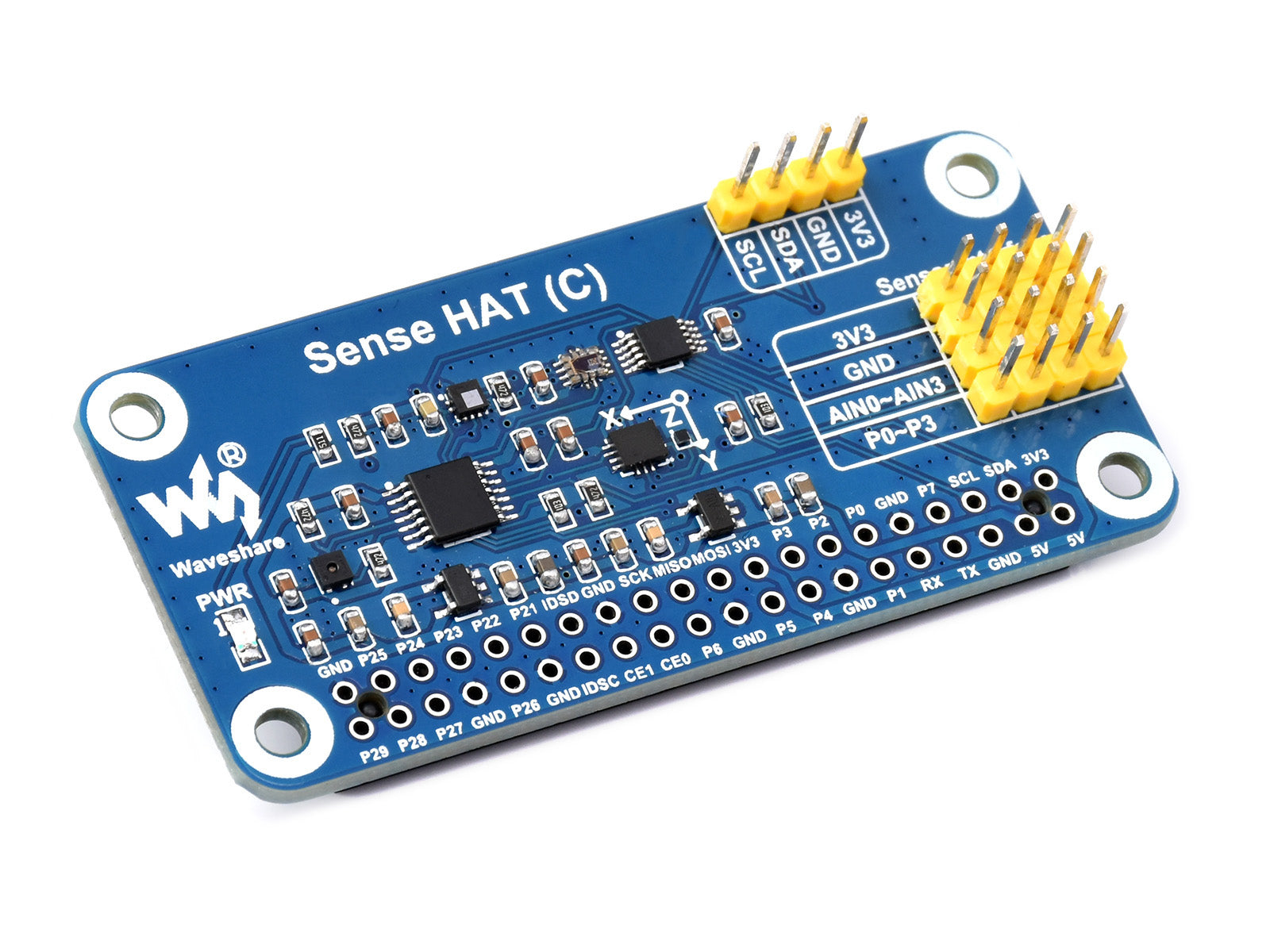

What's On Board

1. Raspberry Pi GPIO Header for connecting with Raspberry Pi
2. Sensor Interface for external sensors
3. I2C Extension Header for connecting with host boards like STM32
4. AK09918 3-axis magnetometer
5. QMI8658C 6-axis motion sensor
6. SHTC3 Temperature and humidity sensor

7. LPS22HB Barometric pressure sensor
8. TCS34725 Color sensor
9. SGM58031 16-bit ADC
10. LSF0204PWR 4-ch voltage level translator
11. RT9193-33 3.3V linear regulator
12. RT9193-18 1.8V linear regulator

Pin Definition

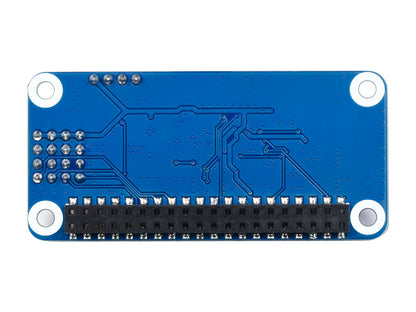

Product Show

Dimensions

Resources & Services

---

WIKI:www.waveshare.com/wiki/Sense_HAT_(C)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

product		Sense HAT (C)	Sense HAT (B)
Gyroscope	Ranging	±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048 °/sec	±250, ±500, ±1000, ±2000 dps
	Resolution	16-bit
Accelerator	Ranging	±2, ±4, ±8, ±16 g
	Resolution	16-bit
Magnetometer	Ranging	±49.12 gauss	±49 gauss
	Resolution	16-bit
Barometer	Ranging	260 ~ 1260 hPa
	Accuracy	±0.025 hPa (ordinary temperature)
	Speed	1 Hz ~ 75 Hz
Temp & Humidity	Ranging (Temp)	-30 ~ 100 °C
	Accuracy (Temp)	±0.2 °C
	Ranging (Humidity)	0% ~ 100% RH
	Accuracy (Humidity)	±2% RH
Others		Color Sensor, High-precision 16-bit AD converter

Lieferumfang

1. Sense HAT (C) x1
2. 2x20PIN female header x1
3. Screws pack x1

1

2

3
