SKU:WSAL27380

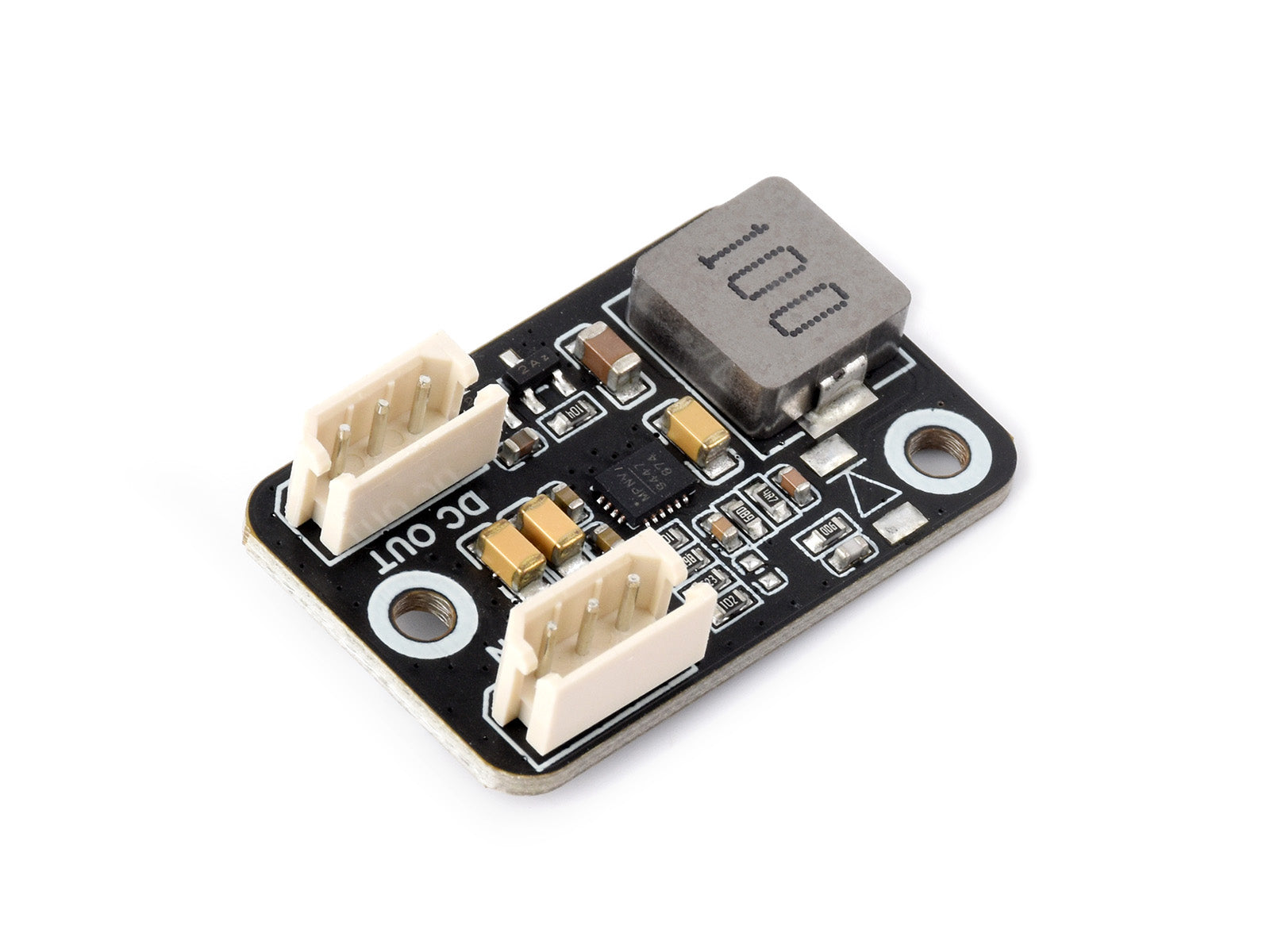

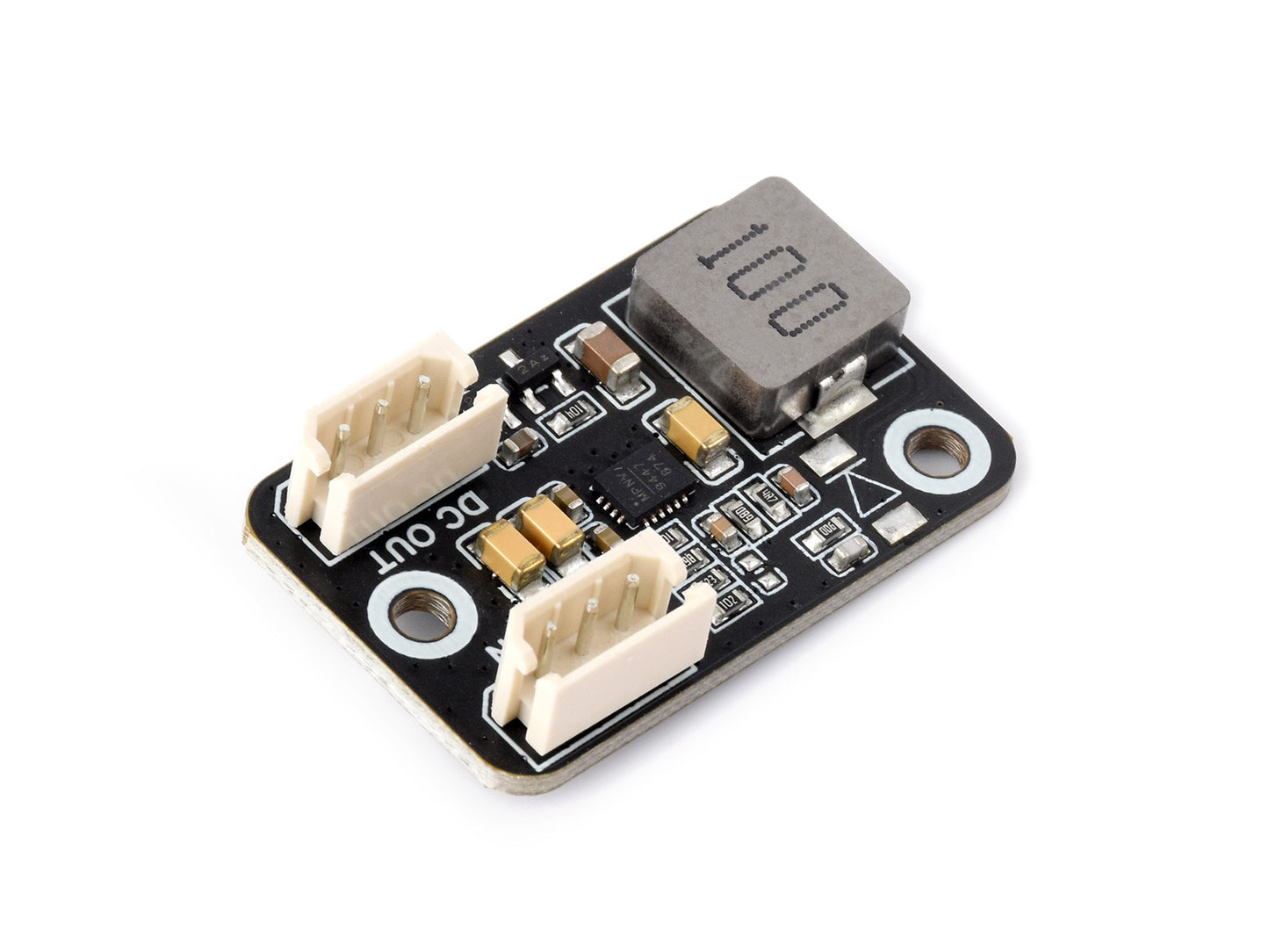

Serial Bus Servo DC Buck Adapter, Mini Module, Design for Serial Bus Servos, Easy to Use, 7.2V Buck Regulator

Serial Bus Servo DC Buck Adapter

7.2V Buck Regulator Designed for Serial Bus Servos

Features At A Glance

• 7.2V buck regulator, suitable for the servos such as SC15 ServoandSC09 Servo
• Mini size, more space-saving, easy to integrate into the projects
• 9~36V wide voltage input for more flexible project power selection
• Simply connect it in series in the servo circuit to use

Specifications

INPUT VOLTAGE	DC 9~36V
OUTPUT VOLTAGE	DC 7.2V
INTERFACE	SC/ST series servo 5264-3P header
DIMENSIONS	21.50 × 34.00mm
MOUNTING HOLE SIZE	2.70mm
PEAK CURRENT	3A

Application Examples

Working With General Driver for Robots driver board, More Flexible for Project Power Selection, Suitable for Serial Bus Servos Such As SC15 Servo and SC09 Servo

for reference only, the UPS module, driver board and servo are NOT included.

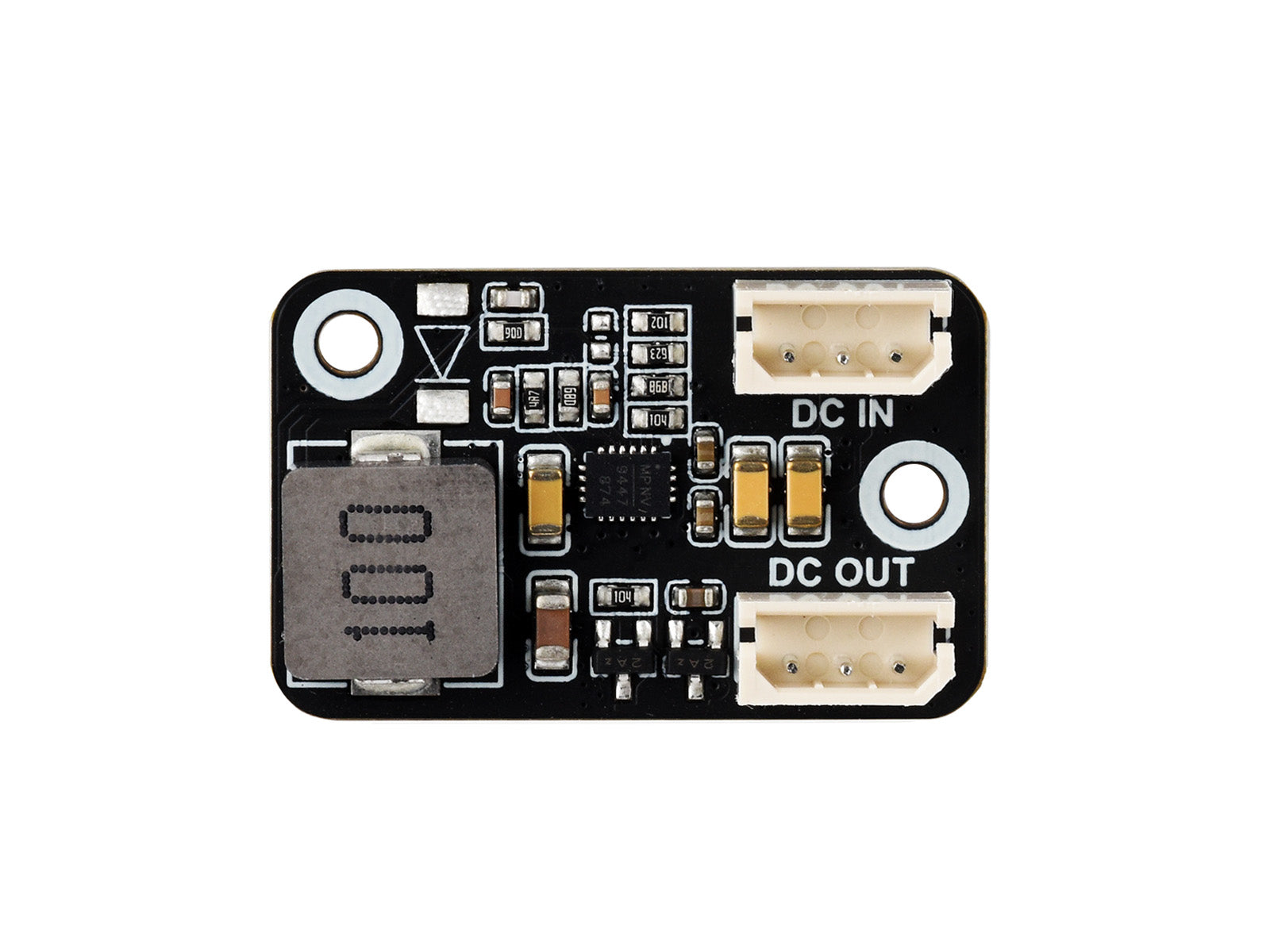

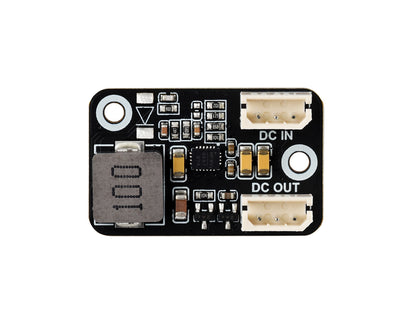

What's Onboard

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/DC_BUCK_Adapter_(7.2V)

Lieferumfang

1. DC BUCK Adapter (7.2V) x1
2. 30cm servo cable x1

1

2
