SKU:WSAL30717

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

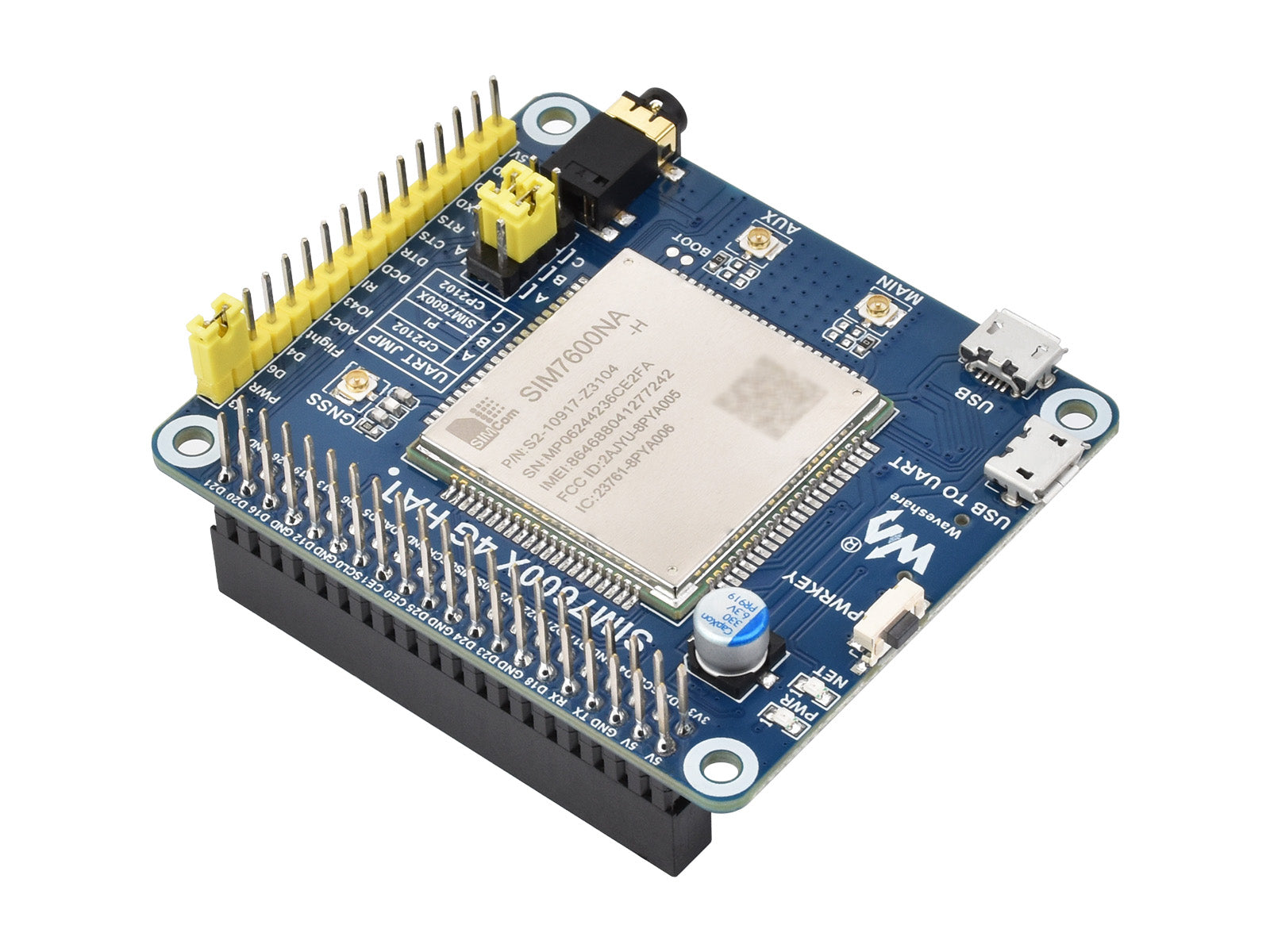

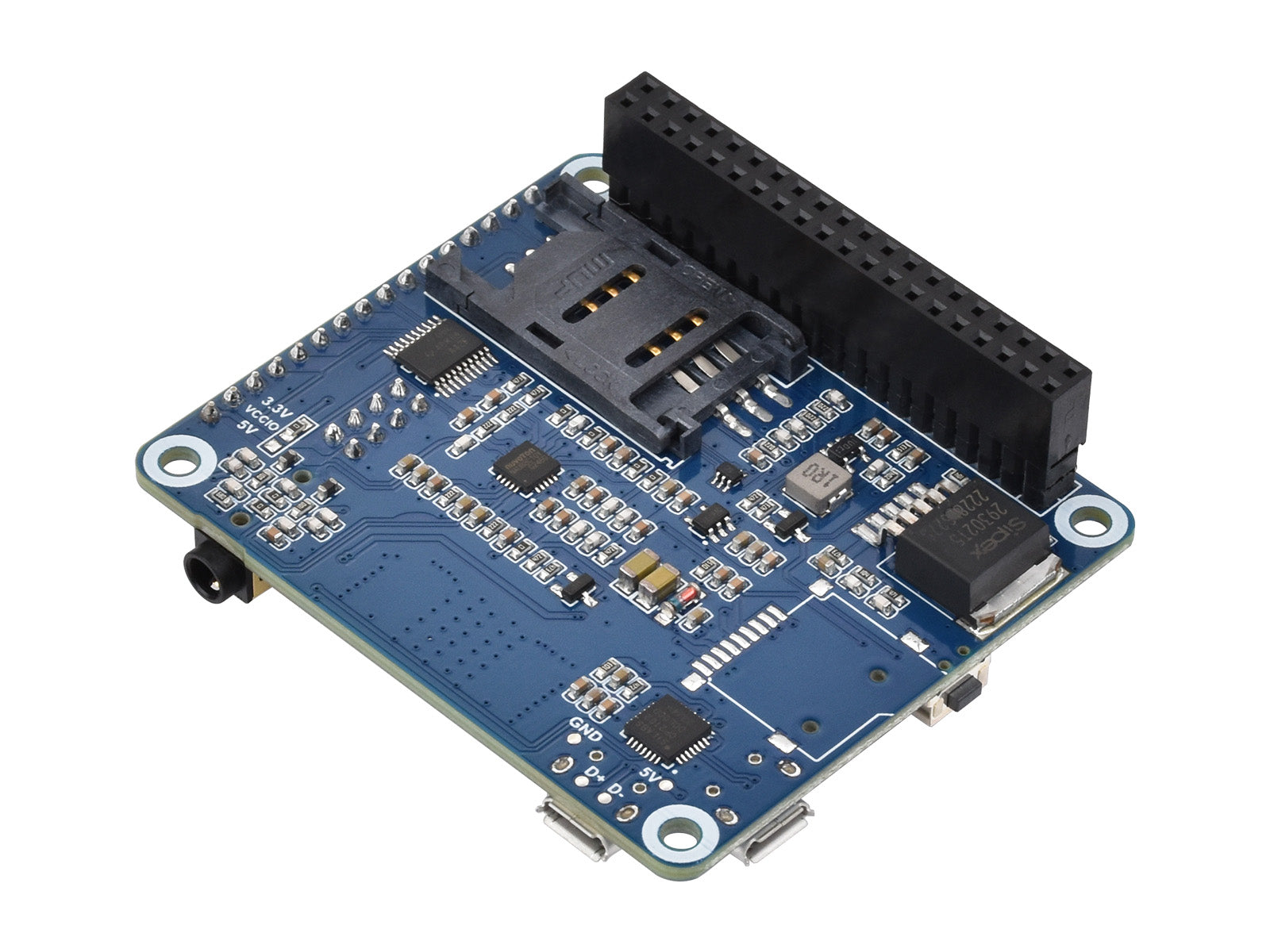

SIM7600NA-H 4G HAT For Raspberry Pi, LTE Cat-4 4G Support, GNSS Positioning, for North America

SIM7600NA-H 4G HAT for Raspberry Pi

enabling LTE Cat-4 4G communication & GNSS positioning

Features at a glance

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Onboard CP2102 USB to UART converter, for serial debugging
• Breakout UART control pins, to connect with host boards like Arduino/STM32
• SIM card slot, supports 1.8V/3V SIM card
• Onboard audio jack and audio decoder for making telephone call
• 2x LED indicators, easy to monitor the operating status
• Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via resistor pad
• Baudrate: 300bps ~ 4Mbps (default: 115200bps)
• Autobauding baudrate: 9600bps ~ 115200bps
• Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Frequency band
LTE Cat-4	LTE-FDD: B2/B4/B5/B12/B13/B14/B25/B26/B66/B71
	LTE-TDD: B41
GNSS
Receiver type	16-channel
	C/A Code
Sensitivity	-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
	Cold starts: -148 dBm
Time-To-First-Fix (open air)	Cold starts: <35s
	Hot starts: <1s
SMS and Audio
SMS	Supported types: MT, MO, CB, Text, PDU
	Storage: USIM card and ME (default)
Audio feature	Supports echo cancellation
	Supports noise reduction
Other
Power supply	5V
Operating voltage	5V / 3.3V (configured via jumper)
Operating temperature	-30°C ~ 80°C
Storage temperature	-45°C ~ 90°C
Dimensions	56mm × 65mm

Standard Raspberry Pi 40PIN GPIO

Compatible with Raspberry Pi series boards, Jetson Nano

* for reference only, the above controller boards are NOT included.

Frequency band support

supports 4G frequency band for North America,including United States, Canada...

Dial-up on Windows/Linux

LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink) *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supports communication protocols including TCP/UDP/FTP/FTPS/HTTP/HTTPS

GNSS positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning

telephone call & SMS Support

Making telephone call or sending SMS by AT commands, with onboard audio jack

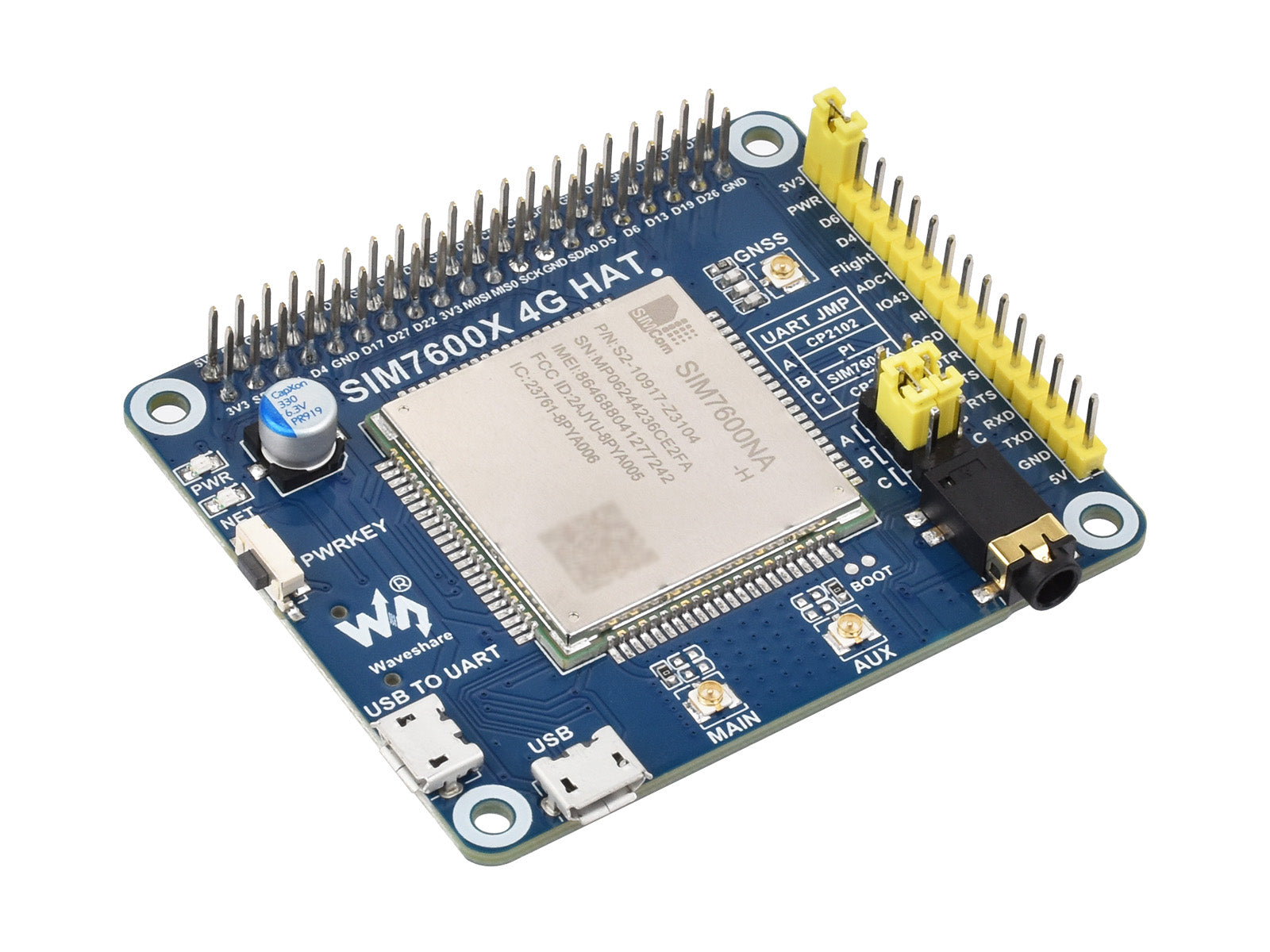

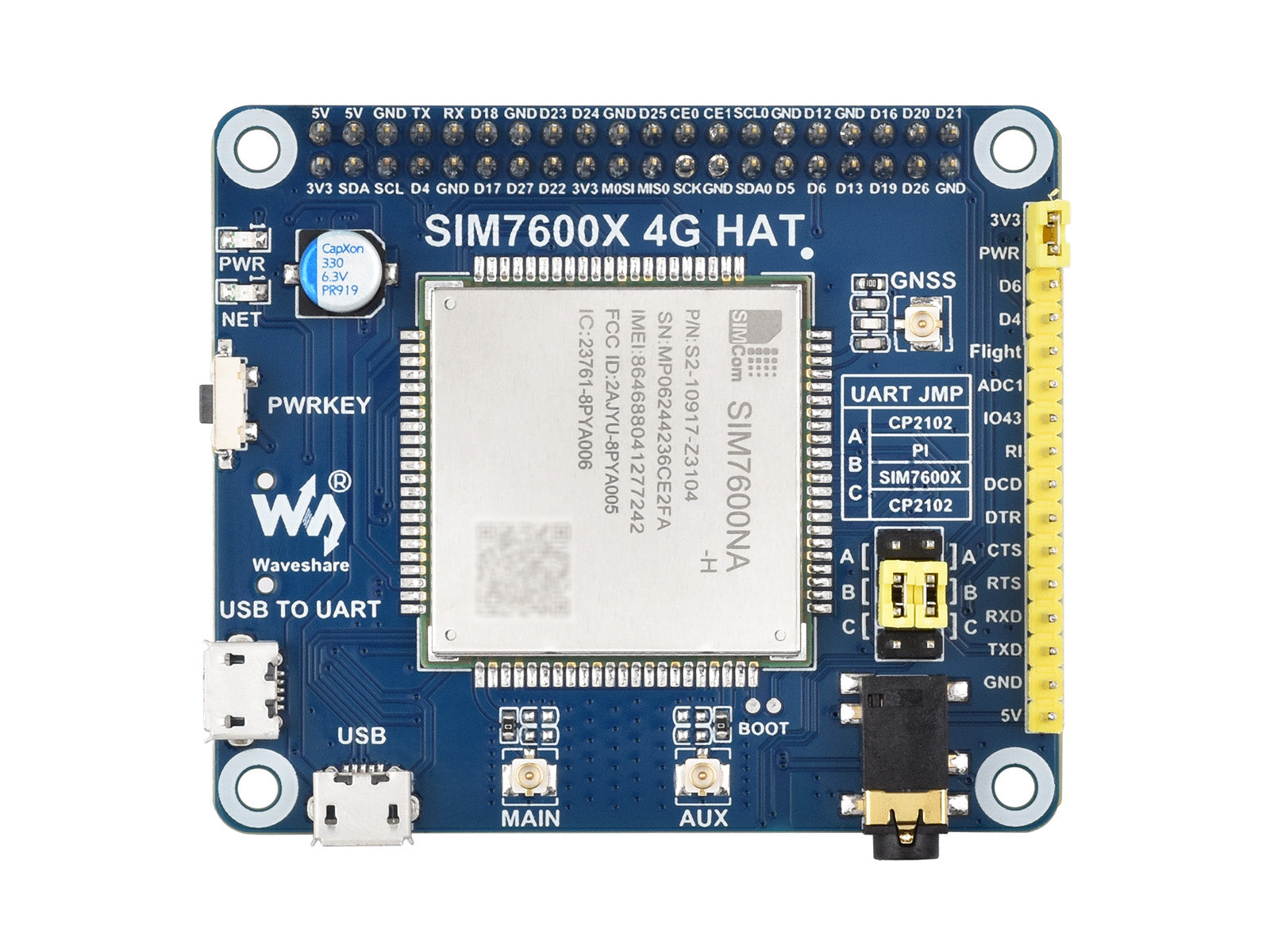

What's on board

1. SIM7600NA-H
2. CP2102 USB to UART converter
3. NAU8810 audio decoder
4. TXS0108EPWR voltage translator translates 3.3V/5V into 1.8V
5. MP2128DT power chip
6. SPX29302 power chip
7. Raspberry Pi GPIO header
8. SIM7600 control interface for connecting with host boards like Arduino/STM32
9. SIM card slot supports 1.8V/3V SIM card
10. 3.5mm earphone/mic jackfor making telephone call or other voice operations
11. USB interface for testing AT Commands, getting GPS positioning data, etc.
12. USB to UART interface for serial debugging, or login to Raspberry Pi
13. MAIN antenna connector
14. AUX antenna connector
15. GNSS antenna connector

16. Module Power ON/OFF
17. Network status indicator
18. Power indicator
19. Operating voltage selection configured via 0Ω resistor padVCCIO - 3.3V: set operating voltage as 3.3V VCCIO - 5V: set operating voltage as 5V
20. UART selection jumperA: access Raspberry Pi via USB to UARTB: control the SIM7600 by Raspberry PiC: control the SIM7600 via USB to UART
21. PWR configuration jumper PWR - 3V3: auto startup on power-up (default) PWR - D6: startup/shutdown by the Raspberry Pi D6 pin Flight mode configuration jumperNC by default, no flight mode control pinFlight - D4: flight mode is controlled by the Raspberry Pi D4 pin
22. USB connector solder pads
23. BOOT forced programming solder pads

Pinout definition

Outline Dimensions

Resources & Services

---

WIKI:www.waveshare.com/wiki/SIM7600NA-H_4G_HAT

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

	SIM7600CE-JT1S	SIM7600CE-T	SIM7600E	SIM7600E-H	SIM7600A-H	SIM7600NA-H	SIM7600G-H
Applicable regions	China		Europe/Southeast Asia/West Asia/Africa/China/South Korea		North America (AT&T)	North America	Global
Band
LTE Cat-4	LTE-FDDB1/B3/B5/B8LTE-TDDB38/B39/B40/B41		LTE-FDDB1/B3/B5/B7/B8/B20LTE-TDDB38/B40/B41		LTE-FDDB2/B4/B12	LTE-FDDB2/B4/B5/B12/B13/B14/B25/B26/B66/B71LTE-TDDB41	LTE-FDDB1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66LTE-TDDB34/B38 /B39/B40/B41
3G	UMTS/HSDPA/HSPA+B1/B8TD-SCDMAB34/B39CDMA1X/EVDO BC0		UMTS/HSPA+B1/B5/B8		UMTS/HSPA+B2/B5	N/A	UMTS/HSDPA/HSPA+B1/B2/B4/B5/B6/B8/B19
2G	GSM/GPRS/EDGE900/1800 MHz				N/A		GSM/GPRS/EDGE850/900/1800/1900MHz
GNSS	N/A	GPS/Beidou/GLONASS/GALILEO/QZSS
Data Rate
LTE Cat-4	150Mbps(DL)/50Mbps(UL)		N/A	150Mbps(DL)/50Mbps(UL)
LTE Cat-1	N/A		10Mbps(DL)/5Mbps(UL)	N/A
3G (HSPA+)	42Mbps(DL)/5.76Mbps(UL)					N/A	42Mbps(DL)/5.76Mbps(UL)
2G (EDGE)	236.8Kbps(DL/UL)				N/A		236.8Kbps(DL/UL)
2G (GPRS)	85.6Kbps(DL/UL)				N/A		85.6Kbps(DL/UL)
Software Features
Network protocol	TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Dial-up protocol	PPP/NDIS/RNDIS
USB driver	Windows XP/7/8/10, Linux (driver free for Raspbian)
Hardware Interfaces
SIM card slot	Compatible with 1.8V and 3V SIM card
UART	Supports AT commands through UART, compatible with 3.3V/5V operating voltage
USB port	Supports AT commands testing, network communication, firmware upgrading, etc.
USB to UART	Supports serial debugging, or login to Raspberry Pi
Audio jack	Supports audio actions like making telephoto call
TF card slot	Yes, for storing data like files, messages, etc.				N/A		Yes
Antenna connector	LTE main antenna	LTE main antenna + LTE diversity antenna + GNSS antenna
Applications
Examples	Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc.

Lieferumfang

1. SIM7600NA-H 4G HAT x1
2. SMA Antenna x1
3. GPS External Antenna (A) x1
4. USB type A plug to micro plug cable x2
5. RPi screws pack (2pcs) x1

1

2

3

4

5
