STLINK-V3MINIE, In-Circuit Debugger And Programmer For STM32
STLINK-V3MINIESTM32 Debugger/Programmer
Based on Arm Cortex-M STM32 32-bit Microcontroller
The STLINK-V3MINIE is a stand-alone debugging and programming tiny probe for STM32 microcontrollers, portable and easy-to-use. Onboard JTAG/SWD interfaces for communicating with STM32 microcontroller, also provides a virtual COM port for the host PC to communicate with the target microcontroller through one UART.
Features at a glance
- Tiny 15 mm × 42 mm stand-alone debugging and programming probe for STM32 microcontrollers
- Self-powered through a USB Type-C connector
- USB 2.0 high-speed interface
- Probe firmware is updatable through USB
- Support drag-and-drop Flash programming of binary files
- Two color LEDs: communication, power
- JTAG communication support up to 21 MHz
- SWD (Serial Wire Debug) and SWV (Serial Wire Viewer) communication support up to 24 MHz
- Virtual COM port (VCP) up to 15 Mbps
- 1.65 to 3.60 V application voltage support
Interface introduction
Software Support
Hardware Support
Support All STM32 series MCUs with JTAG / SWD interfaces
for reference only, STM32 MCU is not included.
STLINK Series Selection Guide
| Item | V3MINIE | V3SET | V2 |
|---|---|---|---|
| JTAG/SWD application voltage | 1.65V~3.6V① | 3V~3.6V | 1.65V~3.6V① |
| SWIM application voltage | N/A | 1.65V~5.5V | 1.65V~5.5V |
| SWV support | YES② | ||
| Debug interface | multi | multi③ | 2 |
| LED Indicator | two colors④ | ||
| ① ST-LINK/V2 and STLINK-V3MINIE support STM32 low-power devices. ② Only available for STM32 at present. ③ STLINK-V3SET features GPIO port besides the programming port. ④ Two colors LED indicates both power and communication. | |||

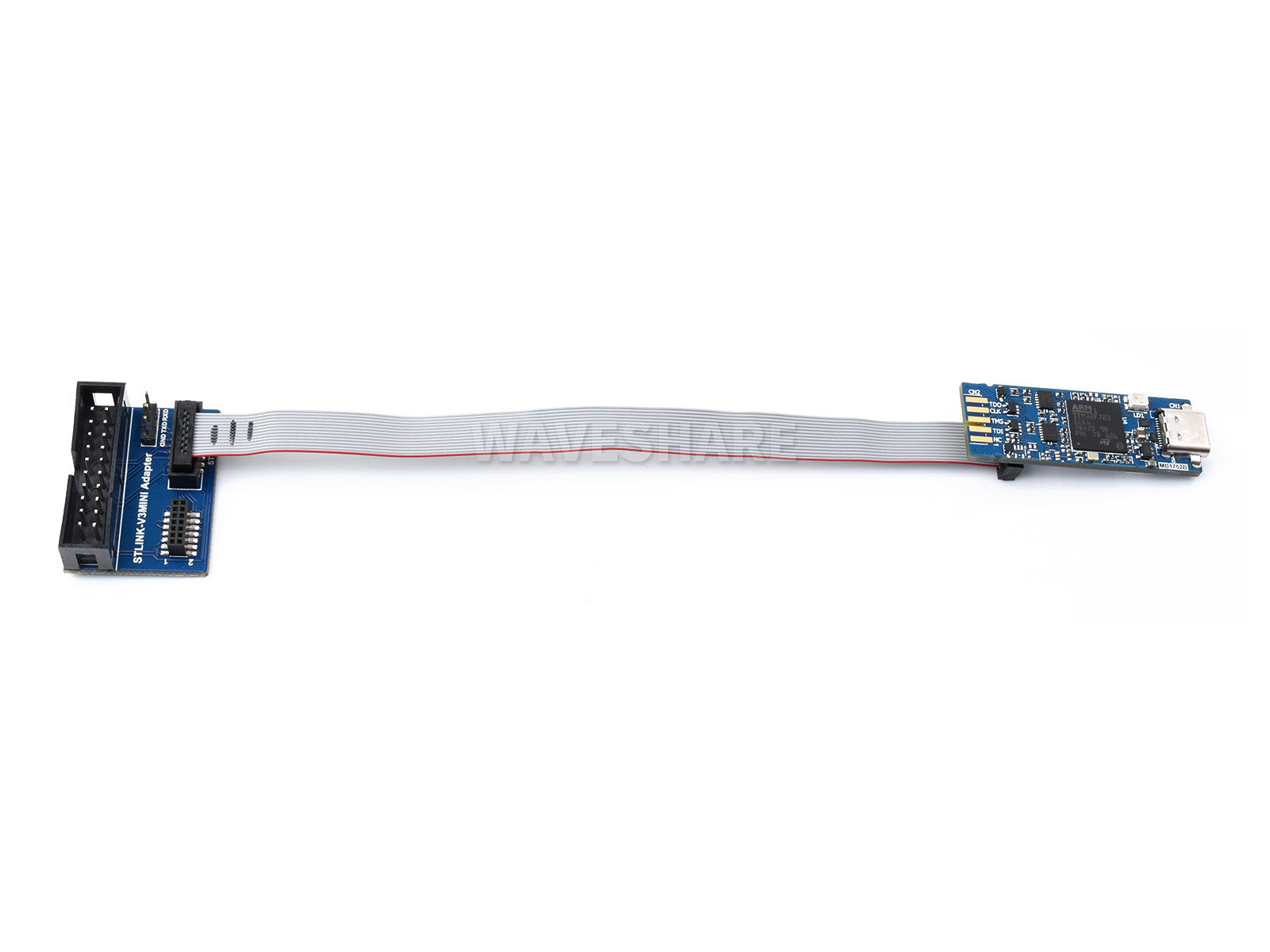

Connection Example
What's On Board
- USB Type-C connector
- Power LED indicator pad (LED is not soldered here)

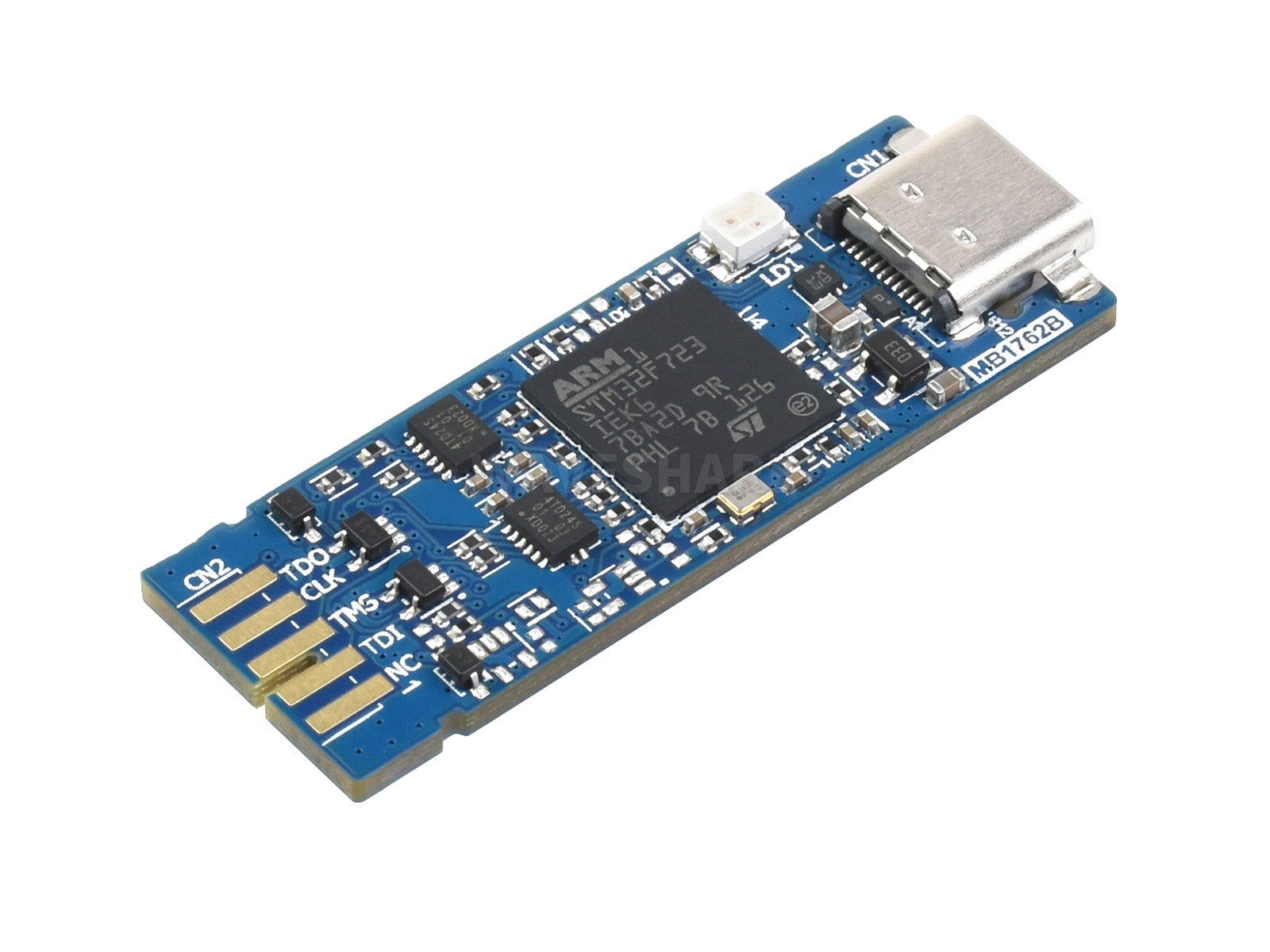

- STM32F723 MCU

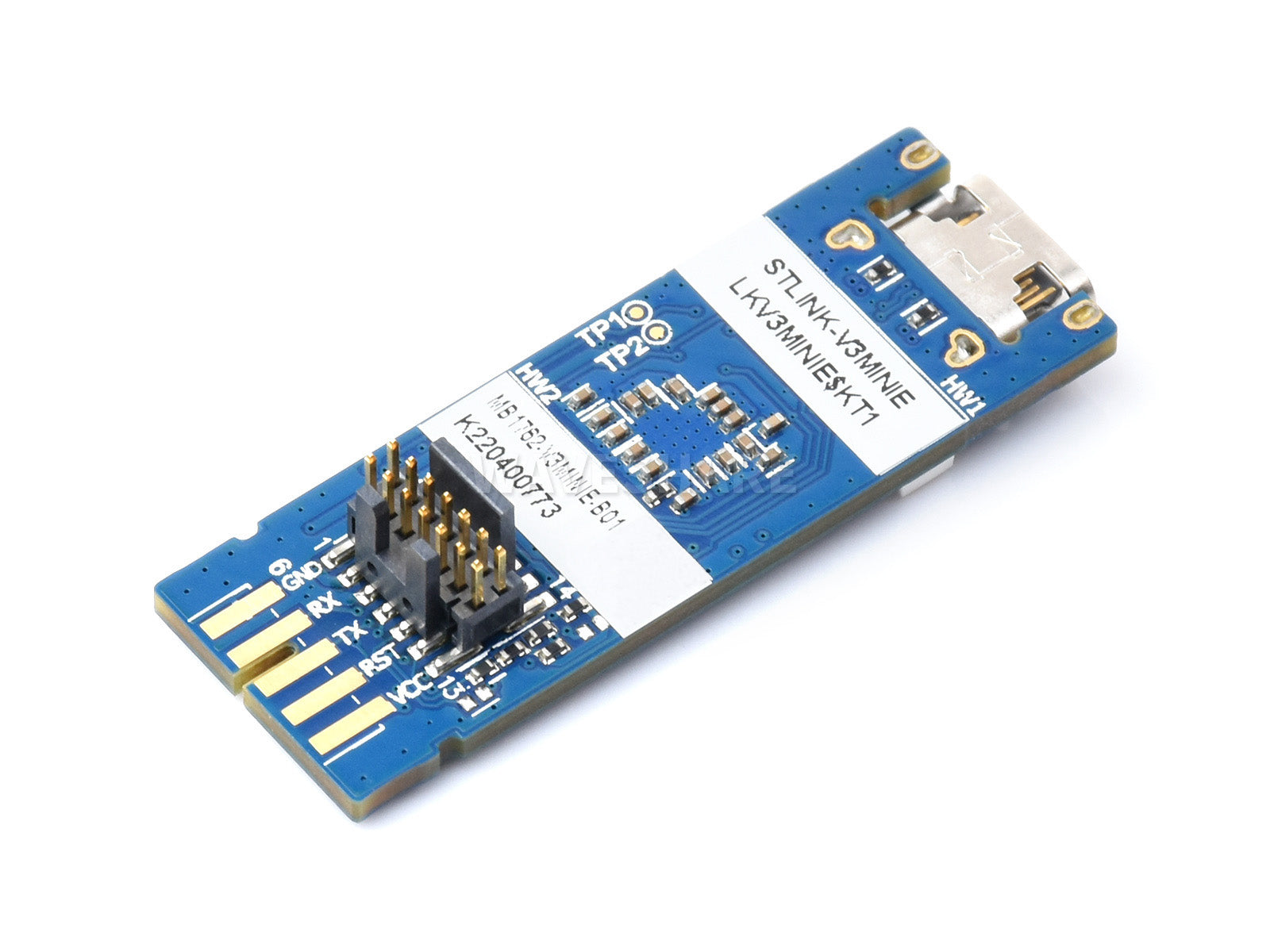

- BTB (board-to-board) card edge connector pads

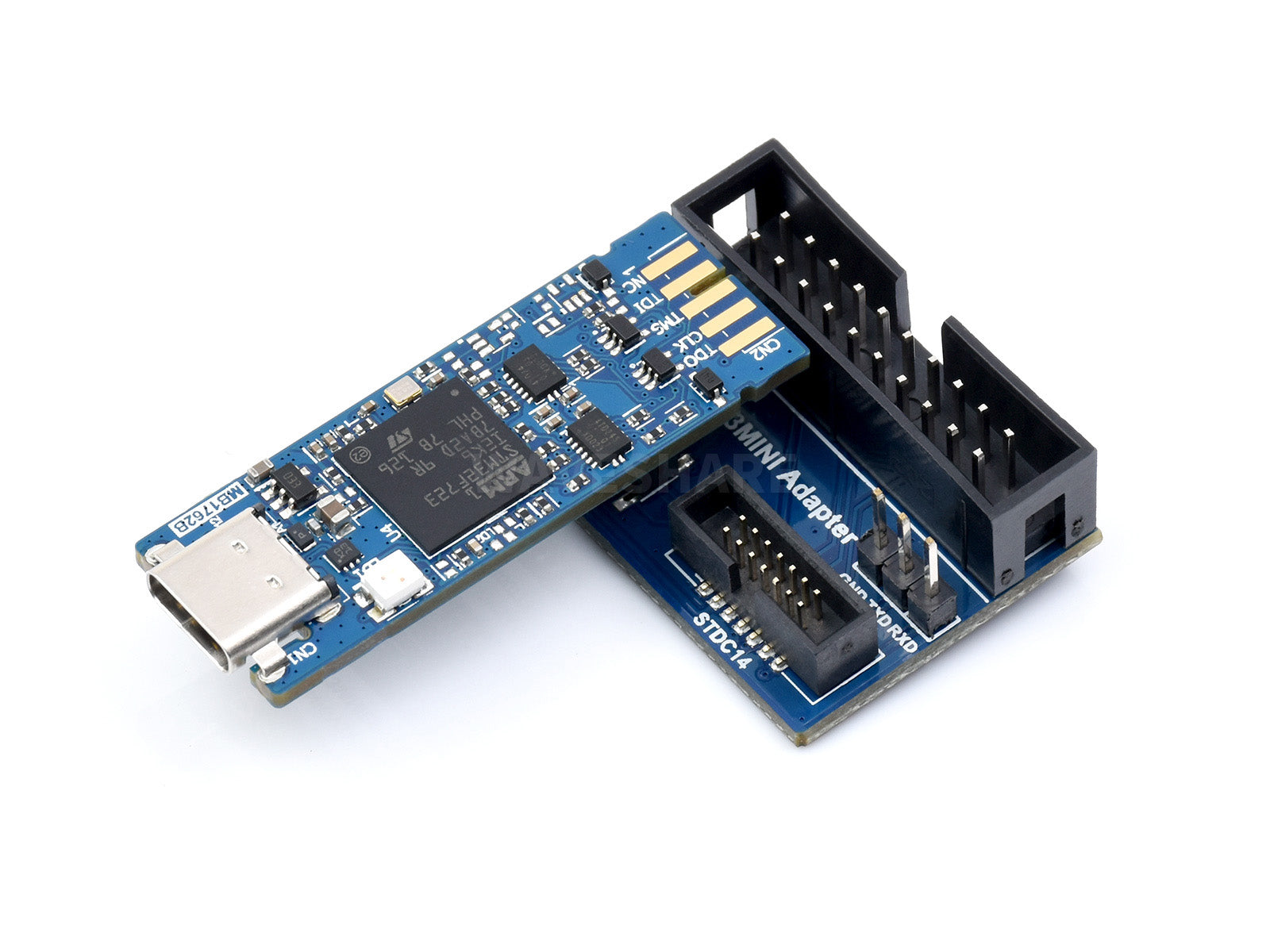

- STDC14 debug connector
- COM LED IndicatorThe LED is blinking red: the first USB enumeration with the PC is taking place. The LED is red: the communication between the PC and STLINK-V3MINIE is established.(end of enumeration). The LED is blinking green/red: data are being exchanged between the target and the PC.
