SX130x 868M/915M LoRaWAN Gateway HAT for Raspberry Pi, Standard Mini-PCIe Socket, Long range Transmission, GNSS Module

This product is a LoRa Gateway module that incorporates a new-generation SX1302/3 normal band chip. It has lots of advantages including long-range transmission, large capacity node, and high receiving sensitivity. In addition, SX1303 supports concurrent communication. Due to the outstanding performance of SX1302/3 on low power consumption, the heat dissipation design of the Gateway can be simplified, thus reducing material cost, also achieving a smaller size.

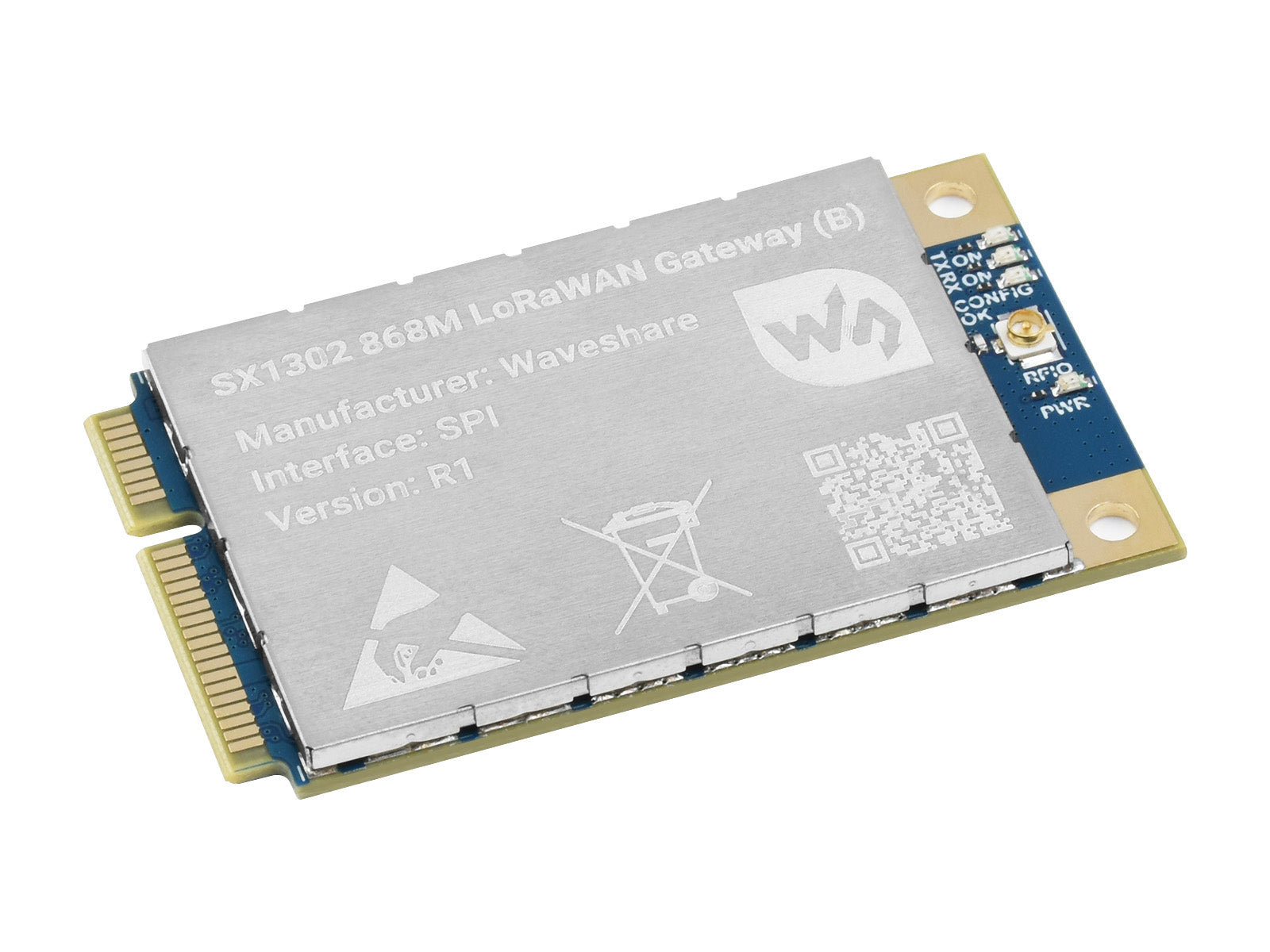

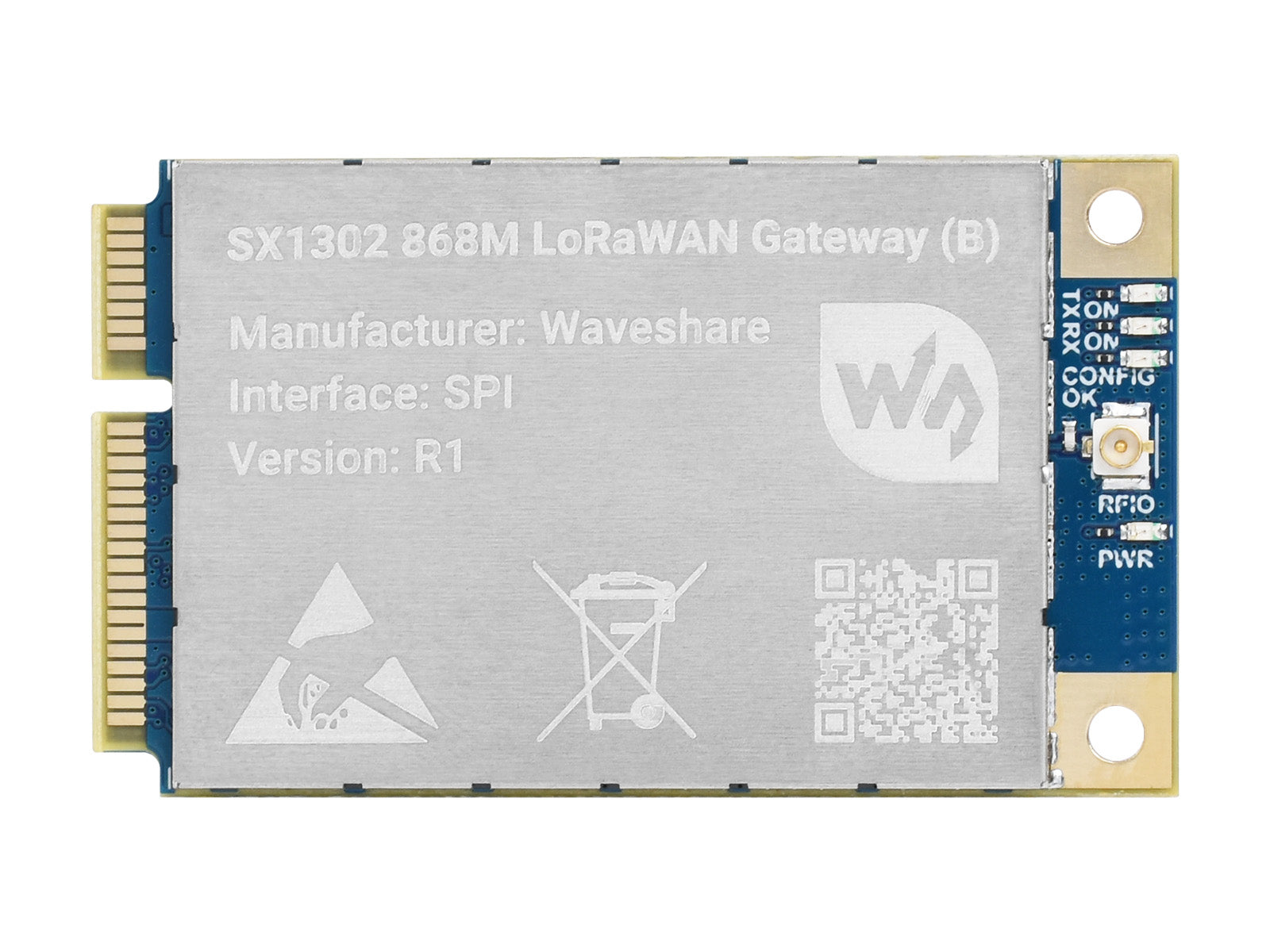

LoRaWAN Gateway Module features:

• Integrates Semtech SX1302/3 normal band and SX1250 radio RF frond-end chip
• Onboard PA and LNA, features +26dBm emit power and -141dBm high sensitivity receiving gain
• The SX1303 supports Fine Timestamp and network positioning based on time difference of arrival (TDOA)
• 52-pin Mini-PCIe socket for easy integration into various embedded systems
• Onboard 4 LED indicators for module operating status
• Comes with development resources and manual (example in C)

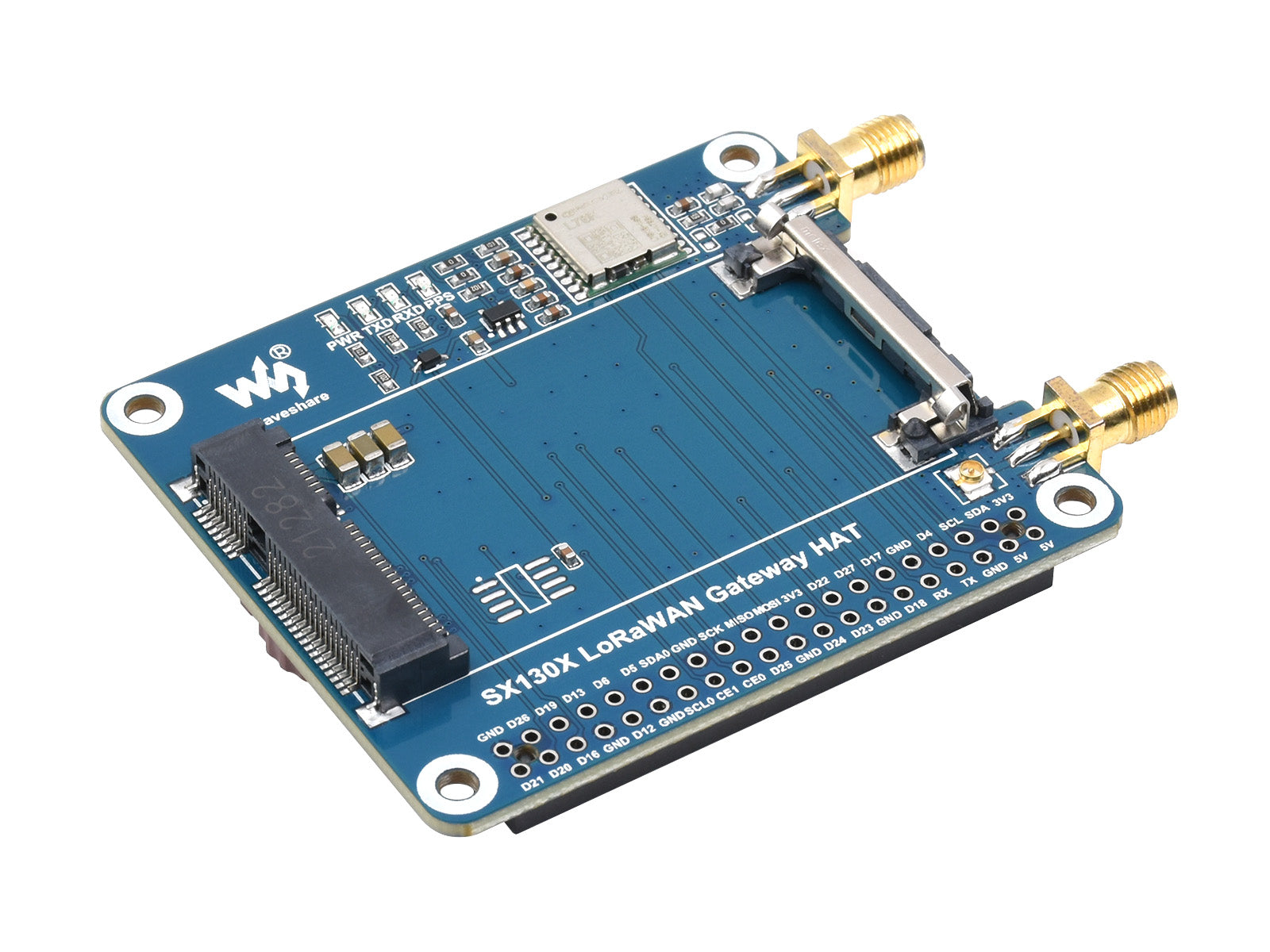

HAT features:

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• Incorporate L76K module with GPS/BD support, provide accurate clock and location info for gateway module
• Comes with development resources and manual (example in C)
