SKU:WSAL24276

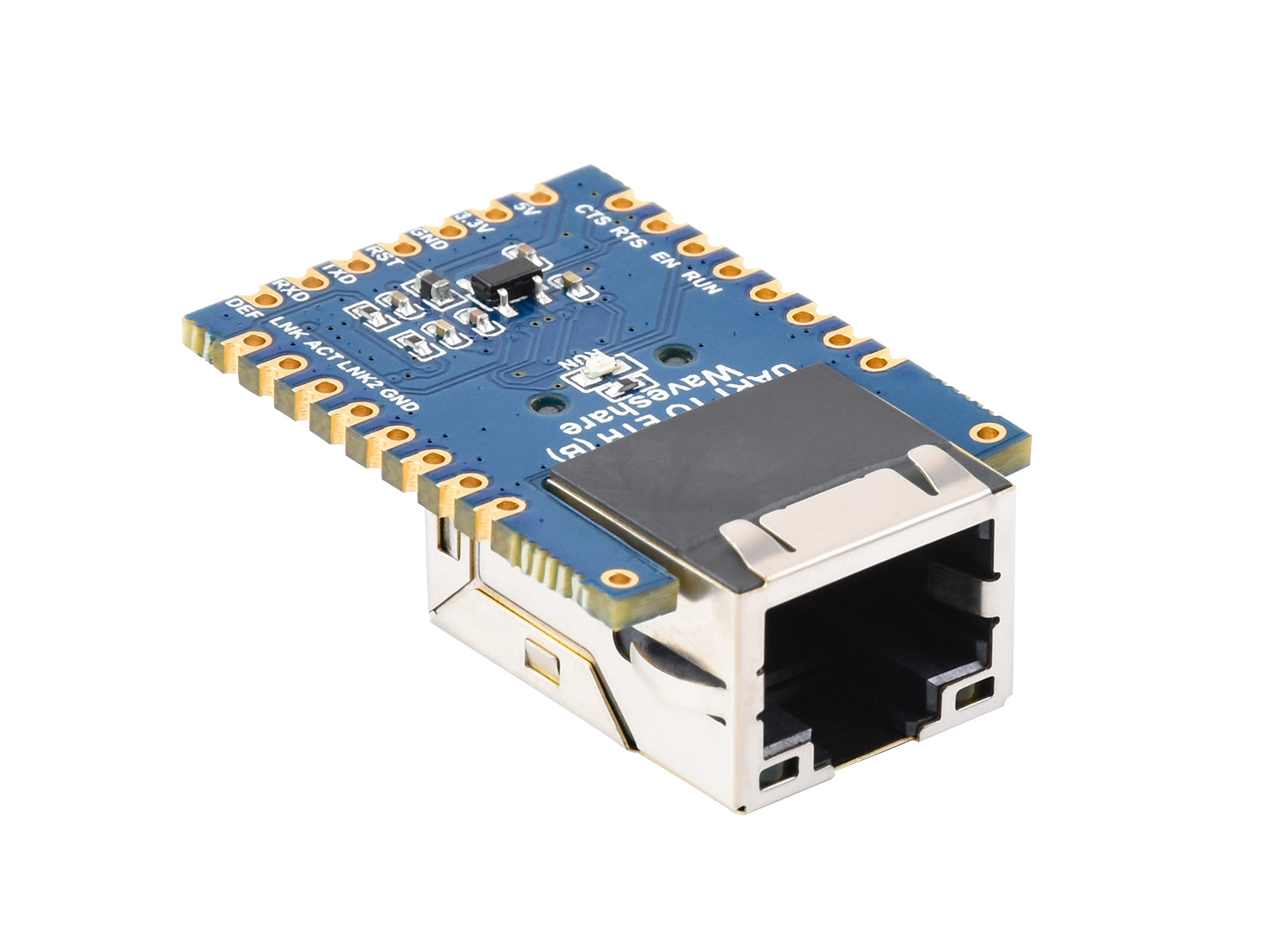

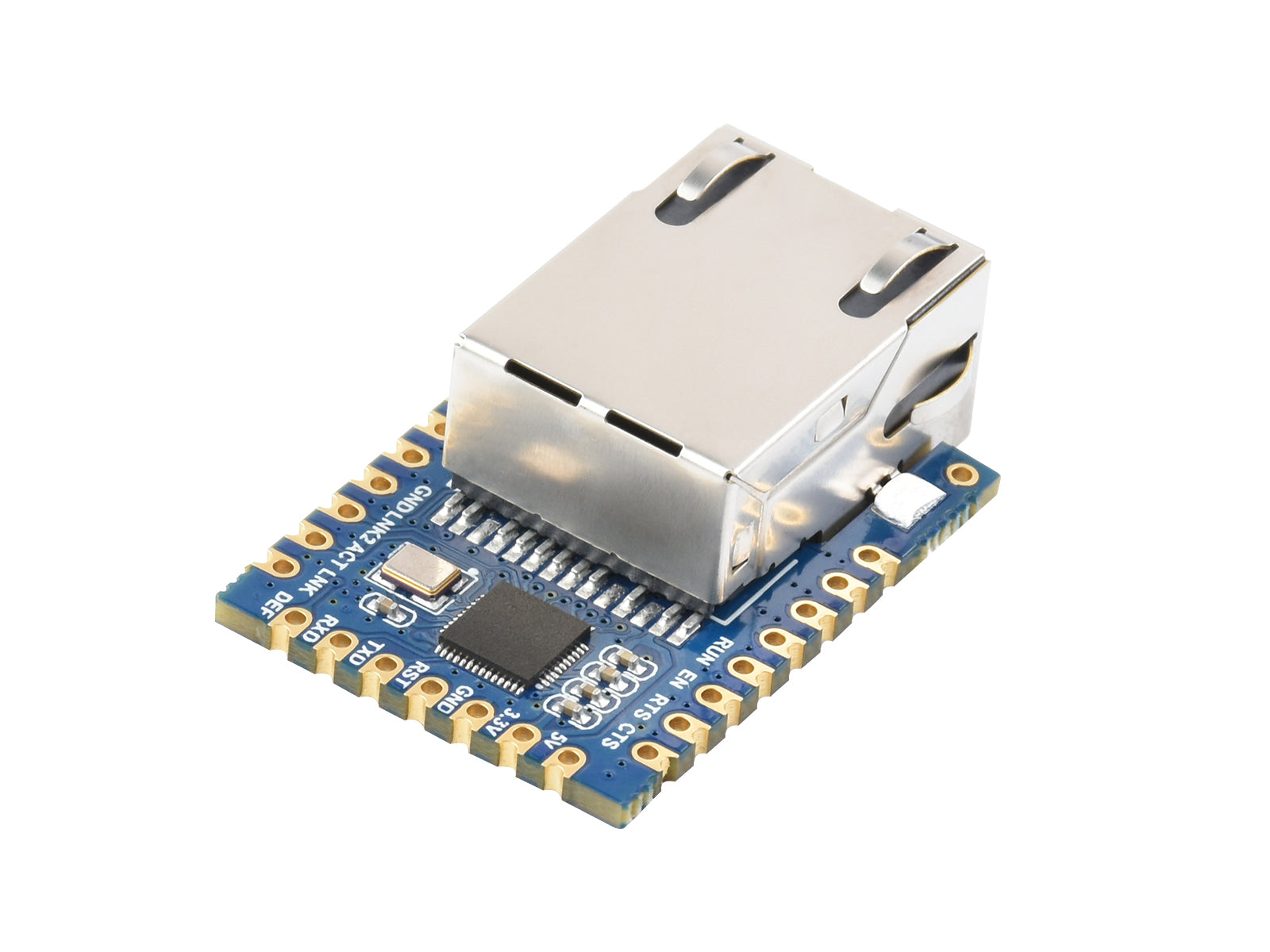

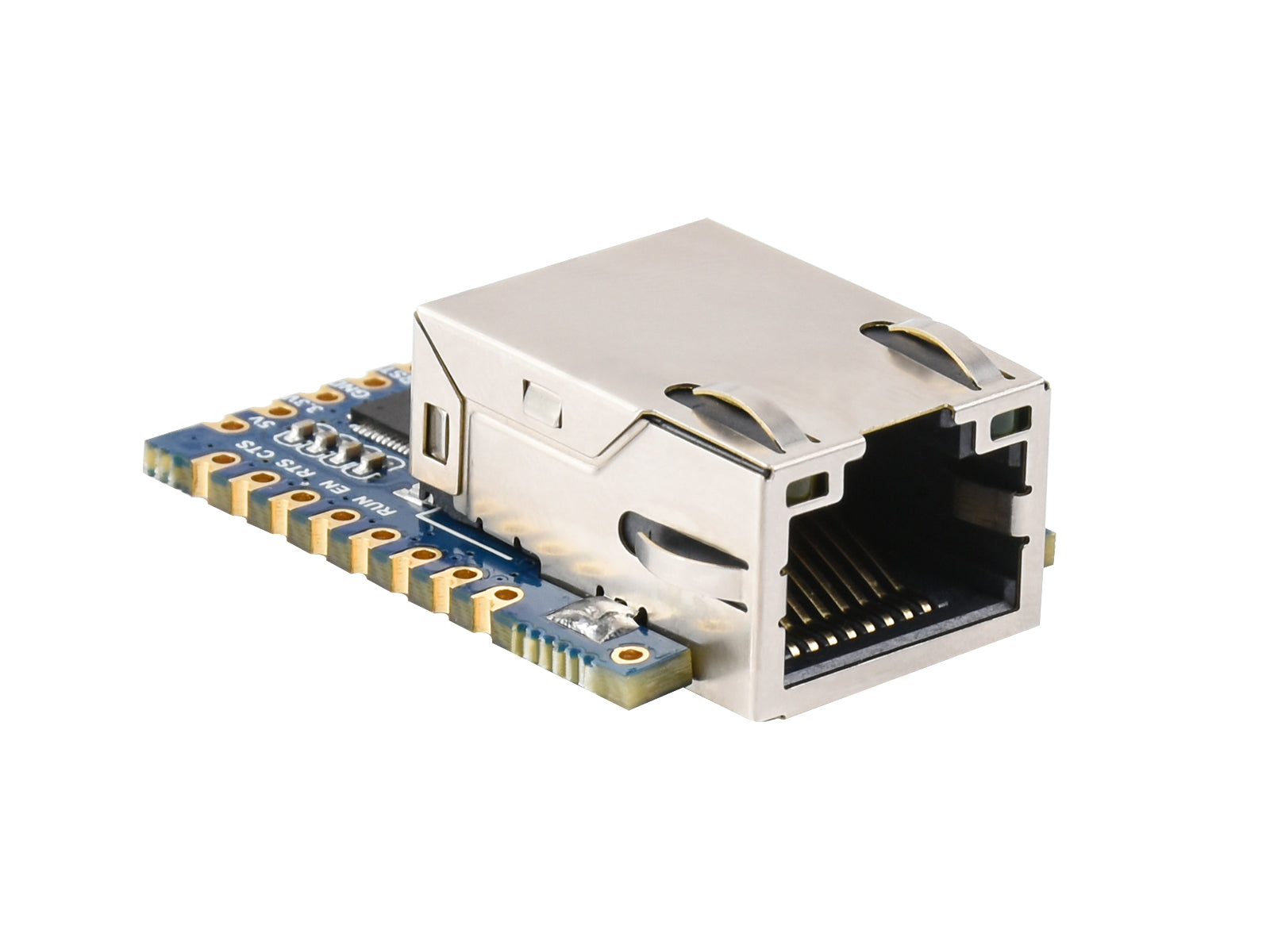

TTL UART to Ethernet Mini Module, Castellated Holes With Immersion Gold Design, Highly Integrated Packaging
Abholverfügbarkeit konnte nicht geladen werden
Compact size | Easy to integrate | Low power consumption
Faster to be integrated into industrial, IoT, and security applications
Castellated Holes With Immersion Gold Design, Highly Integrated PackagingSupports multiple ways to be embedded into various product applications
supports TCP server / TCP client / UDP multicast / UDP mode
suitable for Modbus gridding upgrade, Can Be Used With Specific Configuration Software
easy for cloud communication and device identification
getting network time info for serial output or data upload

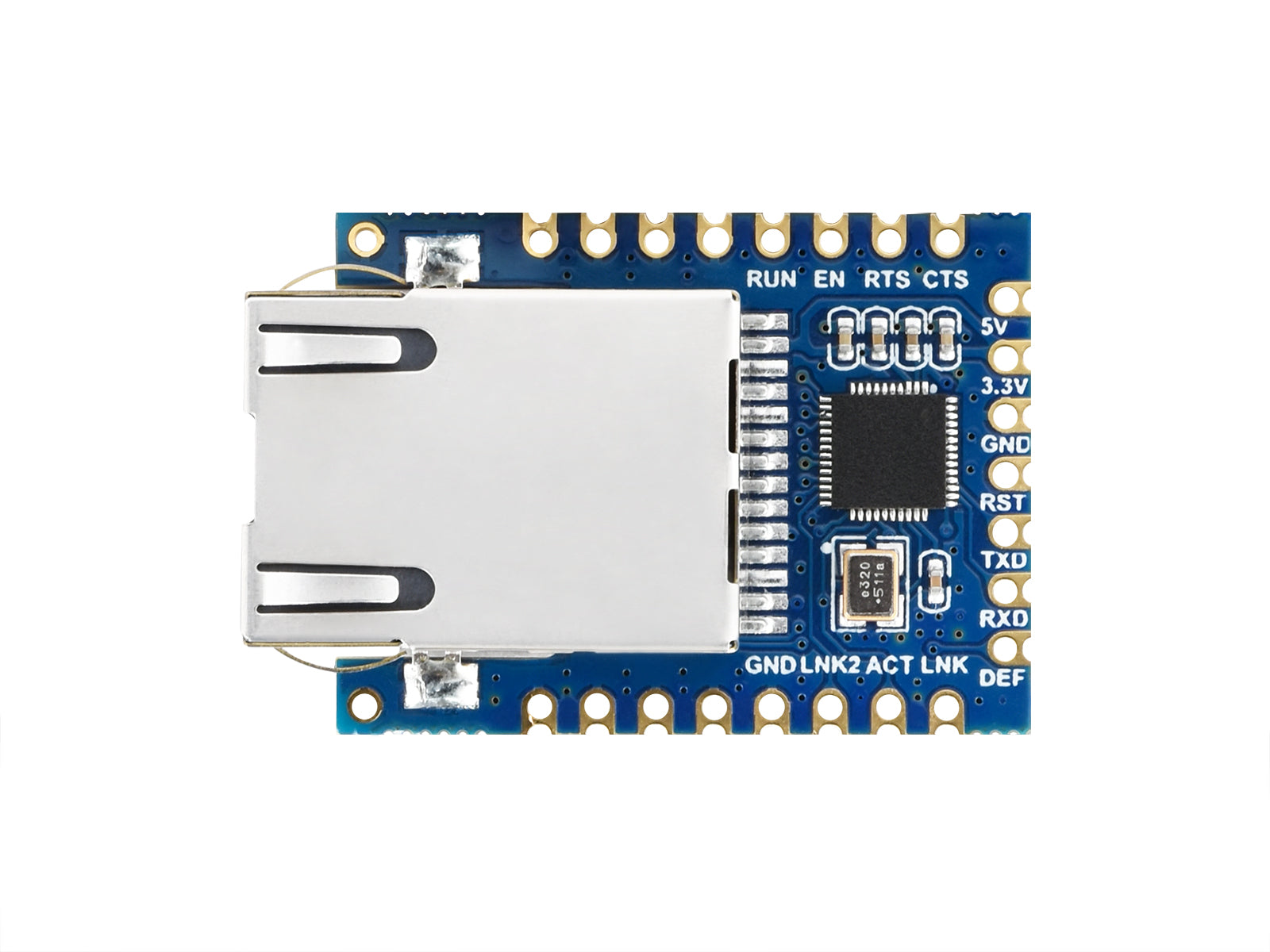

Adapting control pins for easy embedding or connecting to user devices and various MCU master devices. With multiple indicators, easy to monitor the operating status of the module
| Product | UART TO ETH (B) | RS232 TO ETH (B) | RS485 TO ETH (B) | RS232 TO POE ETH (B) | RS485 TO POE ETH (B) | RS232/485/422 TO POE ETH (B) | |
|---|---|---|---|---|---|---|---|
 |  |  |  |  |  | ||
| Product Description | castellated holes module | common version | PoE Network port + isolated RS232 | PoE Network port + isolated RS485 | PoE Network port + isolated RS232/485/422 | ||
| Enclosure | - | Rail-mount plastic case | Aluminium Alloy case (supports wall-mount and rail-mount installations) | ||||
| Basic Function | Bi-directional transparent data transmission between serial port and Ethernet | ||||||
| Ethernet | common network port | PoE network port, support IEEE 802.3af standard | |||||
| Isolation Protection | N/C | Power isolation, Signal isolation | |||||
| Serial Port | TTL | RS232 | RS485 | Isolated RS232 | Isolated RS485 | Isolated RS232/485/422 | |
| Power Supply | pinheader / pads | screw terminal | screw terminal, or PoE port | DC power port, screw terminal, or PoE port | |||
| Dimensions | 34×23×11.5mm | 87×36×59mm | 88.7×72.5×24.2mm | ||||
| Application Scenarios | Can be used as Serial server, Modbus gateway, MQTT gateway, suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring... | ||||||
| Serial Specification | |||||||
| Baudrate | 300 ~ 115200 bps | ||||||
| Parity Bit | none, odd, even, mark, space | ||||||
| Data Bit | 5 ~ 9 bits | ||||||
| Flow Control | support | N/A | |||||
| Software | |||||||
| Protocol | ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS | ||||||
| Configuration | host, web browser, device management functions library | ||||||
| Communication Method | TCP/IP direct communication, VCOM | ||||||
| Operating Mode | TCP server, TCP client, UDP Group, UDP | ||||||
| Modbus Gateway | Modbus TCP to RTU | ||||||
| Other Functions | User-defined heartbeat/registration packet, User-defined web page... | ||||||
| Other | |||||||
| Operating Temperature | -40℃ ~ 85℃ | ||||||
| Humidity Range | 5% ~ 95% relative humidity | ||||||
Lieferumfang
- UART TO ETH (B) x1
- 10PIN Black pinheader (2PCS) x1
