TVOC (Total Volatile Organic Compounds) Gas Sensor, High Sensitivity, Low Power Consumption, Long Lifespan, Compact Size

Name: TVOC (Total Volatile Organic Compounds) Gas Sensor, High Sensitivity, Low Power Consumption, Long Lifespan, Compact Size
Brand: WaveShare
SKU: WSAL30712
Price: 3607.56 HUF
Availability: InStock

3.608 Ft

3.608 Ft 0 Ft

Sale Ausverkauft

Steuer enthalten. Versand wird an der Kasse berechnet.

Menge

TVOC (Total Volatile Organic Compounds) Gas Sensor, High Sensitivity, Low Power Consumption, Long Lifespan, Compact Size

TVOC Gas Sensor

Total Volatile Organic Compounds Sensor

for easy integration into air treatment devices and air quality monitors

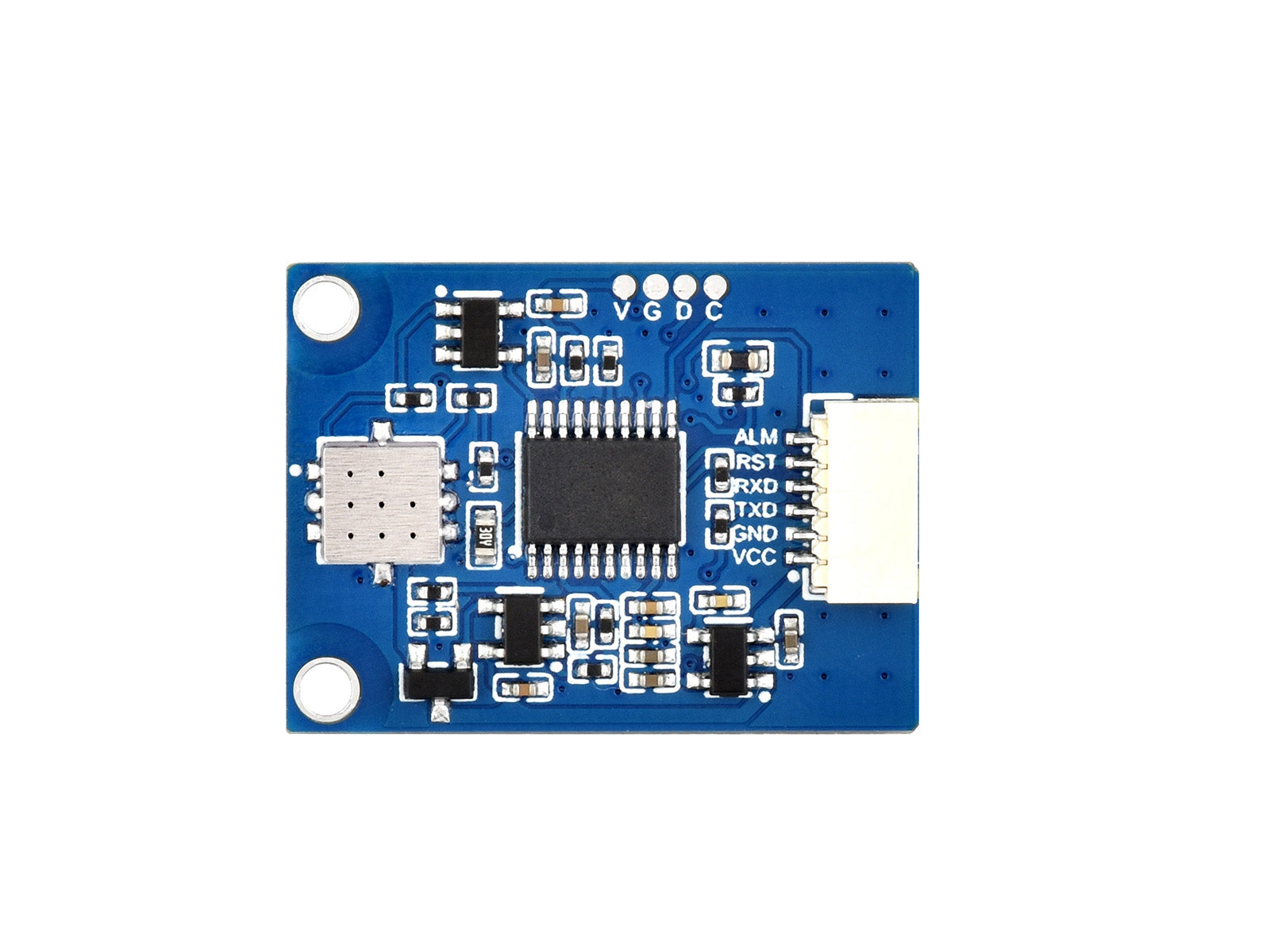

TVOC (Total Volatile Organic Compounds) Gas Sensor, front view

Features at a glance

TheTVOC Sensor is an efficient tool for air quality assessment, specifically designed for precise measurement of TVOC (Total Volatile Organic Compounds) gas concentration in the environment. Features excellent adaptability and expandability, and can be customized according to the specific needs of users.

Capable of detecting TVOC (Total Volatile Organic Compounds), CO₂ (Carbon Dioxide), and CH₂O (Formaldehyde) concentrations in the environment
Supports UART communication
High sensitivity, low power consumption, long lifespan, compact size
Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)

Specifications

Operating voltage	5V	Logic level	3.3V
Communication interface	UART	Baud rate	115200bps
Response time	< 20s	Switch-on time	< 120s
Detection range	0.1ppm～100ppm	Refresh rate	1Hz
Dimensions	27 × 20 × 4.3 (mm)	Mounting hole size	2.0mm
Operating current	≤60mA	Operating temperature	-20℃～50℃
Operating humidity	≤96％RH	Lifespan	5 years
