SKU:WSAL26506

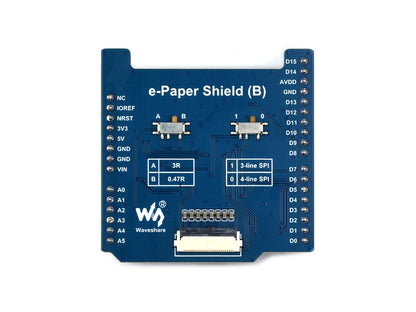

Universal e-Paper Raw Panel Driver Shield (B) for NUCLEO / Arduino, onboard MX25R6435F Flash chip, Supports expanding external RAM, Suitable for various SPI interface e-Paper from Waveshare

Universal E-Paper Driver Shield (B)

Supports host boards like nRF528xx/Arduino/NUCLEO, etc.

can be used to drive various SPI interface e-Paper from Waveshare

Features at a glance

• Standard Arduino connectivity, compatible with host boards like nRF528xx, UNO, Leonardo, NUCLEO, XNUCLEO
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Onboard MX25R6435F Flash chip
• Reserved external RAM soldering pads for expanding more space
• Comes with online resources and manual

Specifications

operating voltage	3.3V/5V
interface	3-wire SPI, 4-wire SPI
Flash memory size	64M-bit / 8M-byte
Reserved RAM Package	SOIC-8
outline dimensions	53.34 × 53.34mm

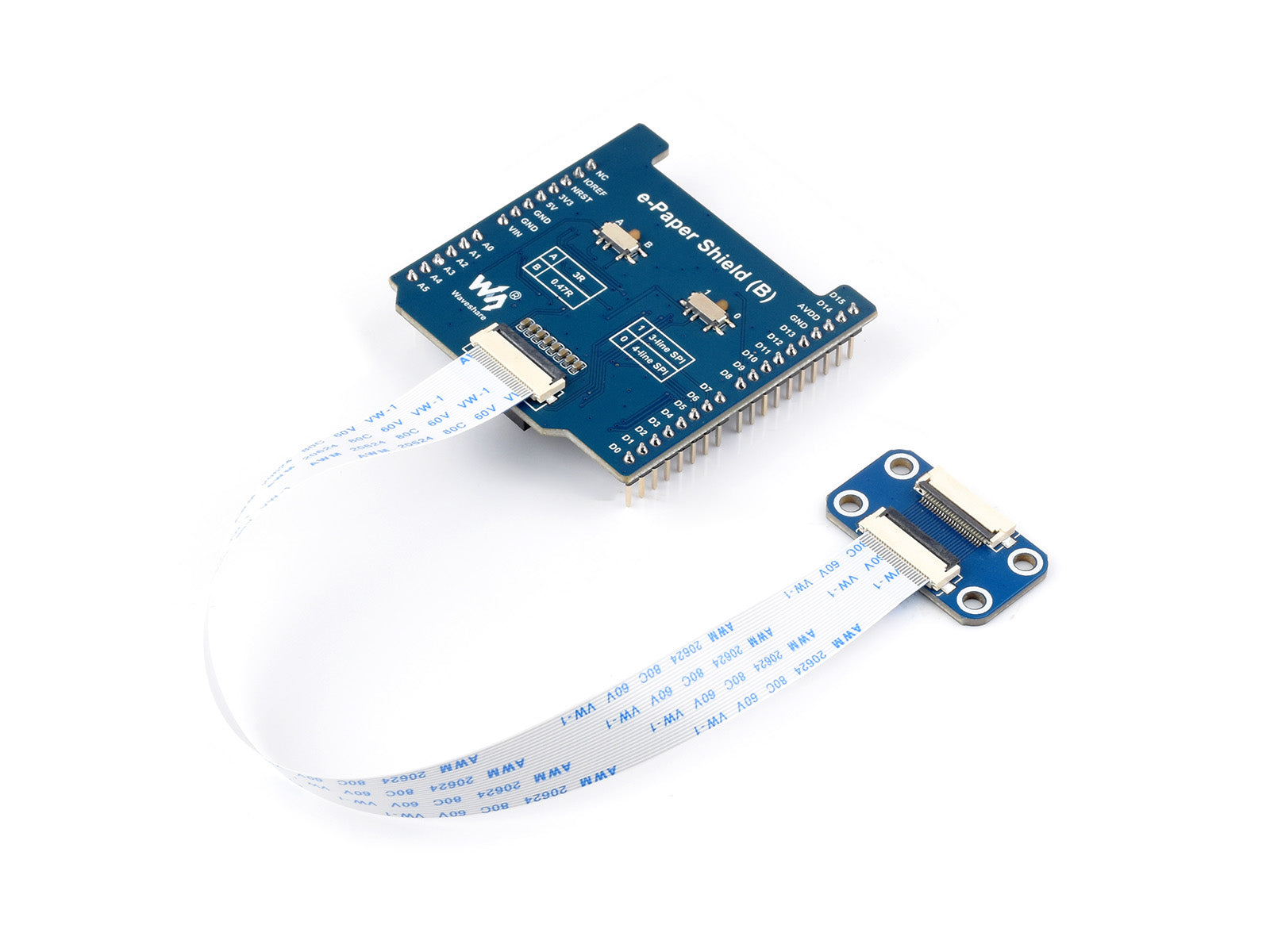

Comes with adapter board and FFC cable

Expanding display interface via FFC cable, for easy connecting to the e-paper

Compatible with multiple e-paper models and various motherboards

Connecting with nRF528xx development board and 2.13inch e-Paper

Connecting with nRF528xx development board and 7.5inch e-Paper (B)

Connecting with R3 PLUS development board

Connecting with STM32 development board

for reference only, the motherboards and e-paper screens are NOT included

Pin Definition

Board PIN	PIN	DESCRIPTION
5V/3.3V/IOREF(default)	VCC	Power input
GND	GND	Ground
SCLK/D13	SCLK	SPI clock input
MOSI/D11	MOSI	SPI data input
MISO/D12	MISO	SPI data output
D10	EPD_CS	e-Paper chip selection
D9	EPD_DC	e-Paper data/command
D8	EPD_RST	e-Paper reset
D7	EPD_BUSY	e-Paper busy
D6	Flash_CS	SPI Flash chip selection
D5	RAM_CS	SPI RAM chip selection
D4	SCLK (Flash optional)	SPI clock input (Flash optional)
D3	MOSI (Flash optional)	SPI data input (Flash optional)
D2	MISO (Flash optional)	SPI data output (Flash optional)

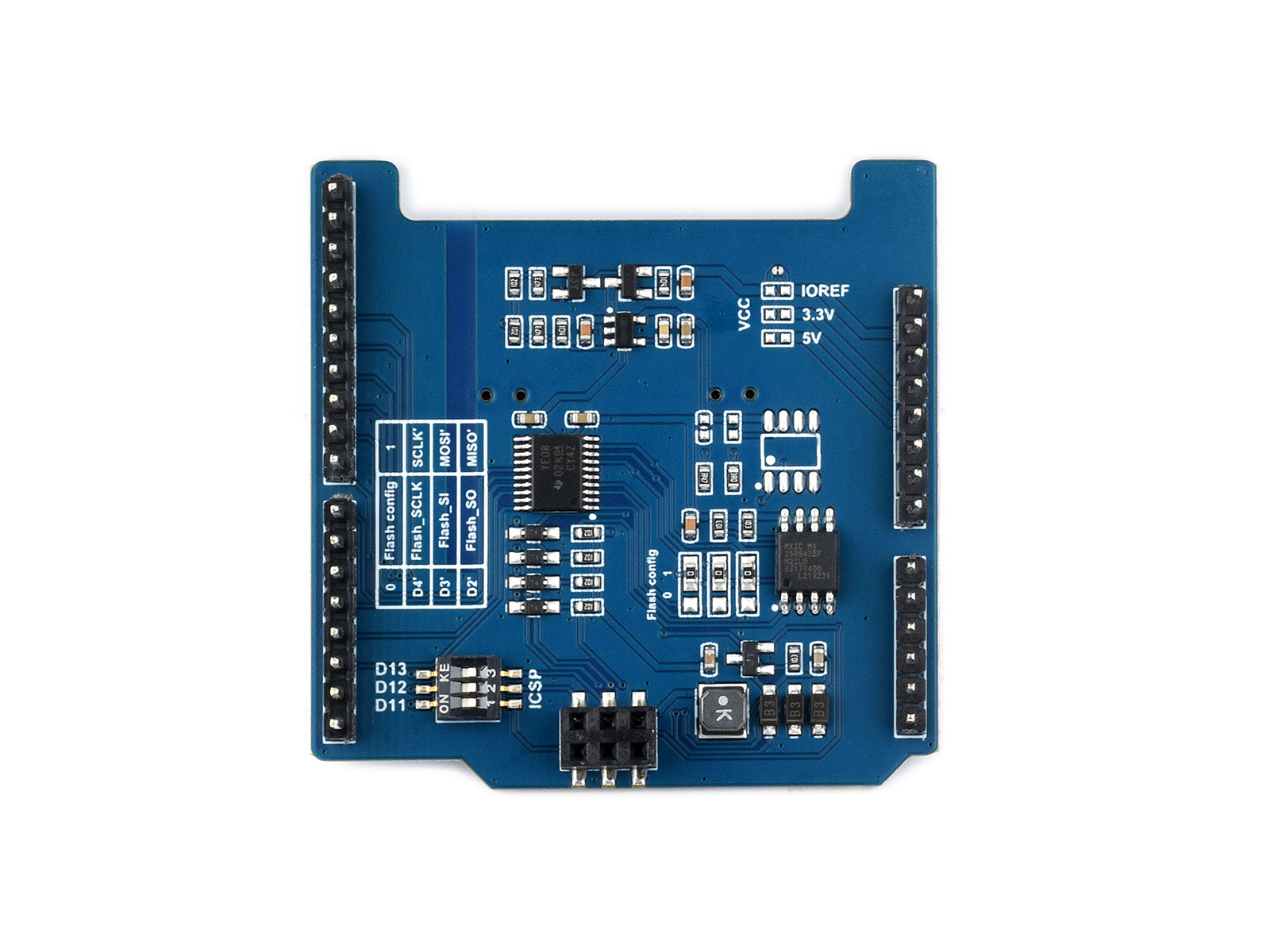

What's On Board

1. Waveshare e-Paper driver resistor selection
2. 3-wire/4-wire SPI selection
3. 24PIN e-paper connector
4. Arduino standard interface
5. Voltage translator
6. Flash Chip

7. DIP switch Arduino board SPI communication selection (ICSP by default)
8. ICSP header
9. Power selection IOREF by default
10. Reserved RAM soldering pads

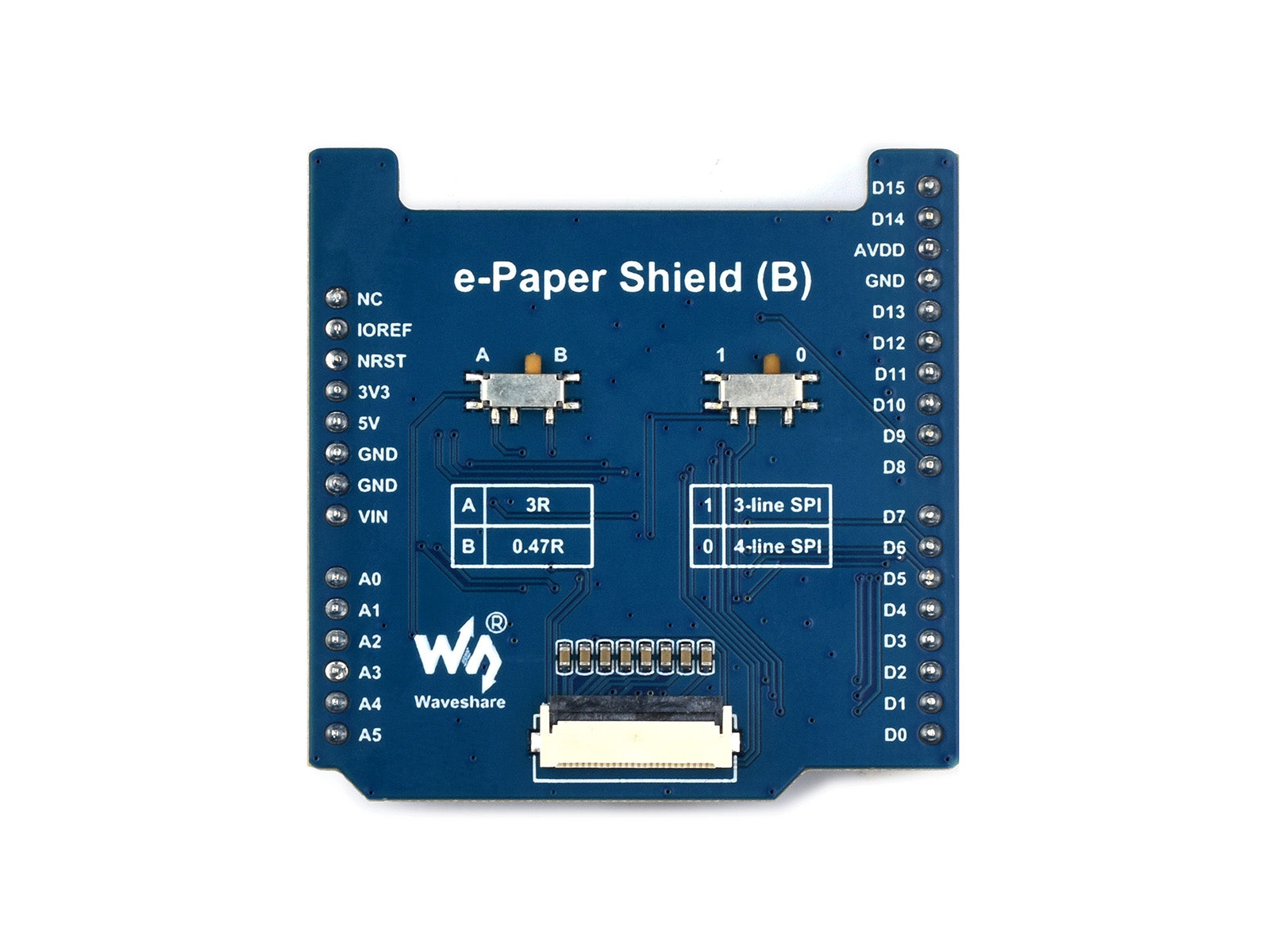

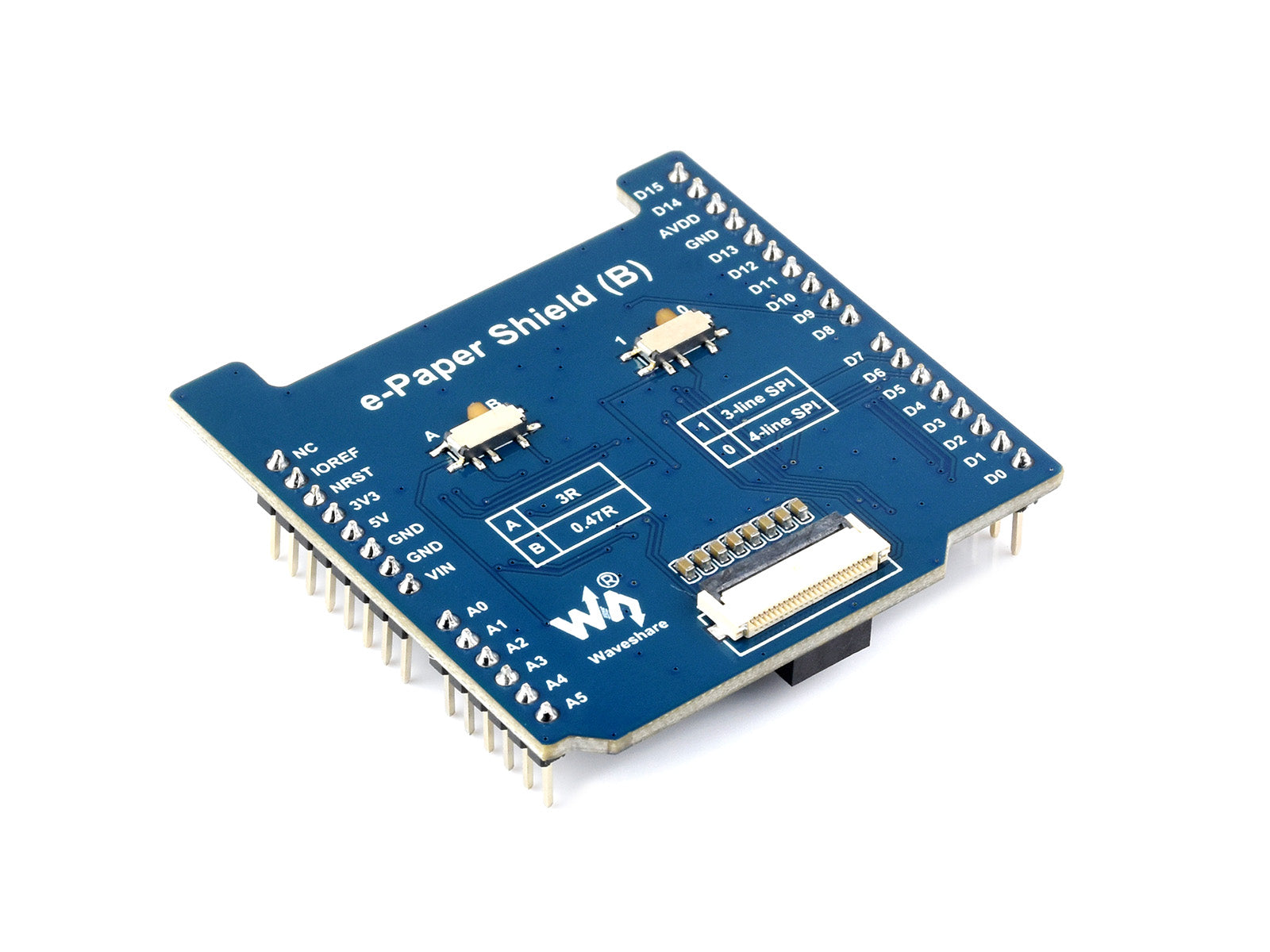

Product Show

Outline dimensions

Resources & Services

---

WIKI:www.waveshare.com/wiki/e-Paper_Shield_(B)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Supported e-Paper

Part Number	Colors	Gray Scale	Resolution	Display size (mm)	Outline Dimension (mm)	Full Refresh Time* (s)	Partial Refresh	Interface
1.54inch e-Paper	black, white	2	200x200	27.00 × 27.00	31.8 × 37.3	2	√	SPI
1.54inch e-Paper (B)	red, black, white	2	200x200	27.60 × 27.60	31.8 × 37.3	8	×	SPI
2.13inch e-Paper	black, white	2	250x122	48.55 × 23.70	59.2 × 29.2	2	√	SPI
2.13inch e-Paper (B)	red, black, white	2	212x104	48.55 × 23.70	59.2 × 29.2	15	×	SPI
2.13inch e-Paper (D)	black, white	2	212x104	48.55 × 23.70	59.2 × 29.2	2	√	SPI
2.13inch e-Paper (G)	red, yellow, black, white	2	250×122	48.55 × 23.70	59.2 × 29.2	25	×	SPI
2.66inch e-Paper	black, white	2	296×152	30.704 × 60.088	36.304 × 71.820	6	√	SPI
2.66inch e-Paper (B)	red, black, white	2	296×152	30.704 × 60.088	36.304 × 71.820	15	×	SPI
2.7inch e-Paper	black, white	4	264x176	57.29 × 38.19	70.4 × 45.8	6	√	SPI
2.7inch e-Paper (B)	red, black, white	2	264x176	57.29 × 38.19	70.4 × 45.8	15	×	SPI
2.9inch e-Paper	black, white	2	296x128	66.89 × 29.05	79.0 × 36.7	2	√	SPI
2.9inch e-Paper (B)	red, black, white	2	296x128	66.89 × 29.05	79.0 × 36.7	15	√	SPI
2.9inch e-Paper (D)	black, white	2	296x128	66.90 × 29.06	79.0 × 36.7	2	√	SPI
3.52inch e-Paper	black, white	2	360×240	74.51 × 49.67	84.70 × 54.41	1.5	×	SPI
3.7inch e-Paper	black, white	4	480×280	47.32 × 81.12	54.90 × 93.30	3	√	SPI
4.01inch e-Paper (F)	7-Color	2	640×400	86.40 × 54.00	96.80 × 68.70	30	×	SPI
4.2inch e-Paper	black, white	4	400x300	84.80 × 63.60	90.1 × 77.0	5	√	SPI
4.2inch e-Paper (B)	red, black, white	2	400x300	84.80 × 63.60	90.1 × 77.0	15	×	SPI
4.26inch e-Paper	black, white	4	800 × 480	92.80 × 55.68	129.33 × 62.37	4	√	SPI
5.65inch e-Paper (F)	7-Color	2	600×448	114.9 × 85.8	125.4 × 99.5	<35	×	SPI
5.83inch e-Paper	black, white	2	600x448	119.232×88.320	125.4 × 99.5	5	×	SPI
5.83inch e-Paper (B)	red, black, white	2	600x448	119.232×88.320	125.4 × 99.5	20	×	SPI
7.5inch e-Paper	black, white	2	800×480	163.20 × 97.92	170.2 × 111.2	5	√	SPI
7.5inch e-Paper (B)	red, black, white	2	800×480	163.20 × 97.92	170.2 × 111.2	26	×	SPI
7.5inch e-Paper (G)	black, white	2	800×480	163.20 × 97.92	177.20 × 118.20	5	×	SPI
13.3inch e-Paper (K)	black, white	2	960×680	175.52 × 195.16	286.32 × 212.26	5	√	SPI

* Full Refresh Time: local refreshing time without network transmission, if refreshing through network connection, it usually take 1-5 minutes, depending on the network type, connection quality, image size, and so on.

Lieferumfang

1. e-Paper Shield (B) x1
2. e-Paper Adapter with 24PIN FFC cable ~200mm x1
