SKU:WSAL24211

Kurzbeschreibung: USB Port High Definition HDMI Video Capture Card, For Gaming / Streaming / Cameras, HDMI To USB

USB port high definition HDMI video capture card, for gaming / streaming / cameras, HDMI to USB

USB HD video capture card

HDMI to USB, Driver-free

Version Options

HDMI to USB3.0 AdapterUSB3.0 Version

HDMI to USB Adapter USB2.0 Version

USB 3.0 Version Description
Marketing Name	Logo	USB3.2 Specification	Old Specifications		Transfer Speed
USB 5Gbps		USB 3.2 Gen 1x1	USB 3.1 Gen 1	USB 3.0	5Gbit/s

Specifications

Product	HDMI to USB3.0 Adapter	HDMI to USB Adapter
Input	HDMI
	Input resolution up to 4K (3840*2160@30Hz)
	HDMI 1.4B compliant
Output	USB3.0	USB2.0
	Output resolution up to 1080P(1920*1080@60Hz)	Output resolution up to 1080P(1920*1080@30Hz)
	Supports YUV422 and MJPEG modes	Supports YUV and JPEG modes
	UVC1.0 and UAC1.0 protocol compliant
Transmission Latency*	As low as 50ms	100~150ms
Audio	Default 48KHz stereo output
System support	Windows, Linux, macOS, Android
Software support	OBS, Potplayer, QuickTime, XSplit, etc.

* test data are from Waveshare laboratory, and the actual performance may be different according to the device you are using.

Wide variety of hosts support

easy use with different hosts like: smartphone, game console, set-top box, camera...

* the video output ports may be different, an additional corresponding adapter cable is required for different hosts.

Multi systems support

Supports Windows, Linux, macOS, Android

using with Raspberry Pi

for reference only, the adapter cable is NOT included.

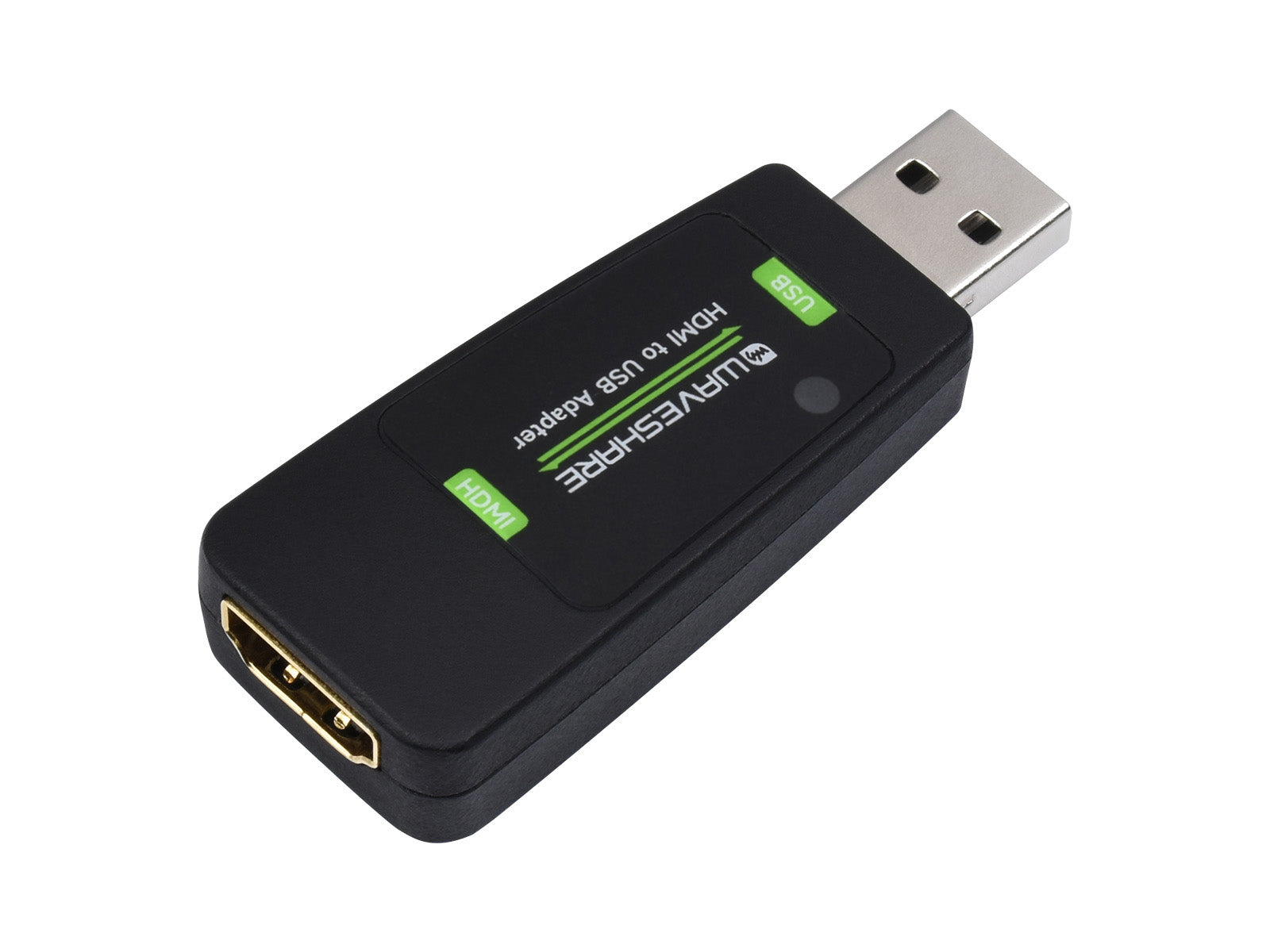

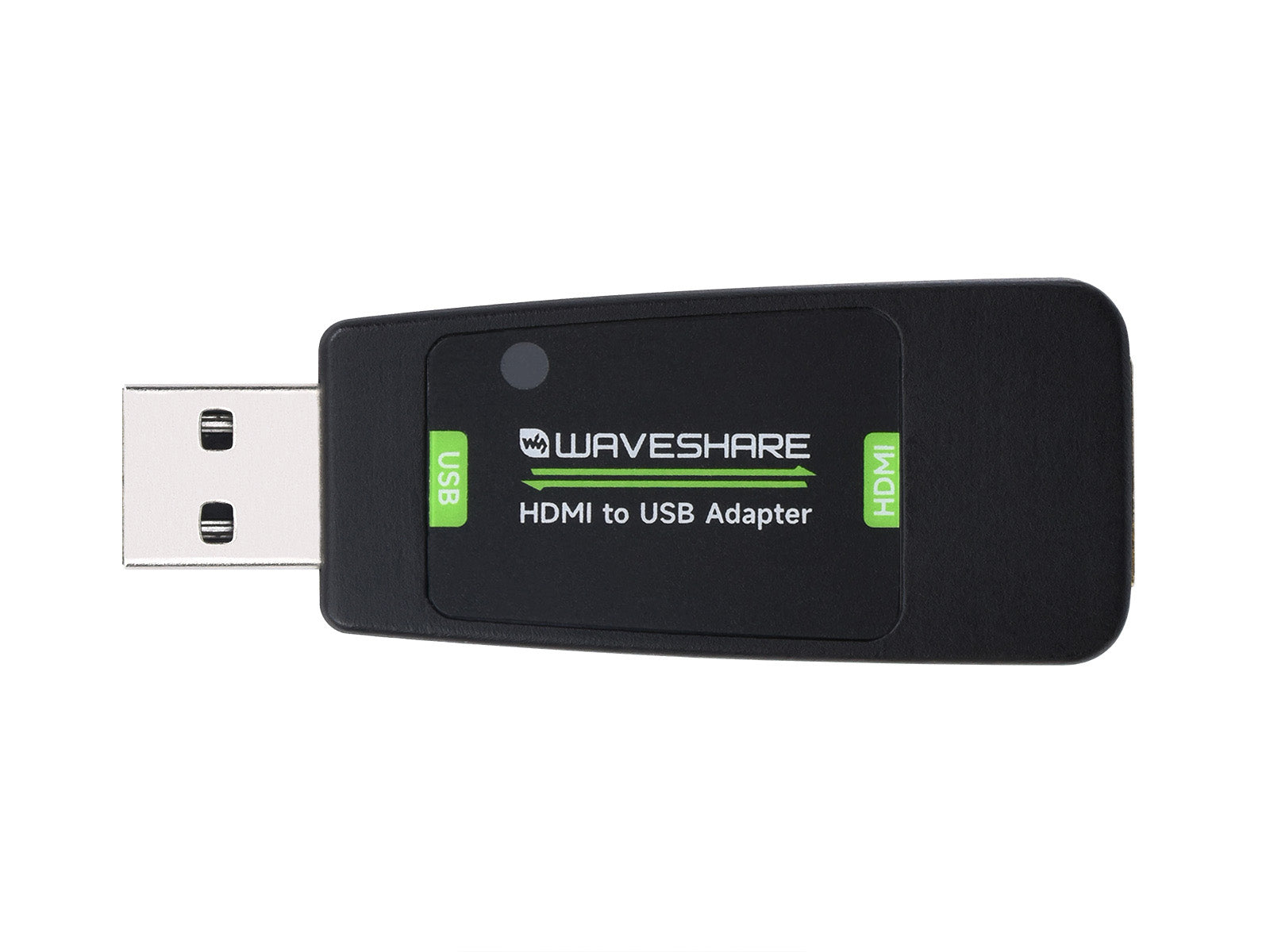

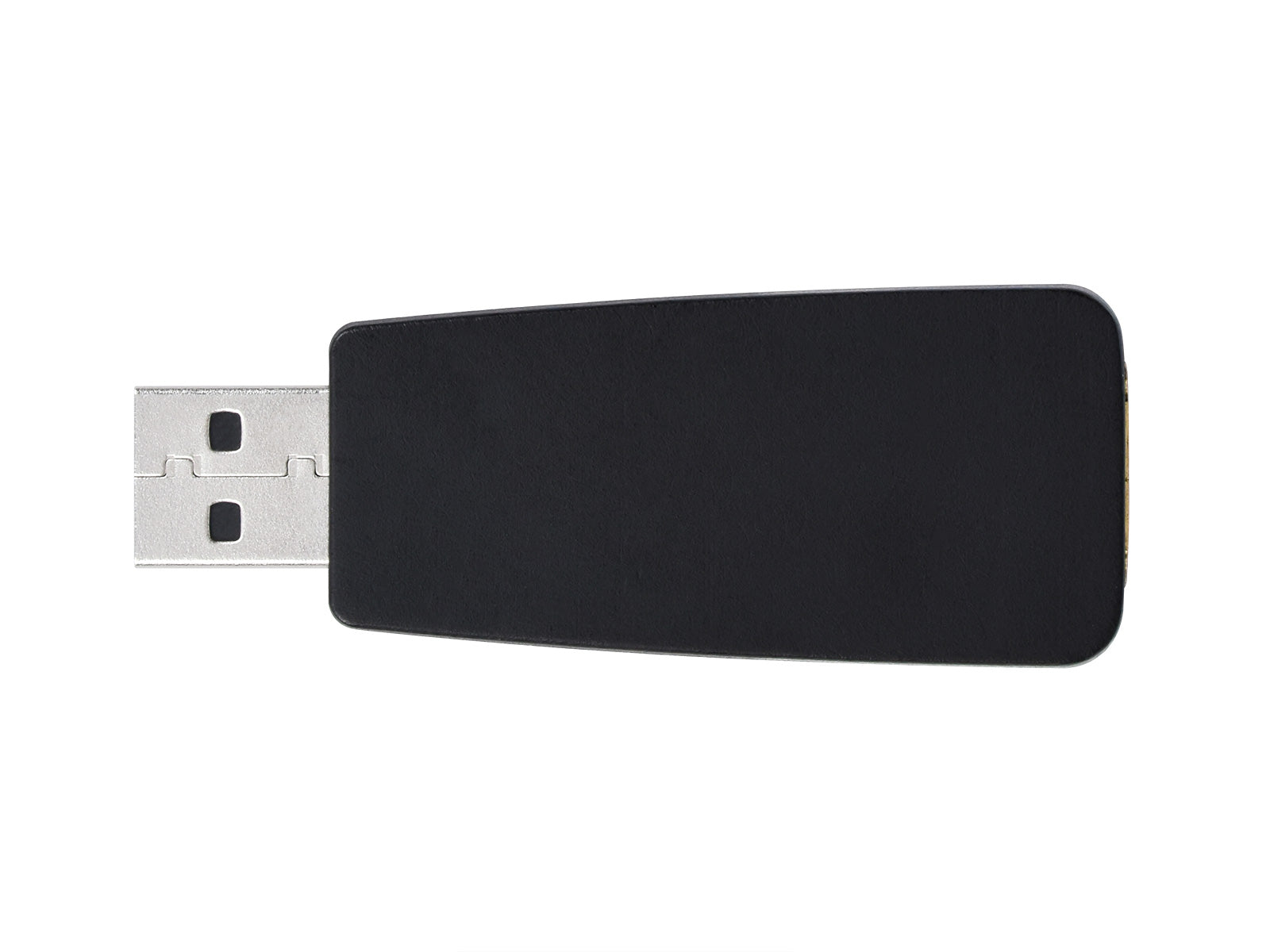

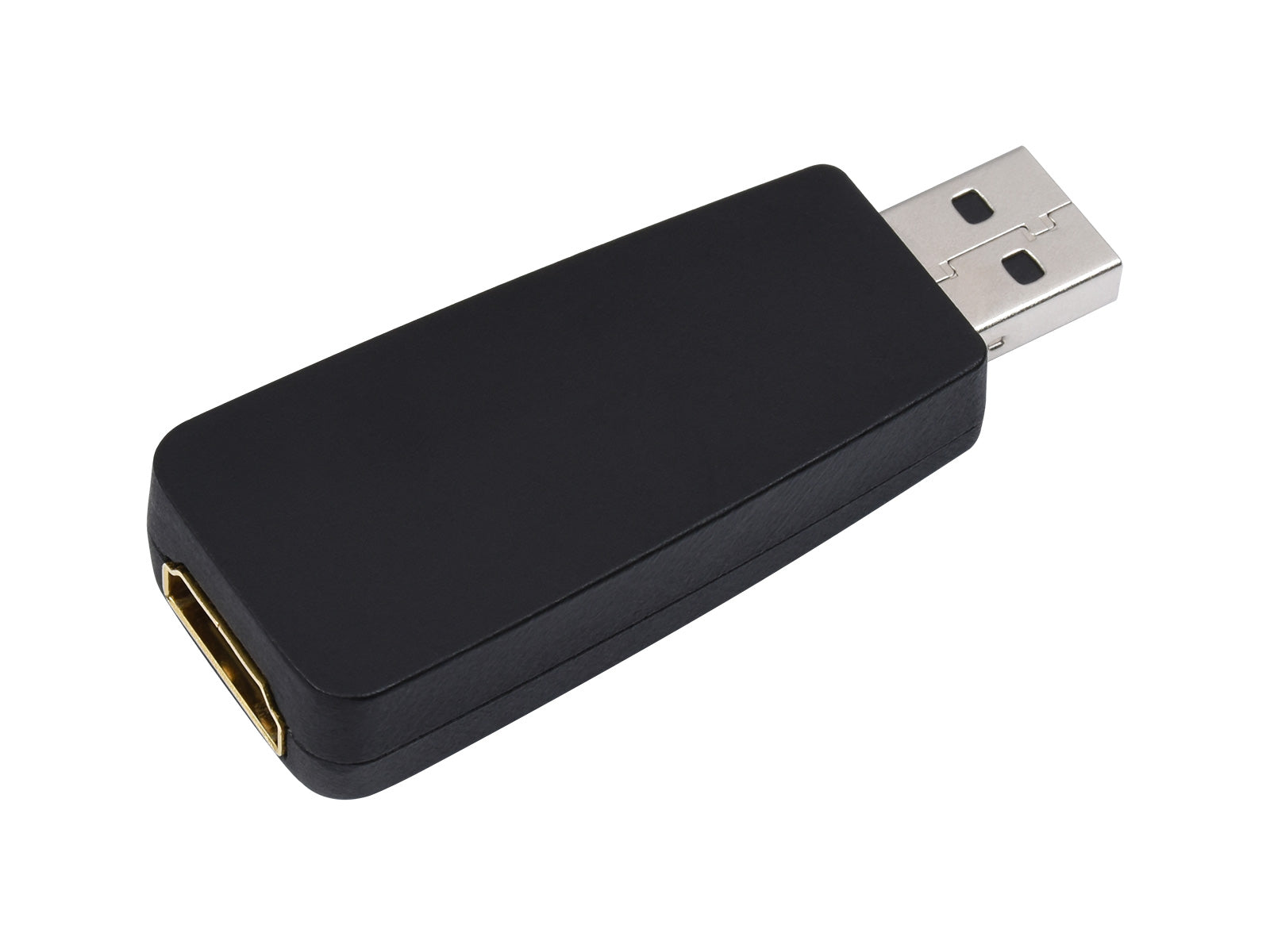

Product show

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/HDMI_to_USB_Adapterwww.waveshare.com/wiki/HDMI_to_USB3.0_Adapter

Lieferumfang

1. OPTIONS HDMI to USB Adapter x1
