SKU:WSAL29573

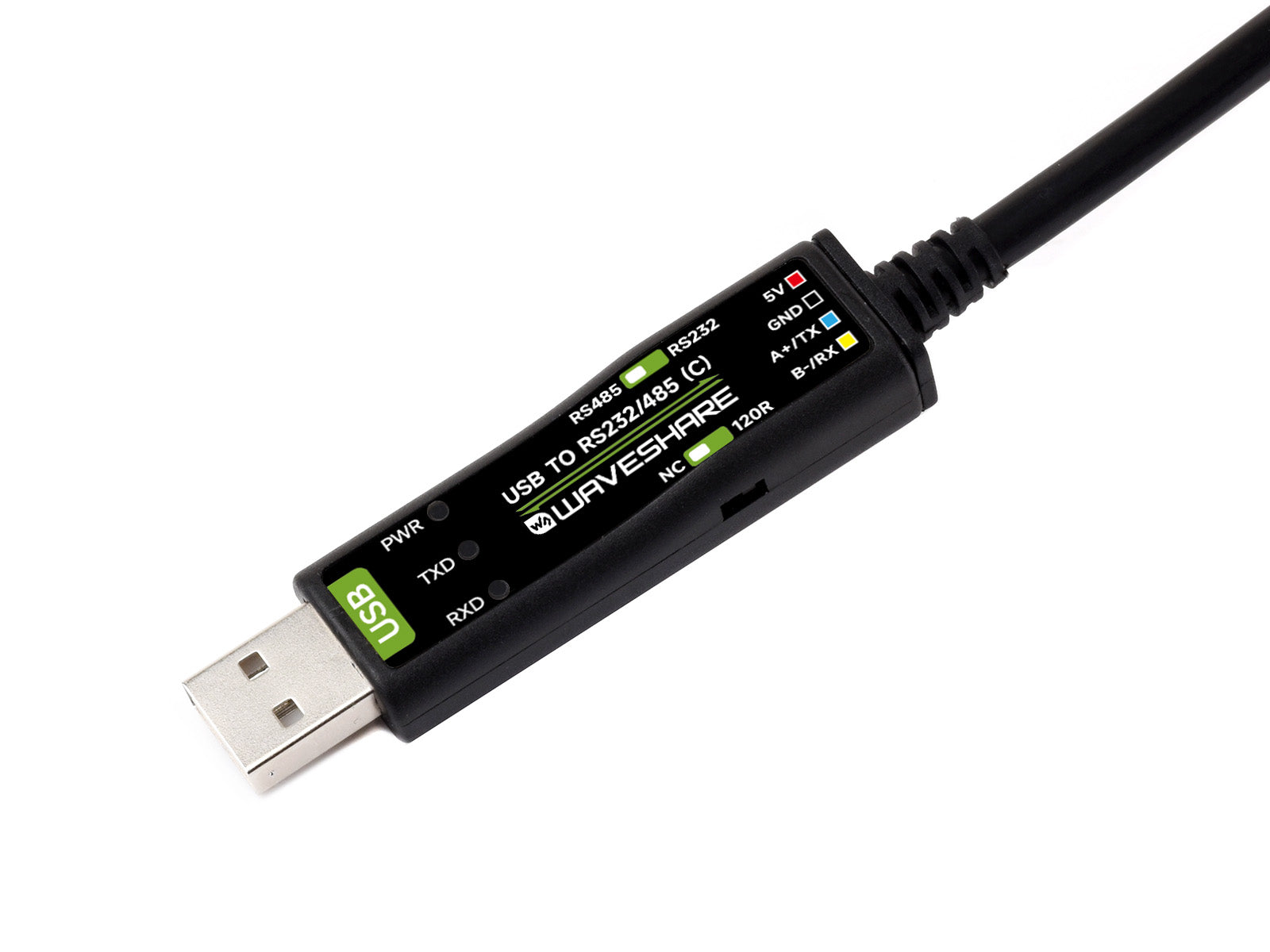

USB To RS232/485 Serial Cable, Original FT232RNL Chip, Onboard Power And Signal Indicators, Multi-OS Compatible & Multi-device Applicable

USB TO RS232/485 serial cable

USB to RS232OrUSB to RS485

FT232RNL | 2m cable | Stable Transmission | Multi-device Applicable | Multi-OS Compatible

This product is a USB to RS232 / RS485 serial cable, adopts original FT232RNL chip. Onboard power supply and signal indicators, built in RS485 120Ω terminal resistor enabled via switch, supports RS232 / RS485 communication switching. Built-in self-recovery fuse, ESD and TVS protection diode circuits, etc, compact in size.

Specifications

PRODUCT TYPE	USB to RS232/485 serial cable
Chip	Original FT232RNL chip
Host port	USB
Device port	RS232 / RS485 (switchable)
USB	Connector	USB-A
	Protection	Self-recovery fuse, ESD protection
RS232	Connector	4PIN cable with female crimp connector
	Protection	TVS tube, surge-suppress and ESD protection
	Transmission mode	Point-to-point
	Baud rate	300bps ~ 921600bps
RS485	Connector	4PIN cable with female crimp connector
	Protection	200W lightningproof, surge-suppress and ESD protection
	Transmission mode	Point-to-multipoints
	Baud rate	300bps ~ 921600bps
LED indicators	PWR	Power indicator, lights up when there is USB connection and voltage is detected
	TXD	TX indicator, lights up when the USB port sends data
	RXD	RX indicator, lights up when the device port sends data back

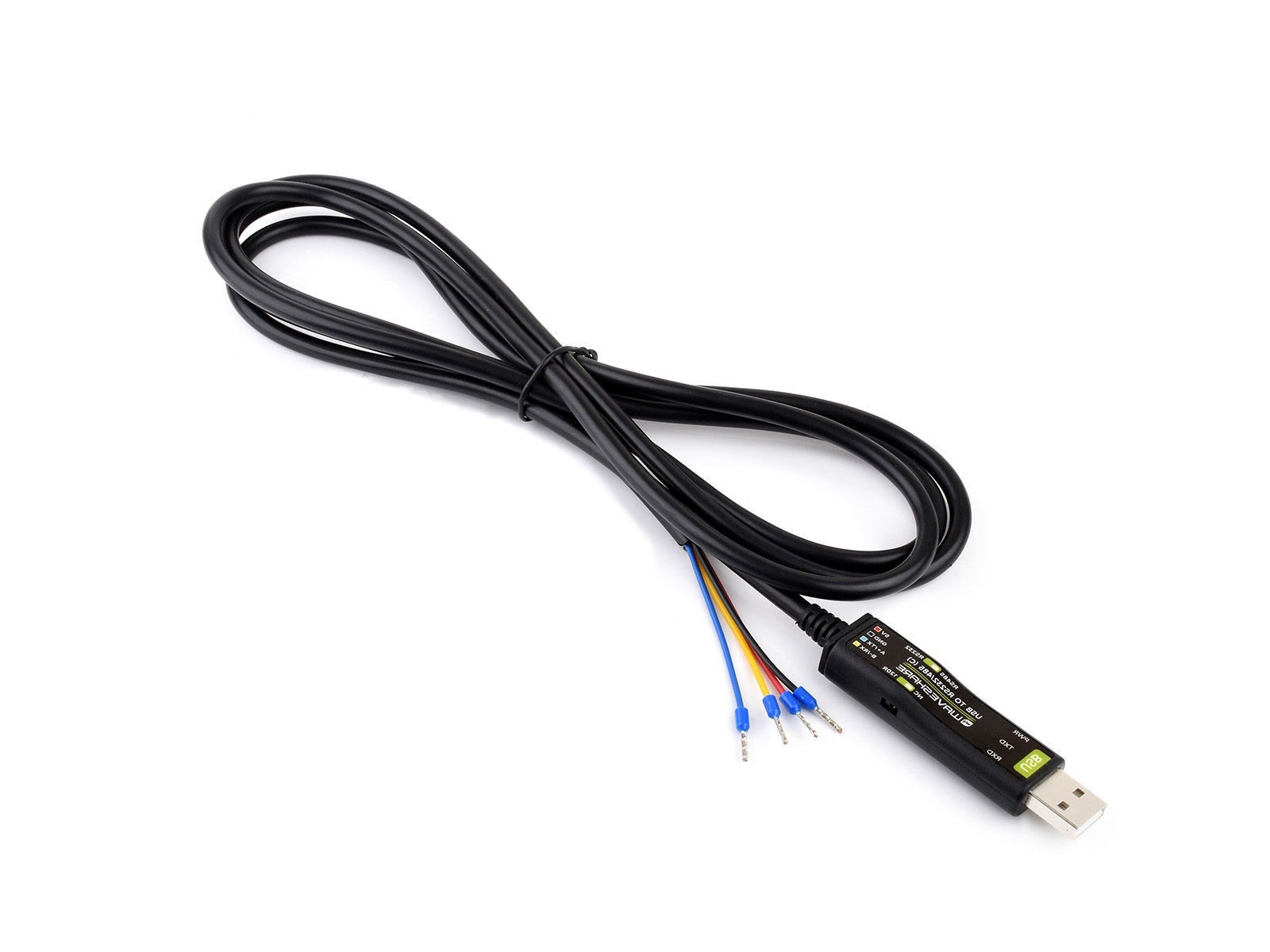

Cable	Black, PVC sheath, 2m cable length

Onboard Original Chip

Onboard original FT232RNL chip, providing better stability and compatibility

Multi system Support

Supports Mac, Linux, Android, Win11/10/8.1/8/7, etc.

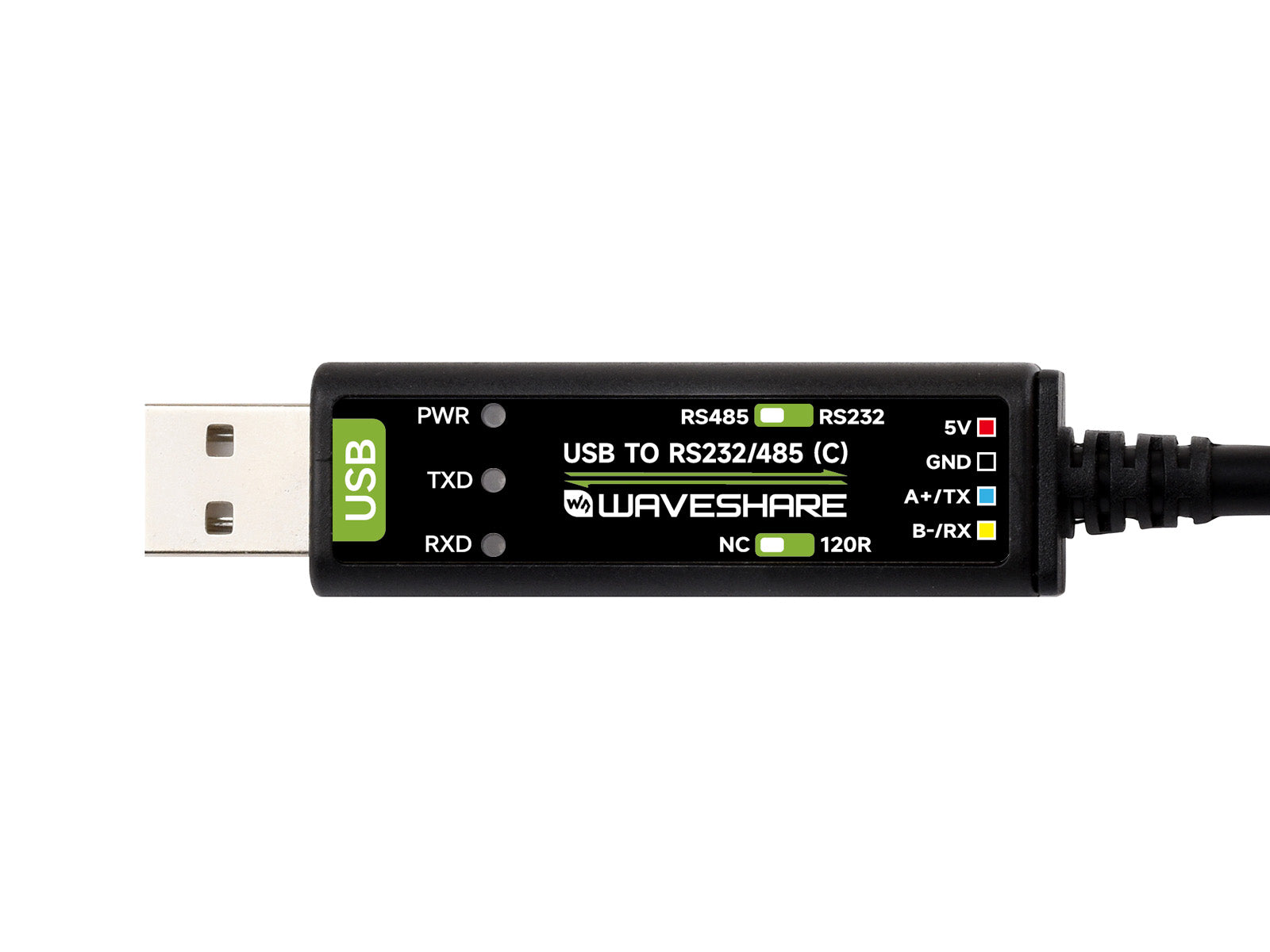

Interface Introduction

Pinout Definition

5V	5V output for external devices
GND	Ground
A+/TX	RS485 differential signal positive A+ / RS232 TXD
B-/RX	RS485 differential signal negative B- / RS232 RXD

Outline dimensions

* measured manually, for reference only

Resources & Services

---

WIKI:www.waveshare.com/wiki/USB_TO_RS232/485_(C)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Lieferumfang

USB TO RS232/485 (C) x1
