SKU:WSAL26405

Waveshare ESP32-GEEK Development Board, Based On ESP32-S3R2 Controller Chip, With 1.14inch 65K Color LCD, Supports WiFi & Bluetooth LE

Name: Waveshare ESP32-GEEK Development Board, Based On ESP32-S3R2 Controller Chip, With 1.14inch 65K Color LCD, Supports WiFi & Bluetooth LE
Brand: WaveShare
SKU: WSAL26405
Price: 4510.61 HUF
Availability: InStock

4.511 Ft

4.511 Ft 0 Ft

Sale Ausverkauft

Steuer enthalten. Versand wird an der Kasse berechnet.

Menge

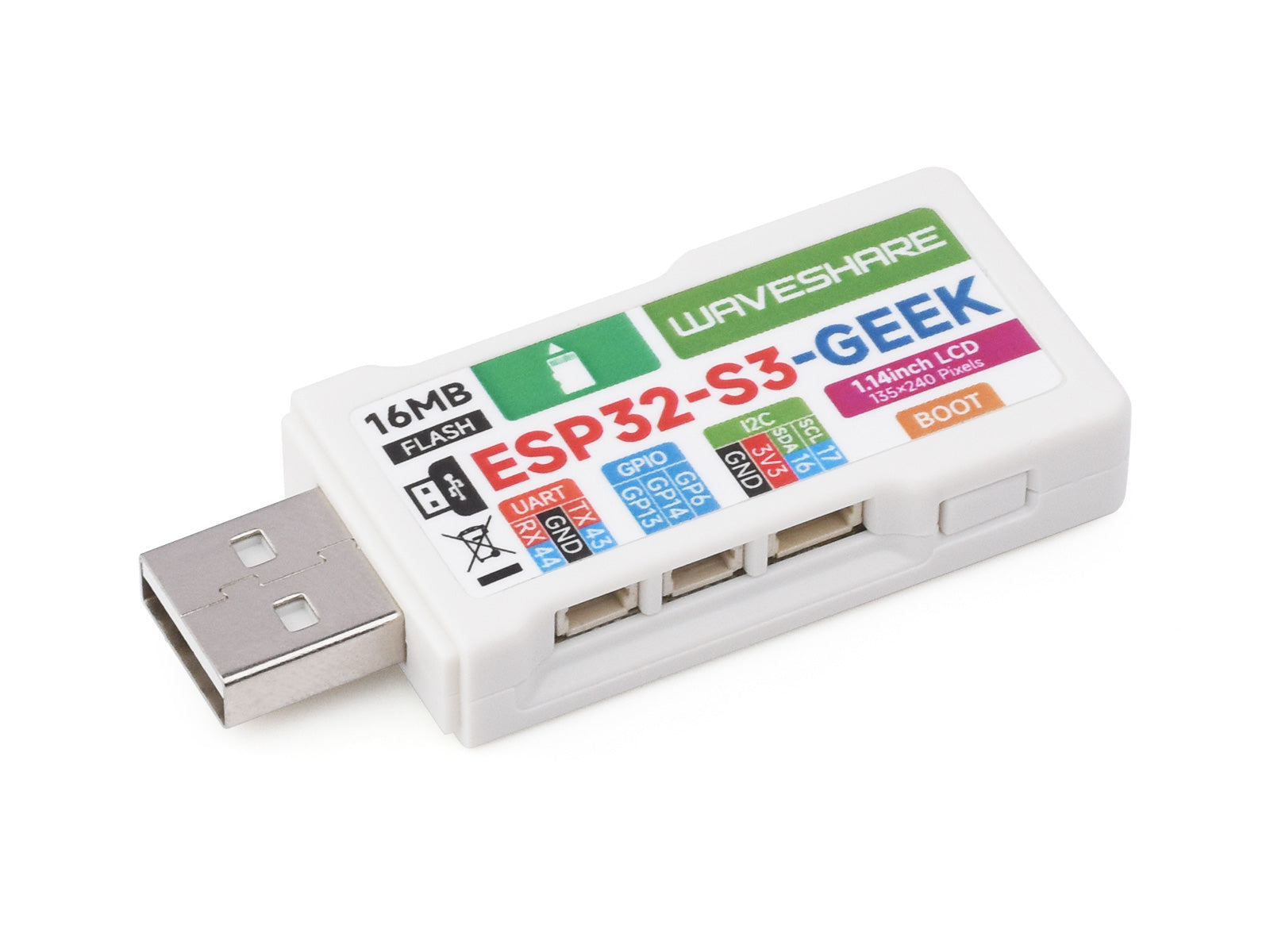

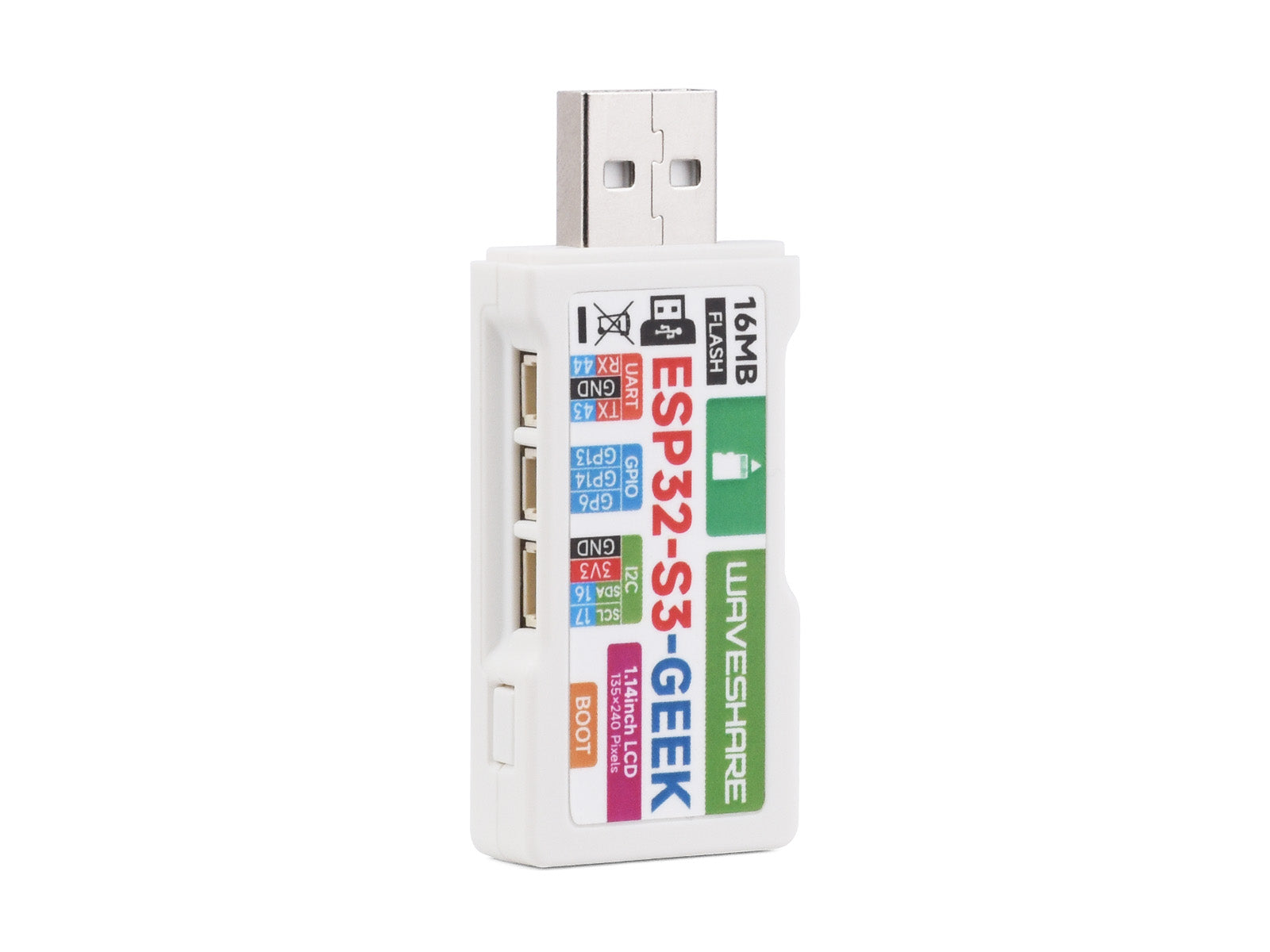

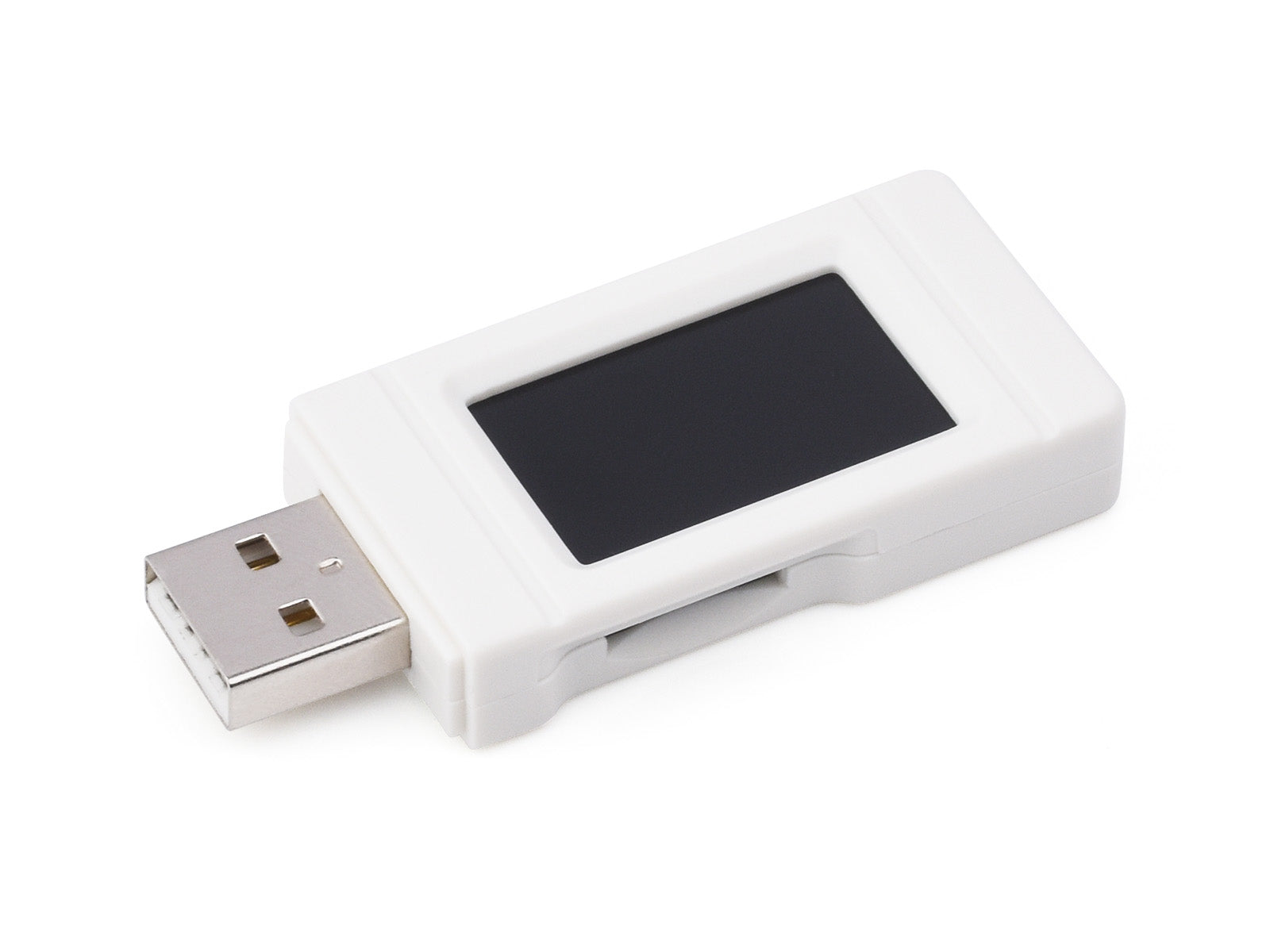

Waveshare ESP32-GEEK Development Board, Based On ESP32-S3R2 Controller Chip, With 1.14inch 65K Color LCD, Supports WiFi & Bluetooth LE, USB-A Male Port, With White Plastic Case

ESP32-S3 GEEK Development Board

Integrated LCD Screen, TF Card Slot, Boot Button and Other Peripheral interfaces

Suitable for applications such as Wireless USB Flash Drive, USB WiFi/Bluetooth, USB Dongle Based on ESP32-S3

Board specifications

ESP32-S3-GEEK is a geek development board designed by Waveshare, onboard USB-A port, 1.14inch LCD screen, TF card slot, and other peripherals. Supports 2.4GHz WiFi and BLE 5, with integrated 16MB Flash & 2MB PSRAM, provides I2C port, UART port, and GPIO header, bringing more possibilities for your project.

Key features include:

Adopts ESP32-S3R2 chip with Xtensa® 32-bit LX7 dual-core processor, capable of running at 240 MHz
Built in 512KB SRAM, 384KB ROM, 2MB of on-chip PSRAM, and onboard 16MB Flash memory
Onboard 1.14inch 240×135 pixels 65K color IPS LCD display
Integrated 2.4GHz WiFi and Bluetooth LE wireless communication

WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes
WiFi supports 1T1R mode with data rate up to 150 Mbps
Bluetooth supports high power mode (20dBm)
Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna

Onboard 3PIN UART port, 3PIN GPIO header and 4PIN I2C port
Equipped with plastic case and cables
Provides online open-source demo and resources, more convenient for learning and development

Combines multi functions in one

Onboard multi interfaces and 1.14inch LCD display, Combines with WiFi & Bluetooth for more possibilities

Application Example

Suitable for creative applications such as wireless USB flash drives, USB WiFi/Bluetooth, USB Dongle based on ESP32-S3, as well as for Introductory Programming Learning, etc.
