SKU:WSAL24359

This product is the base board only. Please purchase the Orin Module separately.

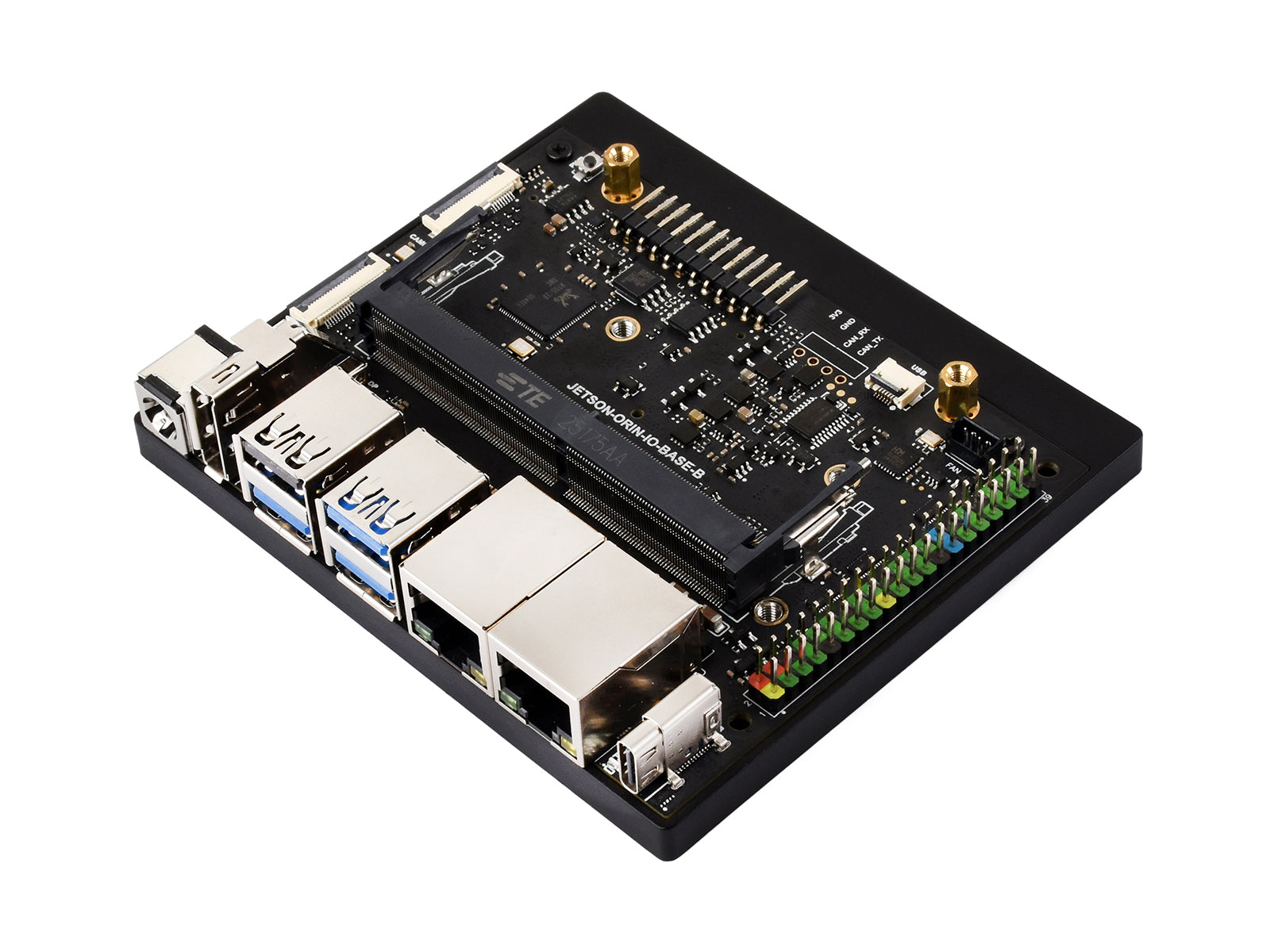

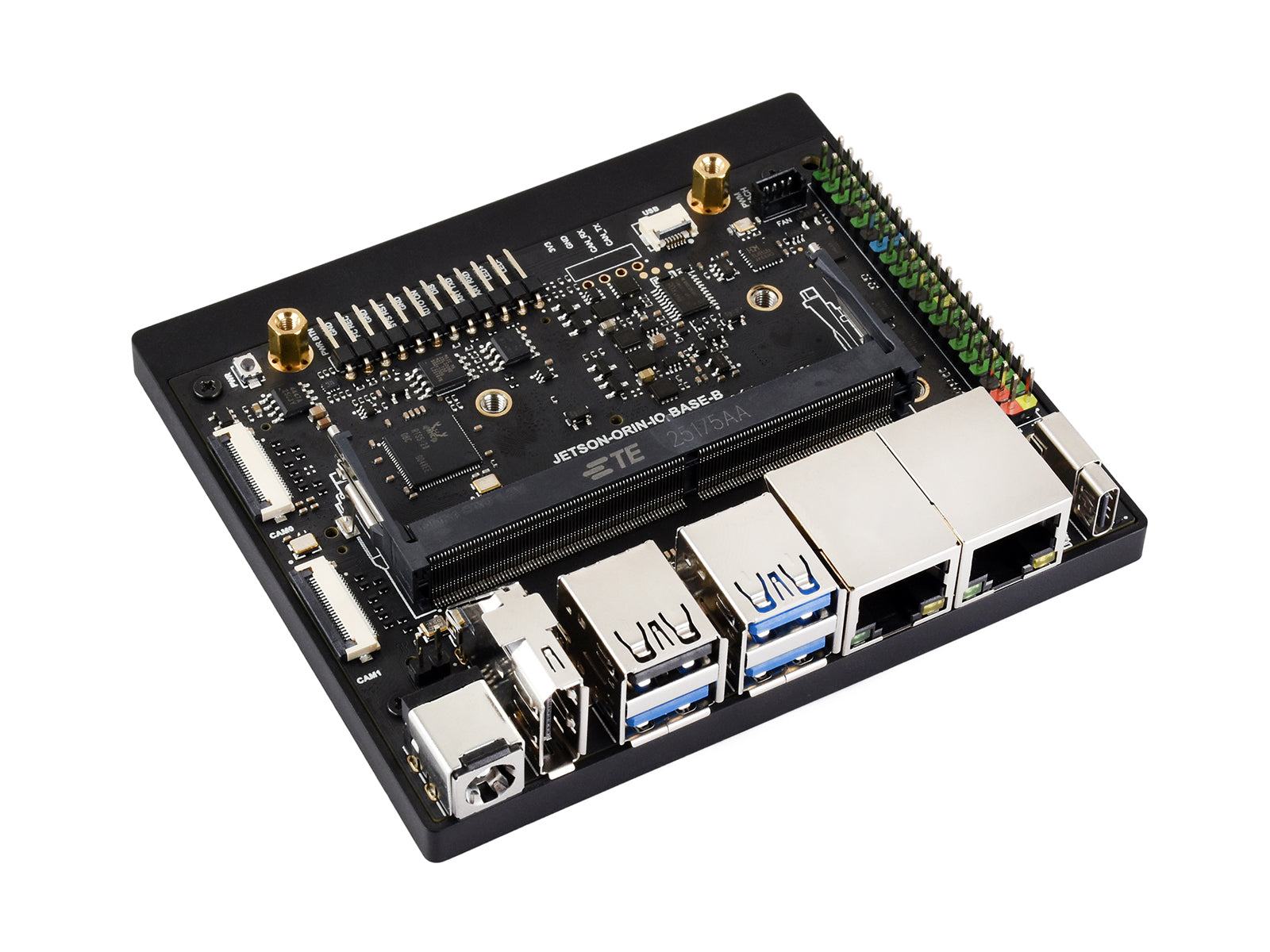

Waveshare Jetson Orin Nano / NX Super Dual Ethernet Base Board, Based on Jetson Orin Nano and Jetson Orin NX module, Compatible with N-VIDIA Jetson Orin Nano Super AI Development Kit Base Board

JETSON-ORIN-IO-BASE-B

Waveshare Jetson Orin Nano / NX Base Board

Based on the Jetson Orin NanoandJetson Orin NX modules, onboard dual Ethernet ports

Compatible with Orin Modules

Supports connecting to N-VIDIA Jetson Orin Nano moduleandJetson Orin NX module

connect to CSI camera

Expands 2 × CSI camera interfaces for AI Intelligence applications such as face recognition road sign detection, Lane Line detection, and license plate recognition

* Note: the adapter cable is required for connecting the camera.

7 × USB ports

4 × Type-A + 1 × Type-C + 2 × USB2.0 FFC connectors

Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps, Type-C port can be used for system burning, and Onboard 2 × USB 2.0 FFC connectors

4K High Definition output

Supports DP High-definition Port

color-coded 40PIN GPIO header

color-coded header pins to differentiate IO resources such as I2C, SPI, I2S, UART, GPIO, etc.

Flexible storage and wireless expansion

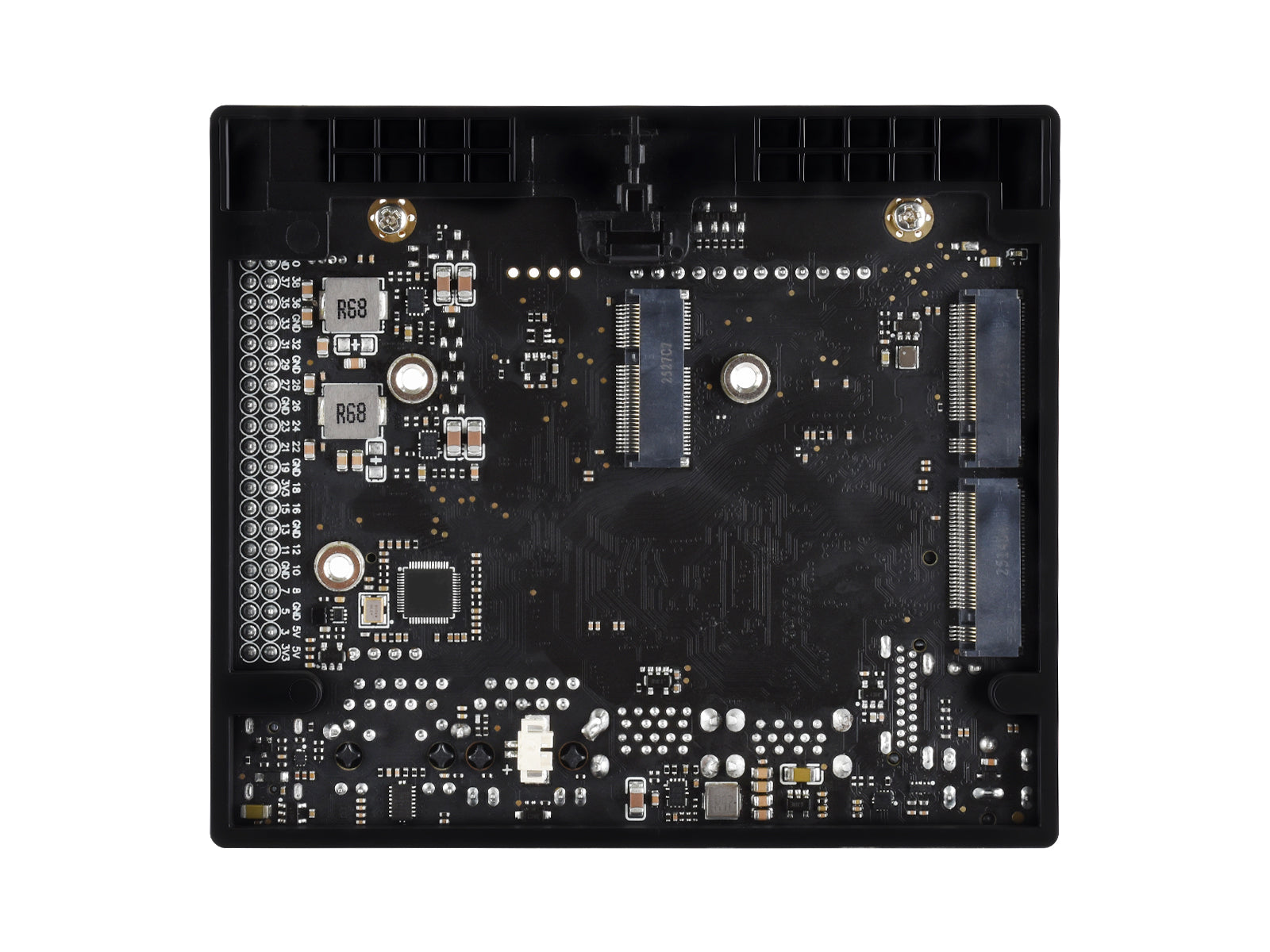

Onboard 2 × M.2 Key M ports for easy connecting Solid State Drives and 1 × M.2 Key E interface for connecting wireless NIC, which can reduce cable connection

* for reference only, the Solid State Drive and wireless network card are NOT included.

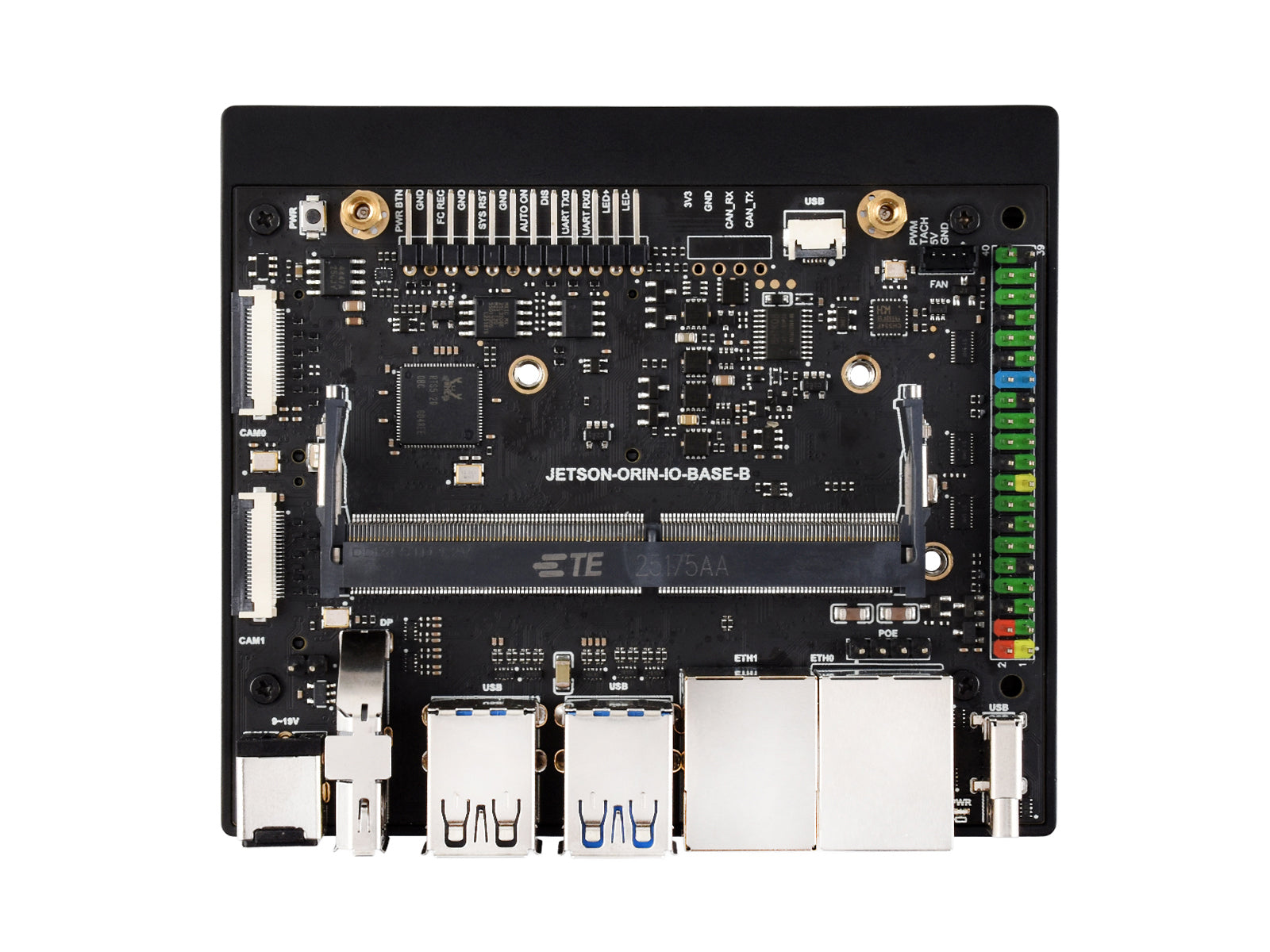

What's On Board

1. 260PIN DO-DIMM socketfor connecting Jetson Orin Nano/NX module
2. 12PIN headerAdapting pins for power supply button, reset button, debug serial port, force recovery setting, auto power-up enable and power indicator functions
3. Power button
4. 2 × 22PIN CSI camera interfaces2 × MIPI CSI 4-lane camera interfaces
5. DC Power jackSupports wide range 9V ~ 19V power supply, compatible with 5.5 × 2.5mm male plug
6. DisplayPort portSupports 4K display

7. 4 × USB Type-A ports3 × USB 3.2 Gen2 ports, up to 10Gbps data transmission,1 × USB 2.0 port, supports 480Mbps data transmission
8. RJ45 2.5G Ethernet port
9. RJ45 Gigabit Ethernet port
10. USB Type-C portfor system burning and data communication
11. 40PIN header
12. 4PIN PWM fan header
13. 2 × USB 2.0 connectorsFFC 0.5mm 6PIN connectors

14. M.2 Key Efor connecting wireless NIC
15. 2 x M.2 Key Mfor connecting NVME solid state drives

16. RTC backup battery headerPH1.25 2P

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/JETSON-ORIN-IO-BASE-B

Lieferumfang

1. JETSON-ORIN-IO-BASE-B x1
2. Screws pack x1
